| Model |

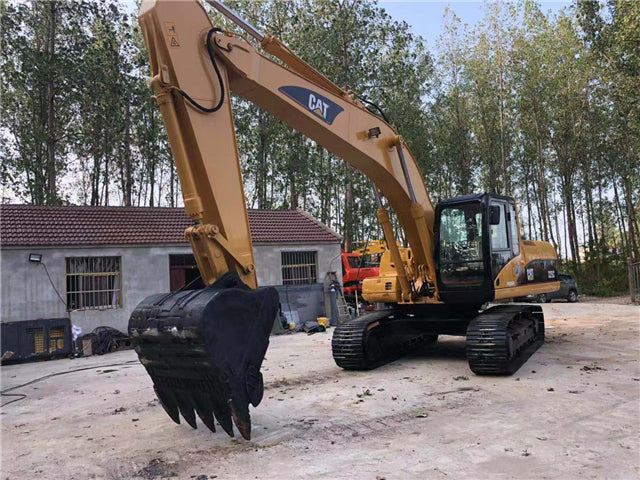

Cat 325C |
| Engine |
Cat 3066TA (turbocharged, aftercooled diesel, ATAAC) |
| Displacement |
6.37 L (389 in³) |
| Rated Power |
110 kW (148 hp) @ 1800 rpm (net, ISO 9249) |
| Cylinder Bore × Stroke |
102 mm × 130 mm |
| Operating Weight |
20300 kg (std. undercarriage); 21500 kg (long undercarriage) |
| Bucket Capacity |
1.0–1.3 m³ (standard 1.1 m³) |
| Max. Digging Depth |
6700 mm (with 5.7 m boom & 2.9 m stick) |
| Max. Reach Along Ground |
10200 mm |
| Max. Loading Height |
7000 mm |
| Swing Speed |
11.5 rpm |
| Travel Speed |
3.5/5.5 km/h (two - speed) |
| Drawbar Pull |
206 kN |
| Bucket Digging Force |
132 kN |
| Stick Digging Force |
99 kN |
| Hydraulic System Pressure |
Main: 35000 kPa; Travel: 35000 kPa; Swing: 25000 kPa; Pilot: 3900 kPa |
| Hydraulic Flow (Main Pumps) |
2×205 L/min (total 410 L/min) |
| Fuel Tank Capacity |
410 L |
| Hydraulic System Capacity (Including Tank) |
260 L |
| Engine Oil Capacity |
30 L |
