| Model |

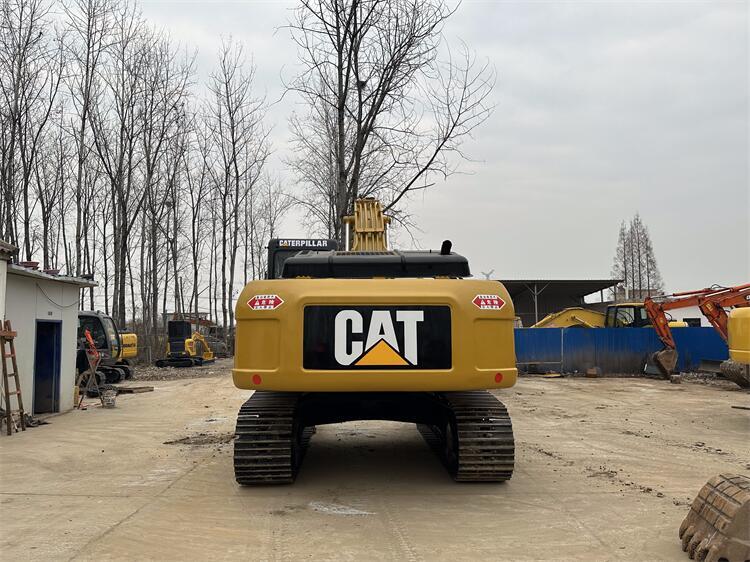

Cat 325D2 |
| Engine |
Cat C7 ACERT (turbocharged, aftercooled diesel) |
| Displacement |
7.2 L (439.4 in³) |
| Rated Power |
152 kW (204 hp) @ 2000 rpm (net, ISO 9249) |
| Cylinder Bore × Stroke |
110 mm × 127 mm |
| Operating Weight |
29240 kg (64463 lb) |
| Bucket Capacity |
1.1–1.4 m³ (standard 1.2 m³) |
| Max. Digging Depth |
7833 mm (with 6.1 m boom & 3.2 m stick) |
| Max. Reach Along Ground |
11153 mm |
| Max. Loading Height |
7900 mm |
| Swing Speed |
10.2 rpm |
| Travel Speed |
3.5/5.5 km/h (two - speed) |
| Drawbar Pull |
249.8 kN |
| Bucket Digging Force |
173 kN |
| Stick Digging Force |
126 kN |
| Hydraulic System Pressure |
Main: 35000 kPa; Travel: 35000 kPa; Swing: 25000 kPa; Pilot: 3900 kPa |
| Hydraulic Flow (Main Pumps) |
2×214 L/min (total 428 L/min) |
| Fuel Tank Capacity |
520 L |
| Hydraulic System Capacity (Including Tank) |
300 L |
| Engine Oil Capacity |
30 L |
