| Model |

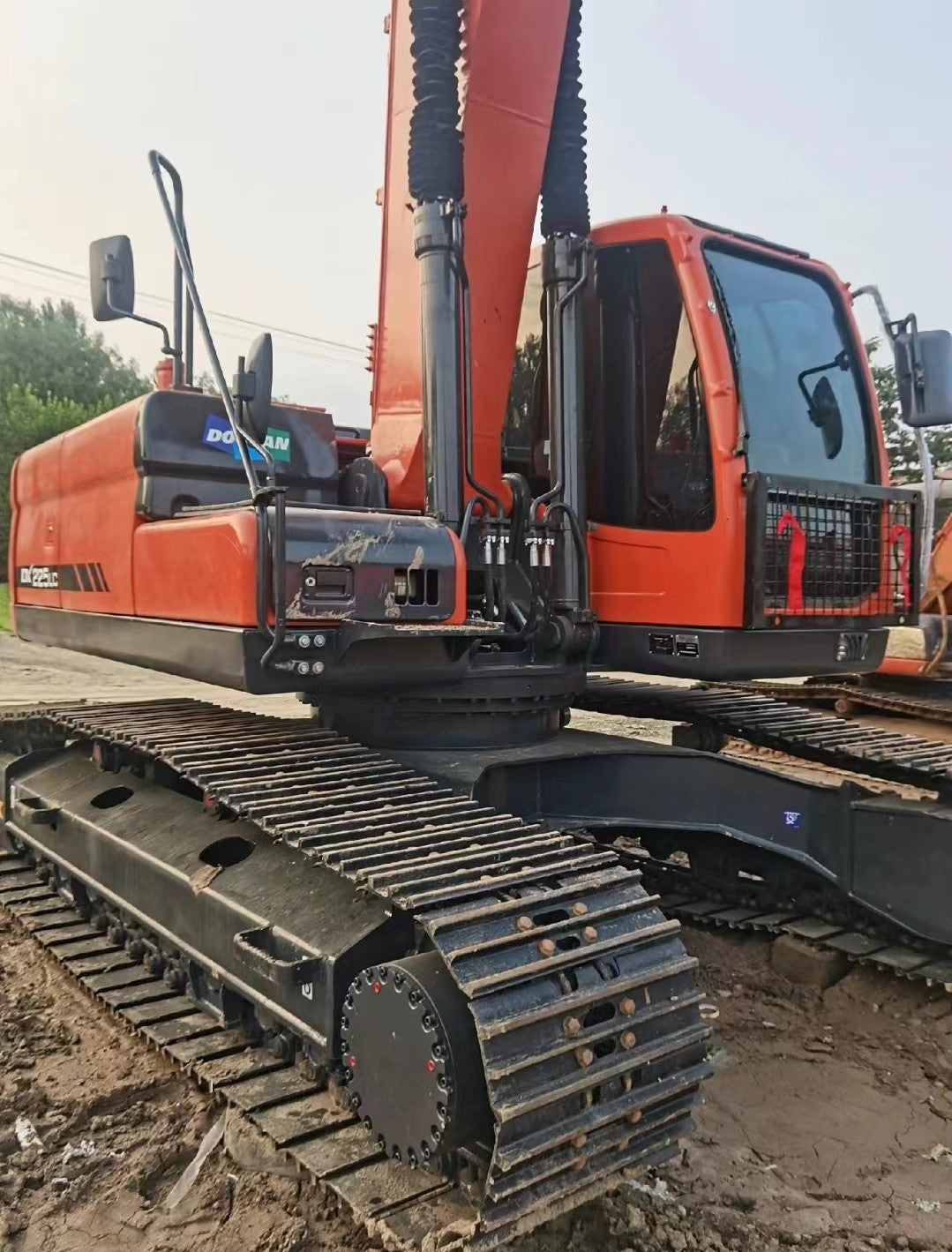

Doosan DX225LC |
| Operating weight |
21.5 t |
| Engine model |
Doosan DL06 |
| Engine type |
6-cylinder, 4-cycle, water-cooled, turbocharged, common rail direct injection |
| Rated power (SAE J1349, net) |
110 kW (148 HP) @ 1900 rpm |
| Max torque |
667 Nm @ 1400 rpm |
| Displacement |
5.89 L |
| Bucket capacity (standard) |
1.05 m³ |
| Max digging depth |
6.62 m |
| Max horizontal reach |
9.73 m |
| Bucket digging force (ISO 6015) |
144.1 kN (14.4 t, with power boost) |
| Arm digging force (ISO 6015) |
116.6 kN (11.7 t, with power boost) |
| Main pump type |
2 × variable displacement axial piston pumps + gear pump |
| Main pump max flow rate |
2 × 215 L/min |
| Relief valve pressure |
330 kg/cm² |
| Travel speed (fast/slow) |
5.5/3.0 km/h |
| Ground pressure |
0.45 kg/cm² |
| Gradeability |
70% (35°) |
| Swing speed |
11 rpm |
| Fuel tank capacity |
400 L |
