USED DOOSAN DX225LC-9C

$22,000.00 USD

أُوكَازيُون نفذ

Parameter	Value

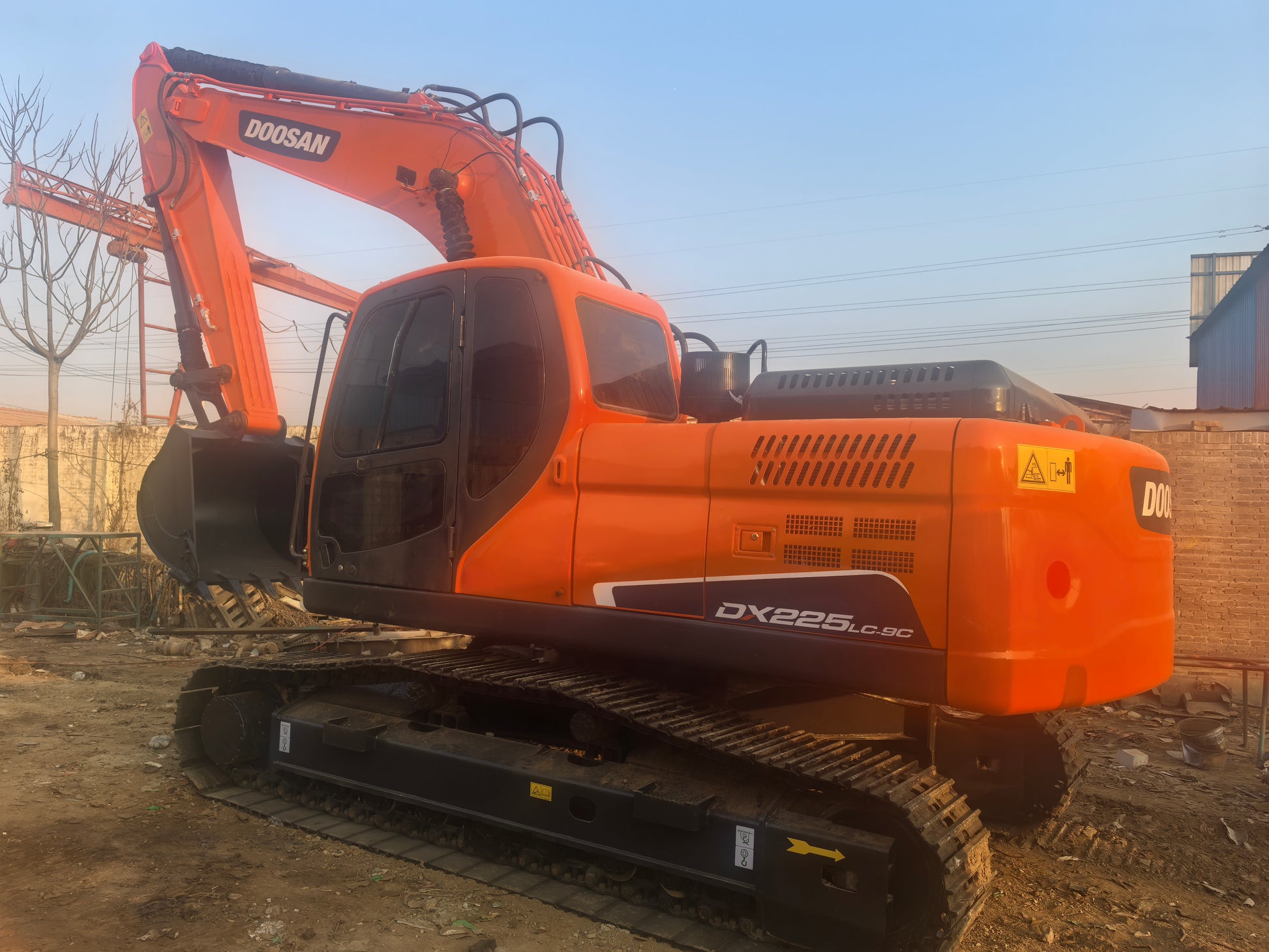

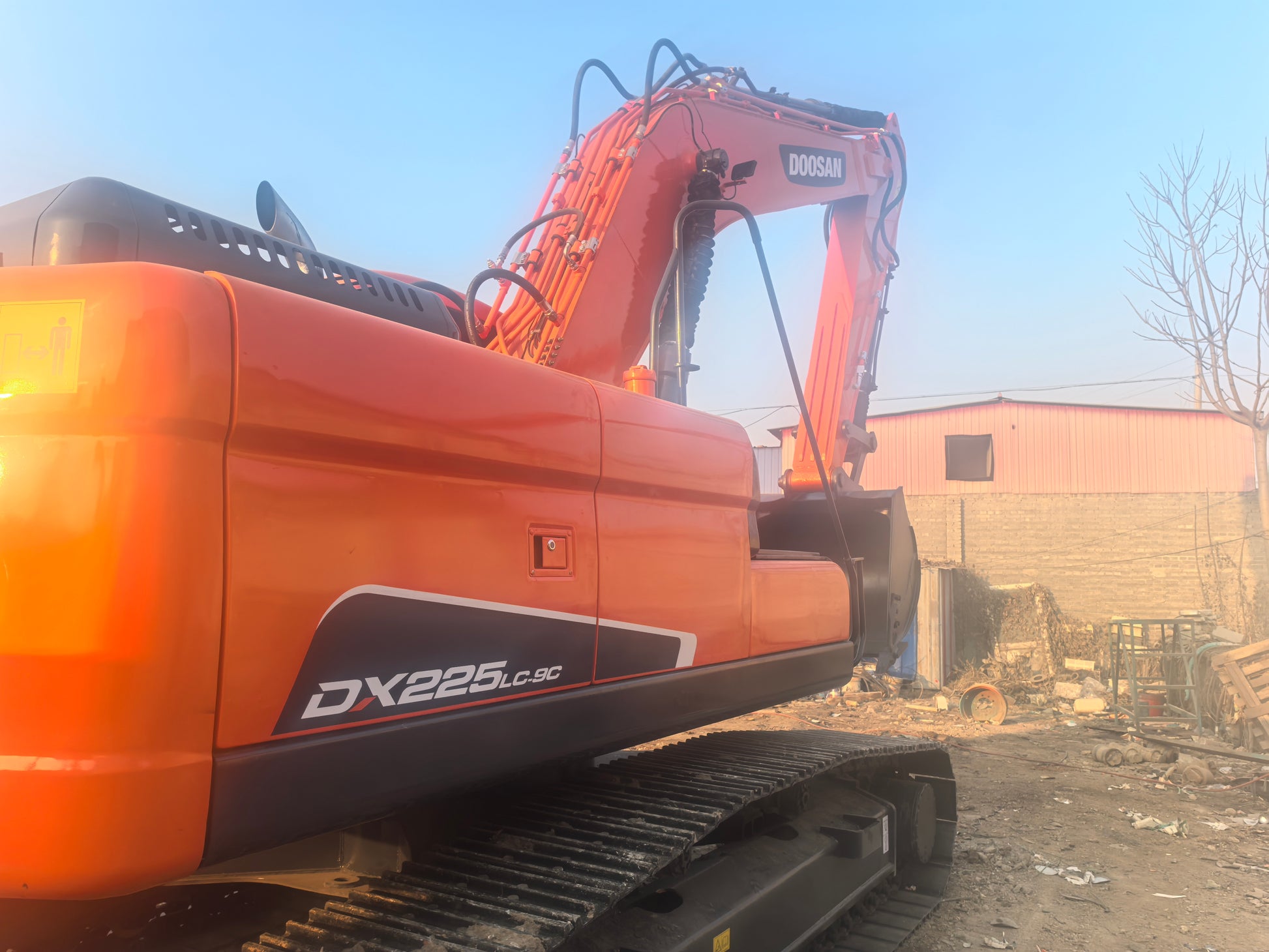

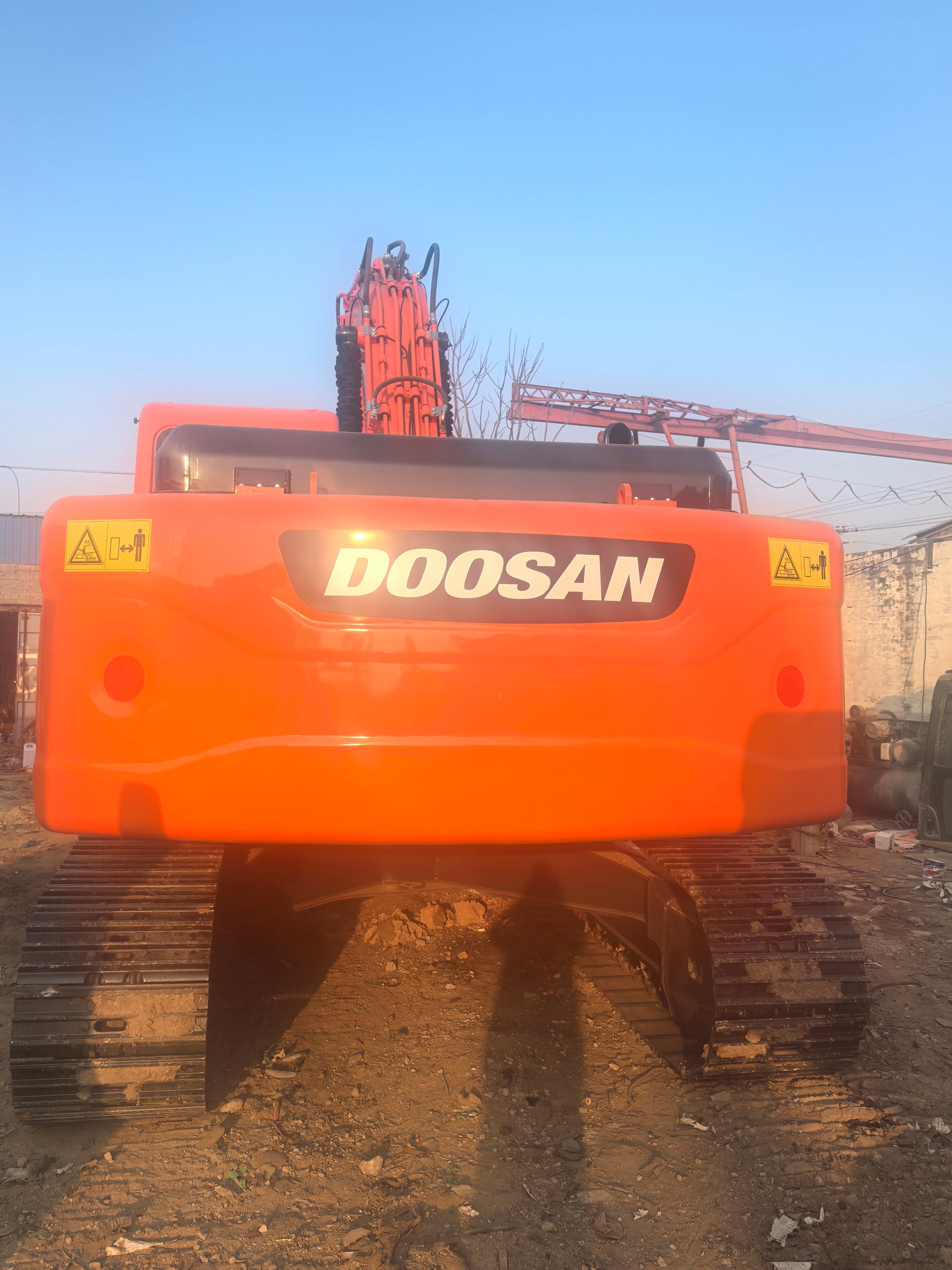

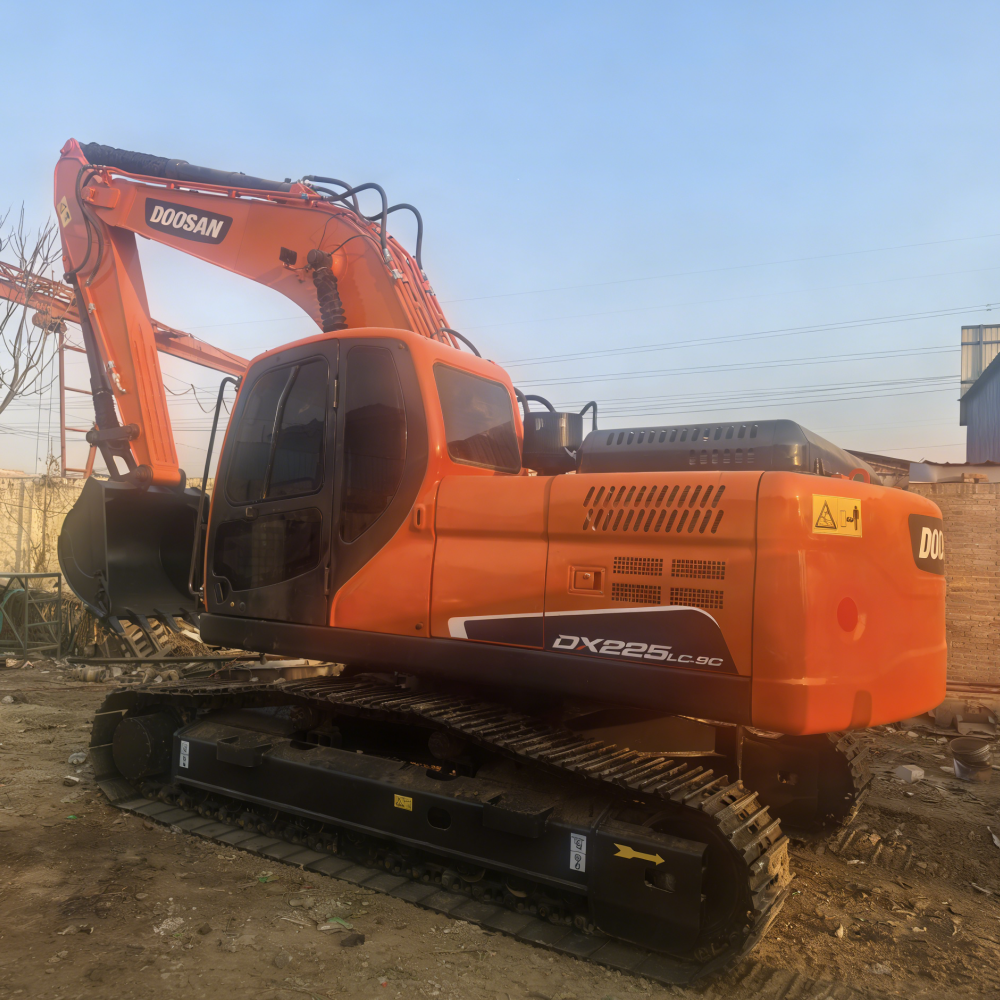

Model	Doosan DX225LC-9C
Operating weight	21.8 t (21800 kg)

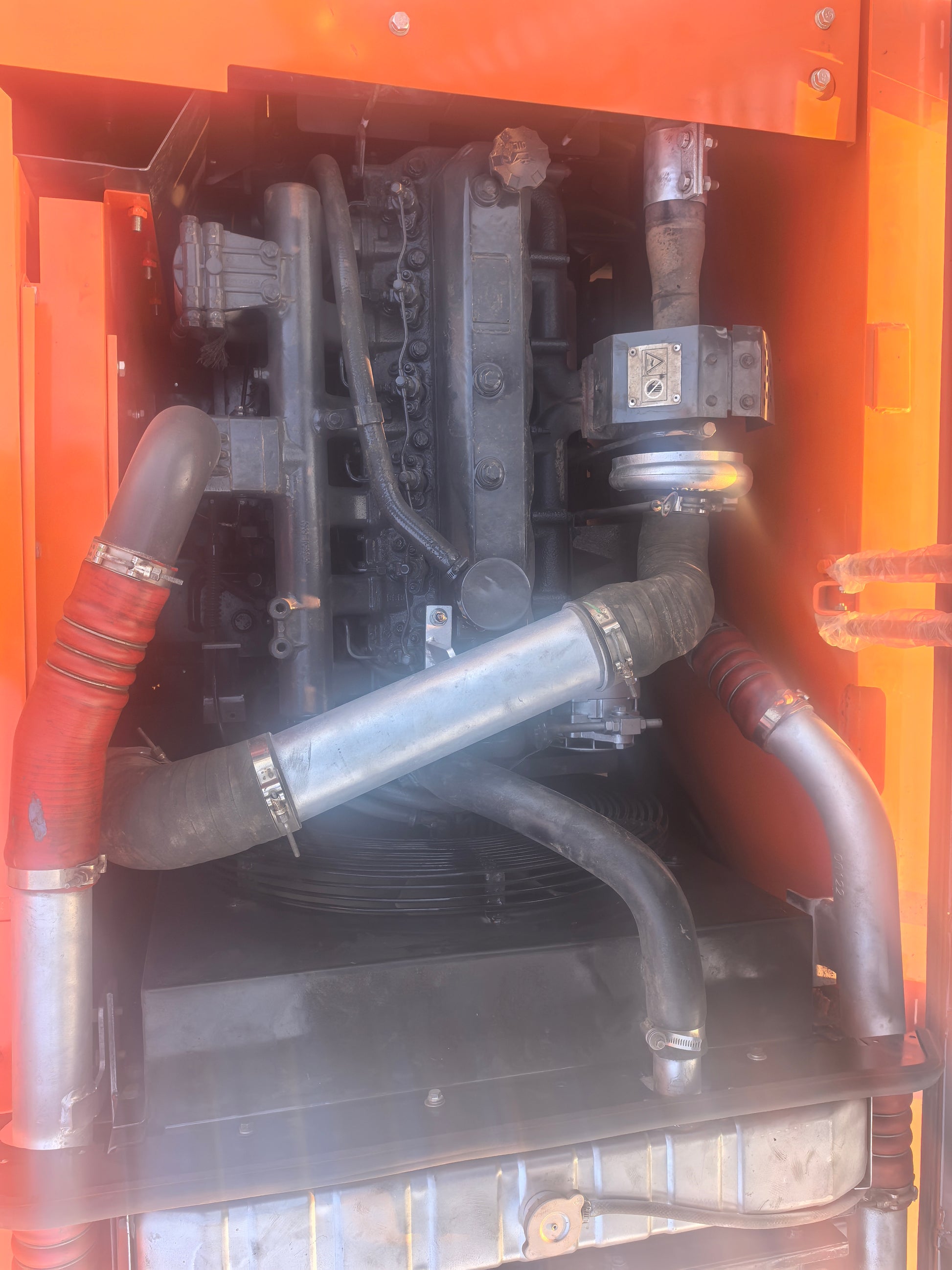

Engine model	Doosan DL06
Engine type	6-cylinder, 4-cycle, water-cooled, turbocharged, common rail direct injection
Rated power (SAE J1349, net)	115 kW (154 HP) @ 1900 rpm
Displacement	5.89 L
Bucket capacity (standard, SAE heaped)	1.05 m³
Max digging depth	6.59 m
Max horizontal reach	9.73 m
Max digging height	9.62 m
Bucket digging force (ISO 6015)	152 kN (15.2 t)
Arm digging force (ISO 6015)	108 kN (10.8 t)
Travel speed (fast/slow)	5.7/3.1 km/h
Swing speed	10.5 rpm
Ground pressure	0.44 kg/cm² (44 kPa)
Main pump type	2 × variable displacement axial piston pumps + gear pump
Main pump max flow rate	2 × 212 L/min
Relief valve pressure	330 kg/cm²
Fuel tank capacity	400 L
Gradeability	70% (35°)
