| Model |

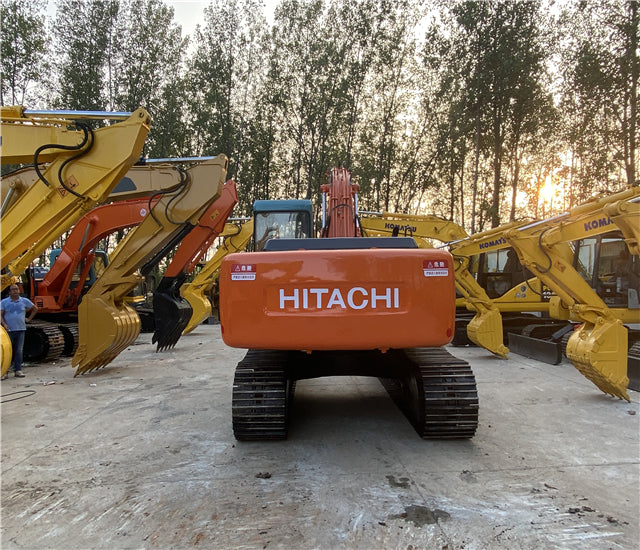

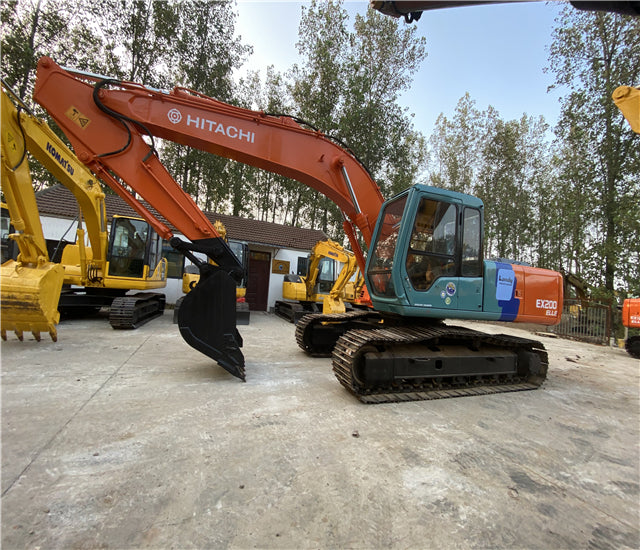

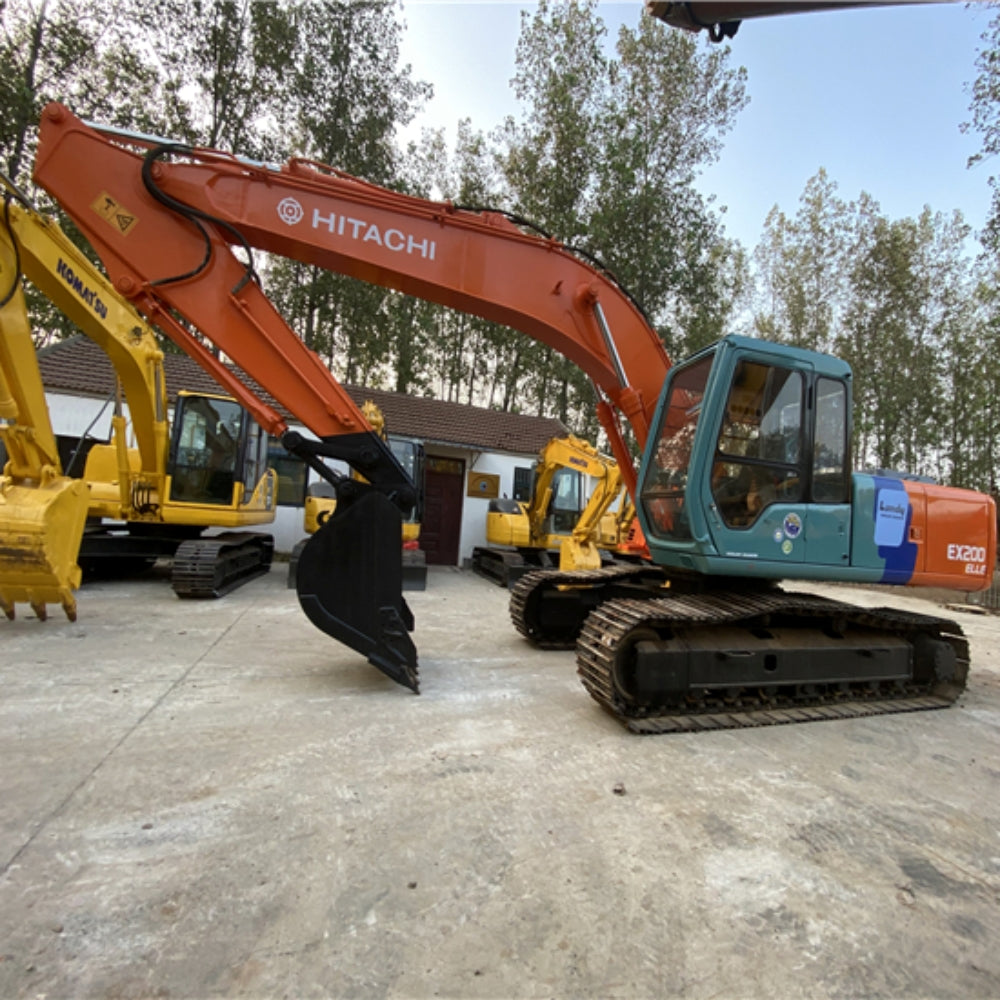

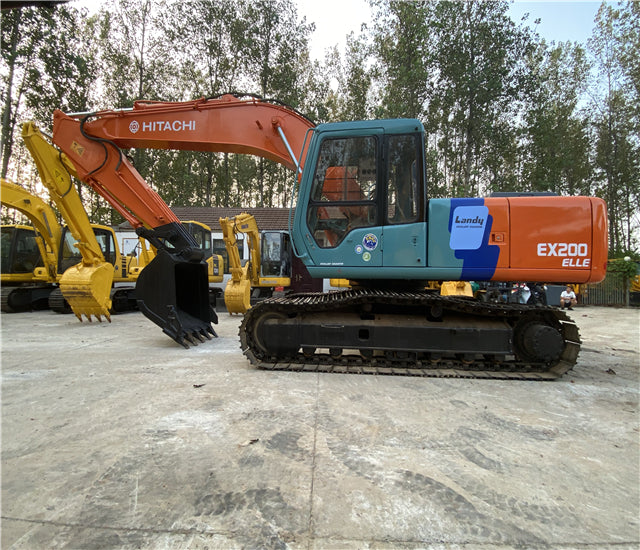

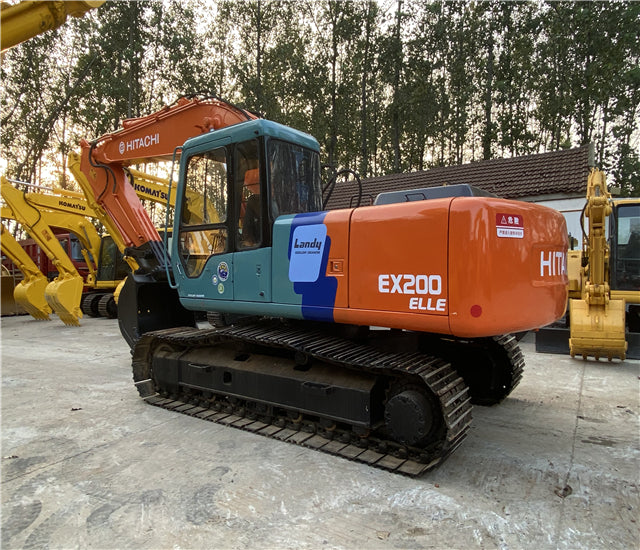

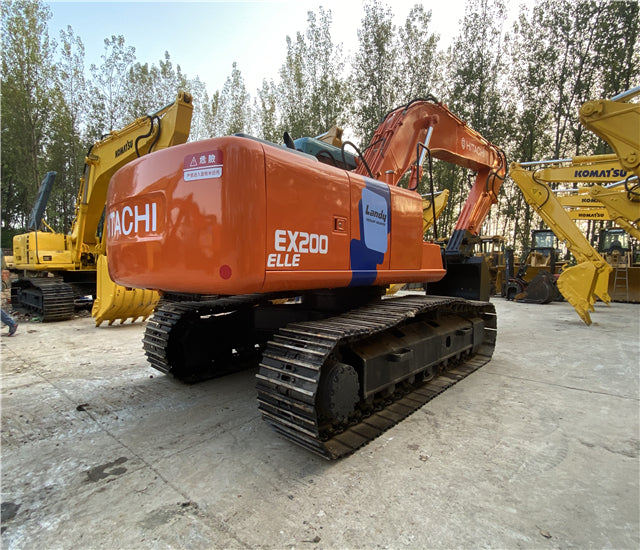

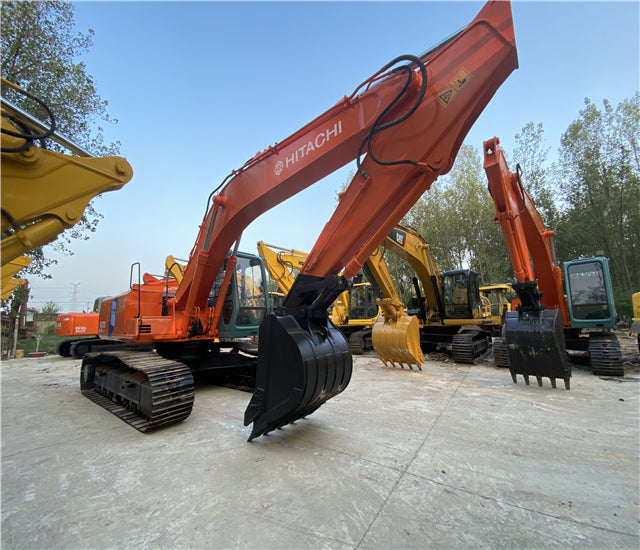

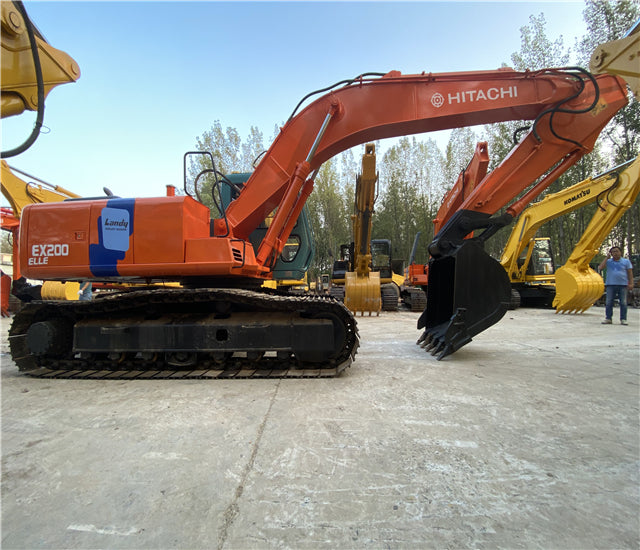

HITACHI EX200-3 (standard crawler excavator) |
| Engine |
Model: Isuzu 6BD1T (6-cylinder, water-cooled, turbocharged diesel)
Rated Net Power: 99 kW (133 hp) @ 2050 rpm (DIN 6271); 98.4 kW (132 hp) @ 2050 rpm (SAE J1349)
Displacement: 5.7 L (348 cu in)
Bore×Stroke: 102 mm×118 mm
Aspiration: Turbocharged
Max Torque: 461 N·m (340 lb·ft) @ 1600 rpm |
| Hydraulic System |
Type: Open-center, two variable-displacement axial-piston pumps
Relief Valve Pressure: 34.3 MPa (4980 psi)
Main Pump Flow: 2×138 L/min (2×36.4 US gal/min), total 276 L/min (72.9 US gal/min)
Hydraulic Fluid Capacity: 230 L (60.8 US gal) |
| Operating Weight |
19900 kg (43,872 lbs) (standard configuration with bucket and boom) |
| Bucket (Standard) |
Capacity: 0.8 m³ (1.05 yd³) (heaped); Optional: 0.51-1.2 m³
Max Digging Depth: 5980 mm (19.6 ft)
Max Loading Height: 6390 mm (21.0 ft)
Max Reach Along Ground: 9080 mm (29.8 ft)
Max Digging Height: 9170 mm (30.1 ft) |
| Dimensions |
Overall Length: 9600 mm (31.5 ft)
Overall Width (over tracks): 2990 mm (9.8 ft)
Height (top of cab): 2850 mm (9.4 ft)
Rear Swing Radius: 2750 mm (9.0 ft)
Track Gauge: 2200 mm (7.2 ft)
Ground Clearance: 450 mm (1.5 ft) |
| Undercarriage & Travel |
Track Shoe Width: 600 mm (23.6 in)
Ground Contact Length: 3940 mm (12.9 ft)
Ground Pressure: 43.5 kPa (6.31 psi)
Max Travel Speed: 5.5 kph (3.4 mph) |
| Capacities |
Fuel Tank: 310 L (81.9 US gal)
Engine Oil: 25 L (6.6 US gal)
Coolant: 22 L (5.8 US gal) |
| Swing Mechanism |
Swing Speed: 11 rpm |
