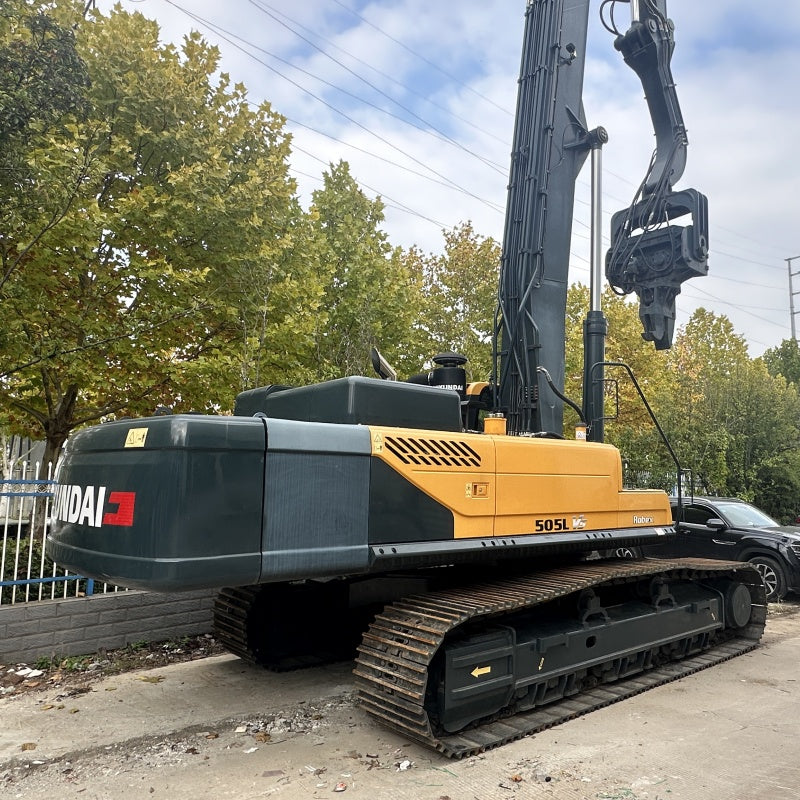

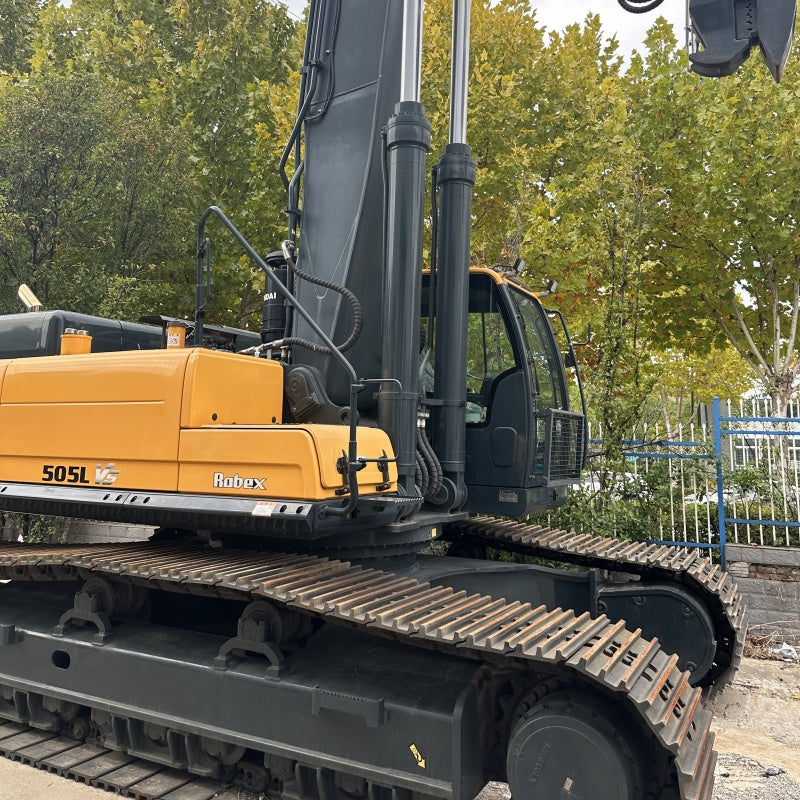

USED HYUNDAI 505LVS

USED HYUNDAI 505LVS

$50,000.00 USD
$50,000.00 USD
أُوكَازيُون نفذ

HYUNDAI 505LVS (R505LVS) Core Specifications（English）

Parameter Details
Model HYUNDAI 505LVS (R505LVS)
Operating Weight 50,200 kg
Bucket Capacity 2.8 m³ (rock) / 3.2 m³ (standard, SAE heaped)
Engine Model Cummins QSM11
Rated Power 299 kW (401 hp) / 1800 rpm
Displacement 10.8 L
Cooling Method Water - cooled
Max. Travel Speed 5.1 km/h (high) / 3.25 km/h (low)
Swing Speed 9 rpm
Max. Digging Depth 6,900 mm
Max. Digging Reach (Ground Level) 11,710 mm
Max. Dump Height 7,980 mm
Bucket Digging Force 272 kN
Arm Digging Force 201 kN
Main Pump Max. Flow 2×405 L/min
Main Relief Pressure 34.3 MPa
Fuel Tank Capacity 650 L
Hydraulic Oil Tank Capacity 260 L
Transport Dimensions (L×W×H) 11,710×3,340×3,810 mm
Ground Pressure 78 kPa
