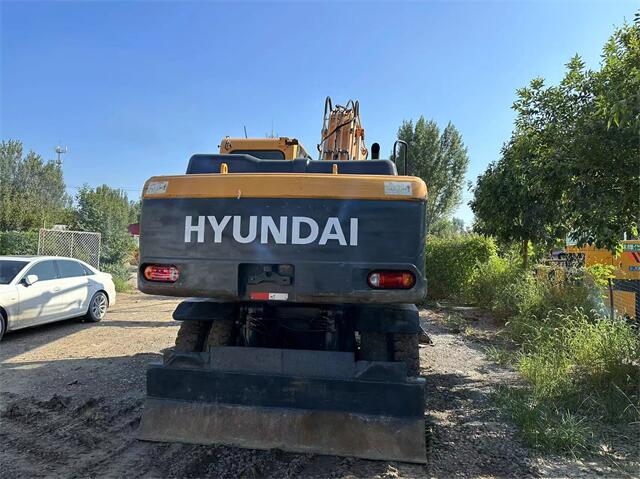

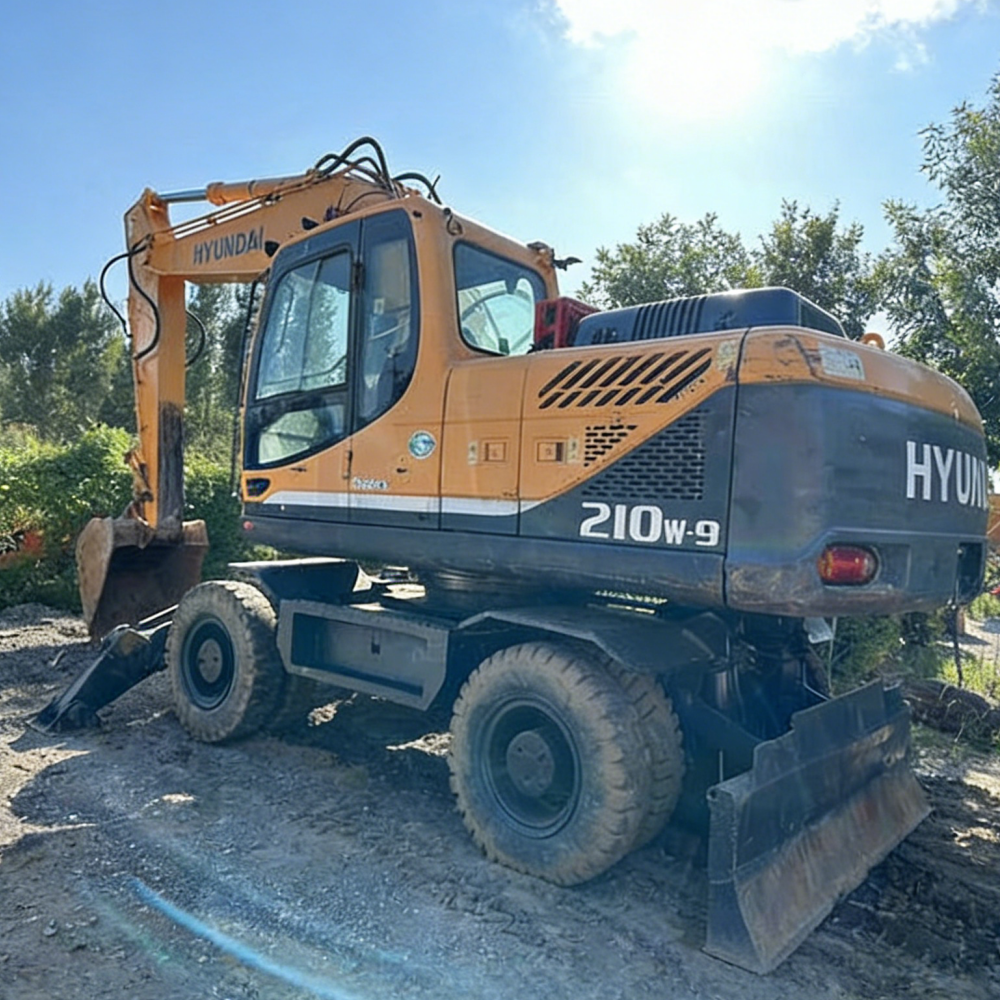

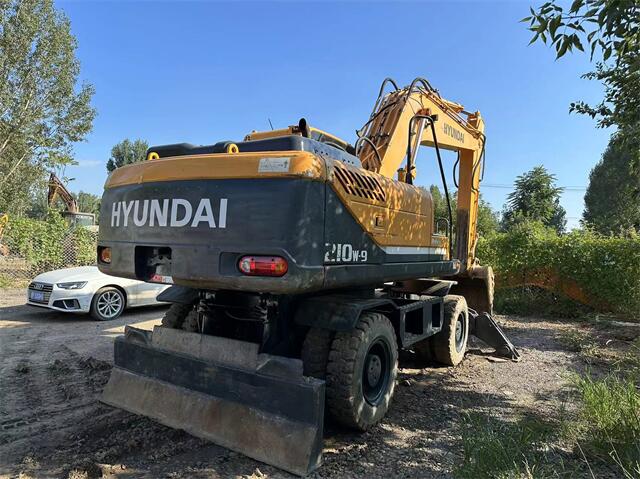

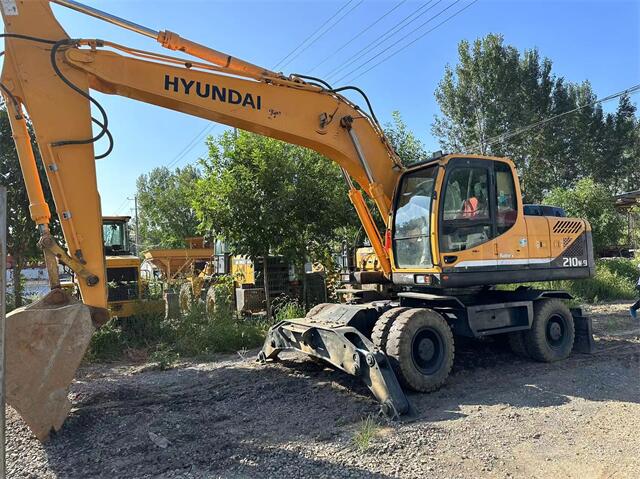

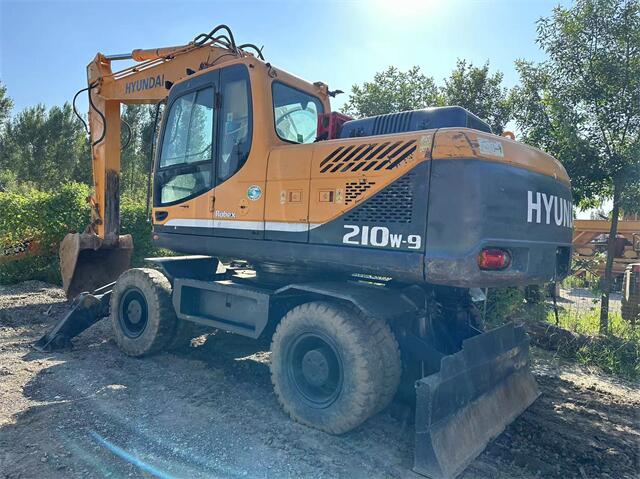

USED HYUNDAI R210W-9

USED HYUNDAI R210W-9

$21,000.00 USD
$21,000.00 USD
أُوكَازيُون نفذ

HYUNDAI R210W-9 Core Specifications (English)

Category Parameter Details
Model Identification Model Name HYUNDAI R210W-9 (Wheel Excavator)
Basic Specifications Operating Weight 20,560 kg
Bucket Capacity 0.51-1.34 m³
Boom Length 5,650 mm
Stick Length 2,920 mm
Transport Dimensions (L×W×H) 9,530×2,530×3,500 mm
Engine System Engine Model Cummins B5.9-C / QSB6.7 (varies by region)
Rated Power 124 kW (166.5 HP) / 1,950 rpm
Displacement 5.9 L (B5.9-C) / 6.7 L (QSB6.7)
Max. Torque 684 N·m / 1,500 rpm
Cooling Method Water-cooled
Performance Travel Speed (2nd gear) 35 km/h
Swing Speed 11 rpm
Gradeability 31.5° (61%)
Bucket Digging Force 149.1 kN
Stick Digging Force 106.9 kN
Hydraulic System Main Pump Type Variable displacement swash plate piston pump (2 units)
Main Pump Max. Flow 222 L/min × 2
Main Relief Valve Pressure 38 MPa
Swing Circuit Pressure 26.5 MPa
Travel Circuit Pressure 38 MPa
Transmission & Travel Transmission Two-speed powershift transmission
Max. Drawbar Pull 108 kN
