| Model |

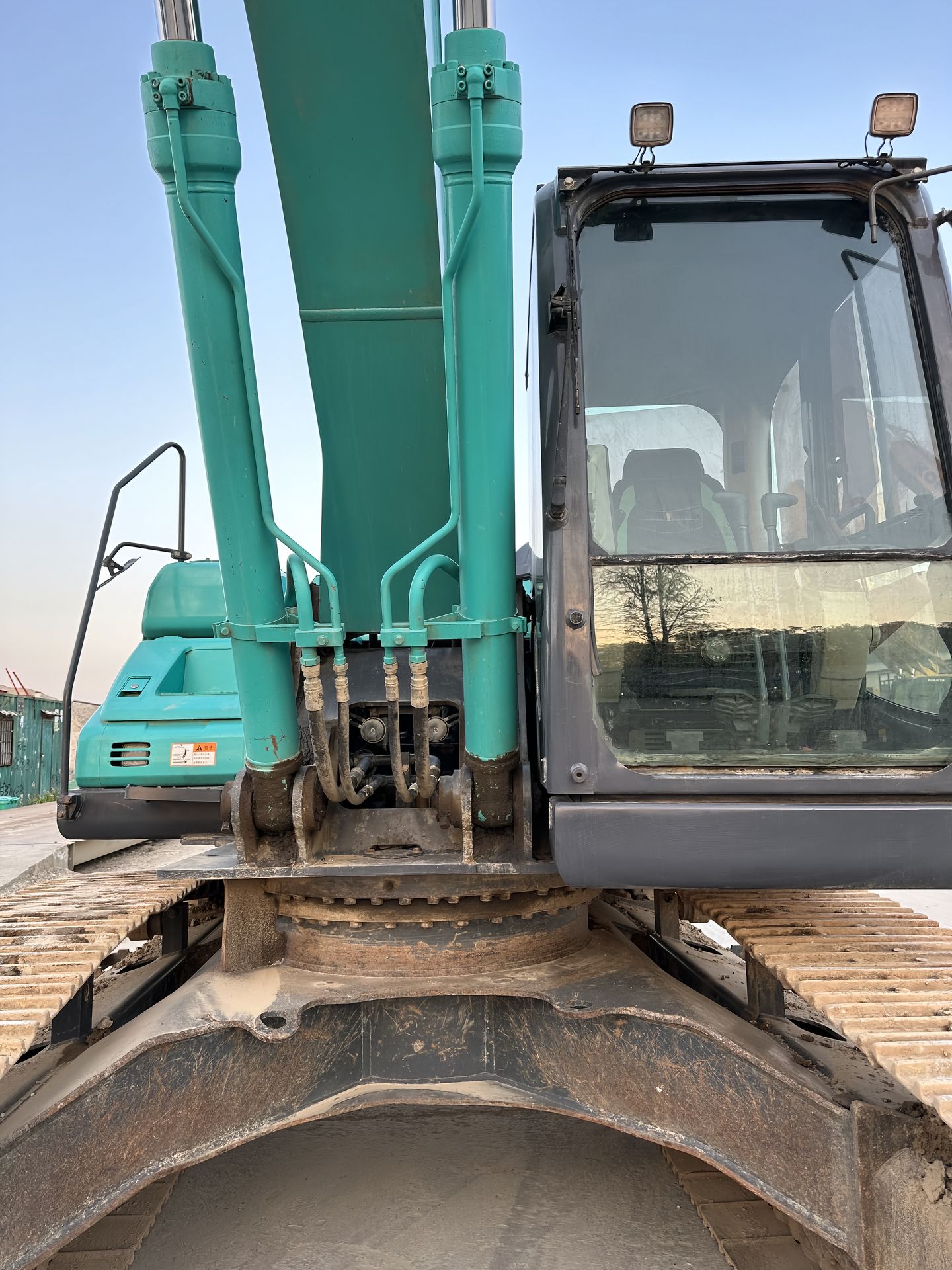

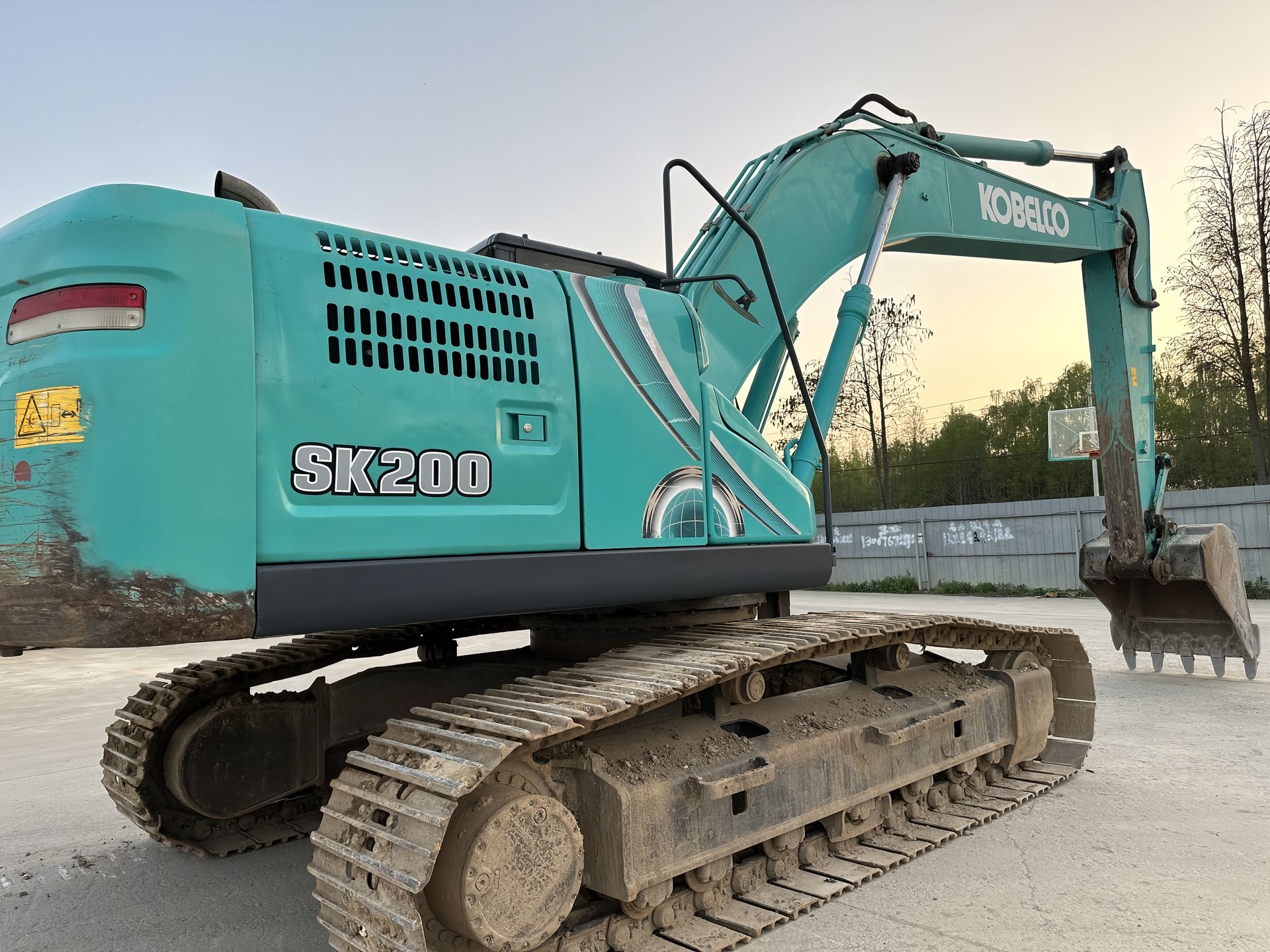

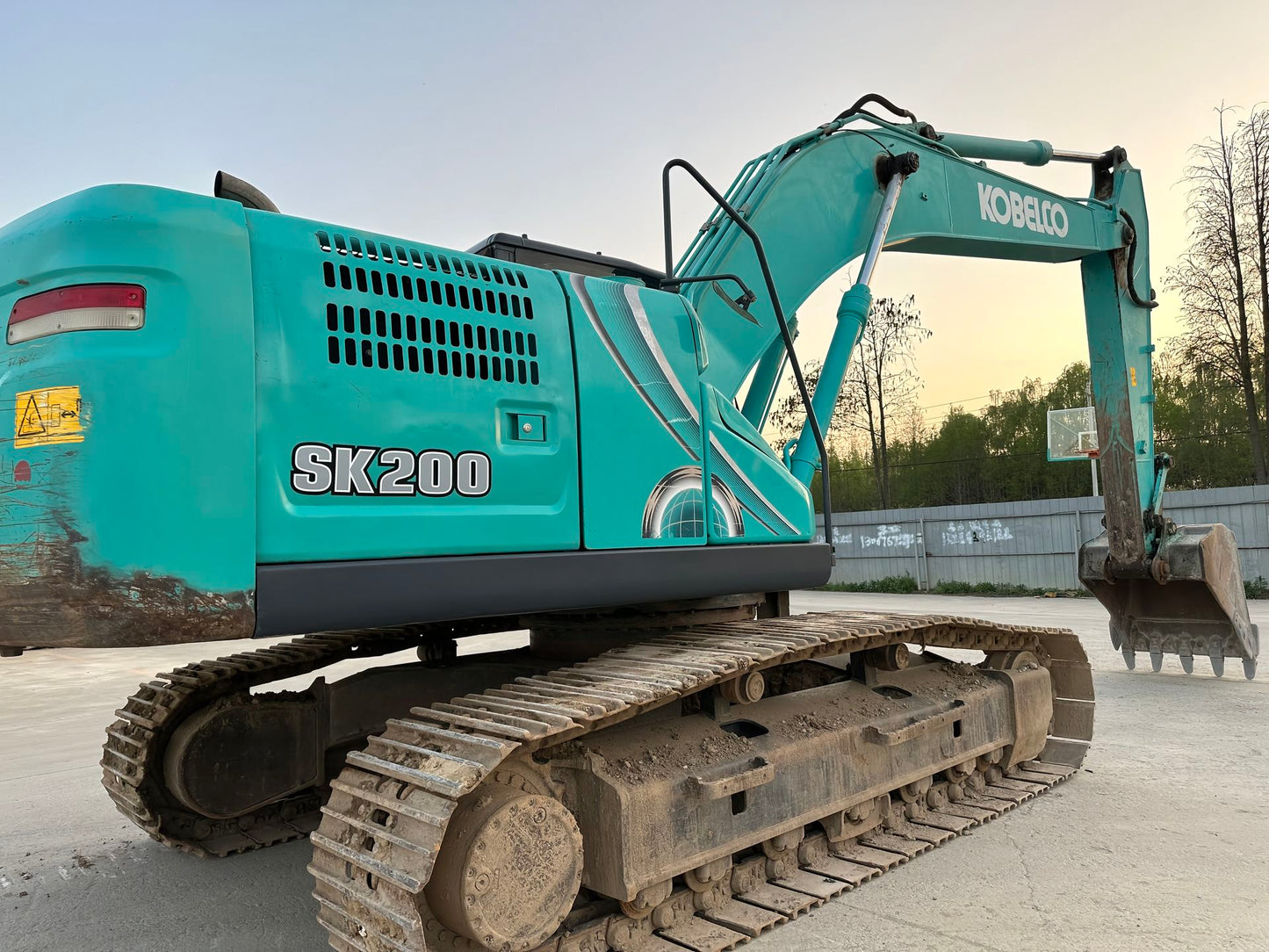

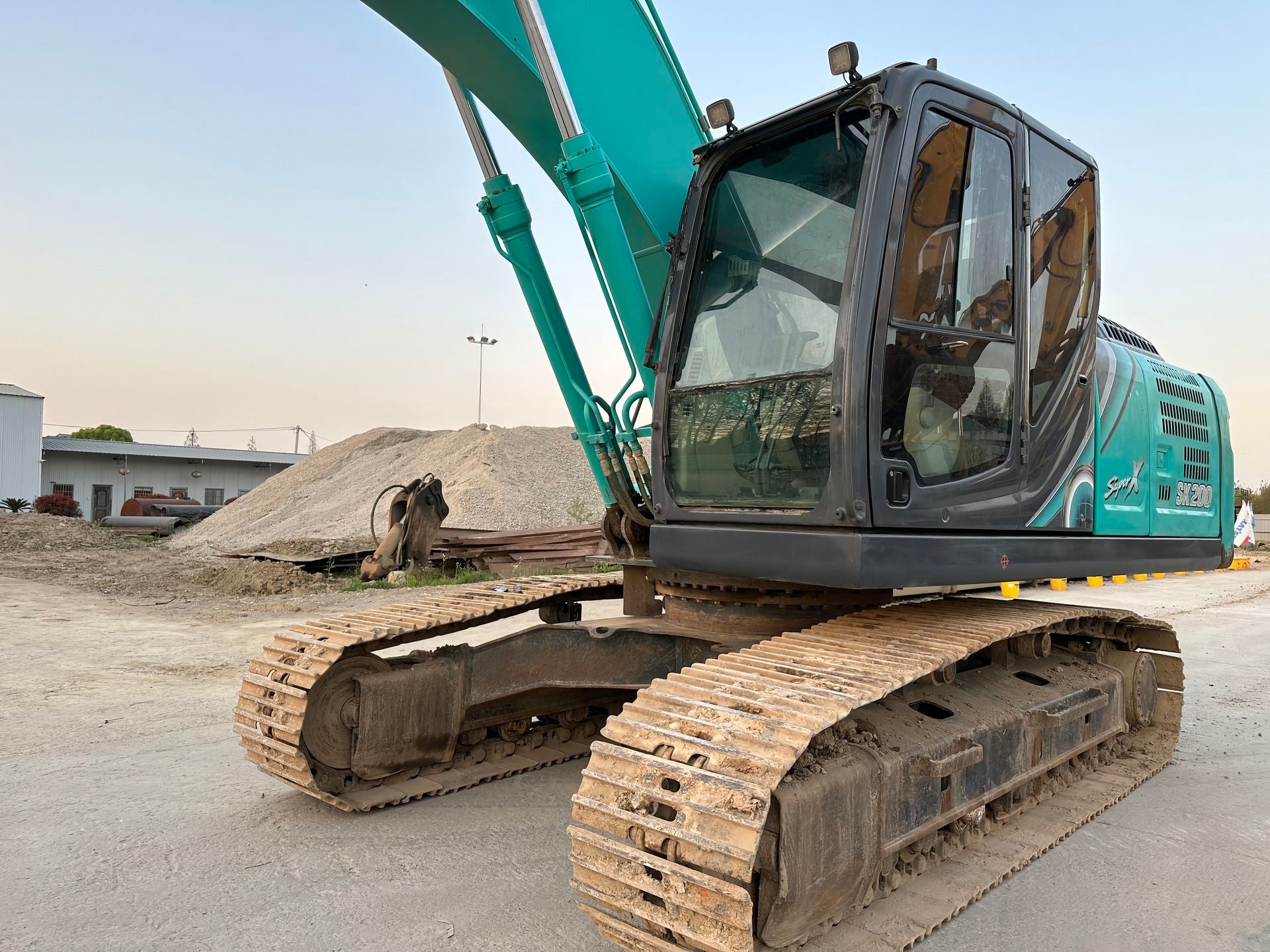

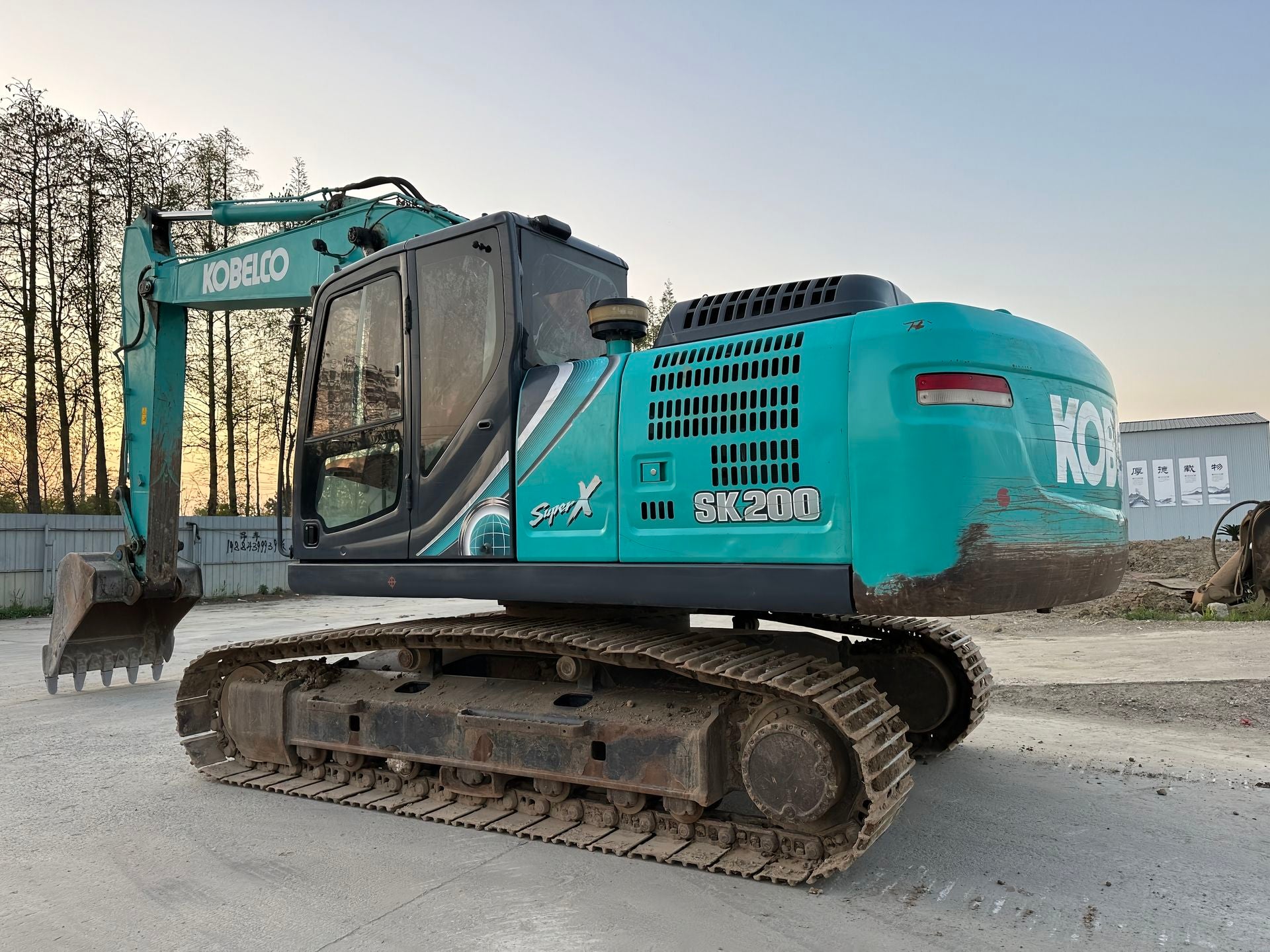

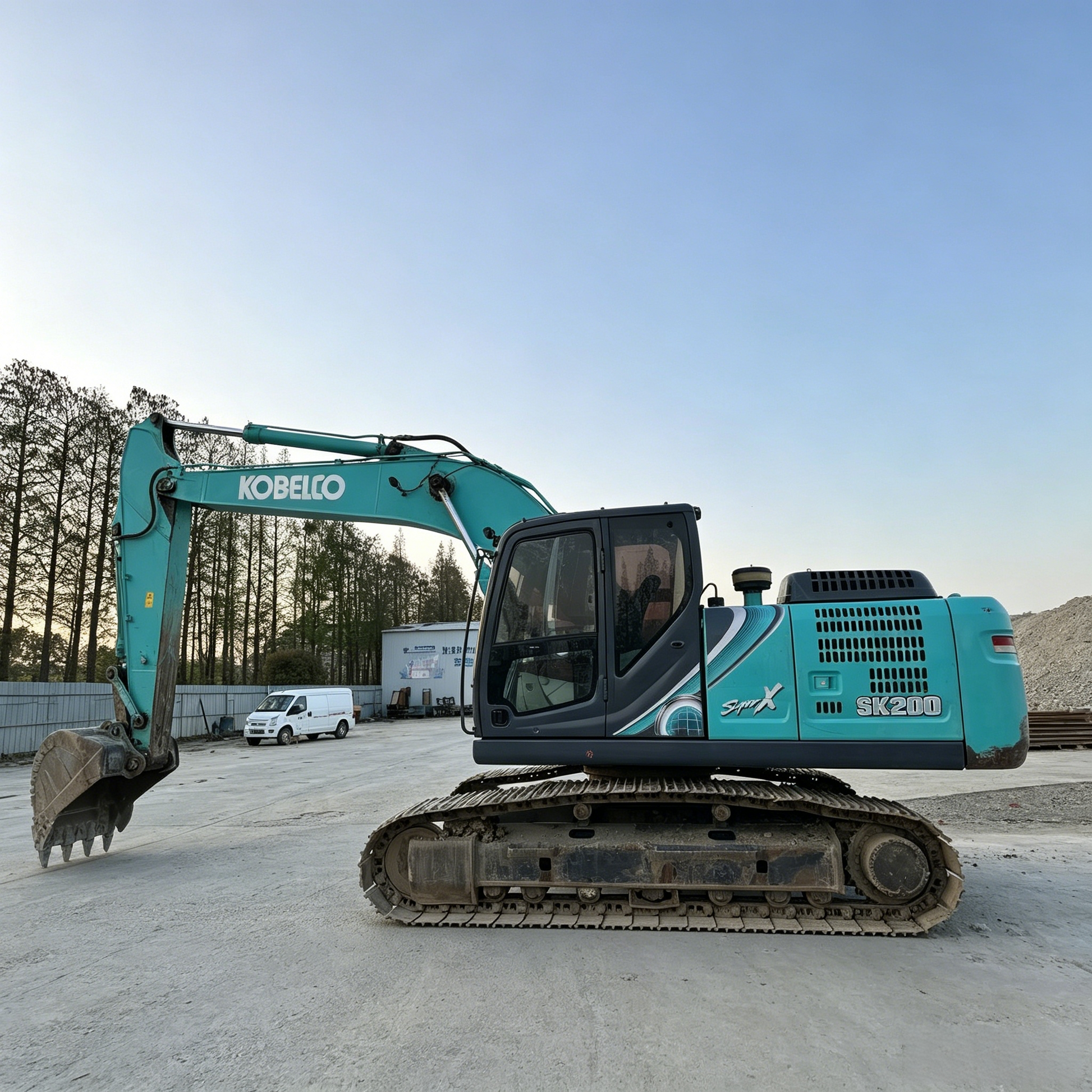

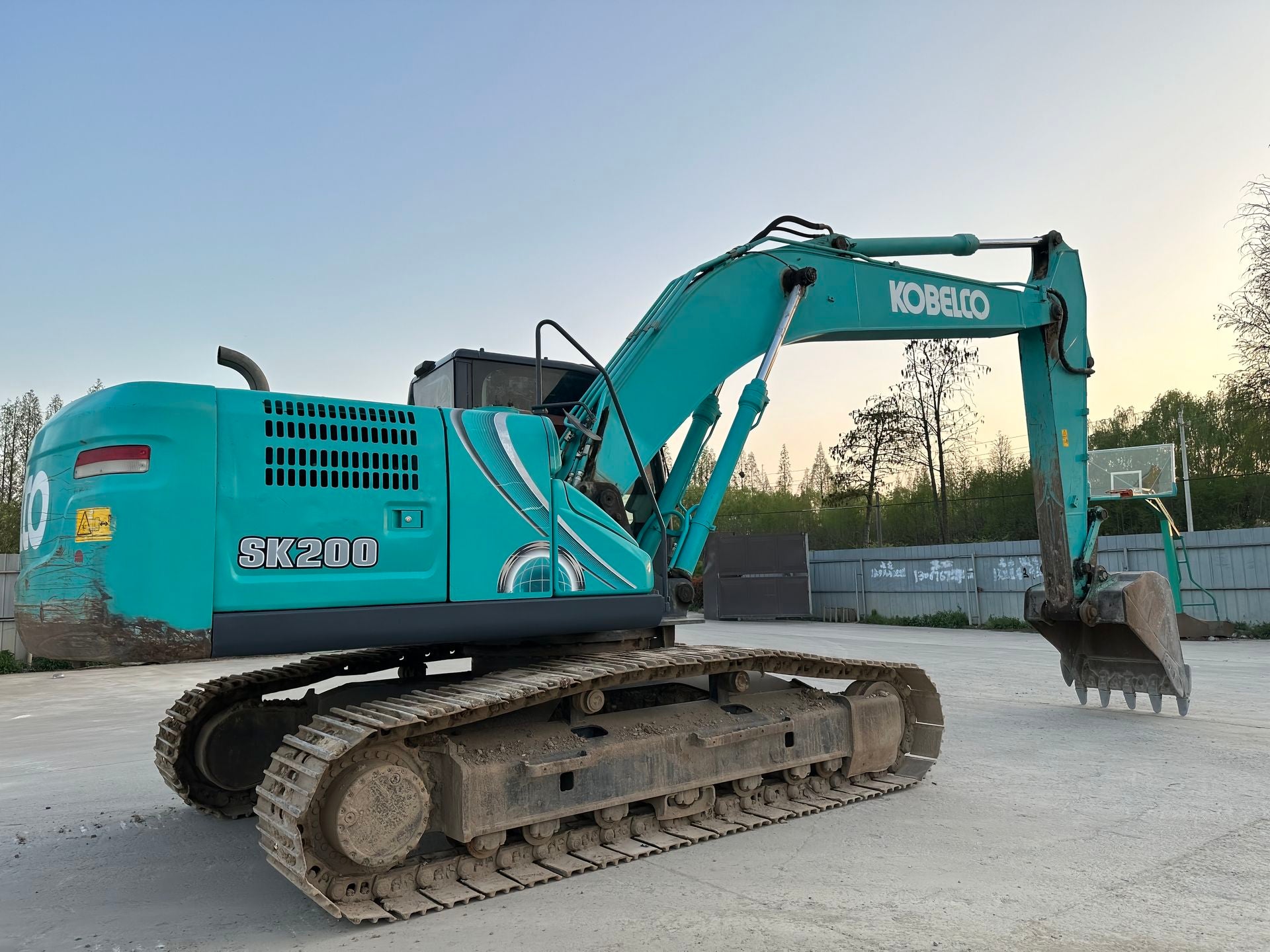

KOBELCO SK200-10 Conventional Hydraulic Crawler Excavator |
| Operating Weight(Standard Cab+600mm Steel Track) |
20700 kg |
| Standard Heaped Bucket Capacity(ISO) |
0.80 m³ (Optional:0.70~1.05 m³) |
| Overall Transport Length |
9600 mm |
| Overall Transport Width |
2800 mm |
| Overall Transport Height(Cab Top) |
3060 mm |
| Standard Track Shoe Width |
600 mm |
| Track Gauge |
2200 mm |
| Track Length on Ground |
3190 mm |
| Ground Clearance |
470 mm |
| Rear Swing Radius |
2720 mm |
| Engine Model |
ISUZU J05ETA-KSSE 4-Cylinder Turbocharged Diesel Engine |
| Engine Type |
Water-cooled,4-stroke,in-line,turbo+intercooler direct injection diesel |
| Rated Net Power |
118.0 kW @2000 rpm(ISO14396) |
| Engine Displacement |
5.193 L |
| Max Engine Torque |
592 N·m @1500 rpm |
| Fuel Tank Capacity |
320.0 L |
| Hydraulic Tank / Full System Volume |
140.0 L / 244.0 L |
| Main Hydraulic Relief Pressure(Normal/Boost) |
34.3 MPa / 37.8 MPa |
| Total Main Pump Flow |
2×220 L/min + 20 L/min |
| Max Digging Reach(Ground Level) |
9680 mm |
| Max Total Digging Reach |
9900 mm |
| Max Digging Depth |
6700 mm |
| Max Vertical Wall Digging Depth |
5890 mm |
| Max Digging Height |
9620 mm |
| Max Dumping Height |
6890 mm |
| Bucket Digging Force(ISO/Normal) |
157.0 kN(170kN with Power Boost) |
| Arm Digging Force(ISO/Normal) |
112.0 kN(123kN with Power Boost) |
| Drawbar Pull Force |
228.0 kN |
| Swing Speed |
13.3 rpm |
| Travel Speed(Low/High) |
3.6 km/h / 6.0 km/h |
| Gradeability |
35°(70%) |
| Ground Contact Pressure |
45.2 kPa |
| Standard Boom Length |
5650 mm
|
| Standard Stick Length |
2940 mm
|
