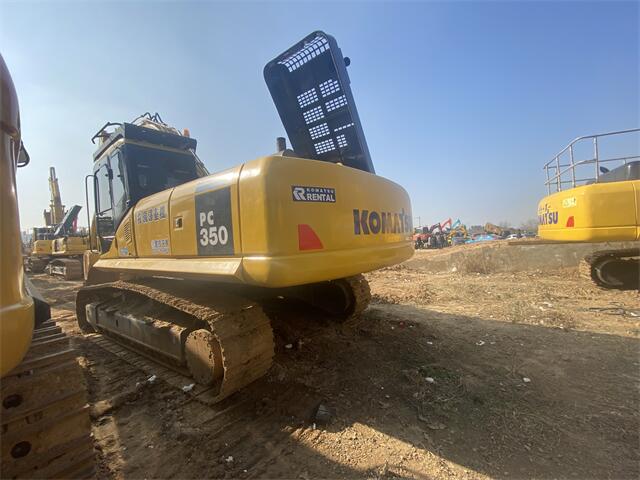

USED KOMATSU PC350-7

USED KOMATSU PC350-7

$32,000.00 USD
$32,000.00 USD
أُوكَازيُون نفذ

Core Specifications of Komatsu PC350-7 (Crawler Excavator)


Category Specifications
Basic Information
Model Komatsu PC350-7
Engine Model Komatsu SAA6D114E (6-cylinder, water-cooled, turbocharged diesel with aftercooler)
Displacement 8.27 L (504.7 cu in)
Net Power 180 kW (242 HP) @ 1900 rpm (SAE J1349/ISO 9249)
Operating Weight 32,300 kg (71,210 lbs)
Standard Bucket Capacity 1.4 m³ (0.52-1.9 m³ optional)
Performance
Max Travel Speed 5.5 km/h (high); 4.5 km/h (medium); 3.2 km/h (low)
Max Bucket Digging Force (ISO) 233 kN (23,800 kgf)
Max Arm Digging Force (ISO) 178 kN (18,200 kgf)
Swing Speed 9.5 rpm
Ground Pressure 52.3 kPa (7.6 psi) (varies with track shoe width)
Gradeability 70% (35°)
Dimensions
Transport Length 11,140 mm
Transport Width 3,190 mm
Transport Height 3,280 mm
Max Digging Depth 7,380 mm
Max Dumping Height 7,110 mm
Max Digging Radius 11,100 mm
Tail Swing Radius 3,450 mm
Capacities
Fuel Tank 605 L (159.9 gal)
Hydraulic System Fluid Capacity 240 L (63.4 gal)
Engine Oil Capacity 35 L (9.3 gal)
Coolant Capacity 32 L (8.5 gal)
Hydraulic System
Main Relief Pressure 34.3 MPa (5,050 psi)
Main Pump Flow 535 L/min (141.4 gpm)
