SANY

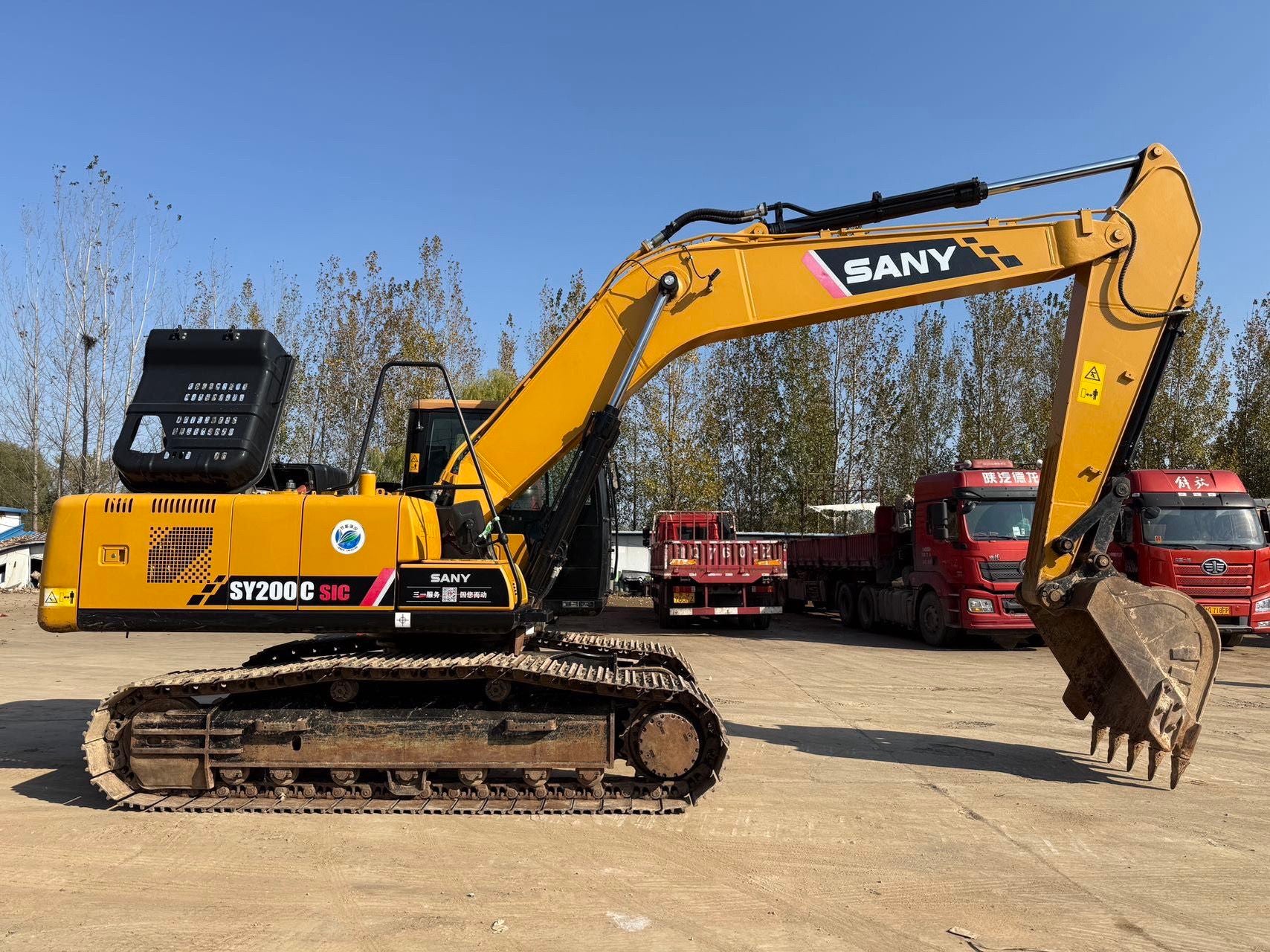

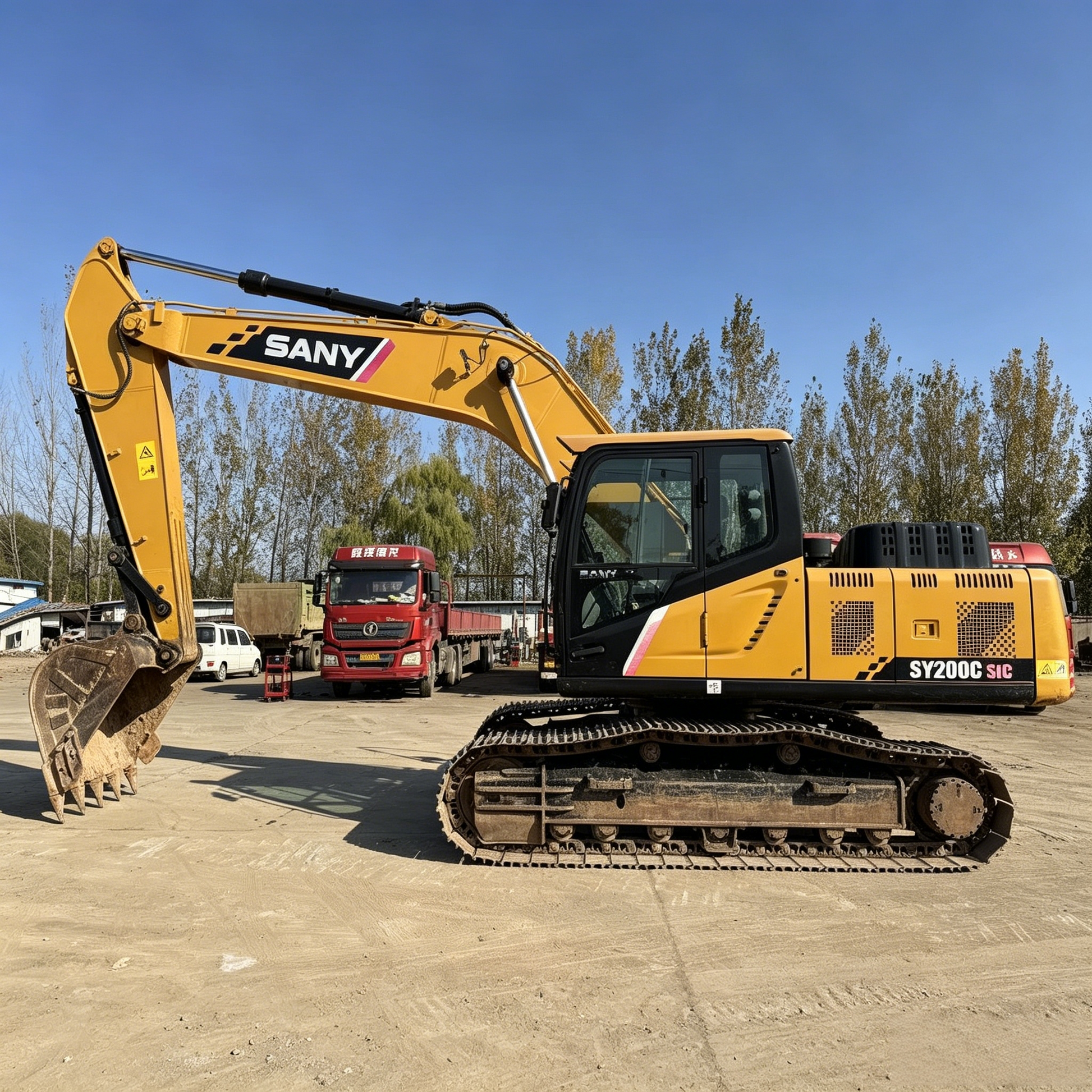

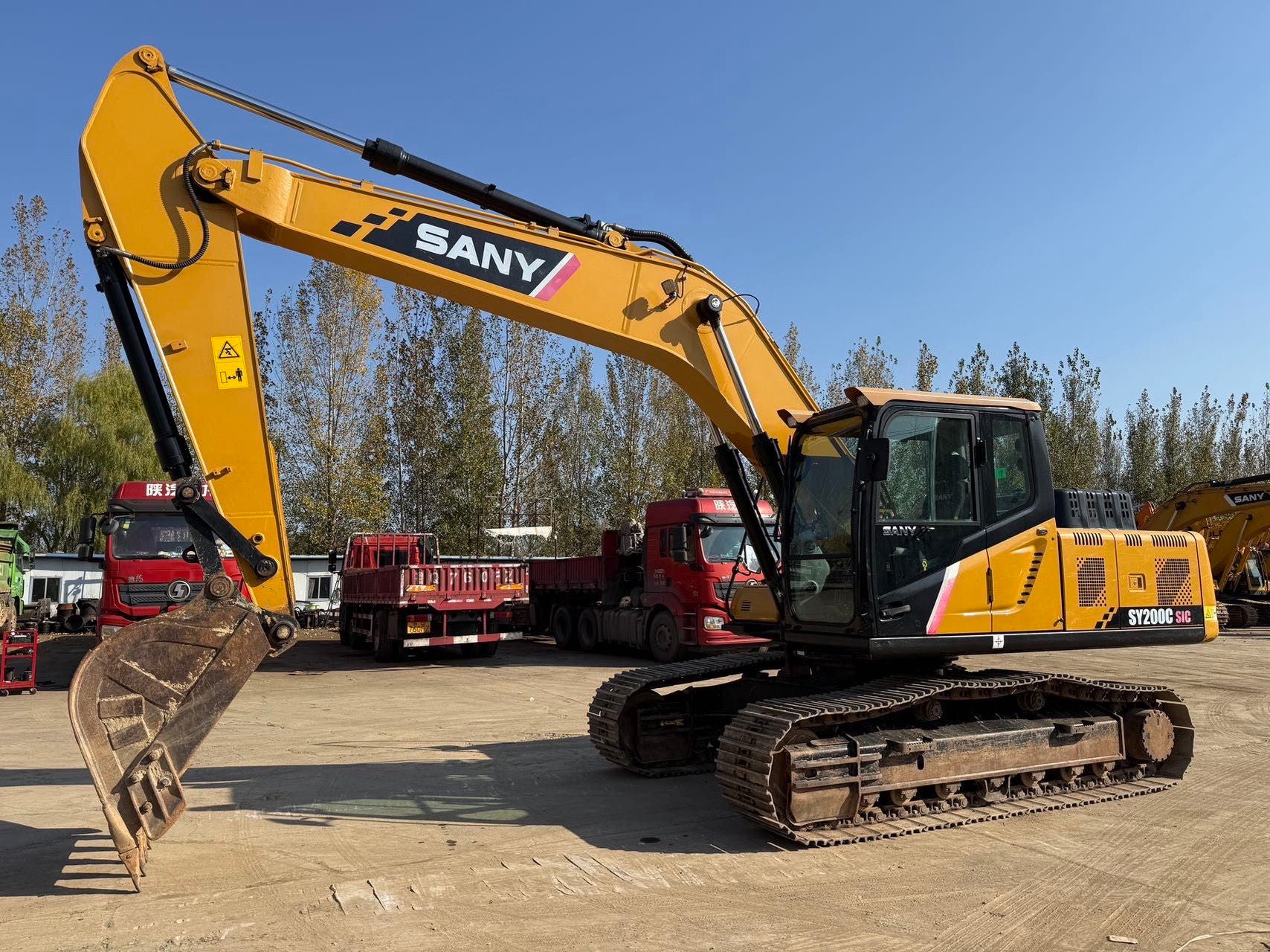

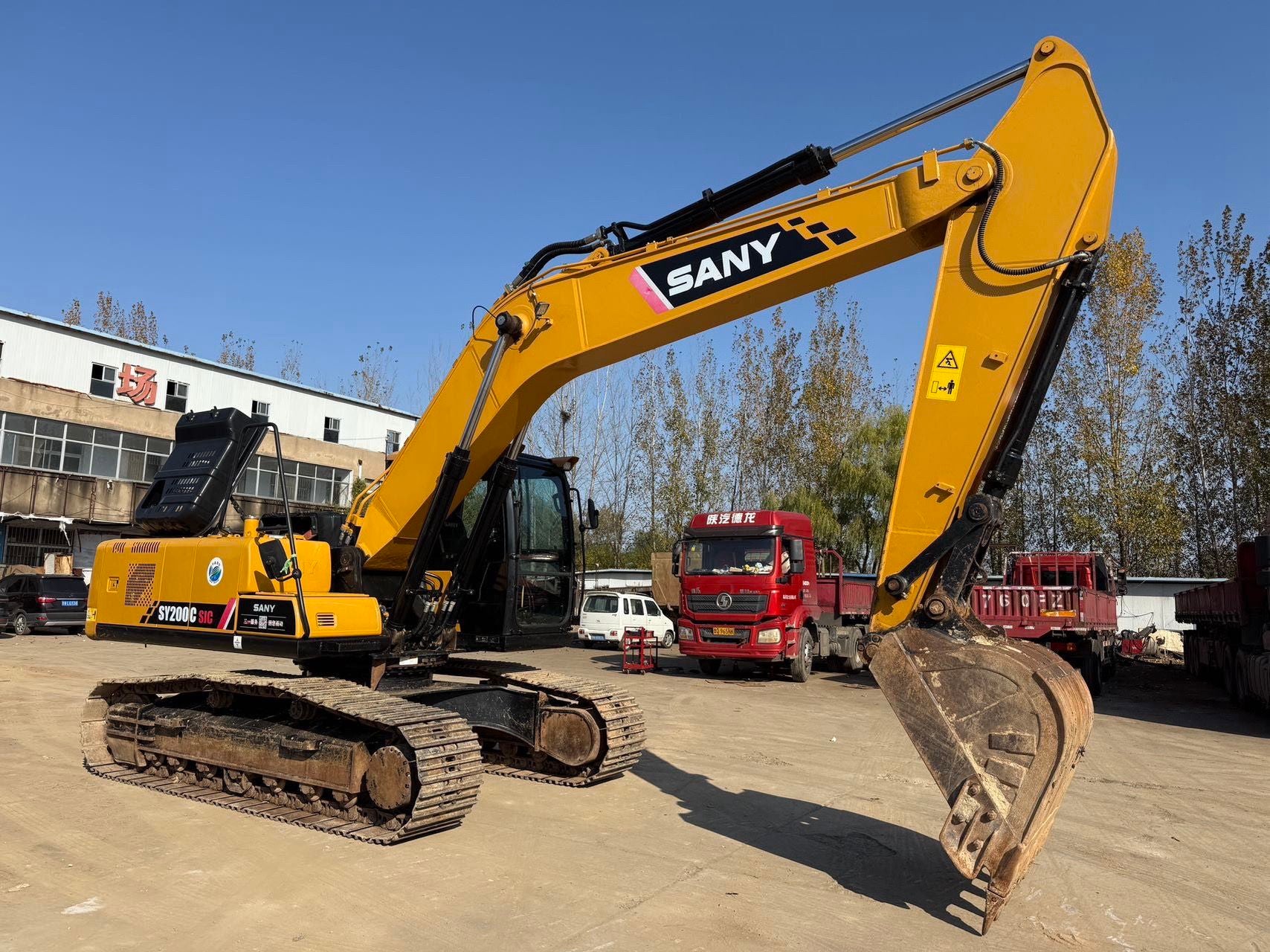

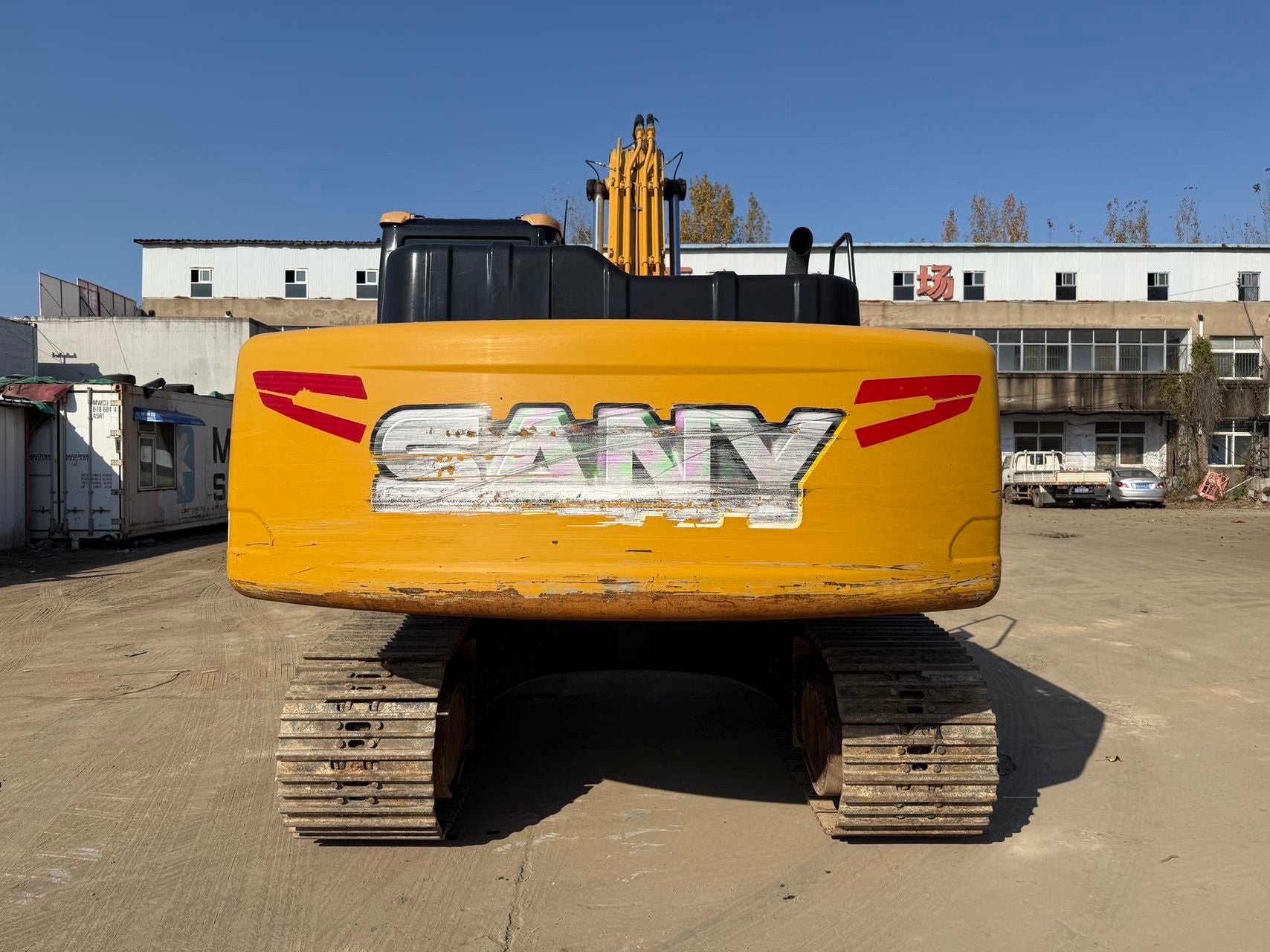

USED SANY SY200C

USED SANY SY200C

$21,000.00 USD
$21,000.00 USD
Oferta Agotado
Parameter China National Ⅳ Version Tier 3 Version
Model SANY SY200C (China National Ⅳ) SANY SY200C (Tier 3)
Operating Weight 21500 kg 20000 kg
Engine Model Mitsubishi 4M50-TLE3A Cummins 6BTAA5.9-C
Engine Displacement 4.999 L 5.883 L
Rated Power 118 kW @ 2000 rpm 112 kW @ 2200 rpm
Bucket Capacity (Standard) 1.0 m³ (0.8-1.0 m³ Optional) 0.83 m³ (0.8-1.0 m³ Optional)
Bucket Digging Force (ISO) 138 kN 138 kN
Arm Digging Force (ISO) 103 kN 103 kN
Boom Length (Standard) 5700 mm 5700 mm
Arm Length (Standard) 2900 mm 2900 mm
Max. Excavation Depth 6600 mm 6630 mm
Max. Digging Reach 10280 mm 9885 mm
Max. Dumping Height 6730 mm 6730 mm
Swing Speed 11 rpm 11 rpm
Travel Speed (High/Low) 5.4/3.4 km/h 5.4/3.4 km/h
Gradeability 70% (35°) 70% (35°)
Ground Pressure 47.4 kPa 47.4 kPa
Max. Hydraulic Flow 264 L/min 264 L/min
Max. Hydraulic Pressure 34.3 MPa 34.3 MPa
Fuel Tank Capacity 330 L 330 L
Hydraulic Tank Capacity 220 L 220 L
Track Shoe Width (Standard) 600 mm 600 mm
