| Model |

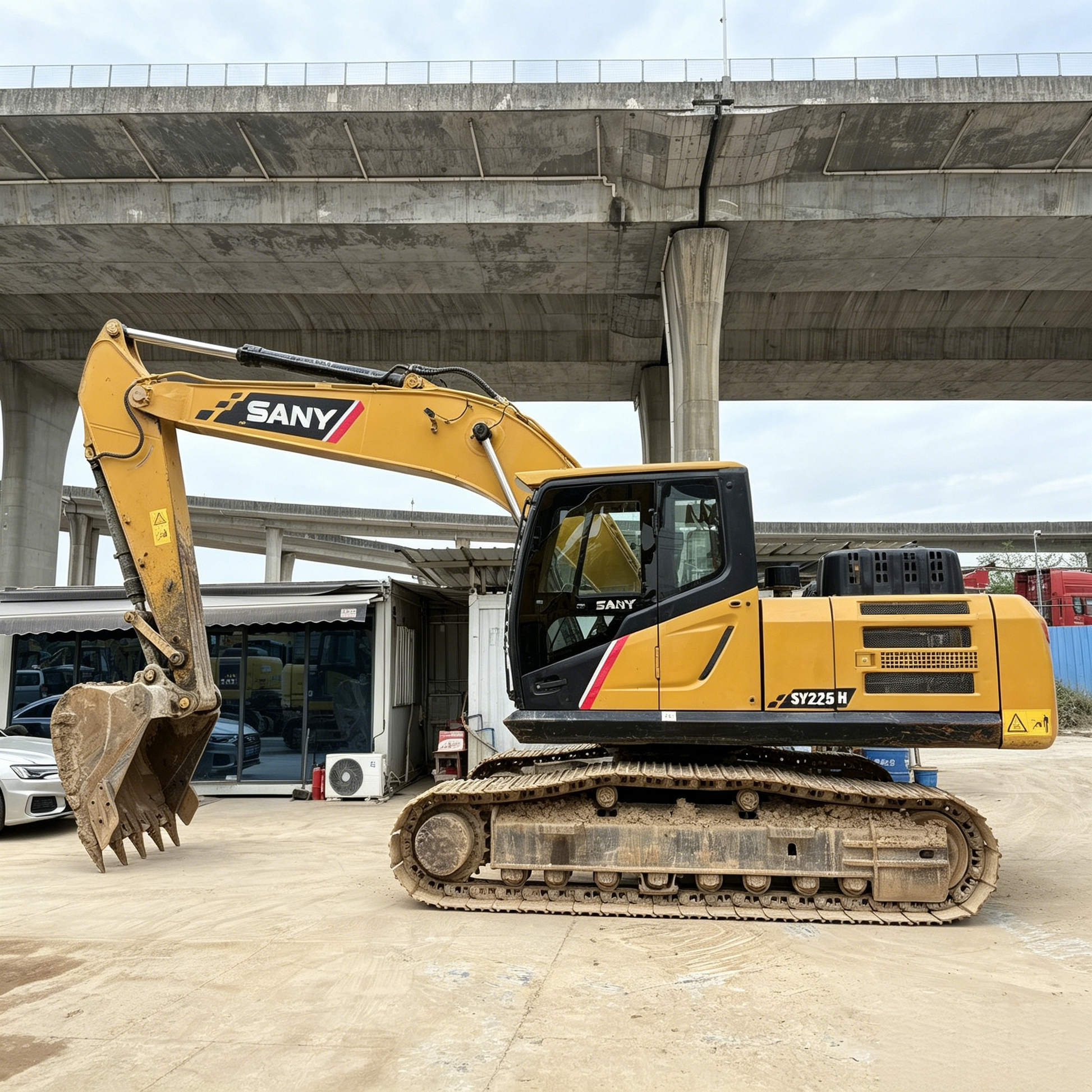

SANY SY225H Medium Crawler Hydraulic Excavator |
| Operating Weight |
22,800 kg |
| Standard Heaped Bucket Capacity |
1.2 m³ (Range:1.10~1.30 m³) |
| Overall Transport Length |
9,730 mm |
| Overall Transport Width |
2,990 mm |
| Overall Transport Height(Cab Top) |
3,050 mm |
| Standard Track Shoe Width |
600 mm |
| Track Gauge |
2,390 mm |
| Track Length on Ground |
3,340 mm |
| Ground Clearance |
465 mm |
| Minimum Tail Swing Radius |
2,880 mm |

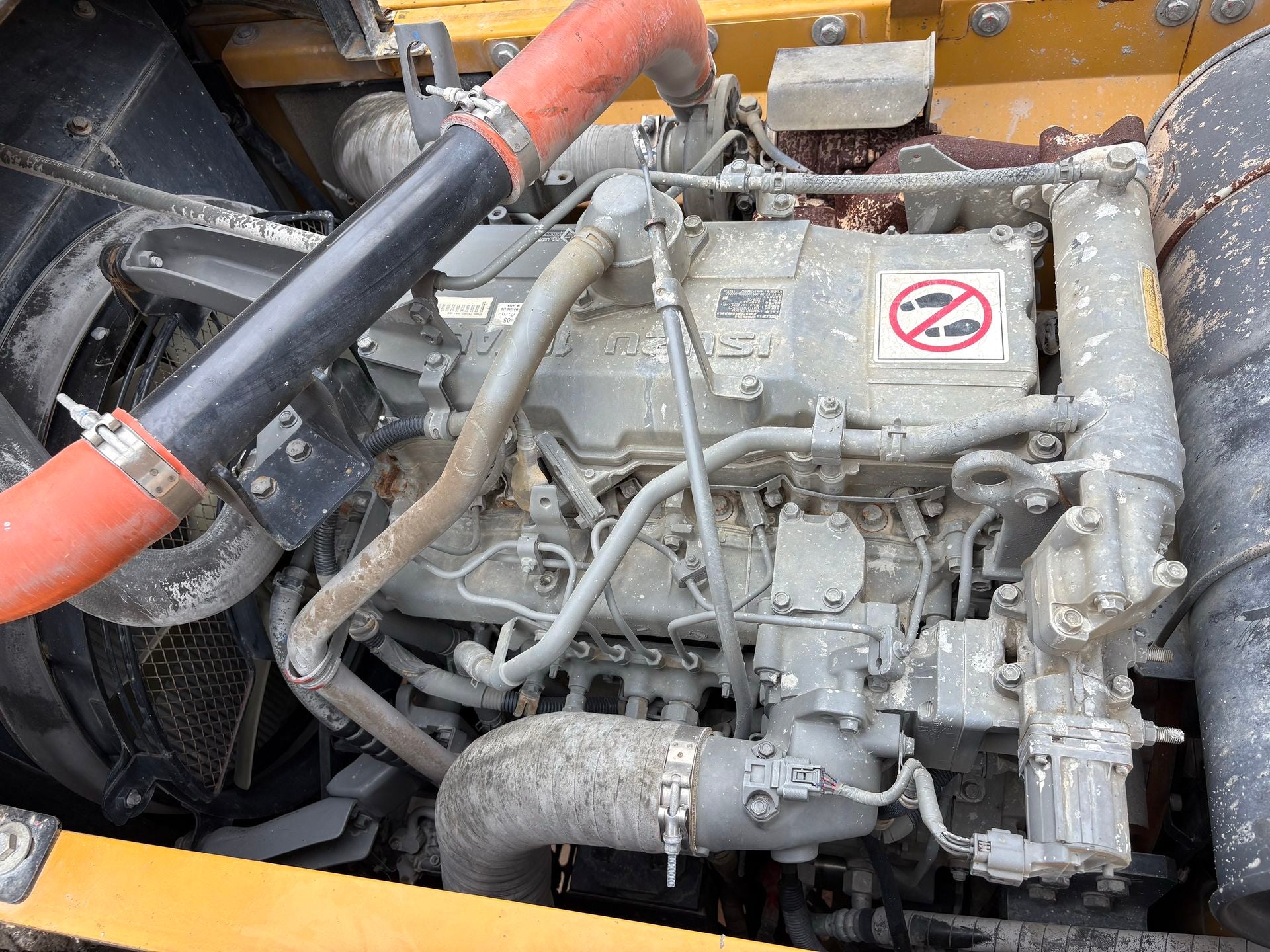

| Engine Model |
ISUZU 6HK1X Diesel Engine |
| Engine Type |
Water-cooled,4-stroke turbocharged common rail diesel engine |
| Rated Net Power |
133 kW @ 2000 rpm |
| Engine Displacement |
5.193 L |
| Max Engine Torque |
657 N·m @1500 rpm |
| Fuel Tank Capacity |
370 L |
| Hydraulic Oil Tank Capacity |
270 L |
| Main Hydraulic Working Pressure |
33.0 MPa |
| Max Digging Reach(Ground Level) |
9,980 mm |
| Max Digging Depth |
6,450 mm |
| Max Vertical Wall Digging Depth |
5,630 mm |
| Max Digging Height |
9,790 mm |
| Max Dumping Height |
6,890 mm |
| Bucket Digging Force(ISO) |
140.0 kN |
| Arm Digging Force(ISO) |
107.0 kN |
| Swing Speed |
10.8 rpm |
| Travel Speed(Low/High) |
3.3 km/h / 5.6 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
51.0 kPa |
| Standard Boom Length |
5,550 mm |
| Standard Stick Length |
2,925 mm |
