| Model |

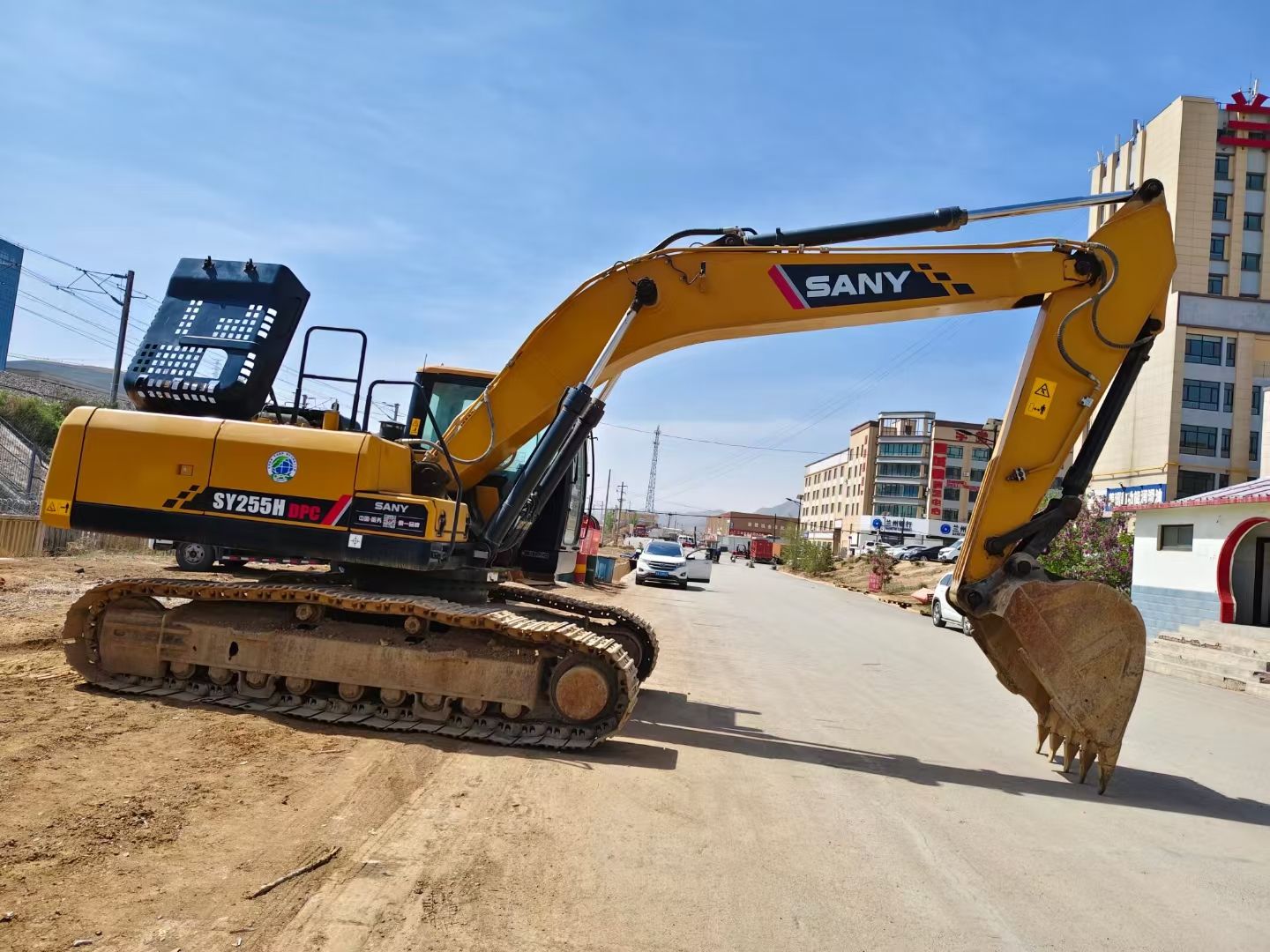

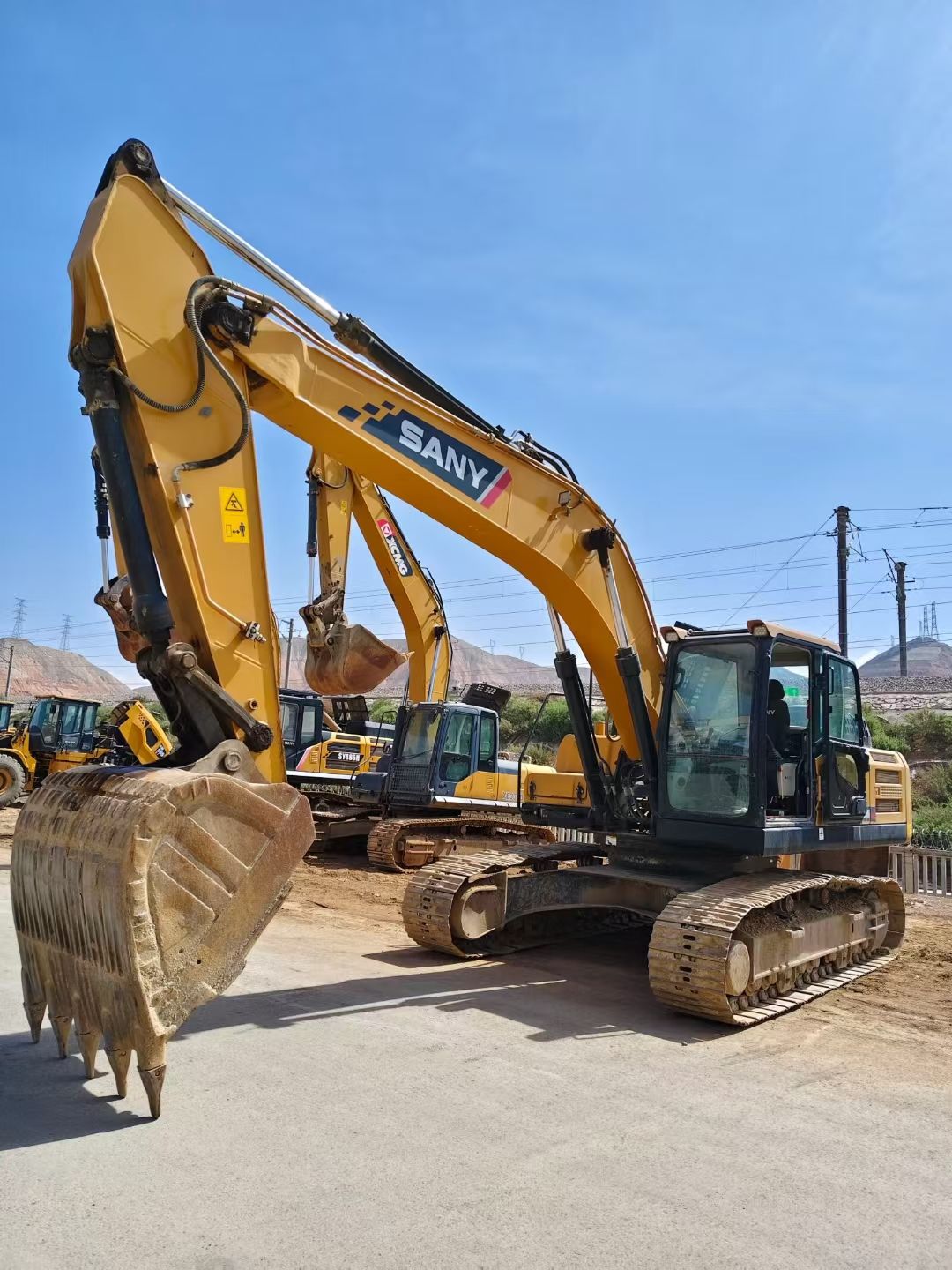

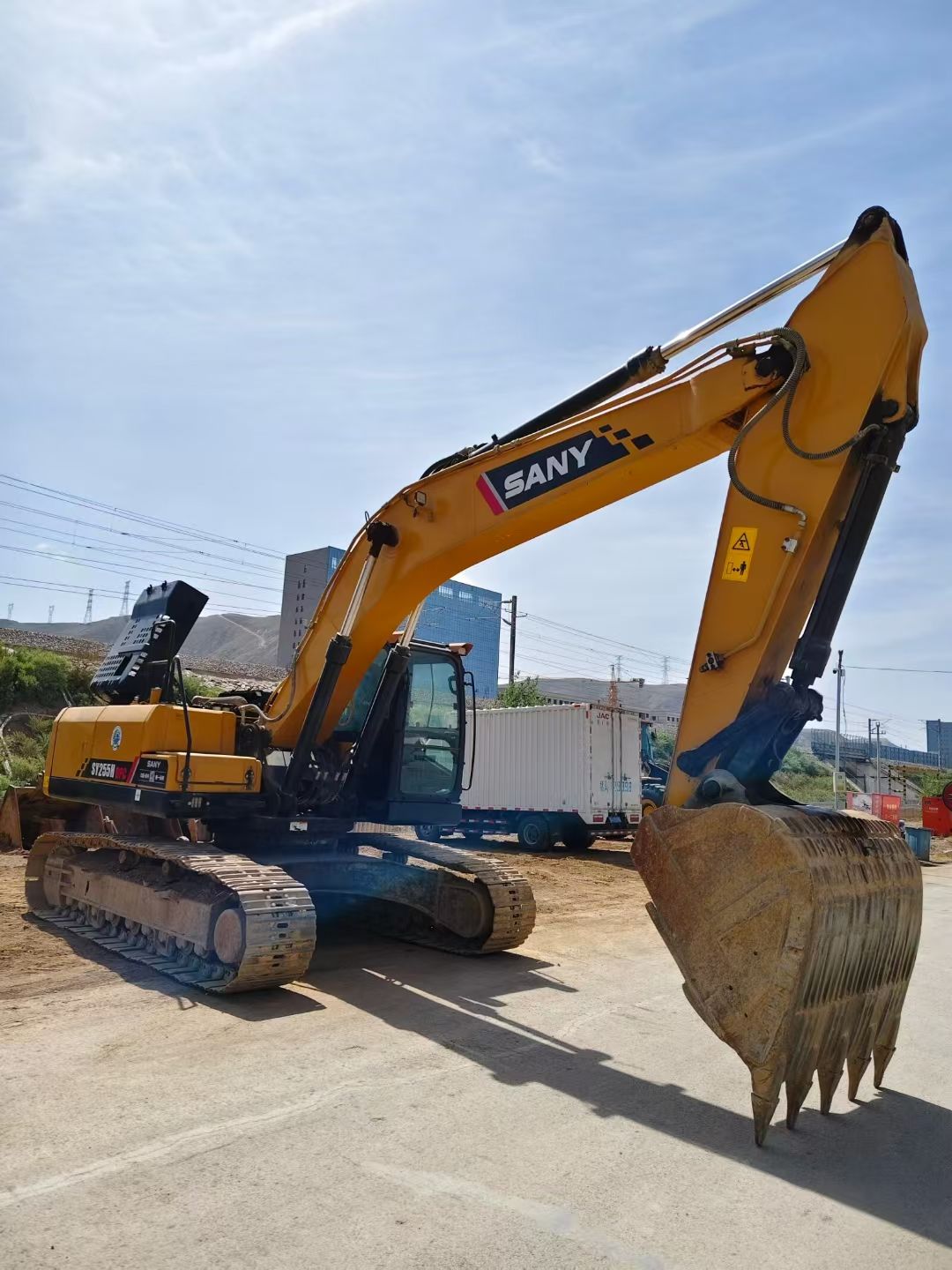

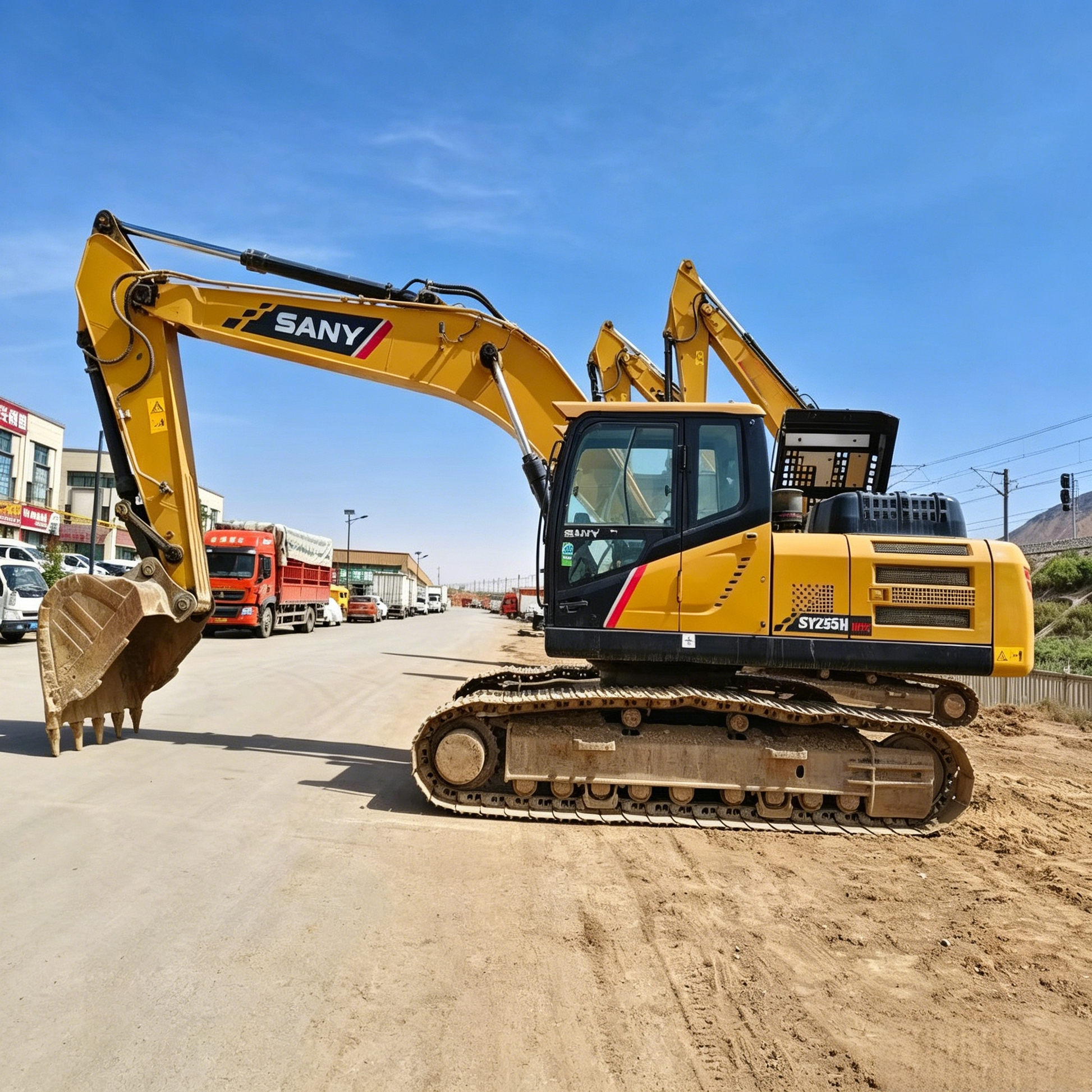

SANY SY255H DPC Medium Heavy Crawler Hydraulic Excavator |
| Operating Weight |
25,500 kg |
| Standard Heaped Bucket Capacity |
1.4 m³ (Optional:1.4~1.6 m³) |
| Overall Transport Length |
10,290 mm |
| Overall Transport Width |
3,190 mm |
| Overall Transport Height(Cab Top) |
3,255 mm |
| Standard Track Shoe Width |
600 mm |
| Track Gauge |
2,590 mm |
| Track Length on Ground |
3,640 mm |
| Ground Clearance |
470 mm |
| Minimum Tail Swing Radius |
3,105 mm |
| Engine Model |

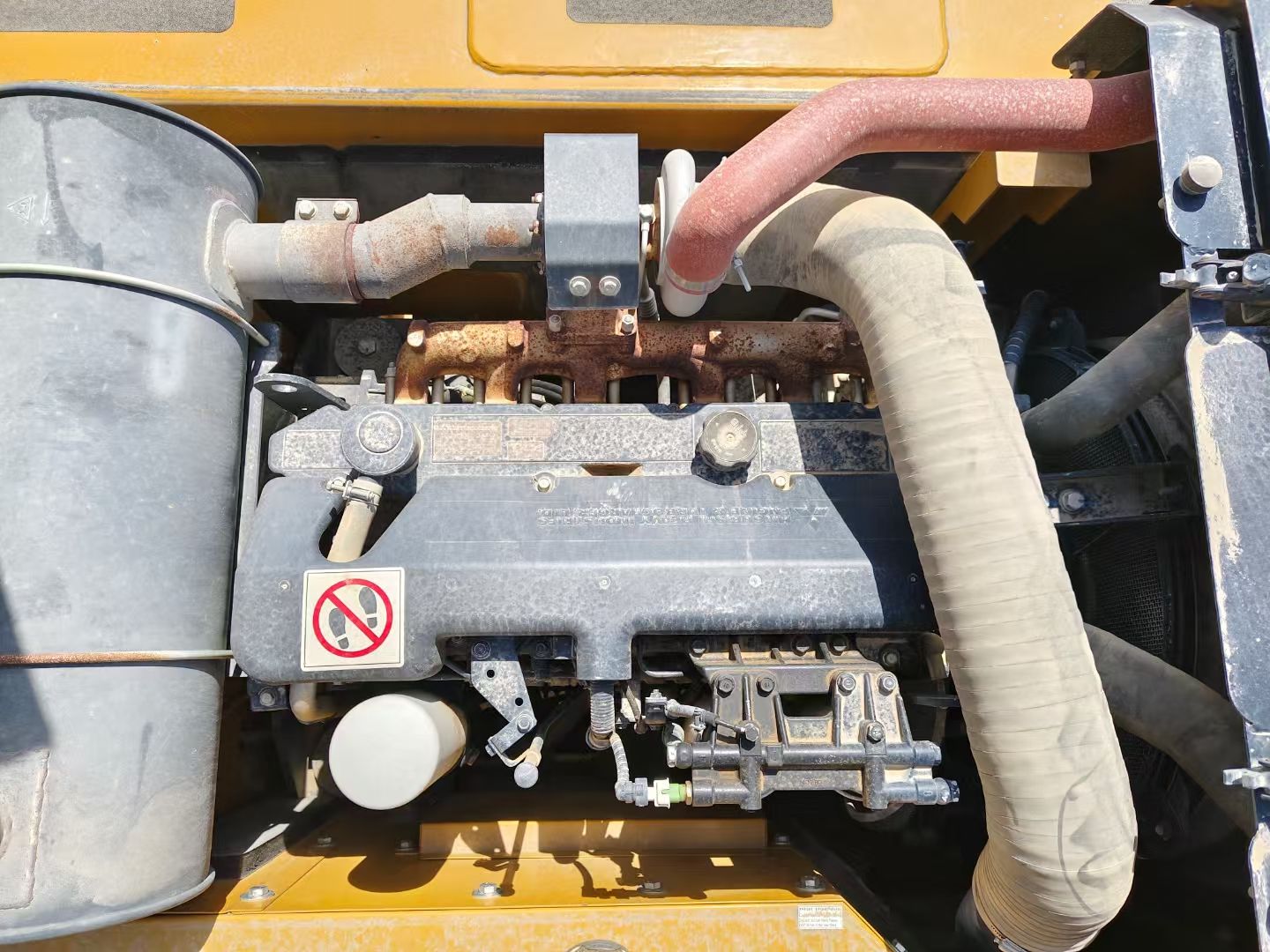

Mitsubishi D06FRC 6-Cylinder Diesel Engine |
| Engine Type |
Water-cooled,4-stroke turbocharged common rail diesel engine |
| Rated Net Power |
147 kW @ 2100 rpm |
| Engine Displacement |
6.373 L |
| Max Engine Torque |
725 N·m @1500 rpm |
| Fuel Tank Capacity |
475 L |
| Hydraulic Oil Tank Capacity |
239 L |
| Main Hydraulic Working Pressure |
34.0 MPa |
| Max Digging Reach(Ground Level) |
10,390 mm |
| Max Digging Depth |
6,705 mm |
| Max Vertical Wall Digging Depth |
5,910 mm |
| Max Digging Height |
9,745 mm |
| Max Dumping Height |
6,715 mm |
| Bucket Digging Force(ISO) |
175.0 kN |
| Arm Digging Force(ISO) |
120.0 kN |
| Swing Speed |
10.6 rpm |
| Travel Speed(Low/High) |
3.4 km/h / 5.4 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
53.2 kPa |
| Standard Boom Length |
5,900 mm |
| Standard Stick Length |
2,950 mm |
