| Model |

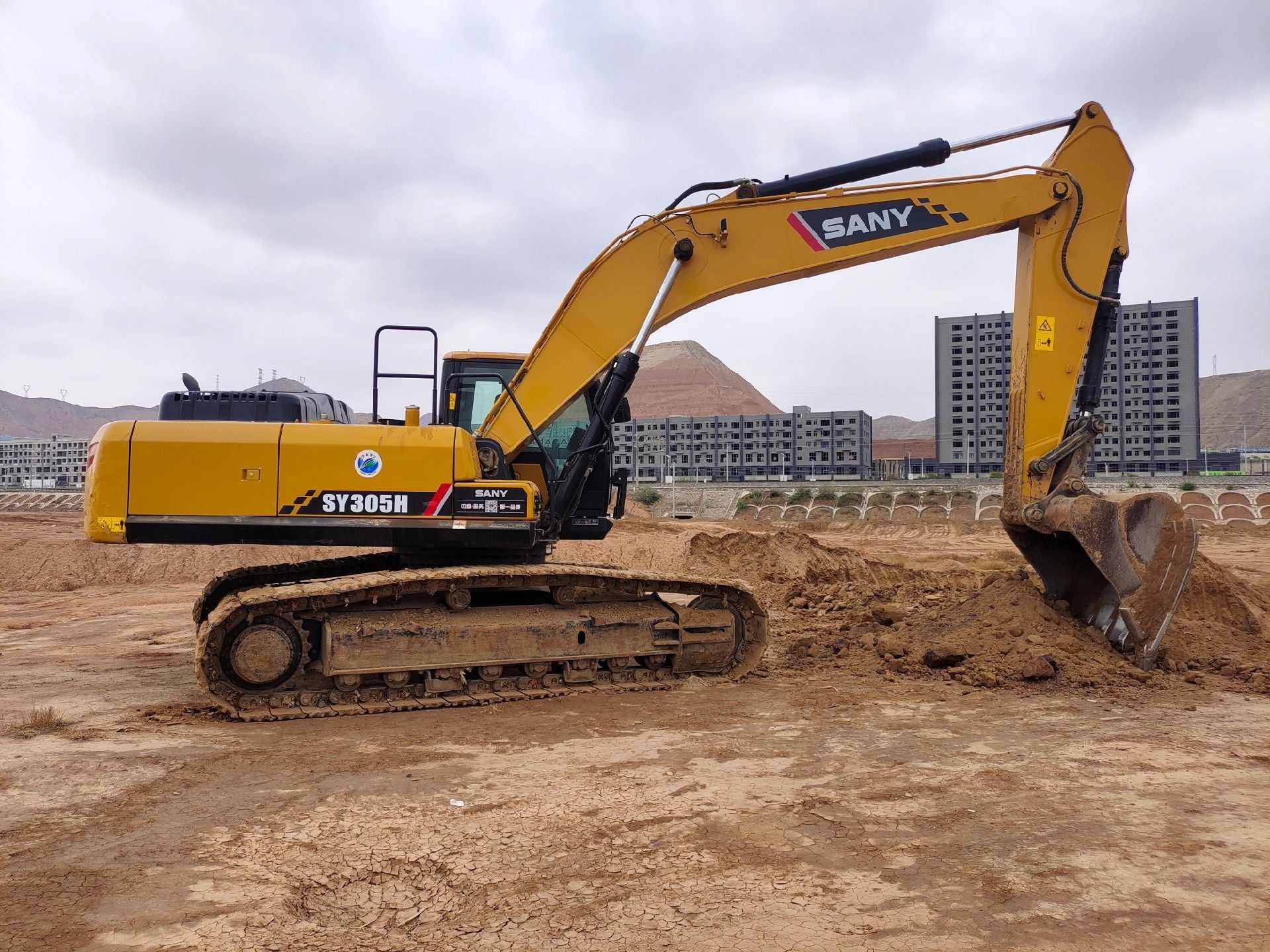

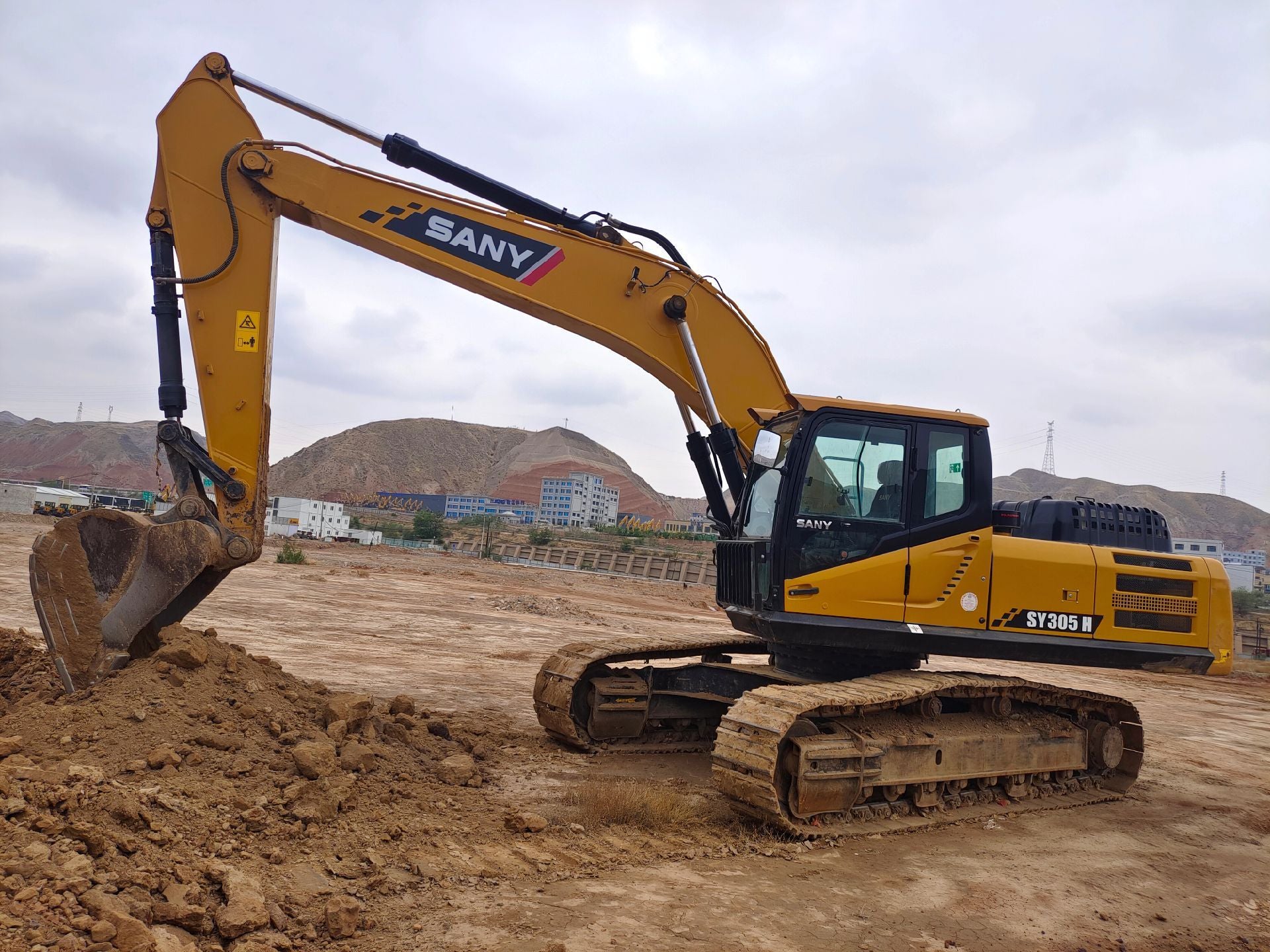

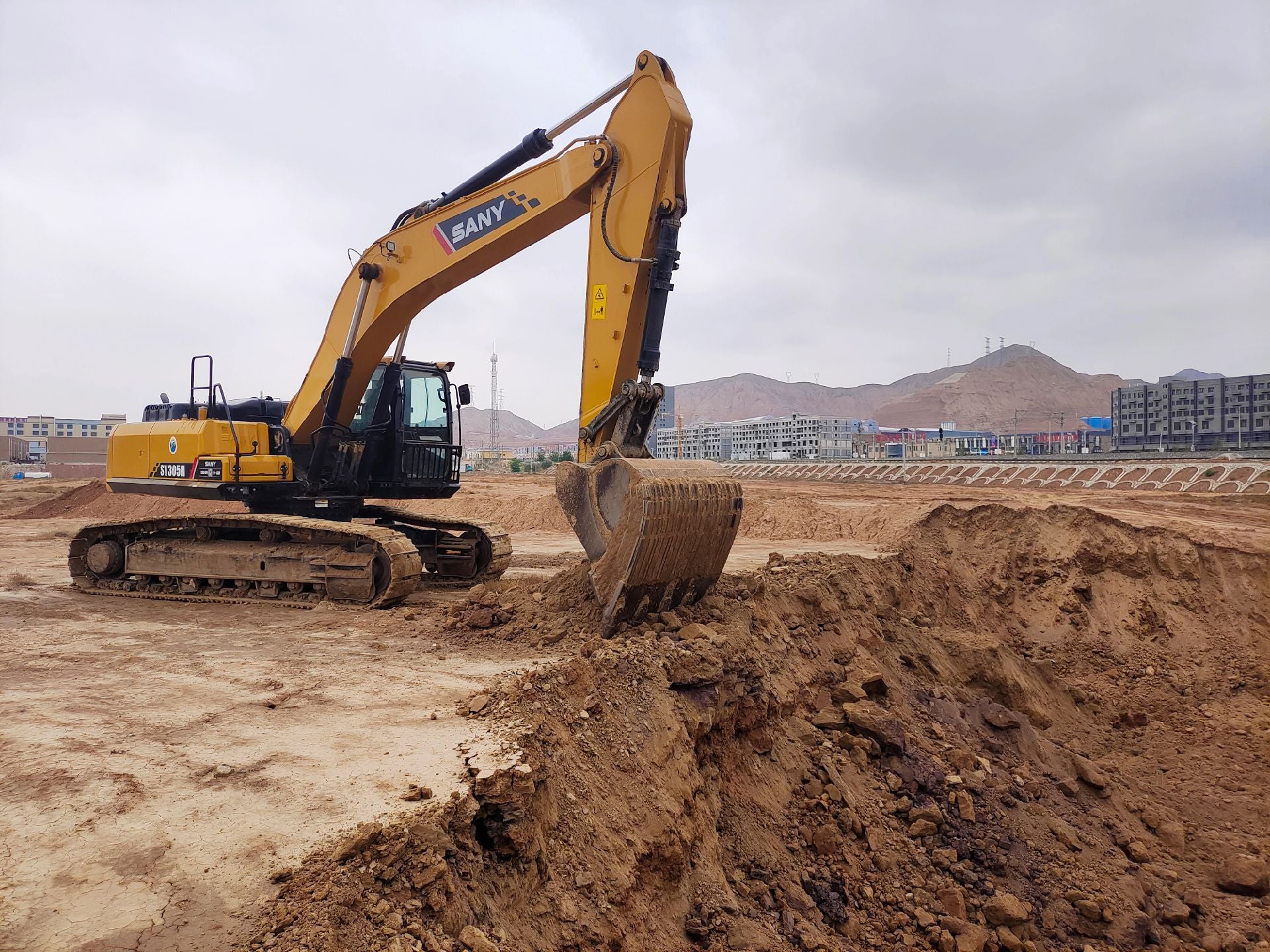

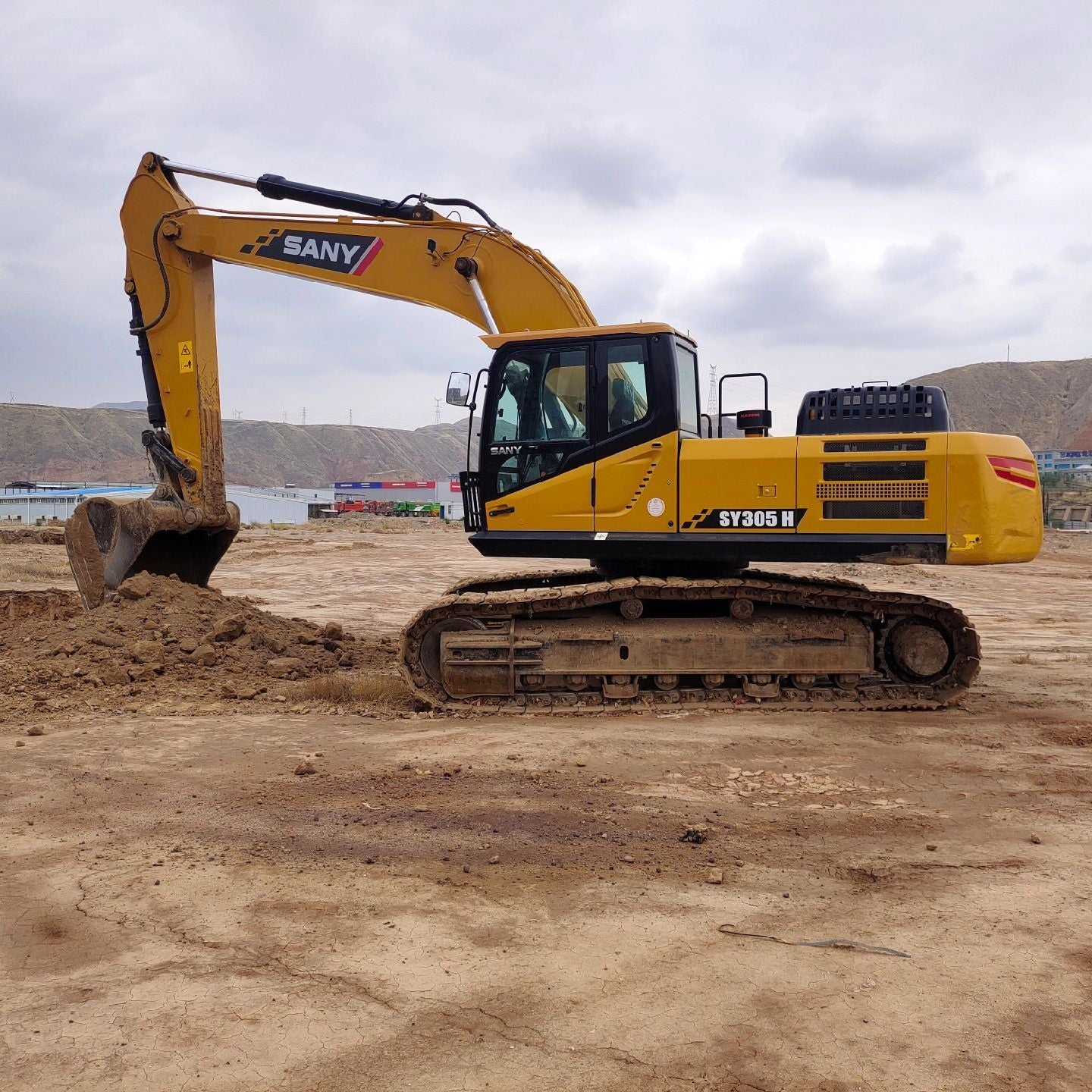

SANY SY305H Heavy-duty Crawler Hydraulic Excavator |
| Operating Weight |
31,500 kg |
| Standard Heaped Bucket Capacity |
1.65 m³ (Optional:1.65~2.0 m³) |
| Overall Transport Length |
10,667 mm |
| Overall Transport Width |
3,190 mm |
| Overall Transport Height(Cab Top) |
3,280 mm |
| Standard Track Shoe Width |
600 mm |
| Track Gauge |
2,590 mm |
| Track Length on Ground |
3,915 mm |
| Ground Clearance |
550 mm |
| Minimum Tail Swing Radius |
3,316 mm |

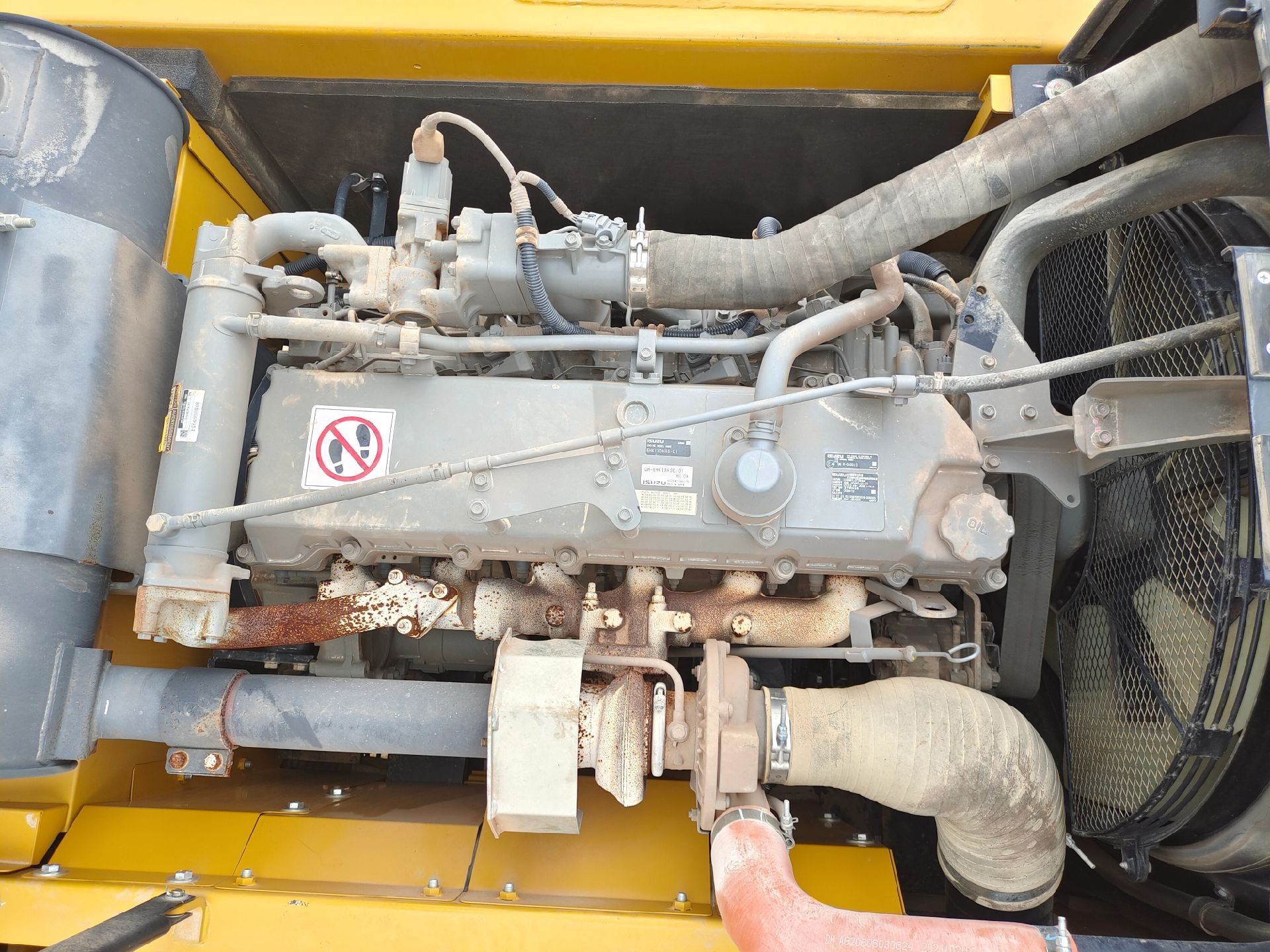

| Engine Model |
ISUZU GH-6HK1 Diesel Engine |
| Engine Type |
Water-cooled,4-stroke turbocharged direct injection diesel |
| Rated Net Power |
212 kW @ 2000 rpm |
| Engine Displacement |
7.79 L |
| Max Engine Torque |
1090 N·m @1500 rpm |
| Fuel Tank Capacity |
540 L |
| Hydraulic Oil Tank Capacity |
380 L |
| Main Hydraulic Working Pressure |
35.0 MPa |
| Max Digging Reach(Ground Level) |
11,050 mm |
| Max Digging Depth |
7,410 mm |
| Max Vertical Wall Digging Depth |
6,580 mm |
| Max Digging Height |
10,500 mm |
| Max Dumping Height |
7,220 mm |
| Bucket Digging Force(ISO) |
220.0 kN |
| Arm Digging Force(ISO) |
170.0 kN |
| Swing Speed |
9.0 rpm |
| Travel Speed(Low/High) |
3.5 km/h / 5.7 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
60.3 kPa |
| Standard Boom Length |
6,150 mm |
| Standard Stick Length |
3,200 mm |
