SDLG

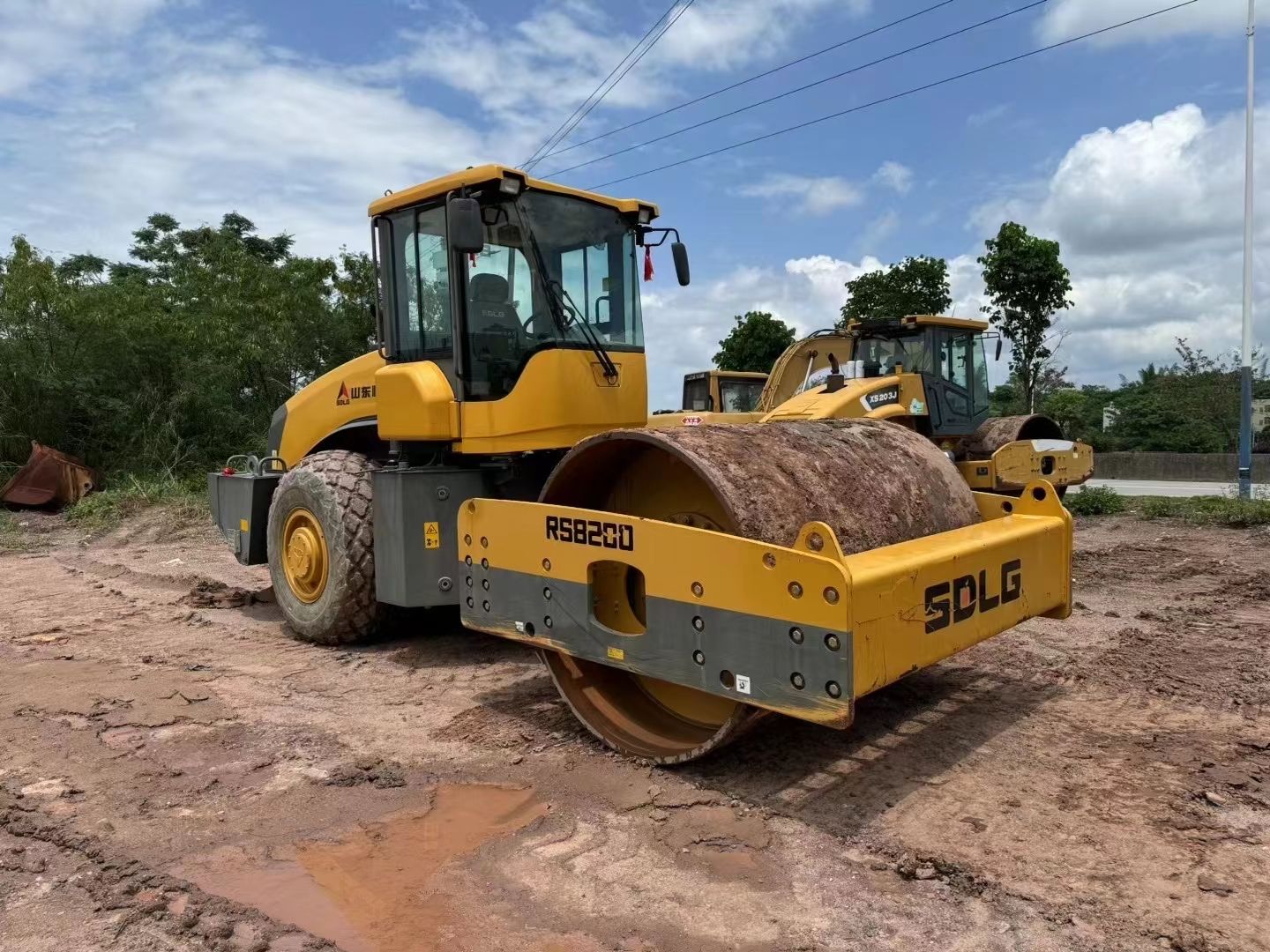

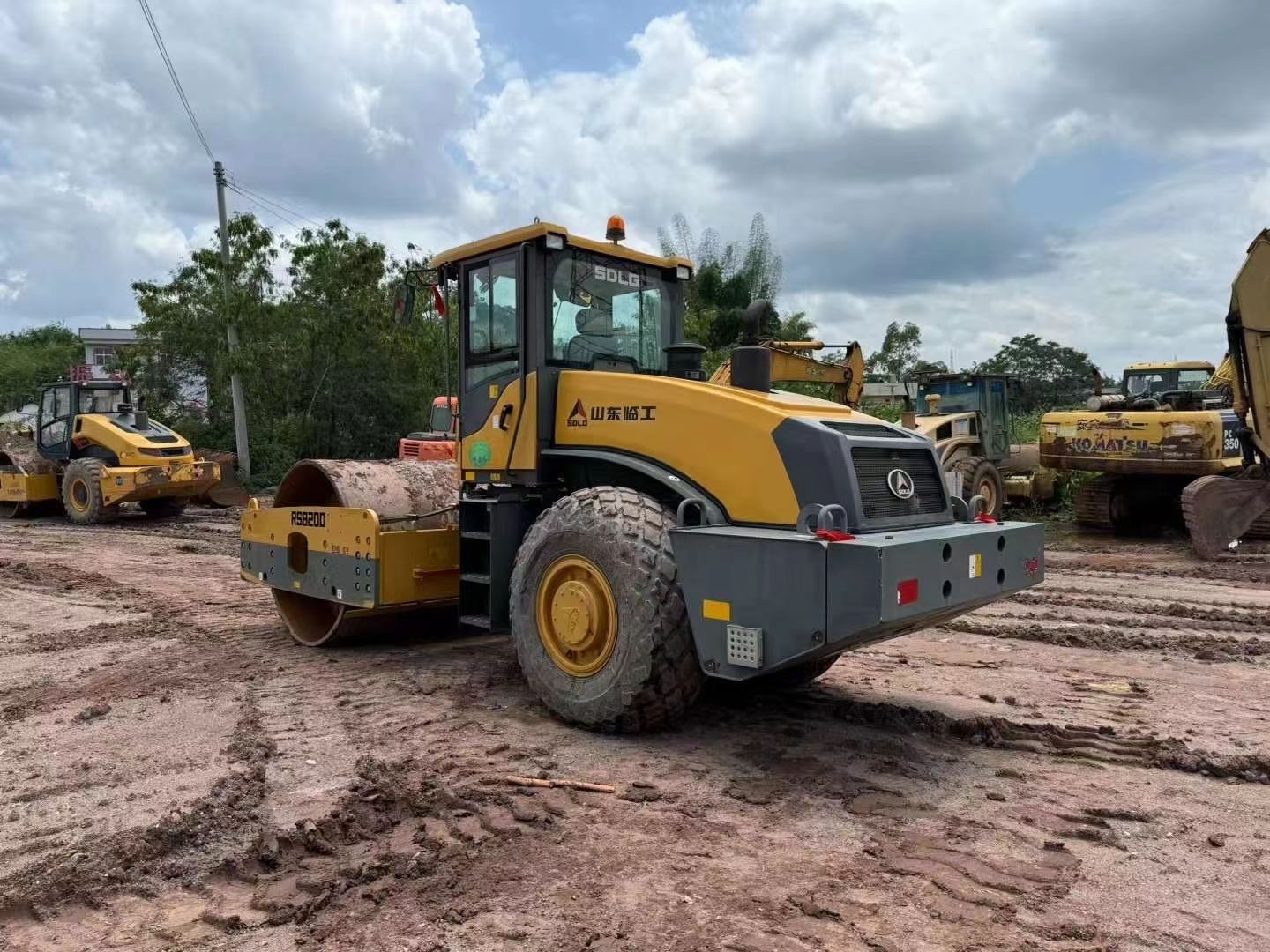

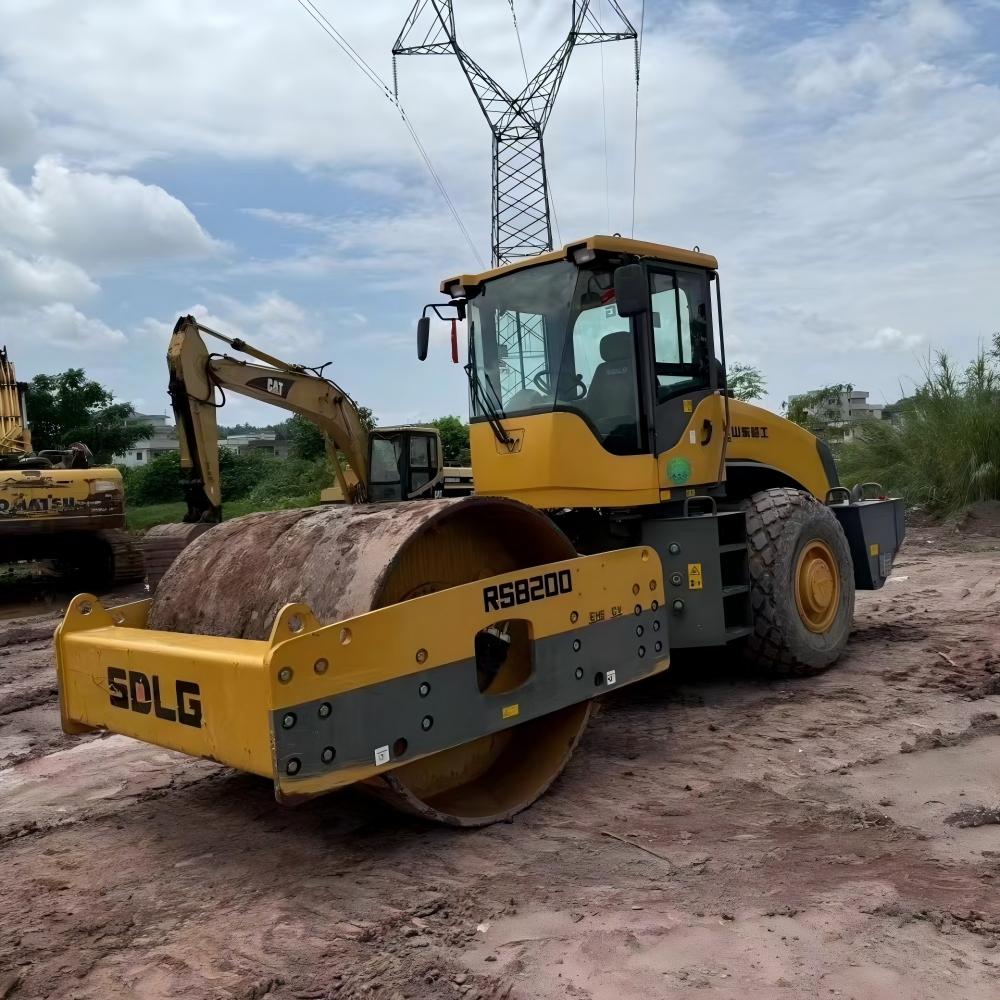

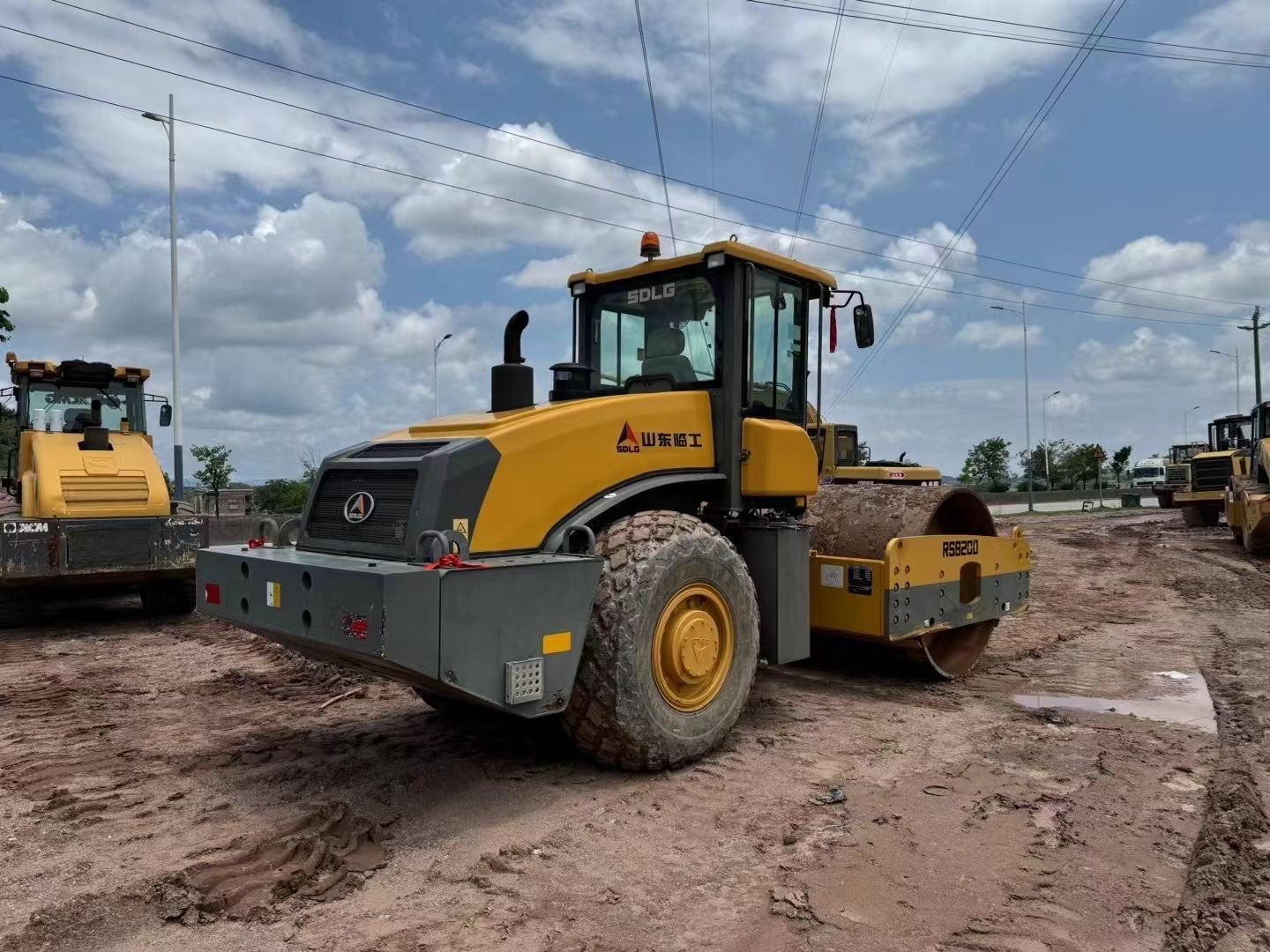

USED SDLG RS8200

USED SDLG RS8200

$17,000.00 USD
$17,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 20000
Front Drum Weight kg 10000
Rear Axle Weight kg 10000
Drum Width mm 2150SDLG
Drum Diameter mm 1600
Engine Model - Weichai WP6G175E201SDLG
Rated Power kW/rpm 129/2000SDLG
Emission Standard - China Stage III
Vibration Frequency Hz 28/35 (high/low)SDLG
Nominal Amplitude mm 2.0/1.0 (high/low)
Exciting Force kN 360/280 (high/low)SDLG
Static Linear Pressure N/cm 455
Travel Speed km/h 0–12
Gradeability % 30
Steering Angle ° ±35
Oscillation Angle ° ±12
Min Turning Radius mm 6600
Wheelbase mm 3441
Min Ground Clearance mm 407
Overall Length mm 6370SDLG
Overall Width mm 2320SDLG
Overall Height mm 3185SDLG
Fuel Tank Capacity L 220SDLG
Hydraulic Tank Capacity L 180
