| Operating Weight |
22,000 kg (48,502 lb) |
| Front Axle Load |
11,000 kg |
| Rear Axle Load |
11,000 kg |
| Static Linear Load |
516 N/cm |
| Compaction Width |
2,130 mm (83.9 in) |
| Drum Diameter |
1,600 mm (63.0 in) |

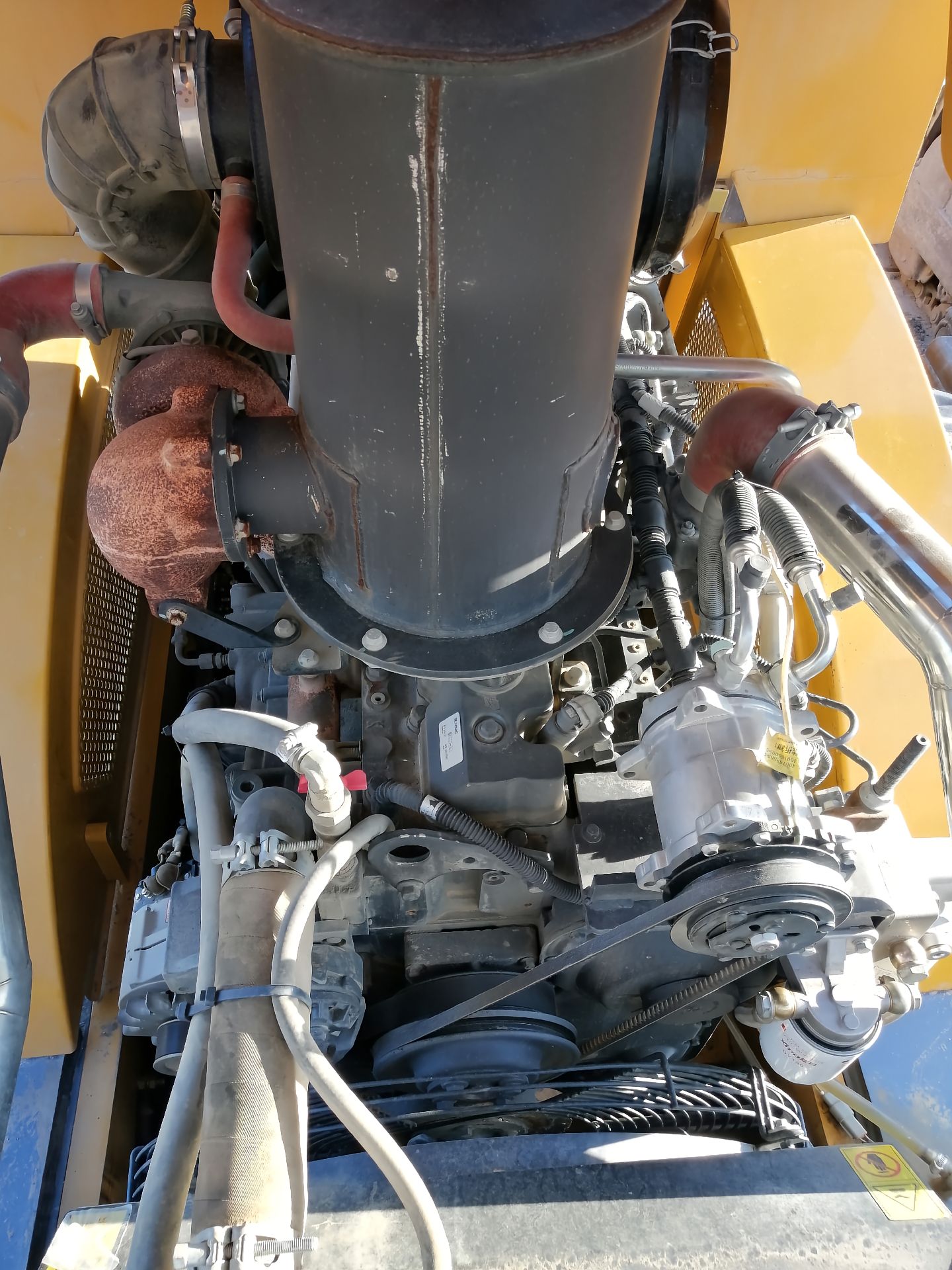

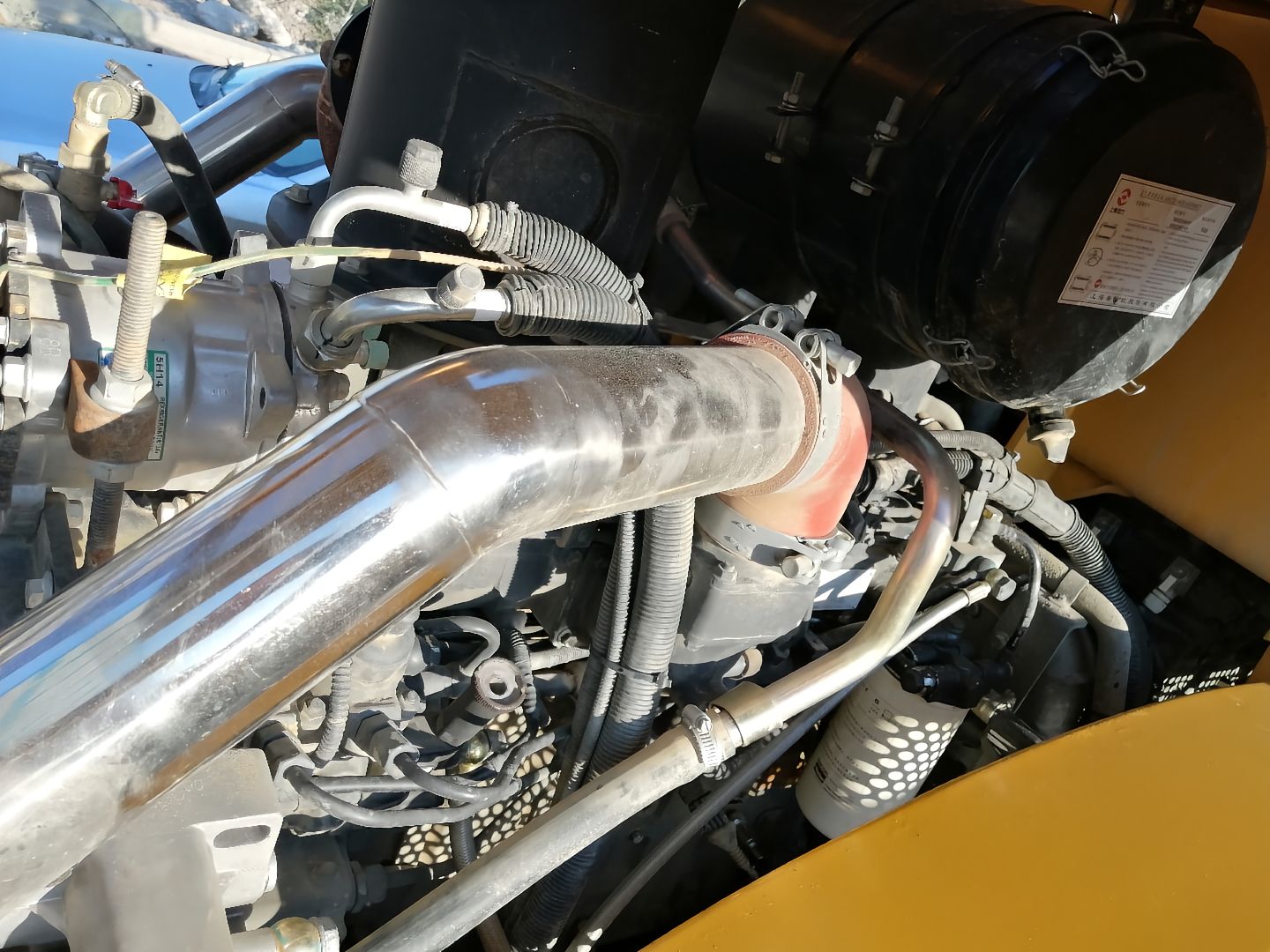

| Engine Model |
Shangchai SC7H190.2G3 / SC8D185.2G2B1Xuzhou Construction Machinery Group Co., Ltd.
|
| Rated Power |
140 kW / 188 hp @ 1,800 rpmXuzhou Construction Machinery Group Co., Ltd.
|
| Emission Standard |
China National III / EU Stage III |
| Vibration Frequency |
28 / 33 Hz (dual frequency) |
| Nominal Amplitude |
1.86 / 0.93 mm (high/low) |
| Excitation Force |
374 / 290 kN (high/low) |
| Travel Speed (3 gears) |
2.69 / 5.25 / 11.12 km/h |
| Max Gradeability (with vibration) |
30% |
| Min. Turning Radius (Outer) |
6,500 mm |
| Overall Dimensions (L×W×H) |
6,320 × 2,390 × 3,200 mm |
| Fuel Tank Capacity |
310 L |
| Drive System |
Mechanical, 2-wheel drive |
| Application |
Highway, railway, airport, port, dam, gravel & soil compaction |
