DEVELON

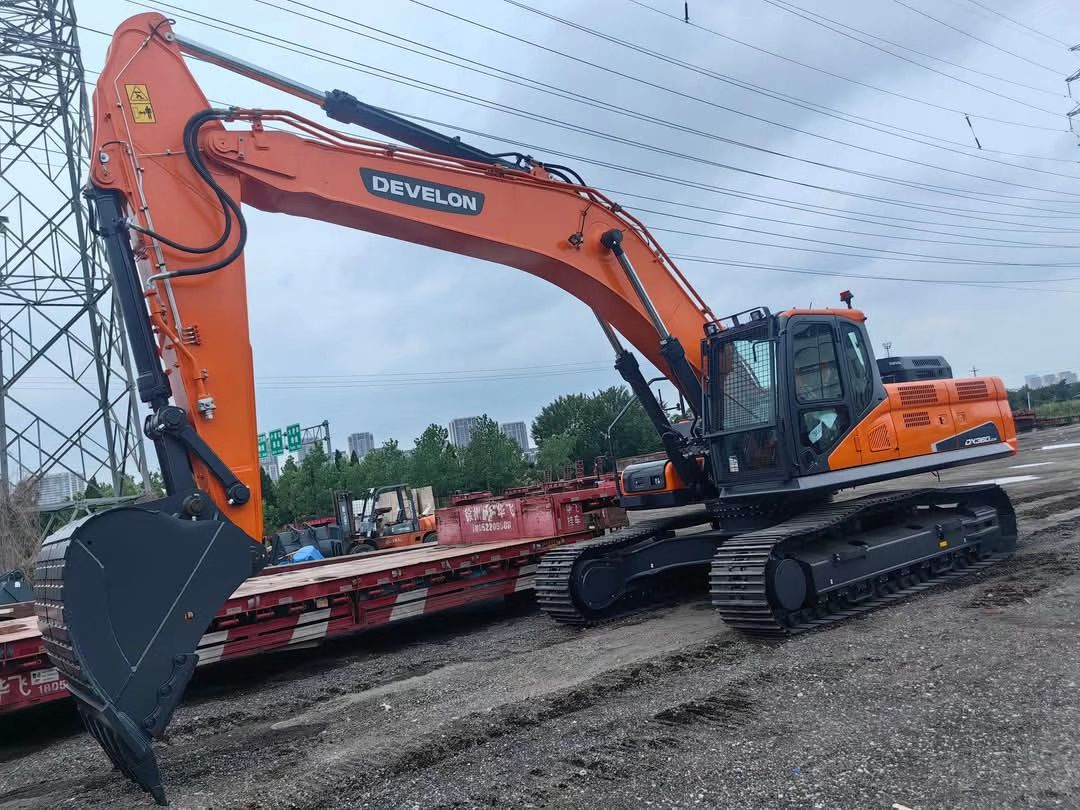

NEW DEVELON DX360

$48,000.00 USD

Obral Habis

Parameter	Details
Model	DEVELON DX360LC-7
Engine Model	Develon DX12
Number of Cylinders	6
Engine Power	209 kW (280 HP) @ 1900 RPM (SAE J1349, net)
Emission Standard	Stage V / China IV
Operating Weight	37,700 kg
Bucket Capacity	1.94 m³ (SAE heaped, standard); 1.25-2.32 m³ (optional range)
Max. Main Pump Flow	2 × 260 L/min (twin variable displacement piston pumps)
Boom Length	6,245 mm (standard)
Arm Length	3,100 mm (standard)
Max. Digging Force (Bucket/ISO)	210 kN
Max. Digging Force (Arm/ISO)	150 kN
Max. Digging Depth	7,485 mm
Max. Digging Radius	11,115 mm
Max. Digging Height	10,215 mm
Travel Speed (High/Low)	5.5/3.4 km/h
Tail Swing Radius	3,280 mm
Swing Speed	8.2 RPM
Hydraulic System Pressure	370 bar
