HYUNDAI

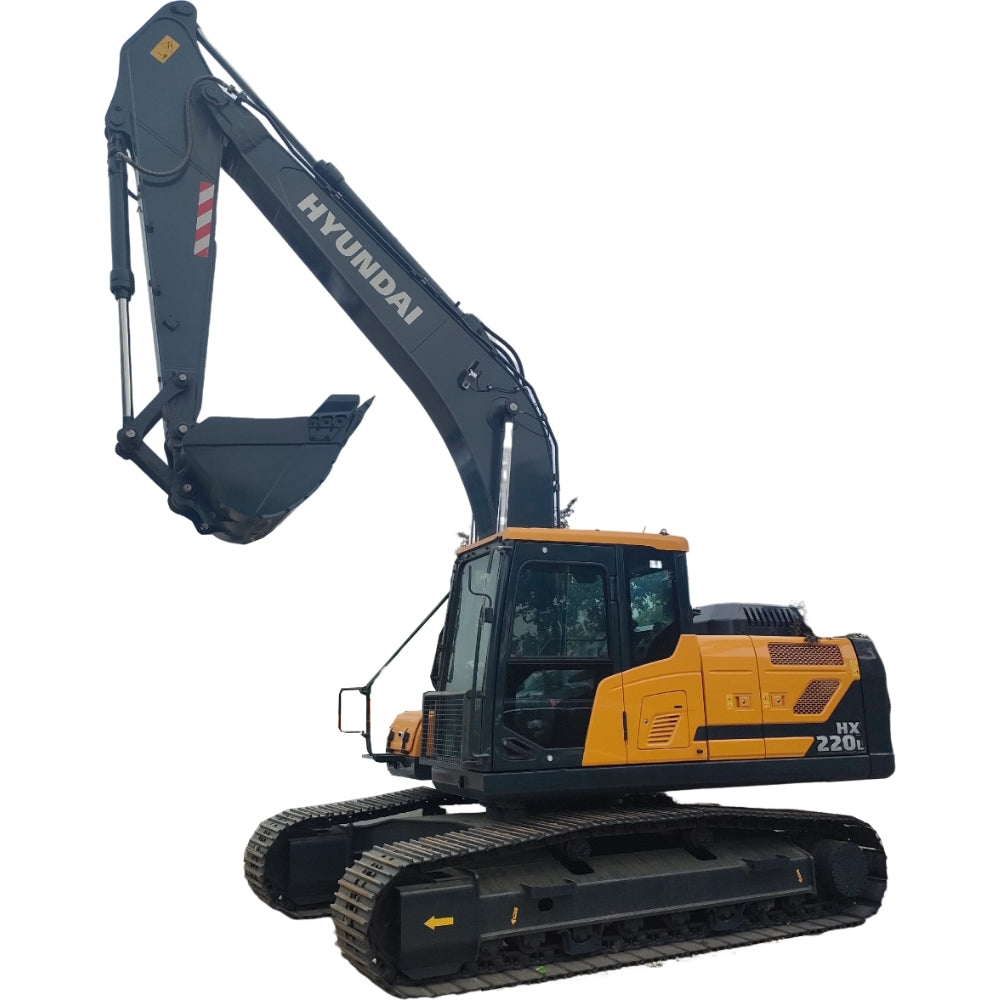

NEW HYUNDAI HX220L

$28,000.00 USD

Obral Habis

Parameter	Details
Model	HYUNDAI HX220L (Crawler Excavator)
Operating Weight	23,640 kg (52,117 lbs)
Engine Model	Cummins QSB6.7
Engine Power	129 kW (173 hp) @ 1,950 rpm (net); 136 kW (182.6 hp) @ 1,950 rpm (gross)
Max. Torque	620 N·m (457 lb·ft) @ 1,500 rpm
Standard Bucket Capacity	1.0 m³ (Optional 0.92-1.34 m³)
Boom Length	5,680 mm
Arm Length	2,920 mm
Overall Length	9,560 mm
Overall Width	2,990 mm
Overall Height	3,030 mm
Tail Swing Radius	2,840 mm
Min. Ground Clearance	470 mm
Max. Digging Depth	6,730 mm
Max. Digging Height	9,600 mm
Max. Digging Reach	9,980 mm
Max. Dumping Height	6,780 mm
Travel Speed (Low/High)	3.6 km/h / 5.5 km/h
Swing Speed	10.8 rpm
Max. Gradeability	35° (70%)
Bucket Breakout Force (ISO)	150.0 kN
Arm Tearout Force (ISO)	116.0 kN
Emission Standard	Tier 4 Final/Euro Stage V
Fuel Tank Capacity	400 L (105.7 gal)
Hydraulic Tank Capacity	160 L (42.3 gal)
Hydraulic System Fluid Capacity	275 L (72.7 gal)
Engine Oil Capacity	23 L (6.1 gal)
