HYUNDAI

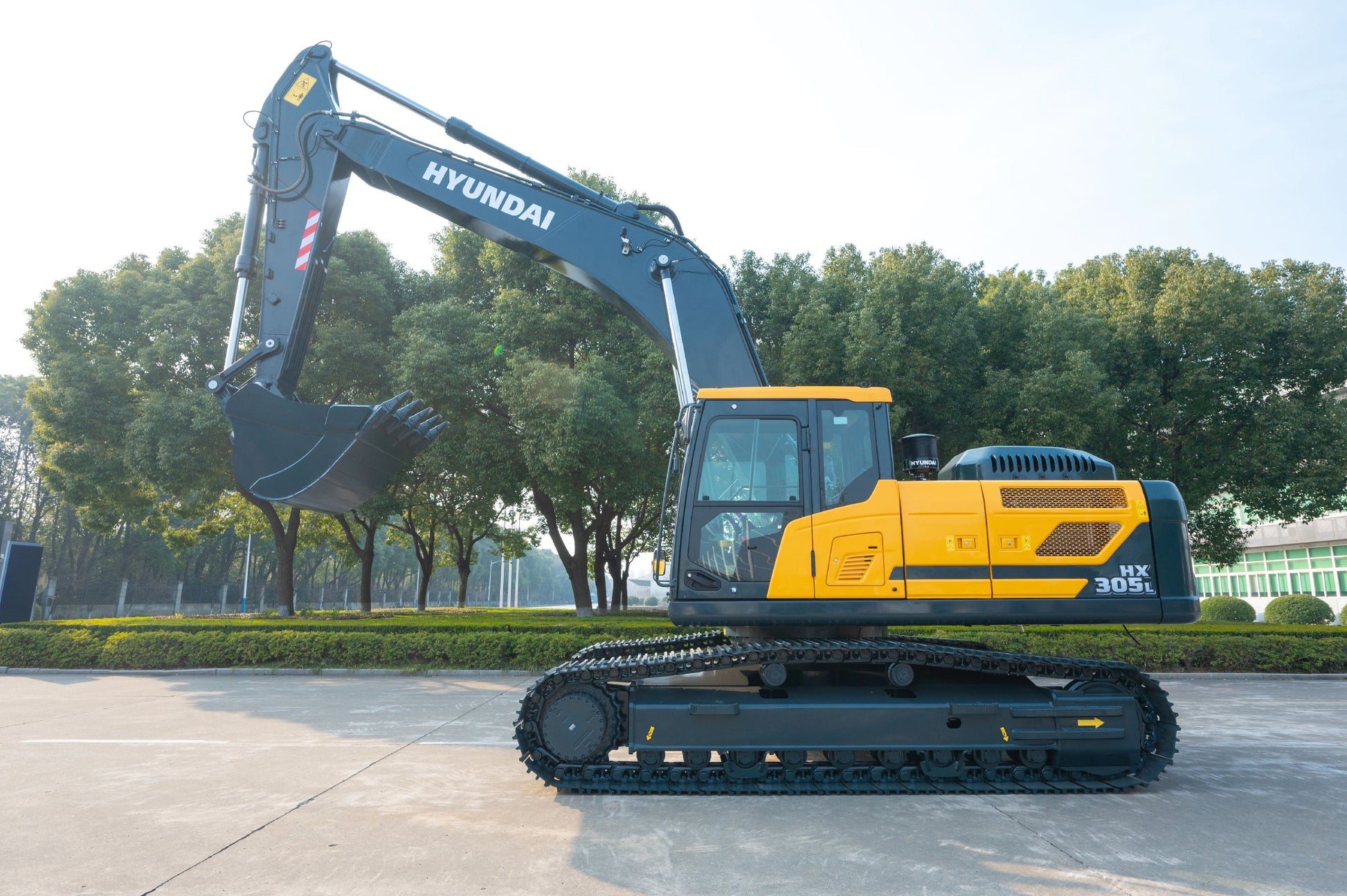

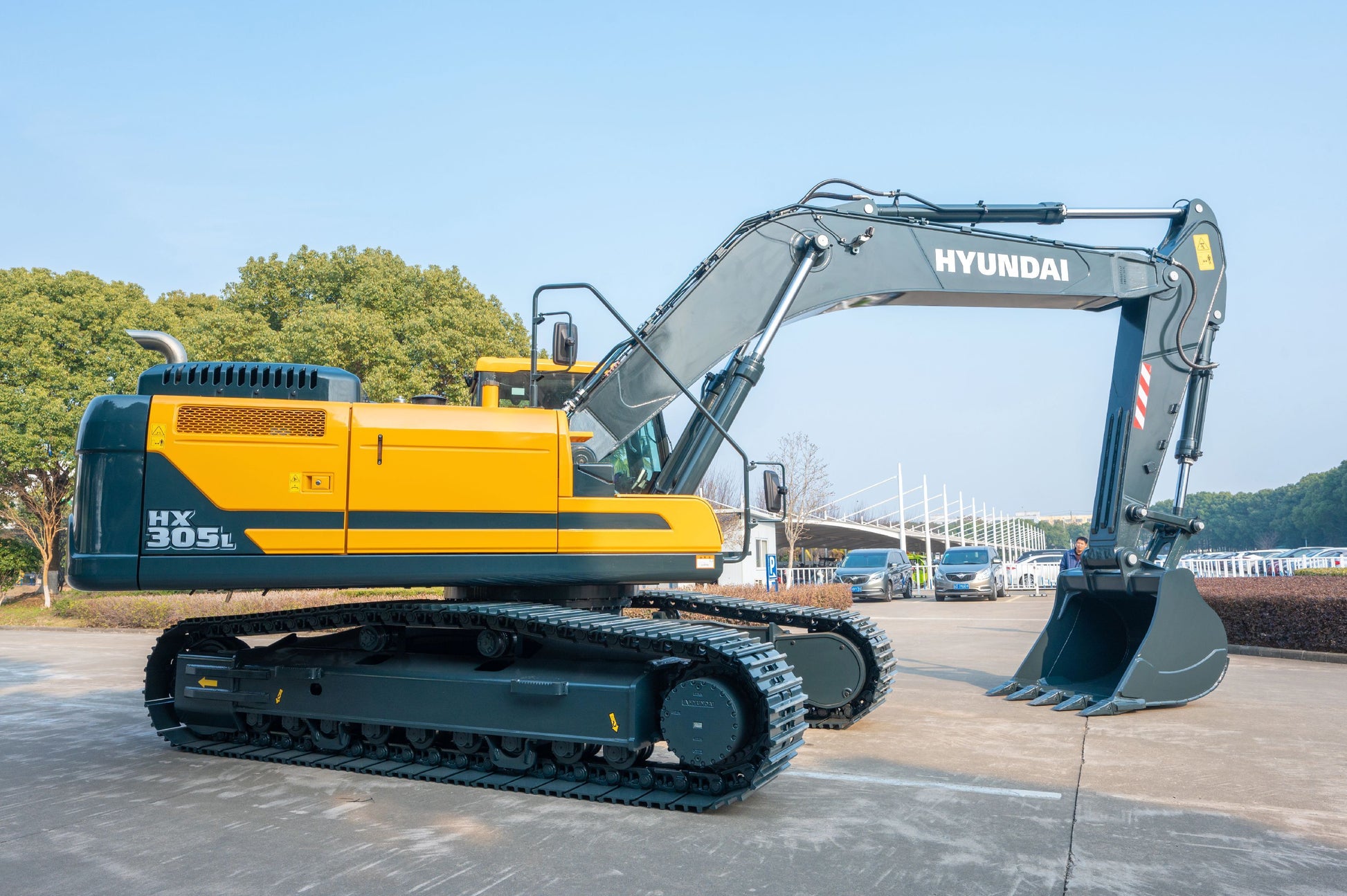

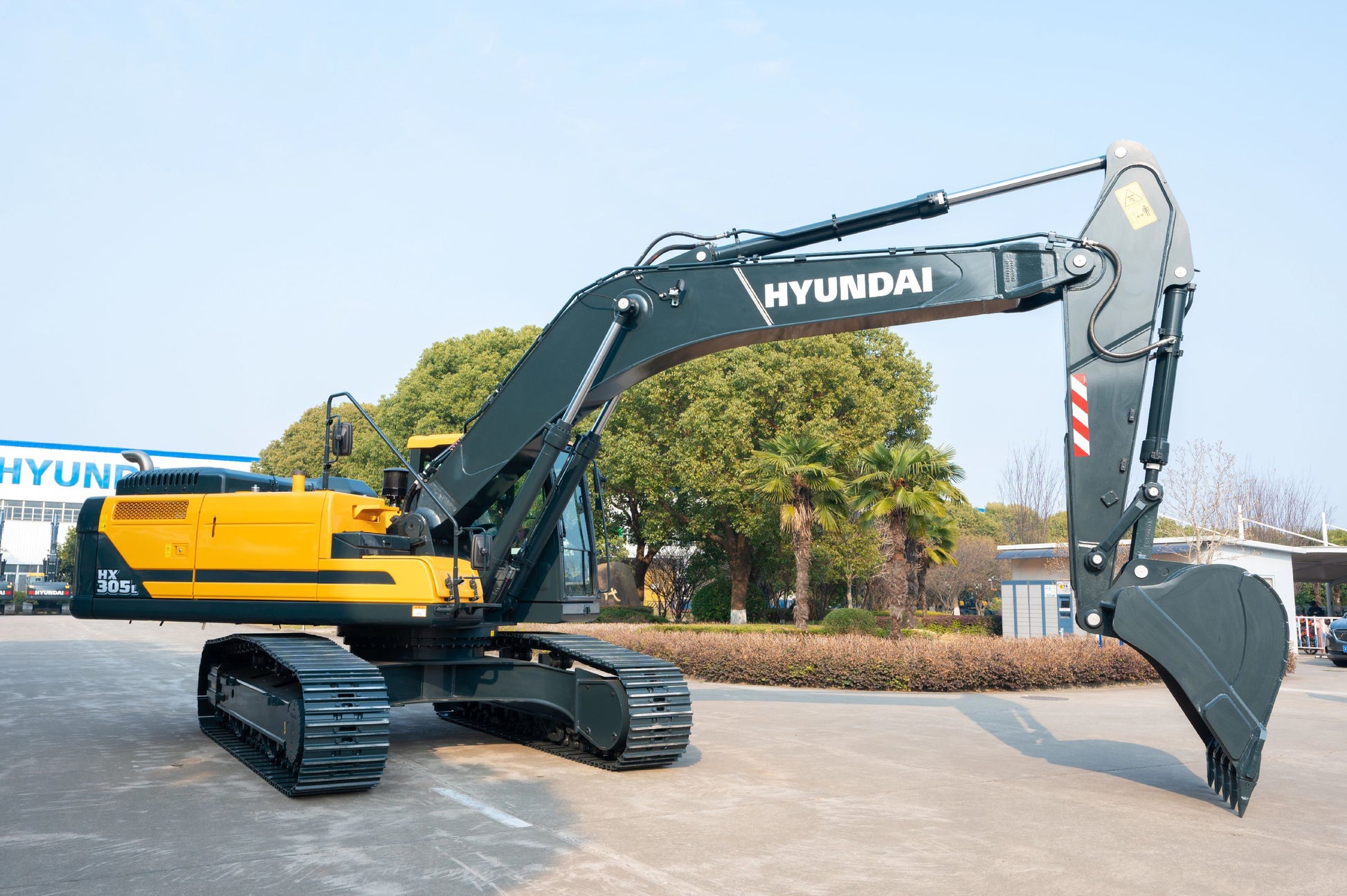

NEW HYUNDAI HX305L

$45,000.00 USD

Obral Habis

Parameter	Details
Model	HYUNDAI HX305L (Crawler Excavator)
Operating Weight	31,700 kg
Engine Model	Cummins B7
Engine Power	173 kW (232 hp) @ 2,000 rpm
Max. Torque	949 N·m @ 1,200 rpm
Standard Bucket Capacity	1.44 m³ (Optional 1.63 m³)
Boom Length	6,250 mm
Arm Length	3,050 mm (Optional 2,850 mm)
Overall Length	10,600 mm
Overall Width	3,200 mm
Overall Height	3,240 mm
Tail Swing Radius	3,200 mm
Min. Ground Clearance	500 mm
Max. Digging Depth	7,305 mm
Max. Digging Height	10,115 mm
Max. Digging Reach	10,785 mm
Max. Dumping Height	7,250 mm
Travel Speed (Low/High)	3.2 km/h / 5.6 km/h
Swing Speed	10.7 rpm
Max. Gradeability	35° (70%)
Bucket Breakout Force (ISO)	195 kN
Arm Tearout Force (ISO)	145 kN
Emission Standard	Tier 4 Final/Euro Stage V
Fuel Tank Capacity	460 L
Hydraulic Tank Capacity	200 L
Main Hydraulic Pump Flow	2 × 285 L/min
Engine Oil Capacity	34 L
Coolant Capacity	41 L
Urea Tank Capacity	70 L
