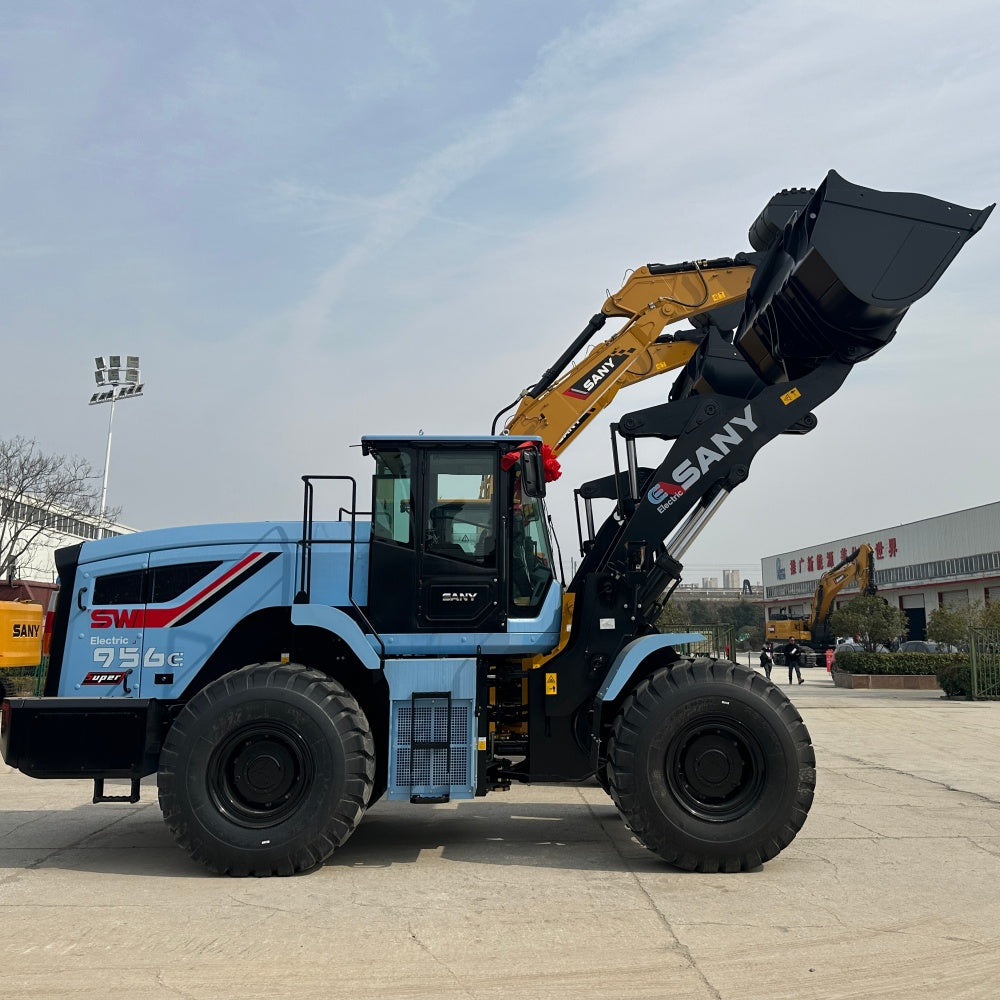

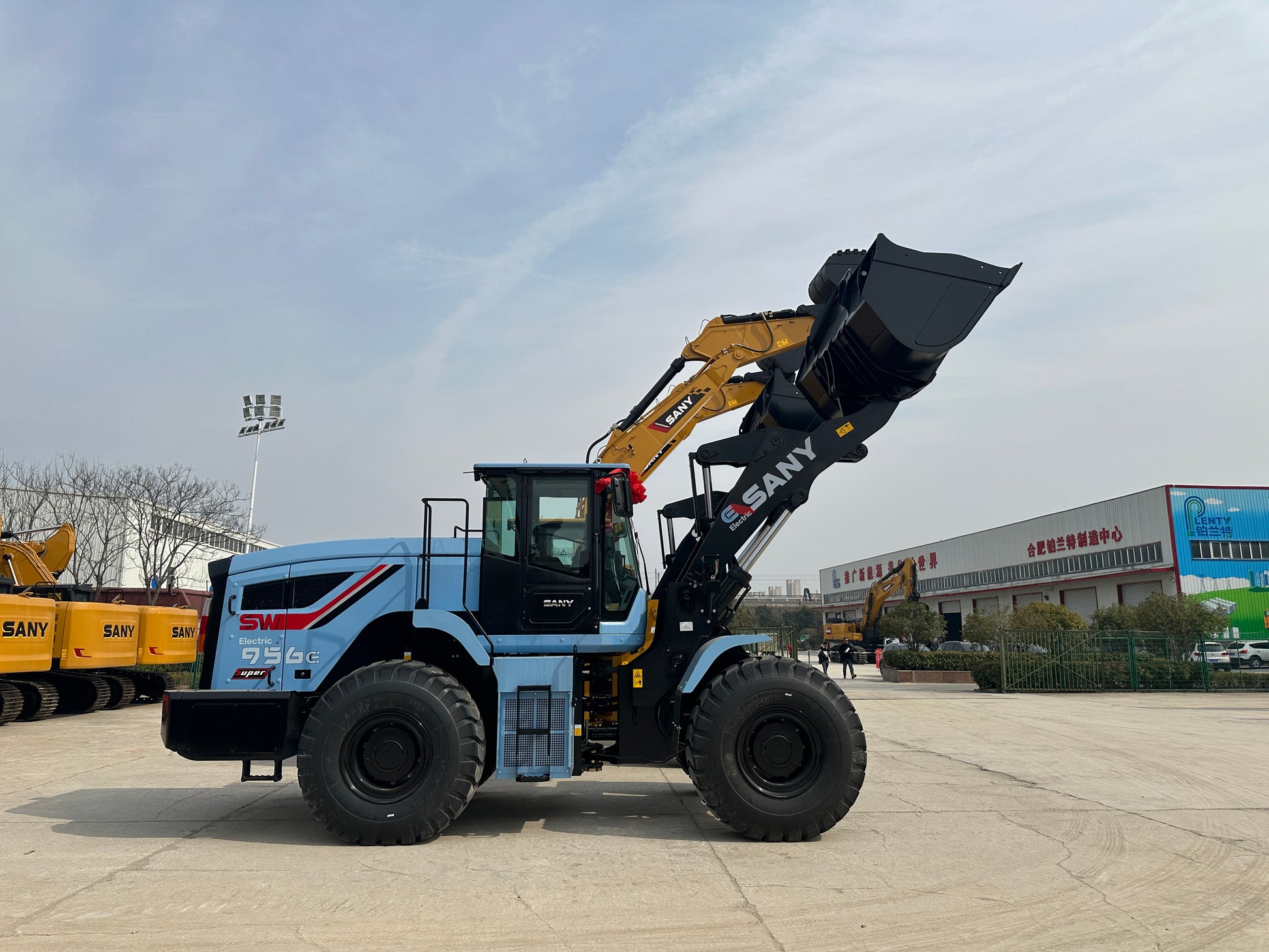

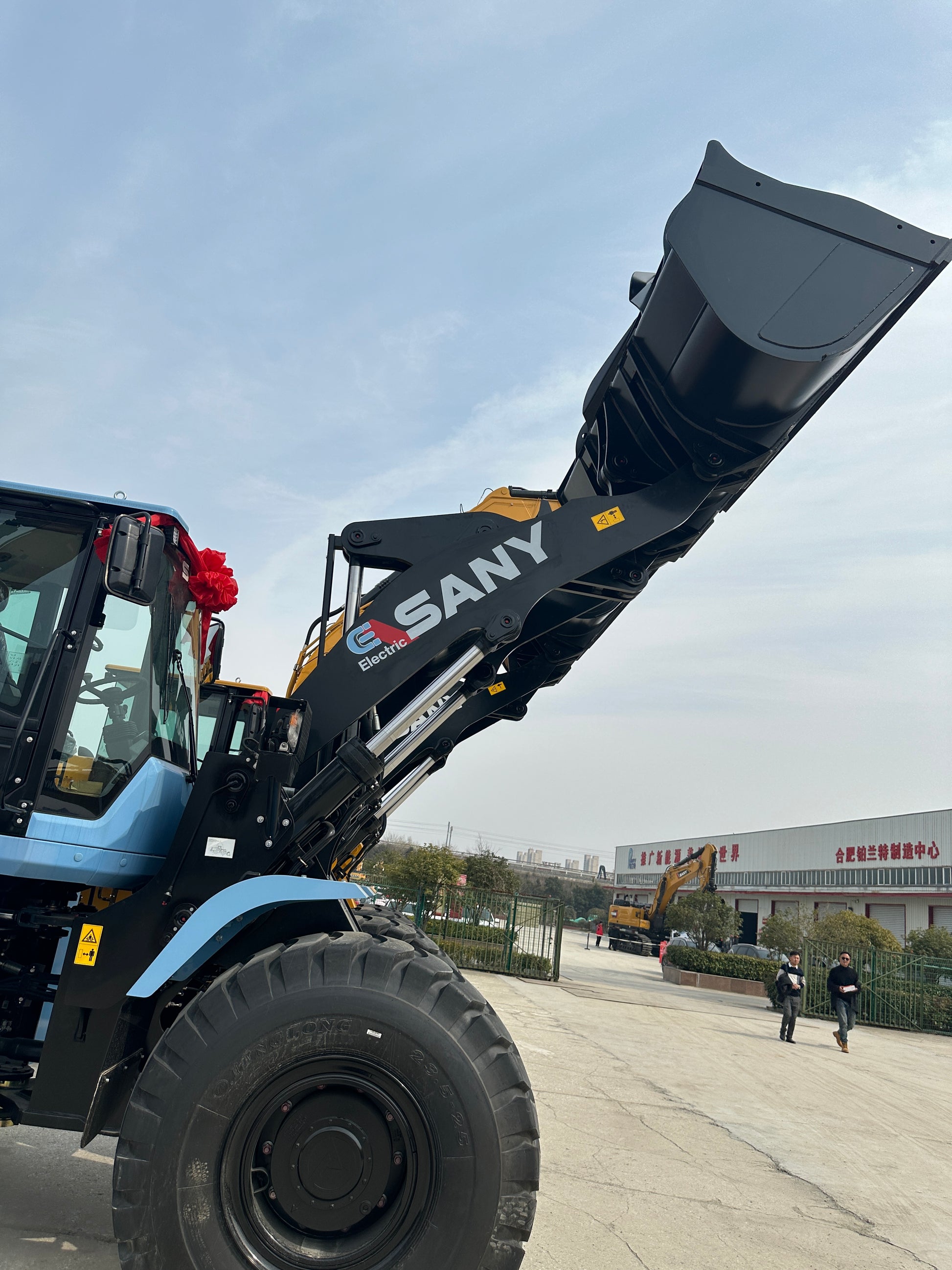

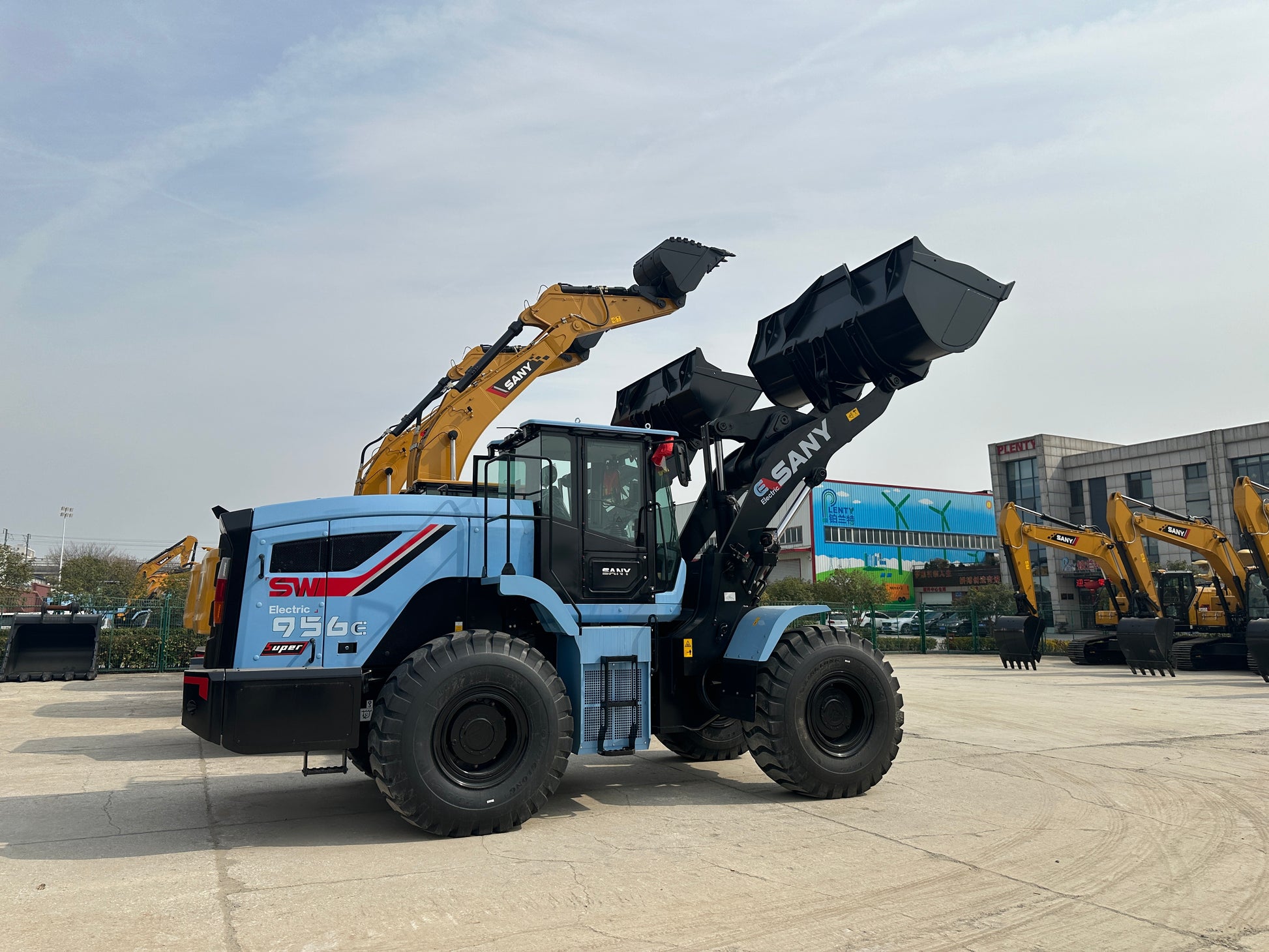

NEW SANY SW956E

NEW SANY SW956E

$120,000.00 USD
$120,000.00 USD
Obral Habis
Parameter Value
Model SANY SW956E
Machine Type Electric Wheel Loader
Operating Weight 19000 kg
Rated Payload 5800 kg
Bucket Capacity (Standard) 3.5 m³ (2.7-5.0 m³ Optional)
Battery Capacity 282 kWh/359 kWh
Drive Motor Rated Power 120 kW
Drive Motor Peak Power 240 kW
Drive Motor Rated Torque 1000 N.m
Drive Motor Peak Torque 2400 N.m
Working Motor Rated Power 80 kW
Working Motor Peak Power 160 kW
Working Motor Rated Torque 400 N.m
Working Motor Peak Torque 800 N.m
Max. Breakout Force 182 kN
Max. Traction Force 180 kN
Straight Turn Tipping Load 14500 kg
Full Turn Tipping Load 12500 kg
Max. Travel Speed 16 km/h
Unloading Height 3345 mm
Unloading Distance 1220 mm
Wheelbase 3400 mm
Overall Length 8560 mm
Overall Width 2845 mm
Overall Height 3560 mm
Three - way Cycle Time 10.5 s
Transmission 2 - speed Gearbox
Brake System Dual - pipe Full Hydraulic Service Braking
Lihat detail lengkap
