SEM

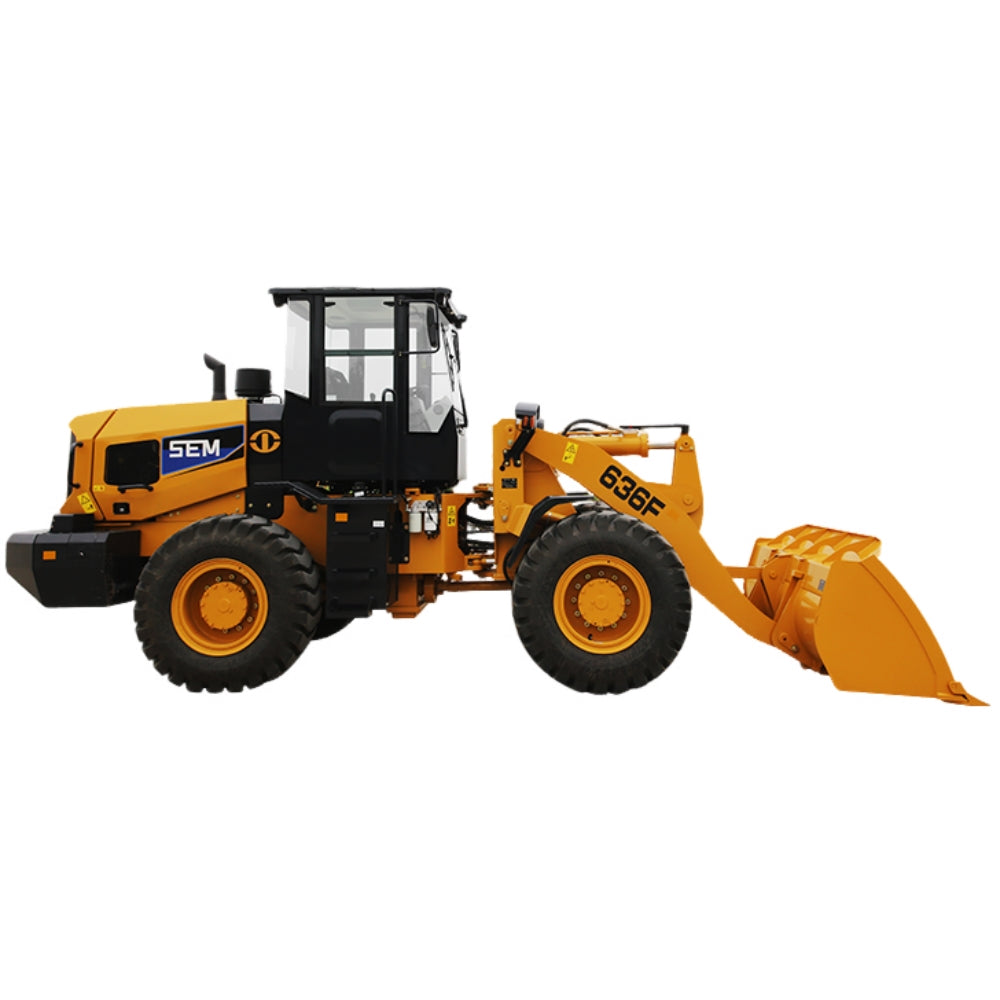

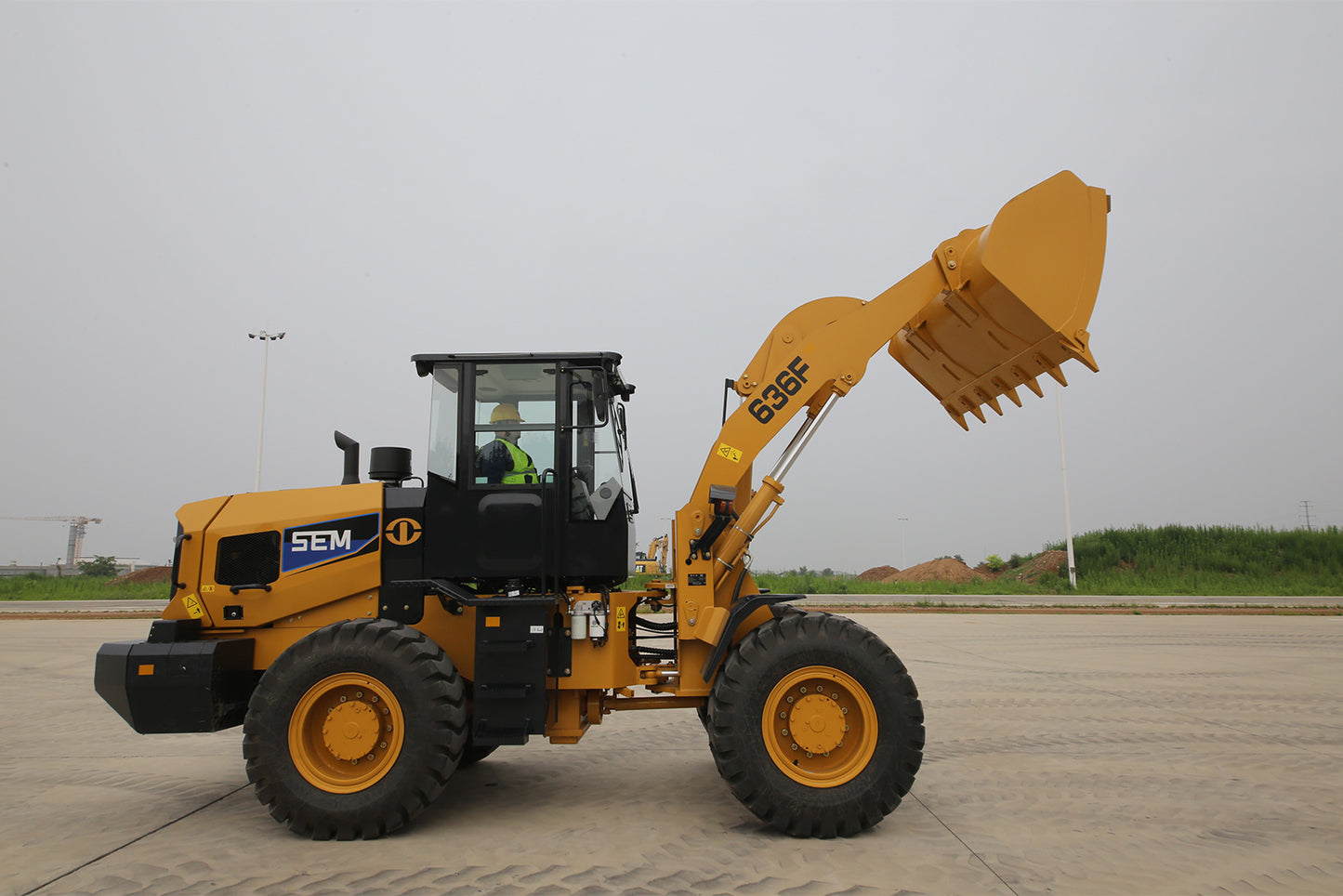

NEW SEM 636F

$35,000.00 USD

Obral Habis

Item	Parameter	Unit
Model	SEM 636F	-
Operating Weight	9700	kg
Rated Load Capacity	3000	kg
Bucket Capacity	1.4-3.6	m³
Engine Model	WP4.6NG125E473	-
Rated Power	92	kW
Rated Speed	2200	r/min
Displacement	4.58	L
Transmission Model	TR100	-
Transmission Gears	Forward 4/Reverse 2	-
Travel Speed (F1/F2/F3/F4/R1/R2)	7.5/13.5/24/39/9.4/29	km/h
Overall Dimensions (L×W×H)	7383×2348×3152	mm
Wheelbase	2850	mm
Unloading Height (45°)	3000	mm
Min. Turning Radius (Bucket Outer)	5929	mm
Steering Angle	±36	°
Hydraulic System Working Pressure	18	MPa
Brake Type	Air-over-oil caliper disc (service), Internal expanding drum (parking)	-
Emission Standard	China IV
