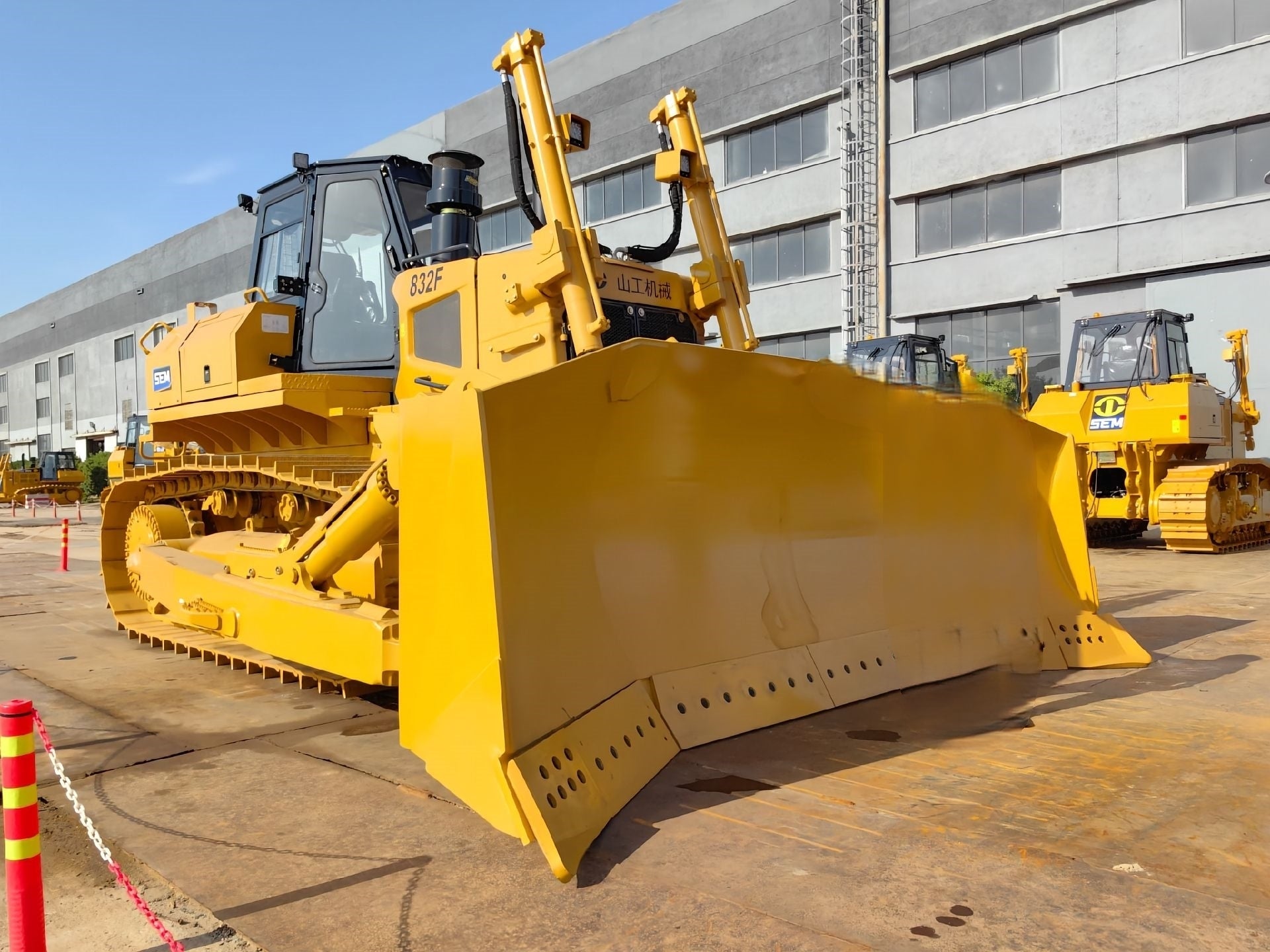

| Model |
SEM 832F |
| Operating Weight |
34,900 kg (standard); 38,710 kg (with SU blade & ripper) |
| Engine Model |
Perkins 1706D‑E93TASEM山工机械
|
| Engine Manufacturer |
Perkins |
| Rated Power |
253 kW (339 HP) @ 2,200 rpm (ISO 14396)SEM山工机械
|
| Emission Standard |
China Stage 4/EPA Tier 3 |
| Transmission |
Closed‑loop Electronically Controlled Hydrostatic Drive, dual‑path, 0‑11 km/h infinitely variable speedSEM山工机械
|
| Steering & Brake |
Hydrostatic steering, wet multi‑disc brakes, bellville spring actuated, hydraulically releasedSEM山工机械
|
| Blade Type |
SU/S/U/Waste‑Handling (optional) |
| Blade Capacity |
9.6 m³ (SU); 7.8 m³ (S); 12.9 m³ (U); 18.6 m³ (waste‑handling) |
| Track Shoe Width |
560/610/760 mm (optional) |
| Min. Ground Clearance |
370 mm (excluding grouser height) |
| Max. Gradeability |
30° |
| Ground Pressure |
83 kPa/77 kPa (standard); 63–78 kPa (optional) |
| Hydraulic System |
Double pump confluence, pilot control, 20 MPa system pressure, gear pumpSEM山工机械
|
| Max. Traction Force |
320 kN |
| Fuel Tank Capacity |
650 L |
| Track Roller Quantity |
7 per side |
