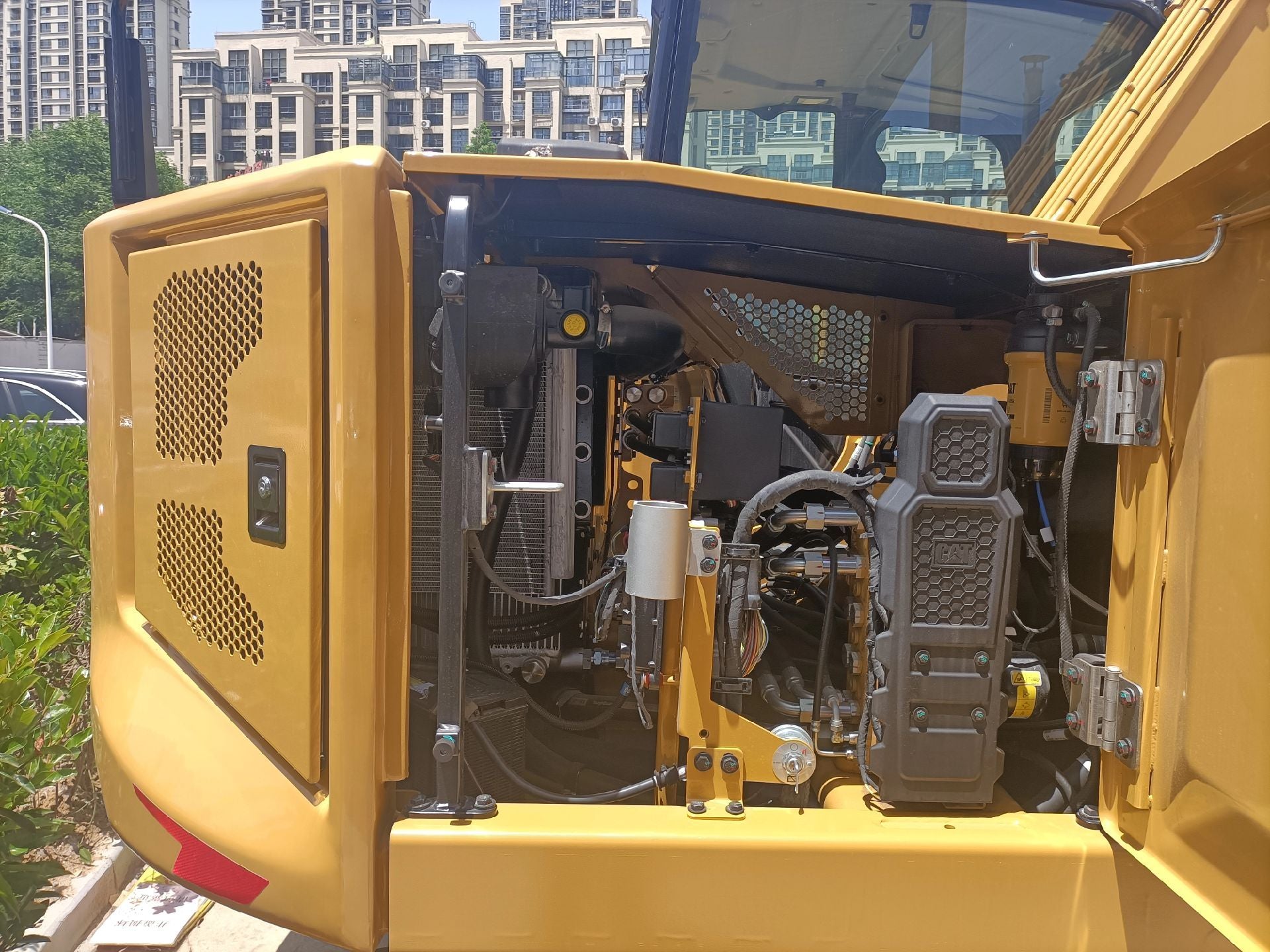

| Engine |
Model |
Cat C2.4 Turbo (4-cylinder, 2.43 L / 148 cu in displacement)Cat
|
|
Gross Power (SAE J1995:2014) |
57.9 hp (43.2 kW) @ 2400 rpmCat
|
|
Net Power (ISO 9249/SAE J1349) |
54.8 hp (40.9 kW) @ 2400 rpmCat
|
| Operating Weight |
Minimum (cab, steel tracks, no counterweight, full fuel, standard stick, blade, no bucket) |
16,549 lb (7,505 kg)Cat
|
|
Maximum (cab, steel tracks with rubber pads, counterweight, full fuel, long stick, blade, no bucket) |
17,905 lb (8,120 kg)Cat
|
|
Standard (cab, steel tracks, bucket, operator, full fuel) |
17,886 lb (8,113 kg)Cat
|
| Digging Performance |
Max Dig Depth |
182.8 in (4,643 mm)Cat
|
|
Bucket Digging Force |
11,834 lbf (52,642 N) (approx.) |
|
Stick Digging Force |
7,284 lbf (32,402 N) (approx.) |
| Travel |
Speed (Low/High) |
1.9 mph (3.0 km/h) / 3.1 mph (5.0 km/h) |
|
Max Traction Force (Low/High Speed) |
14,035 lbf (62.4 kN) / 5,856 lbf (26.1 kN) |
|
Gradeability |
30° |
| Hydraulics |
System Pressure (Equipment/Travel) |
4,134 psi (28,500 kPa) |
|
Swing Pressure |
3,626 psi (25,000 kPa) |
| Fuel Capacity |
38.3 gal (145 L)卡特彼勒
|
|
