CATERPILLAR

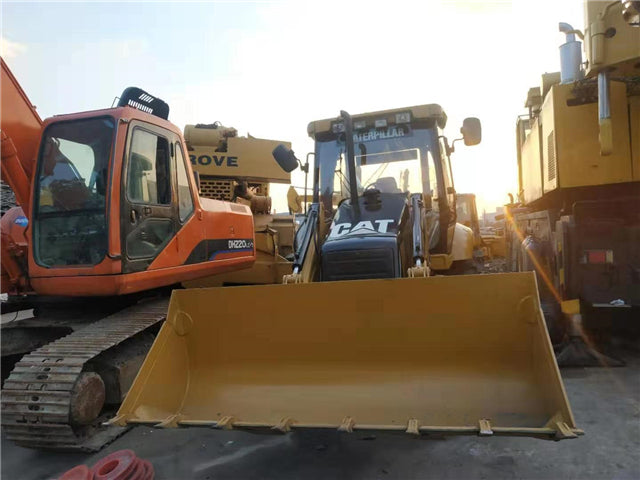

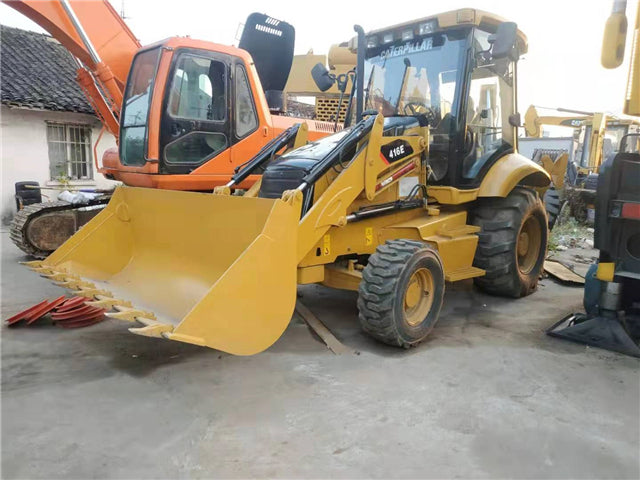

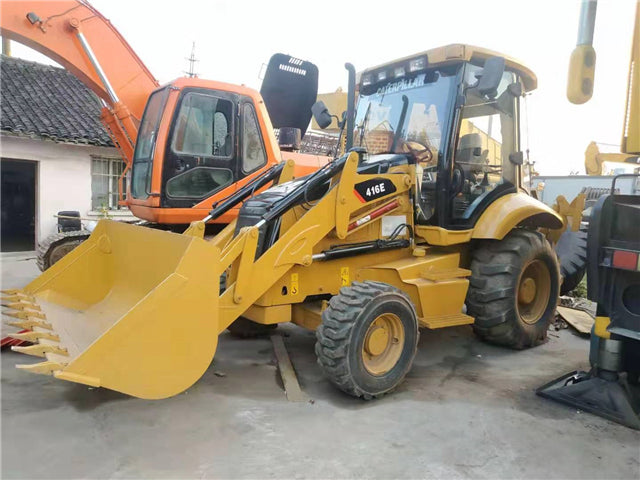

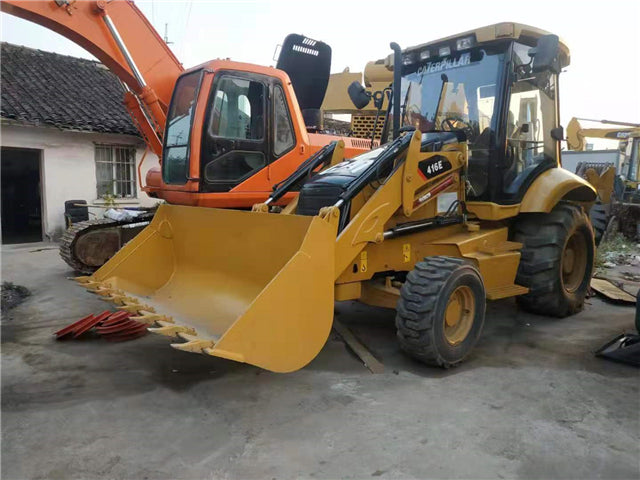

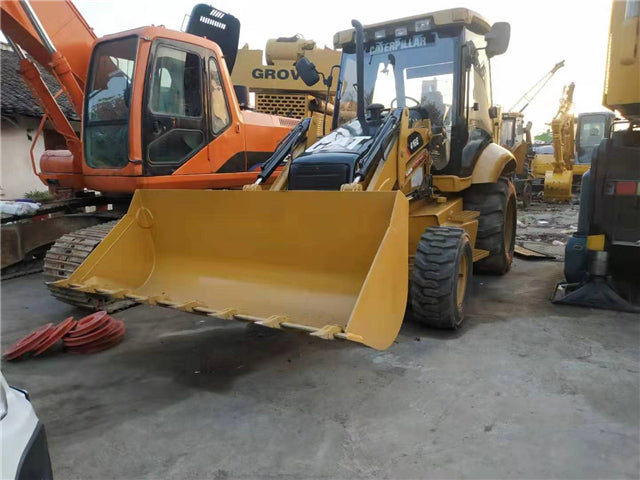

USED CAT 416E

USED CAT 416E

$24,000.00 USD
$24,000.00 USD
Obral Habis

Cat 416E Core Specifications (English)

Category Parameter Value
Weight Nominal Operating Weight 6,792 kg / 14,960 lb
Maximum Operating Weight 10,200 kg / 22,466 lb
Engine (Standard: Cat 3054C DINA) Gross Power (SAE J1995) 58 kW / 78 hp
Net Power (SAE J1349) 55 kW / 74 hp @ 2,200 rpm
Displacement 4.4 L / 268 in³
Max Torque 384 N·m / 283 lb-ft @ 1,400 rpm
Emission Standard U.S. EPA Tier 2 / EU Stage II
Engine (Optional: Cat 3054C DIT) Gross Power (SAE J1995) 69 kW / 93 hp
Net Power (SAE J1349) 66 kW / 89 hp
Loader Performance Bucket Capacity 0.76 m³ / 1.0 yd³
Bucket Breakout Force 47.4 kN / 10,650 lb
Lift Capacity (Full Height) 4,175 kg / 9,185 lb
Max Dump Height 2.65 m / 8.7 ft
Backhoe Performance Standard Dig Depth 4.36 m / 14 ft 4 in
Extended Dig Depth 5.46 m / 17 ft 11 in
Backhoe Breakout Force 51.8 kN / 11,645 lb
Max Horizontal Reach 5.62 m / 18.4 ft
Dimensions Transport Length 7.23 m / 23.7 ft
Transport Width 2.32 m / 7.6 ft
Transport Height 3.58 m / 11.7 ft
Wheelbase 2.20 m / 7.2 ft
Key Auxiliary Specs Travel Speed 39.9 km/h / 24.8 mph
Hydraulic Pump Flow 132 L/min / 34.8 gpm
Fuel Tank Capacity 170 L / 44.9 gal
Standard Tires Front: 11L-16 (12 pl
