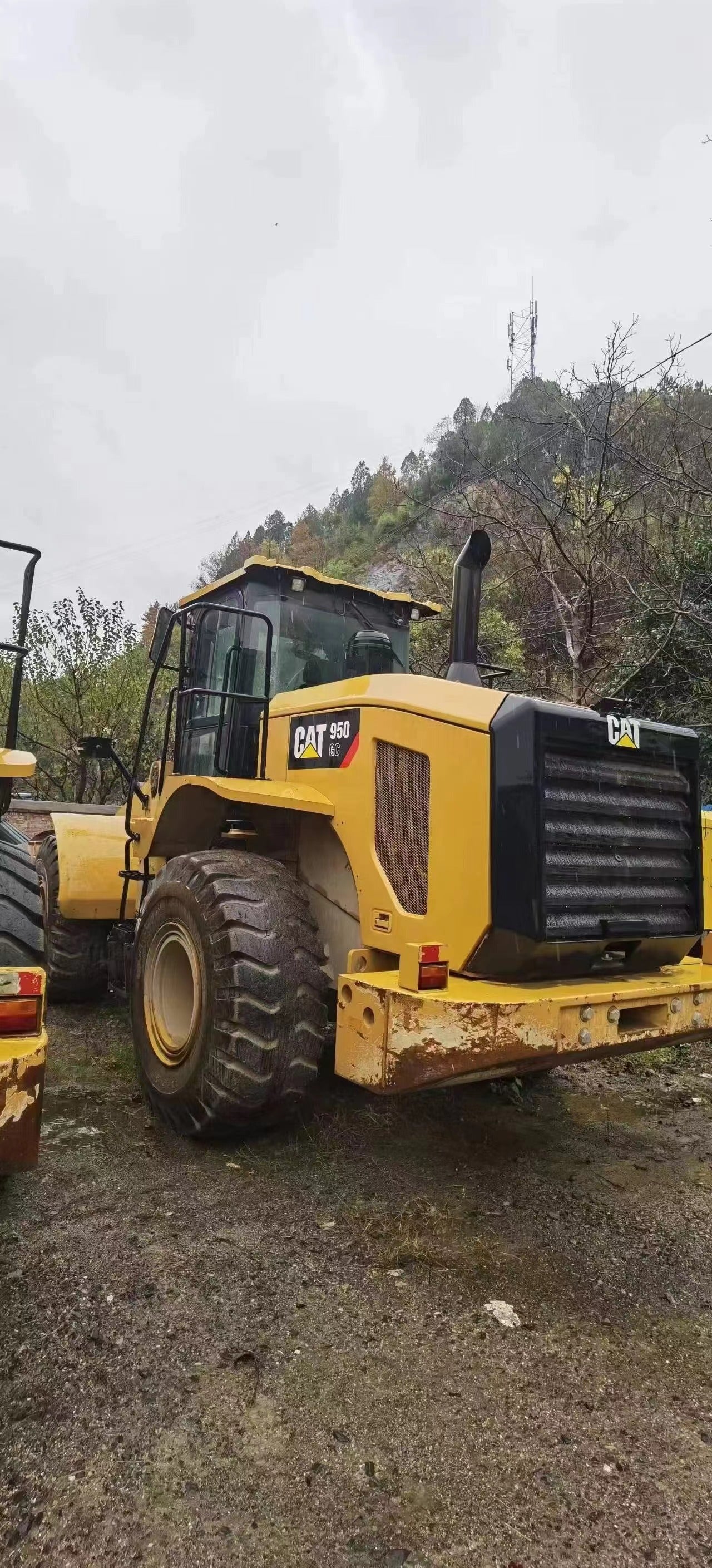

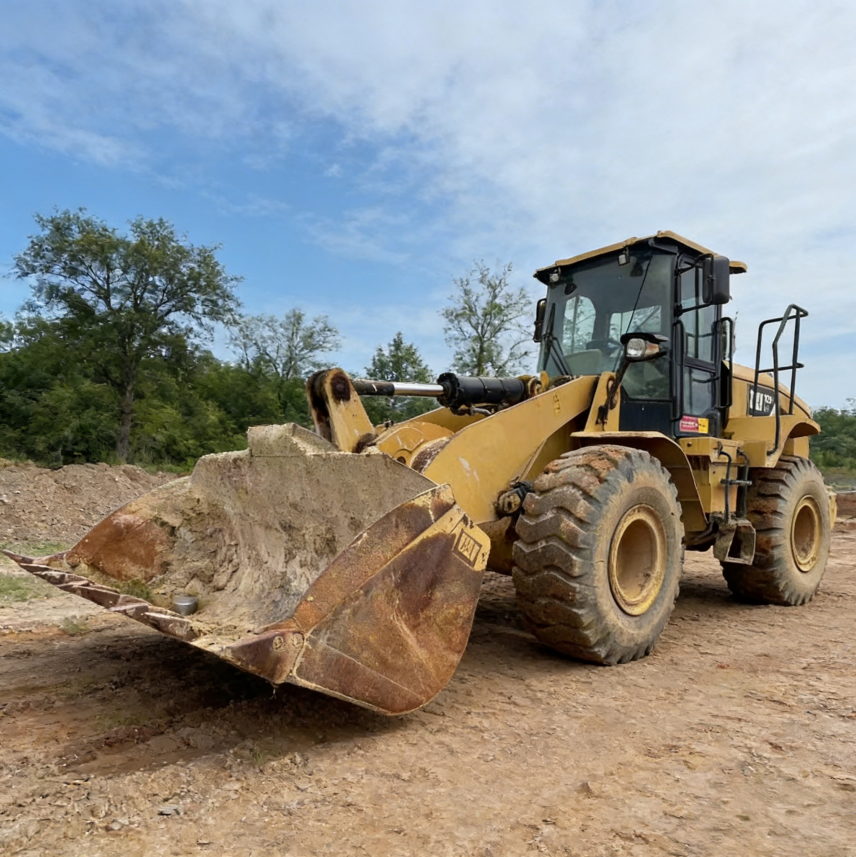

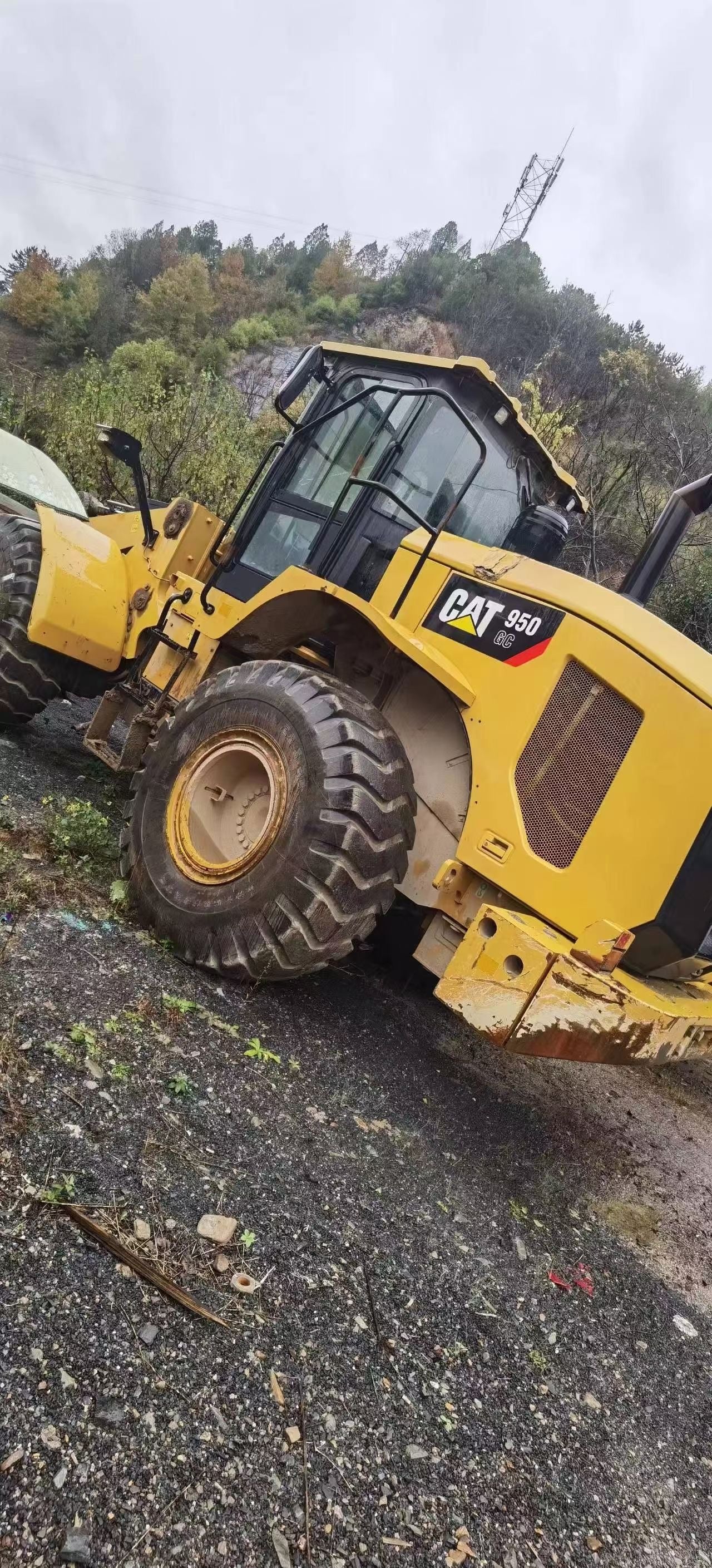

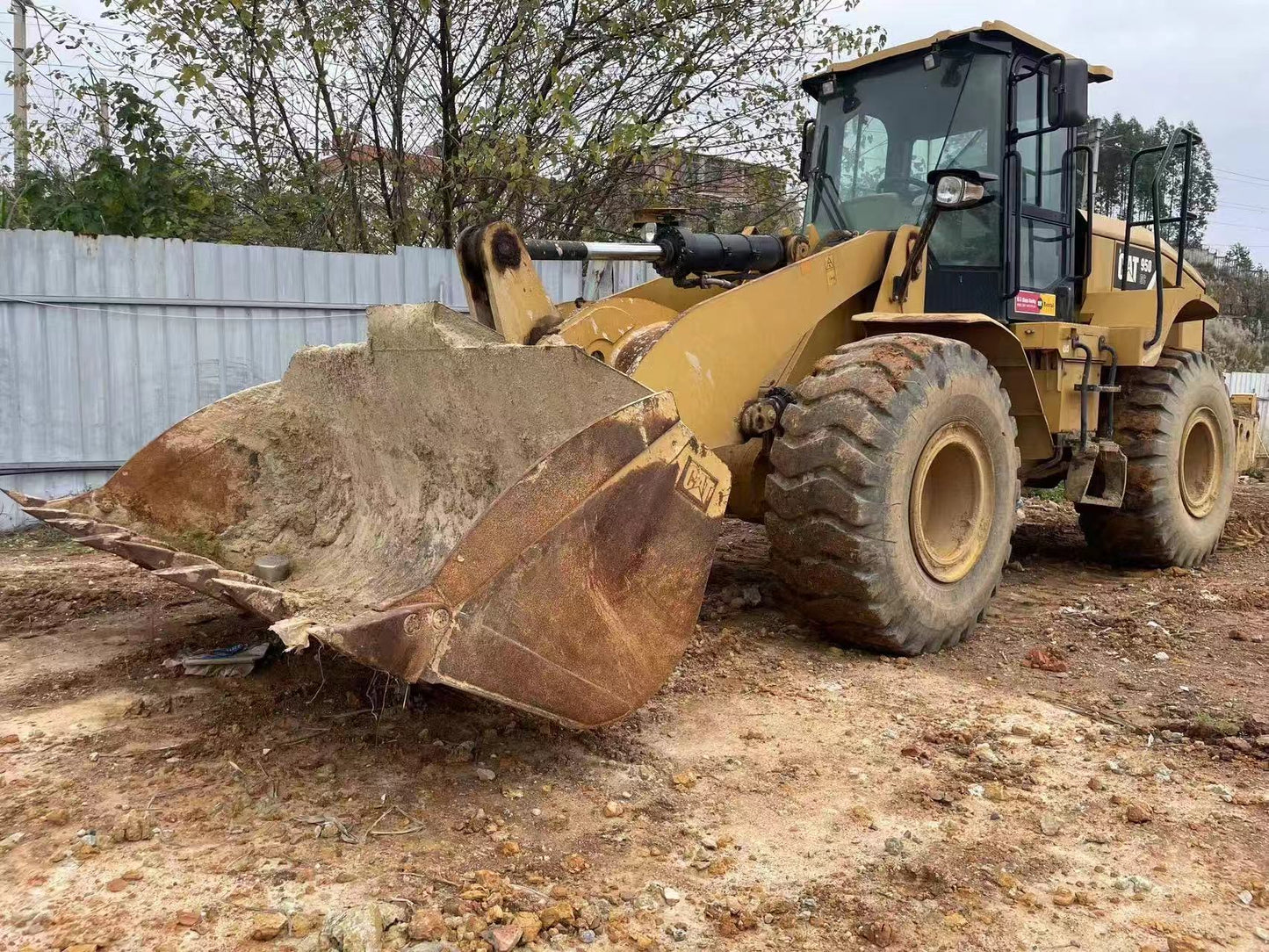

USED CAT 950GC

USED CAT 950GC

$21,000.00 USD
$21,000.00 USD
Obral Habis

Cat 950GC Wheel Loader Core Specifications (English)

Category Parameter Value
Weight Operating Weight 18,676 kg / 41,174 lbCat
Tipping Load (Full Turn, Rigid Tires) 11,737 kg / 25,875 lb
Engine (Cat C7.1) Rated Net Power (ISO 9249, 2,200 rpm) 151 kW / 202 hp
Rated Gross Power (ISO 14396, 2,200 rpm) 168 kW / 225 hp
Displacement 7.01 L / 428 in³Cat
Number of Cylinders 6
Emission Standard Tier 4 Final / Stage IV
Loader Performance Bucket Capacity (Heaped, General Purpose) 3.1 m³ / 4.0 yd³
Bucket Breakout Force 154 kN / 34,638 lb
Max Hinge Pin Height 3,965 mm / 13.0 ft
Max Dump Clearance 2,940 mm / 9.6 ft
Transmission & Mobility Transmission Type Planetary Powershift (4F/4R)
Max Travel Speed 38 km/h / 23.6 mph
Standard Tires 23.5-25 (12 PR) Radial
Hydraulics Pump Flow Capacity 256 L/min / 67.6 gpm
Relief Valve Setting 27,900 kPa / 4,047 psi
Raise Time 5.8 sec
Dump Time 2.1 sec
Lower Time 2.8 sec
Dimensions Length (Bucket on Ground) 7,890 mm / 25.9 ft
Width (Over Tires) 2,790 mm / 9.2 ft
Height (To Top of Cab) 3,416 mm / 11.2 ft
Wheelbase 3,340 mm / 11.0 ft
Ground Clearance 480 mm / 18.9 in
Operational Specs Fuel Tank Capacity 290 L / 76.6 gal
Engine Oil Capacity 22 L / 5.8 gal
Hydraulic System Fluid Capacity 160 L / 42.3 gal
Lihat detail lengkap
