HYUNDAI

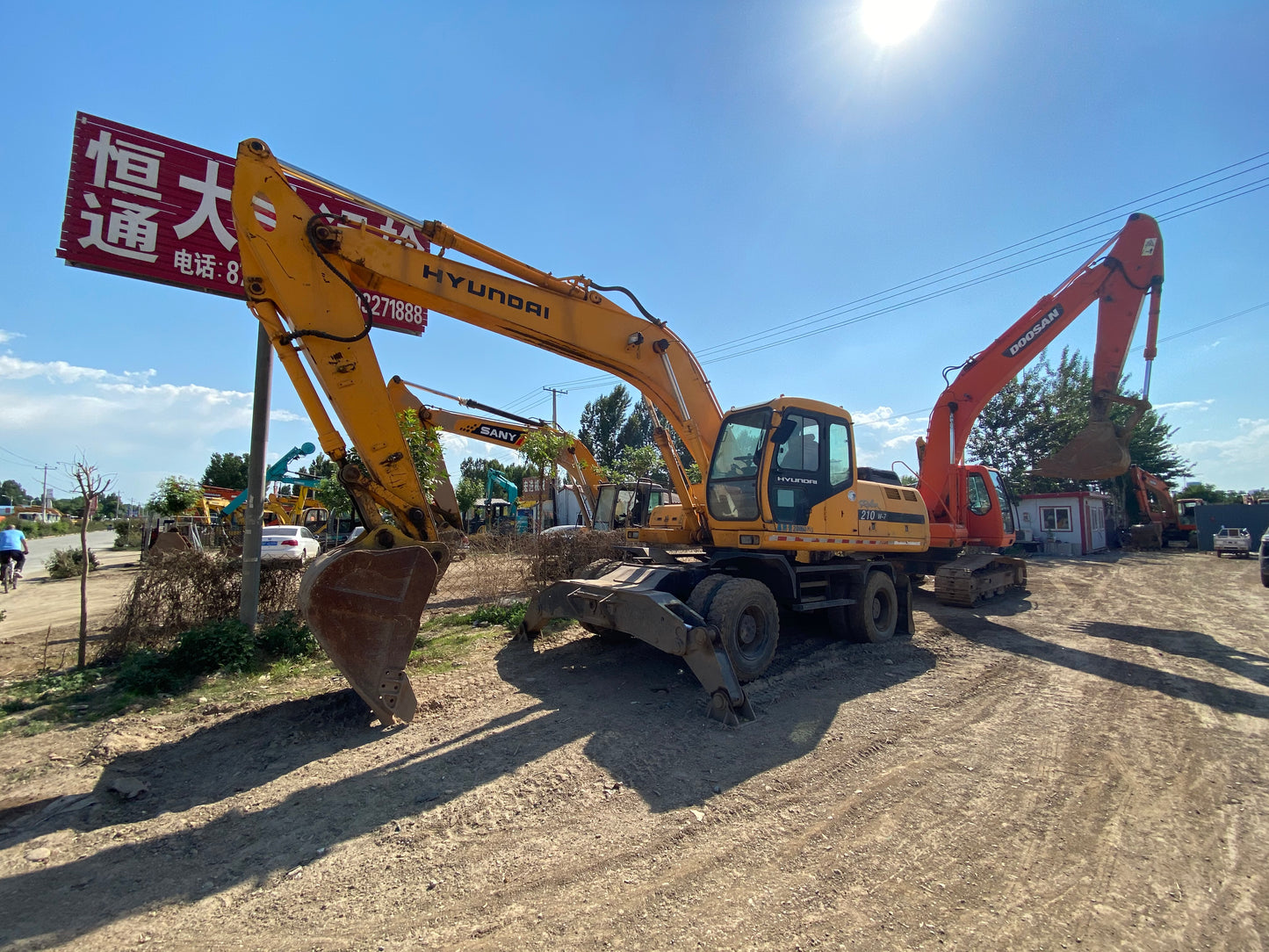

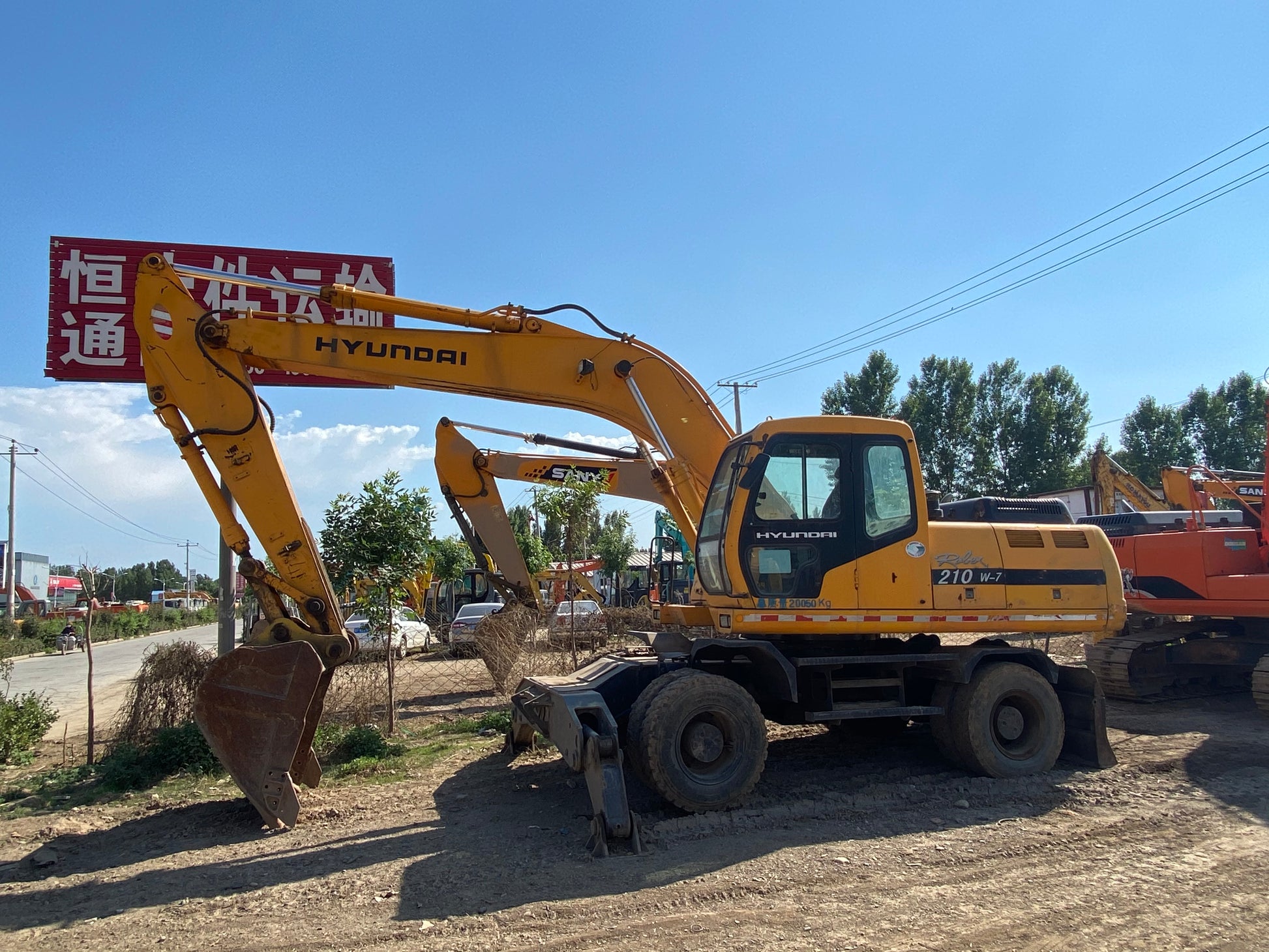

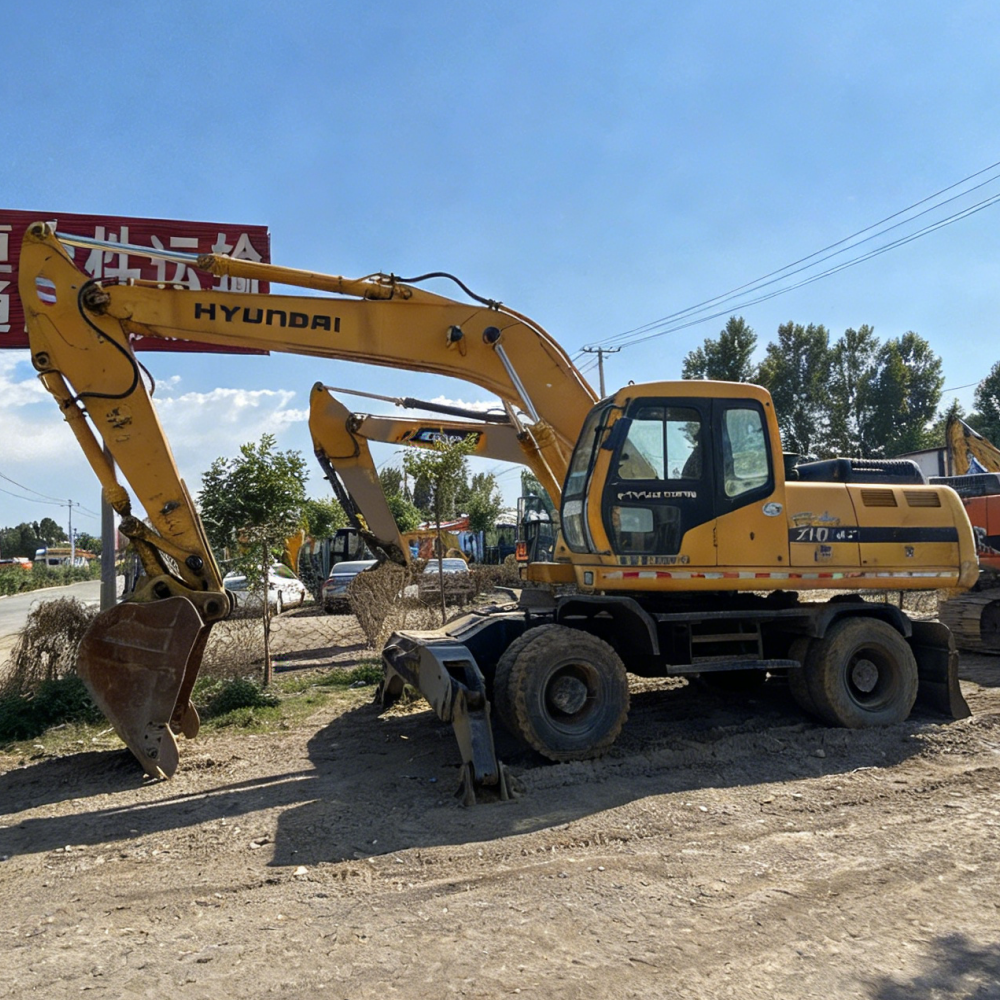

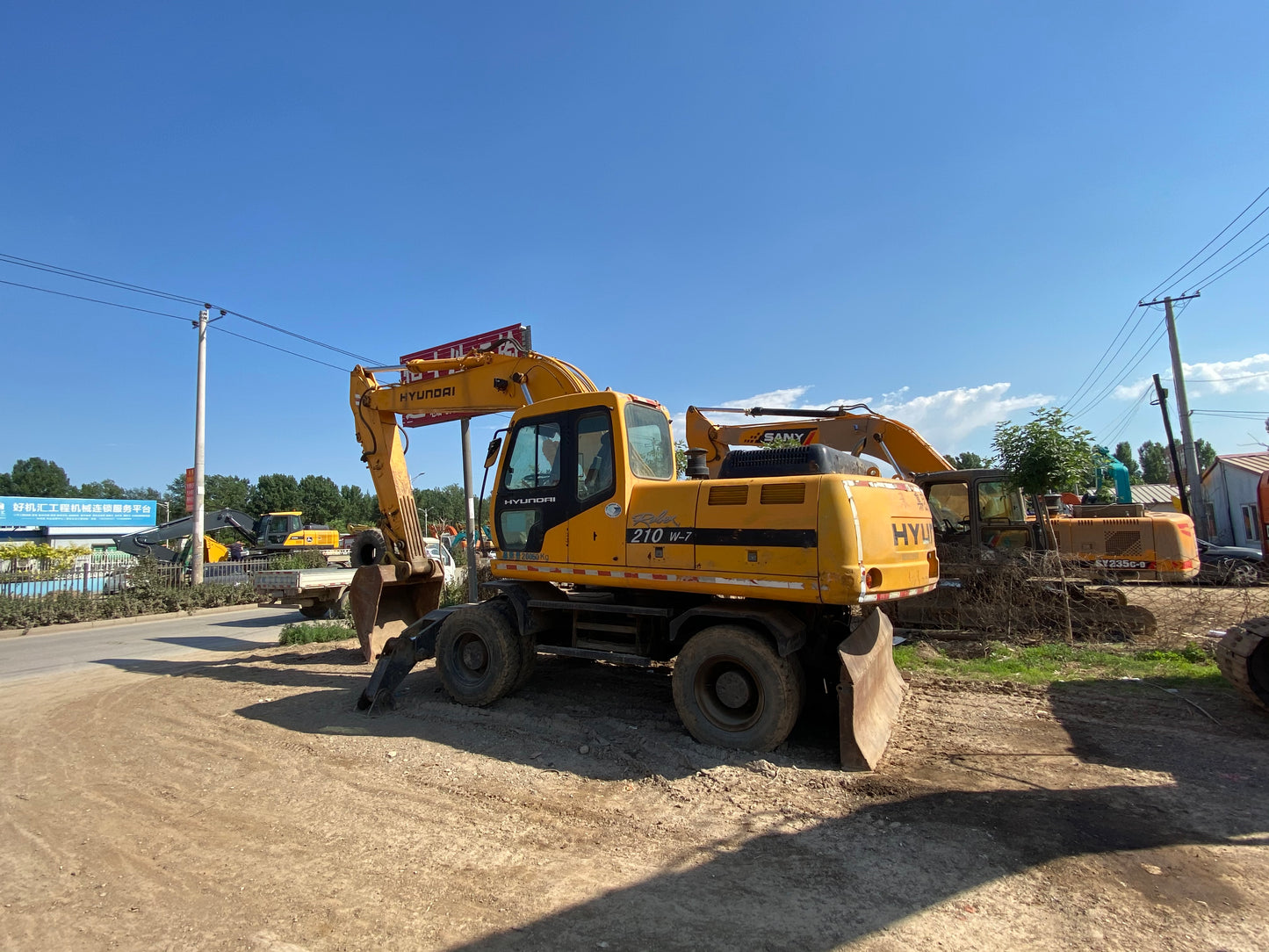

USED HYUNDAI R210W-7

USED HYUNDAI R210W-7

$20,000.00 USD
$20,000.00 USD
Obral Habis
Category Parameters
Basic Info Model: Hyundai R210W-7

Type: Hydraulic Wheel Excavator

Operating Weight: 45,195 lb (20,500 kg)

Standard Bucket Capacity: 0.92 m³ (1.20 yd³); Range: 0.51-1.34 m³ (0.67-1.75 yd³)

Boom Length: 18.54 ft (5,650 mm)

Stick Length: 9.51 ft (2,900 mm)
Engine Model: Cummins B5.9-C

Type: 6-cylinder, in-line, water-cooled, turbocharged diesel

Displacement: 5.9 L (359.9 cu in)

Rated Power: 166 hp (124 kW) @ 1,950 rpm

Max Torque: 684 N•m (504.5 lbf-ft) @ 1,500 rpm

Cooling System: Water-cooled
Hydraulics System Relief Pressure: 4,786 psi (33 MPa) (Travel); 3,481 psi (24 MPa) (Swing)

Main Pump Type: 2×Variable Displacement Axial Piston Pump

Main Pump Flow: 117.6 gal/min (445 L/min) (2×222 L/min)

Hydraulic Fluid Capacity: 47.6 gal (180 L)
Performance Max Travel Speed: 18.6 mph (30 km/h) (High gear); 5.2 mph (8.3 km/h) (Low gear)

Swing Speed: 12.5 rpm

Bucket Digging Force: 133 kN (29,900 lbf)

Stick Digging Force: 97 kN (21,810 lbf)

Max Digging Depth: 20.93 ft (6,380 mm)

Max Digging Reach (Ground Level): 32.48 ft (9,900 mm)

Max Loading Height: 22.67 ft (6,910 mm)

Gradeability: 50% (26.6°)
Capacities Fuel Tank: 84.5 gal (320 L)

Engine Oil Capacity: 4.8 gal (18 L)

Cooling System Fluid Capacity: 7.9 gal (30 L)
Dimensions Transport Length×Width×Height: 31.14 ft×8.17 ft×10.17 ft (9,490×2,490×3,100 mm)

Wheelbase: 9.58 ft (2,920 mm)

Tire Size: 14.00-24-20PR

Tail Swing Radius: 8.86 ft (2,700 mm)

Min Ground Clearance: 1.54 ft (470 mm)
Electrical System Voltage: 24 V

Alternator Output: 50 A
