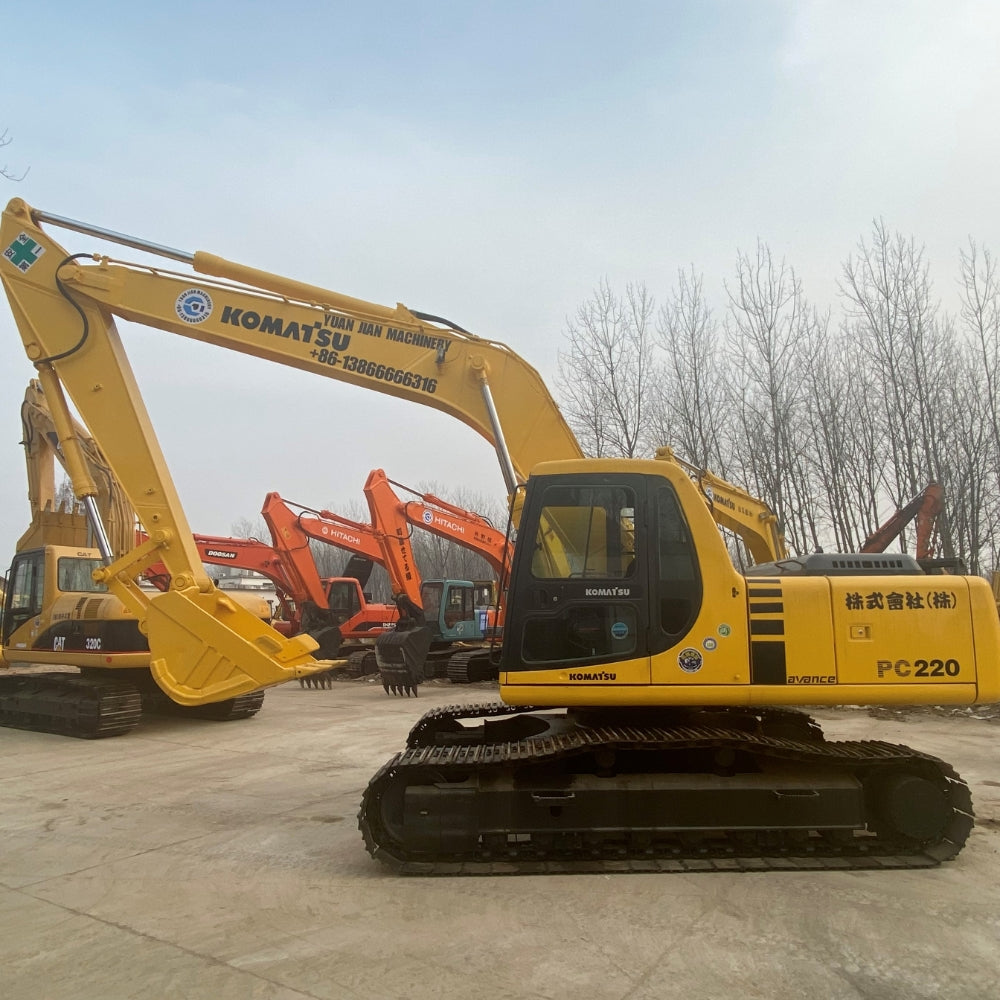

USED KOMATSU PC220-6

USED KOMATSU PC220-6

$22,000.00 USD
$22,000.00 USD
Obral Habis

Core Specifications of Komatsu PC220-6 (Crawler Excavator)


Category Specifications
Basic Information
Model Komatsu PC220-6
Engine Model Komatsu SA6D102E (6-cylinder, water-cooled, turbocharged diesel)
Displacement 5.88 L (358.9 cu in)
Net Power 117.8 kW (158 HP) @ 2100 rpm (SAE J1349)
Operating Weight 22,180 kg (48,898 lbs)
Standard Bucket Capacity 1.0 m³ (0.72-1.3 m³ optional)
Performance
Max Travel Speed 5.5 km/h (high); 4.1 km/h (medium); 3.0 km/h (low)
Max Bucket Digging Force (ISO) 170 kN (17,300 kgf)
Max Arm Digging Force (ISO) 127 kN (13,000 kgf)
Swing Speed 12.4 rpm
Ground Pressure 48.3 kPa (7.0 psi)
Gradeability 70% (35°)
Dimensions
Transport Length 9,780 mm
Transport Width 2,980 mm
Transport Height 3,125 mm
Max Digging Depth 5,880 mm
Max Dumping Height 6,120 mm
Max Digging Radius 9,090 mm
Tail Swing Radius 2,850 mm
Capacities
Fuel Tank 340 L (89.8 gal)
Hydraulic System Fluid Capacity 166 L (43.9 gal)
Engine Oil Capacity 23 L (6.1 gal)
Coolant Capacity 20 L (5.3 gal)
Hydraulic System
Main Relief Pressure 34.8 MPa (5,050 psi)
Main Pump Flow 435 L/min (114.9 gpm)
