Komatsu

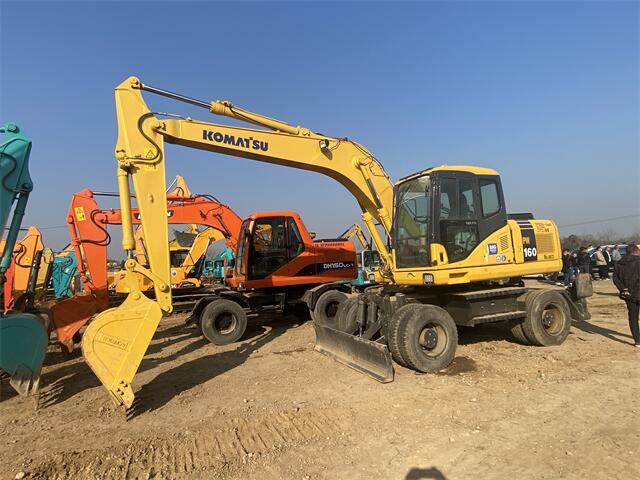

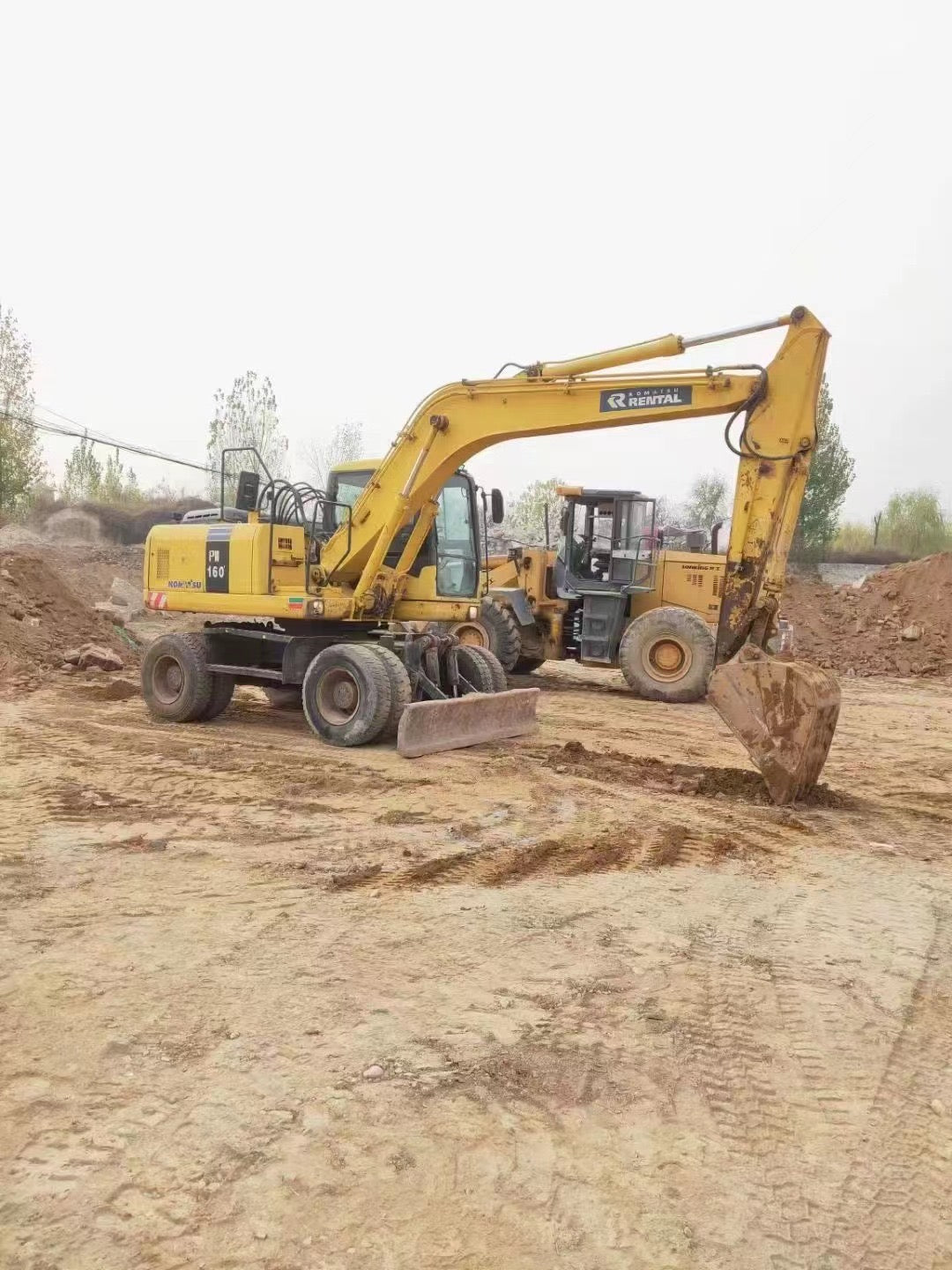

USED KOMATSU PW160

USED KOMATSU PW160

$19,000.00 USD
$19,000.00 USD
Obral Habis

Core Specifications of Komatsu PW160-7/10/11 (Wheeled Excavator)


Category Specifications (PW160-7 Standard Version) Specifications (PW160-10/11 Standard Version)
Basic Information
Model Komatsu PW160-7 Komatsu PW160-10/11
Engine Model Komatsu SAA4D102E-2 (4-cylinder, water-cooled, turbocharged diesel with aftercooler) Komatsu SAA4D107E-2/-3 (4-cylinder, water-cooled, turbocharged diesel with aftercooler, Tier 4 Final/EU Stage IV compliant)
Displacement 3.9 L (237.9 cu in) 4.5 L (274.6 cu in)
Net Power 90 kW (120.7 HP) @ 2200 rpm (ISO 9249/SAE J1349) 110 kW (147.5 HP) @ 2000 rpm (ISO 9249/SAE J1349)
Operating Weight 17,090 kg (37,677 lbs) 17,025-18,590 kg (37,534-40,984 lbs) (varies with configuration)
Standard Bucket Capacity 0.97 m³ (1.3 cu yd) 1.13 m³ (1.48 cu yd)
Performance
Max Travel Speed 35 km/h (21.7 mph) 35 km/h (21.7 mph)
Max Bucket Digging Force (ISO) 135 kN (13,769 kgf) 145 kN (14,784 kgf)
Max Arm Digging Force (ISO) 95 kN (9,688 kgf) 105 kN (10,713 kgf)
Swing Speed 11.5 rpm 11.0 rpm
Gradeability 30° (57.7%) 30° (57.7%)
Dimensions
Transport Length 8,120 mm 8,500 mm (approx.)
Transport Width 2,550 mm 2,550 mm
Transport Height 3,975 mm 3,950 mm (approx.)
Max Digging Depth 5,895 mm 5,810-5,860 mm (varies with model)
Max Dumping Height 6,500 mm 6,600 mm (approx.)
Max Digging Radius 9,500 mm 9,800 mm (approx.)
Capacities
Fuel Tank 280 L (74.0 gal) 300 L (79.3 gal)
Hydraulic System Fluid Capacity 120 L (31.7 gal) 130 L (34.3 gal)
Engine Oil Capacity 12 L (3.2 gal) 14 L (3.7 gal)
Coolant Capacity 15 L (3.96 gal) 16 L (4.23 gal)
Hydraulic System
Main Relief Pressure 34.3 MPa (4,974 psi) 34.3 MPa (4,974 psi)
Main Pump Flow 2×140 L/min (2×37.0 gpm) 2×150 L/min (2×39.6 gpm)
Lihat detail lengkap
