| Basic Model |
Model Name |

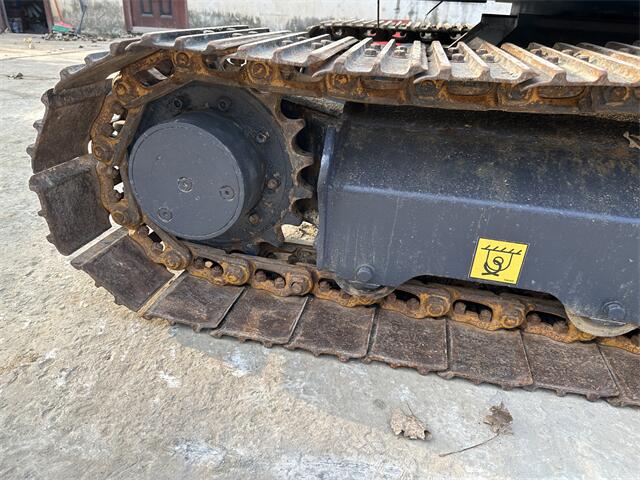

KUBOTA KX161-3 (Mini Crawler Excavator, Zero - Tail Swing) |
| Engine |
Engine Model |
Kubota V2403 - M (4 - cylinder, Liquid - cooled, E - TVCS Diesel) |
|
Rated Power (ISO 9249) |
34.6 kW (47 HP) @ 2200 rpm |
|
Displacement |
2.434 L (148.5 cu in) |
|
Emission Standard |
EU Stage IIIA / EPA Tier 3 |
| Operating Performance |
Operating Weight |
5675 kg (Canopy/Cab Variant) |
|
Max. Bucket Capacity (ISO Heaped) |
0.22 m³ (Standard); 0.17-0.24 m³ (Optional) |
|
Max. Digging Depth |
3860 mm (3.86 m) |
|
Max. Digging Radius |
6290 mm (6.29 m) |
|
Max. Loading Height |
4125 mm (4.125 m) |
|
Bucket Digging Force (ISO) |
39.8 kN |
|
Swing Speed |
9.3 rpm |
|
Gradeability |
30% |
| Dimensions |
Transport Length |
5540 mm (5.54 m) |
|
Transport Width |
2110 mm (2.11 m) |
|
Transport Height |
2540 mm (2.54 m) |
|
Minimum Ground Clearance |
320 mm |
| Mobility |
Travel Speed (Low/High) |
2.5/4.6 km/h |
|
Track Width |
550 mm |
| Hydraulic System |
Main Pump Flow |
118.9 L/min (31.4 gal/min) |
|
System Pressure |
23.5 MPa (3400 psi) |
|
Hydraulic Oil Reservoir |
44 L (11.6 gal) |
| Fuel System |
Fuel Tank Capacity |
70 L (18.5 gal) |
