VOLVO

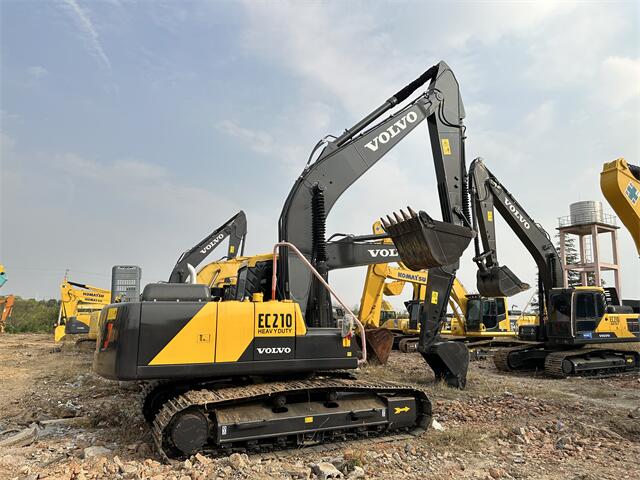

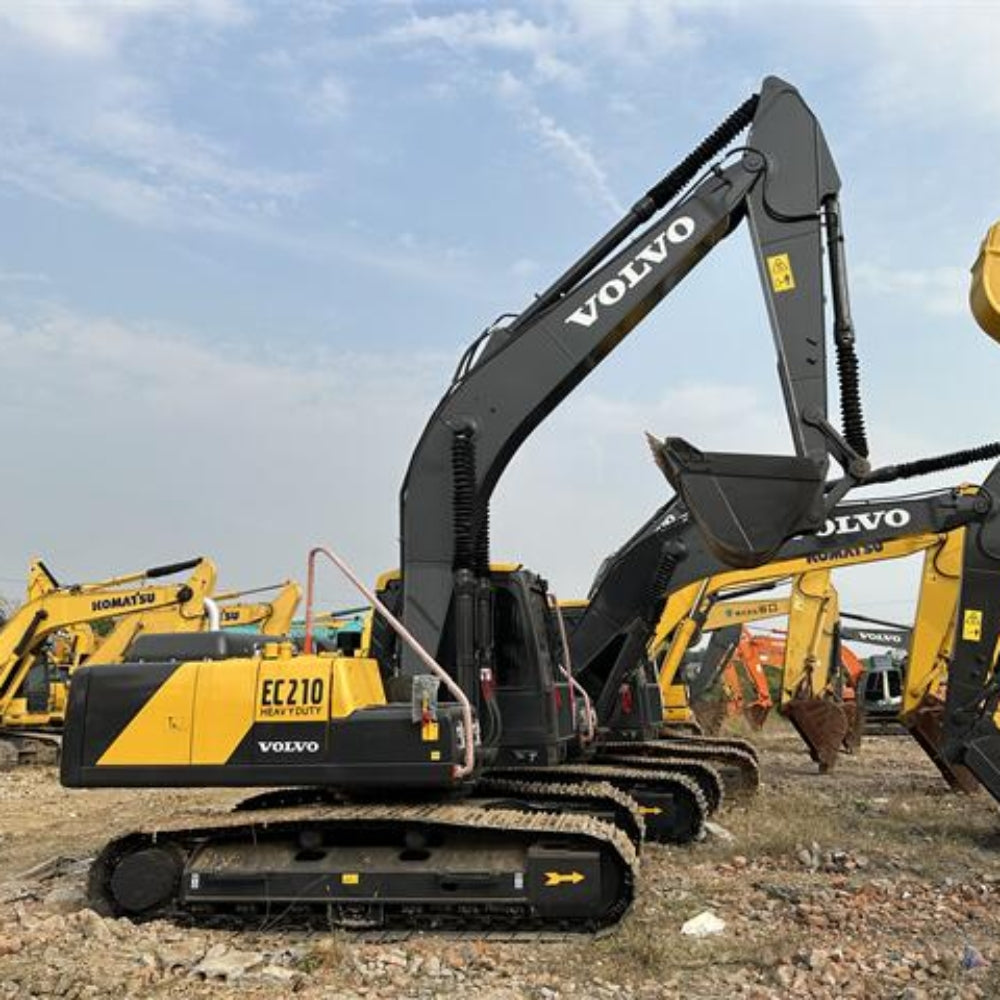

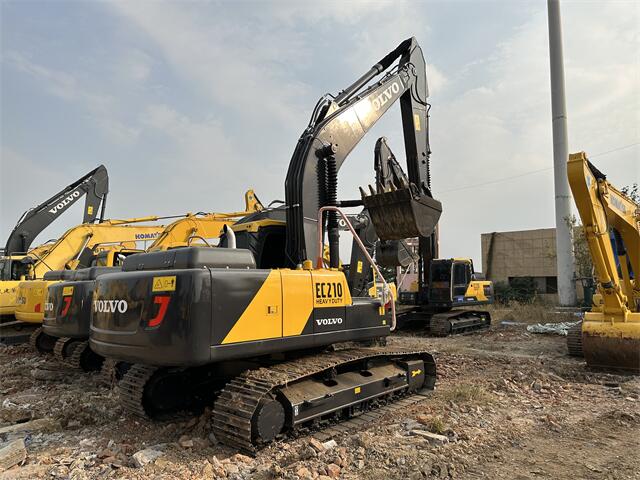

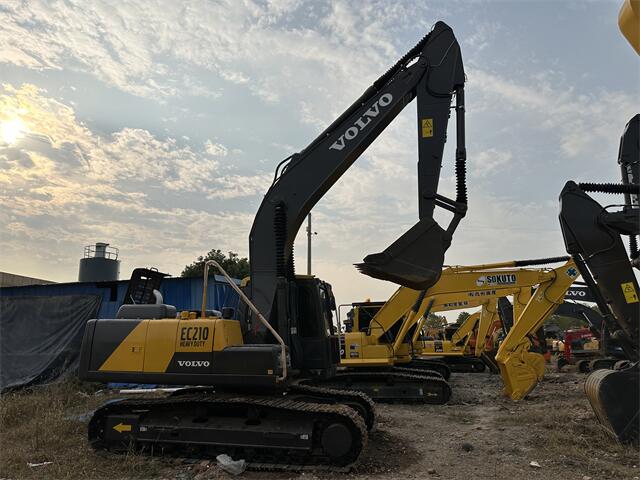

USED VOLVO EC210
USED VOLVO EC210
Harga reguler
$20,000.00 USD
Harga reguler
Harga obral
$20,000.00 USD
Jumlah
Tidak dapat memuat ketersediaan pengambilan
Here are the core parameters of the VOLVO EC210 excavator in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | VOLVO EC210 |
| Type | Medium-sized hydraulic excavator |
| Tonnage | Approximately 21 tons |
| Engine Model | VOLVO D5E (or VOLVO D6E in some configurations) |
| Rated Power | 123 kW (167 hp) at 2000 rpm (or 110 kW at 1800 rpm in some configurations) |
| Displacement | 4.7 liters (or 5.7 liters in some configurations) |
| Number of Cylinders | 4 (or 6 in some configurations) |
| Bucket Capacity | 1.0 cubic meters (or 0.92-1.1 cubic meters in some configurations) |
| Operating Weight | 20,700 kg (or 20,400-23,700 kg in some configurations) |
| Swing Speed | 12 rpm (or 11.6 rpm in some configurations) |
| Travel Speed | Low speed: 3.5 km/h, High speed: 5.6-5.8 km/h |
| Gradeability | 35% (or 70% in some configurations) |
| Ground Pressure | Approximately 42.2-46 kPa |
| Bucket Digging Force | 136 kN (or 122.6-136.3 kN in some configurations) |
| Arm Digging Force | 98 kN (or 96-113.7 kN in some configurations) |
| Maximum Traction Force | 172-183 kN |
| Fuel Tank Capacity | 300-375 liters |
| Hydraulic Oil Tank Capacity | 160-295 liters |
| Transport Length | 9,690-9,760 mm |
| Transport Width | 2,800-2,990 mm |
| Transport Height | 2,920-3,045 mm |
| Maximum Digging Radius | 9,930 mm (or 9,540-9,900 mm in some configurations) |
| Maximum Digging Depth | 6,744 mm (or 6,330-6,730 mm in some configurations) |
| Maximum Digging Height | 9,446 mm (or 9,220 mm in some configurations) |
| Maximum Unloading Height | 6,636 mm (or 6,430 mm in some configurations) |
