VOLVO

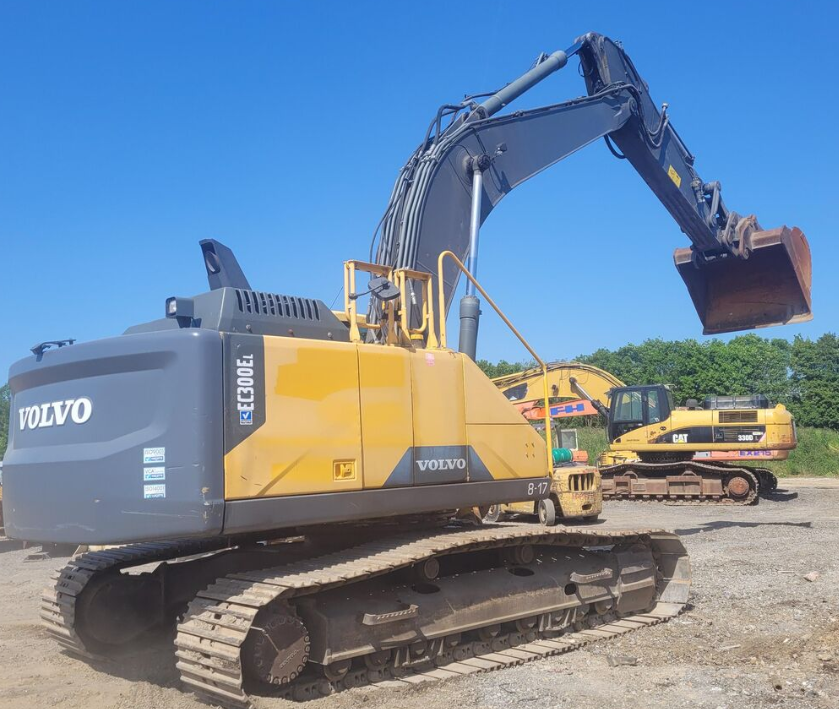

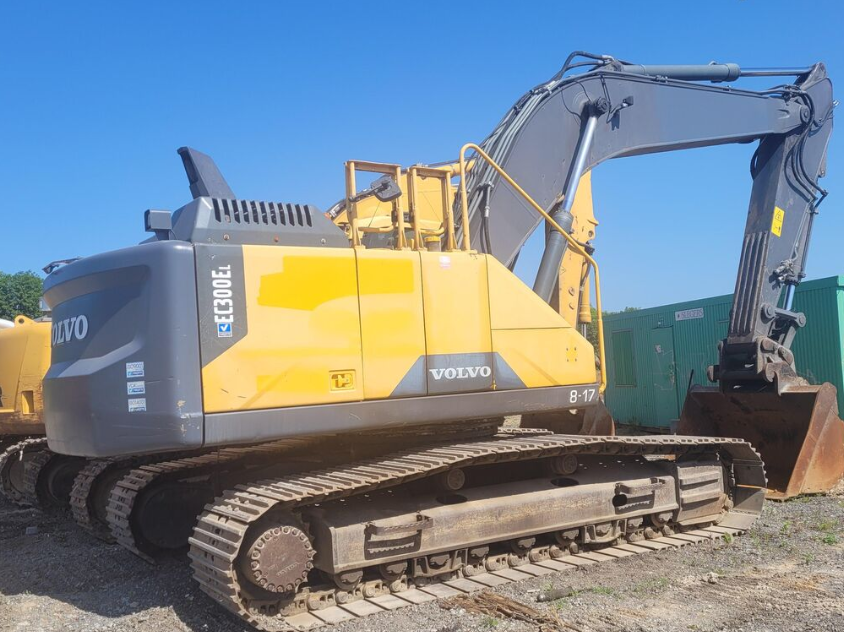

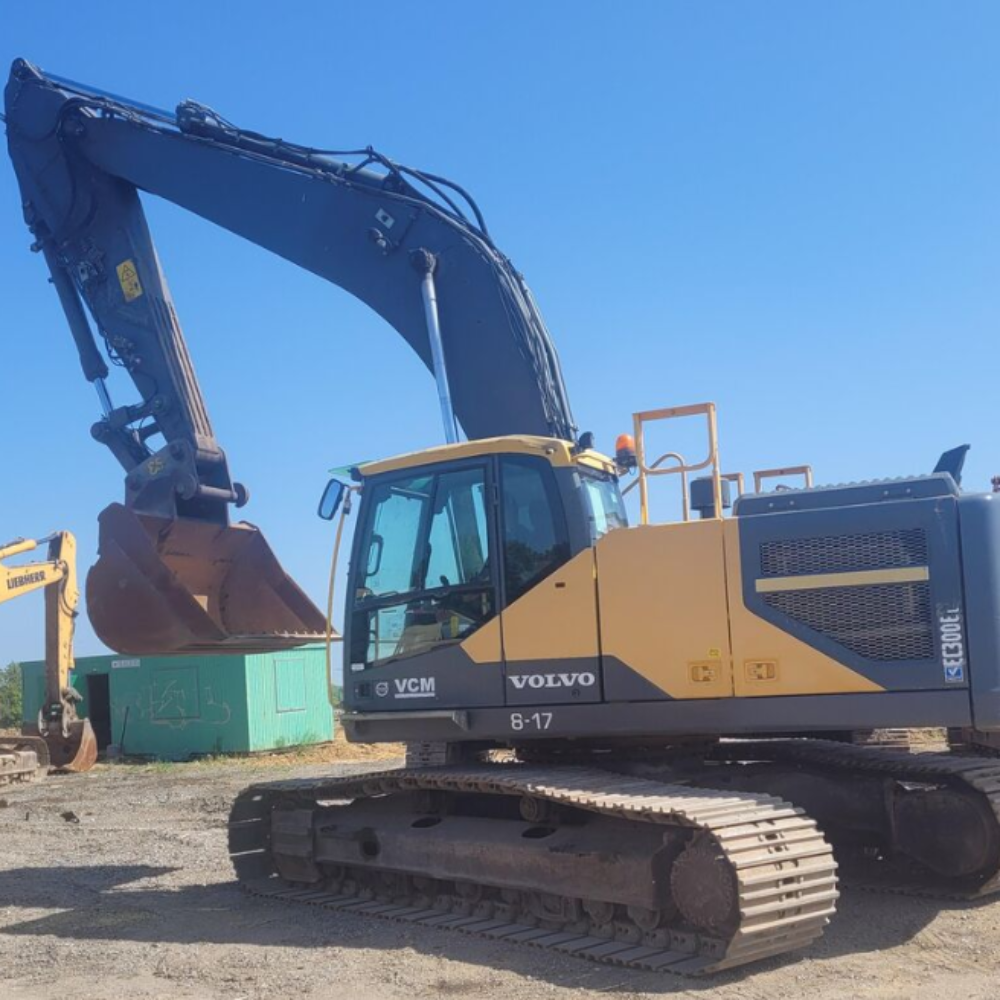

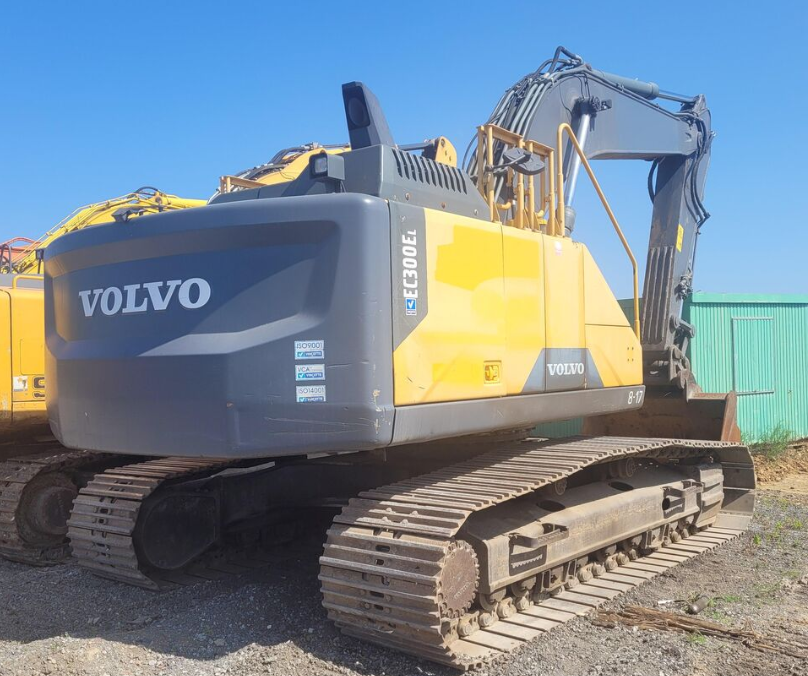

USED VOLVO EC300EL

USED VOLVO EC300EL

$18,000.00 USD
$18,000.00 USD
Obral Habis

Here are the core parameters of the VOLVO EC300EL excavator in a tabular format in English:

Parameter Description
Model VOLVO EC300EL
Type Large-sized hydraulic excavator
Tonnage Approximately 30 tons
Engine Model VOLVO D8M
Rated Power 189 kW at 1600 rpm
Displacement 7.1 liters
Number of Cylinders 6
Maximum Torque 1290 N·m
Emission Standard China IV
Operating Weight 30,370 kg
Bucket Capacity 1.69 cubic meters
Travel Speed (High/Low) 5.6 km/h / 3.6 km/h
Swing Speed 11 rpm
Gradeability 35°
Bucket Digging Force 207 kN
Arm Digging Force 163 kN
Maximum Traction Force 248 kN
Fuel Tank Capacity 472 liters
Hydraulic Oil Tank Capacity 215 liters
Engine Oil Replacement Volume 30 liters
Coolant Capacity 44 liters
Overall Dimensions (Length×Width×Height) 10,550 mm × 3,190 mm × 3,110 mm
Maximum Digging Radius 10,420 mm
Maximum Digging Depth 7,040 mm
Maximum Digging Height 9,810 mm
Maximum Unloading Height 6,890 mm
Lihat detail lengkap
