VOLVO

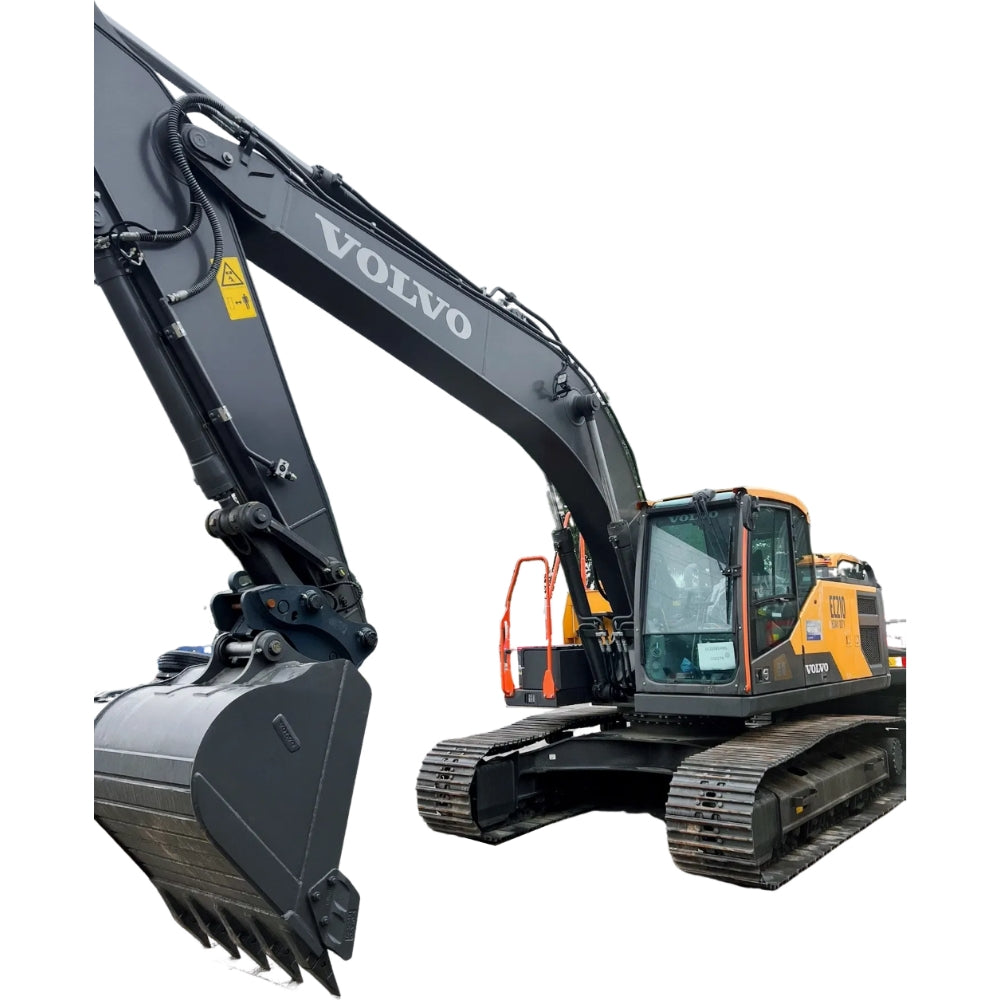

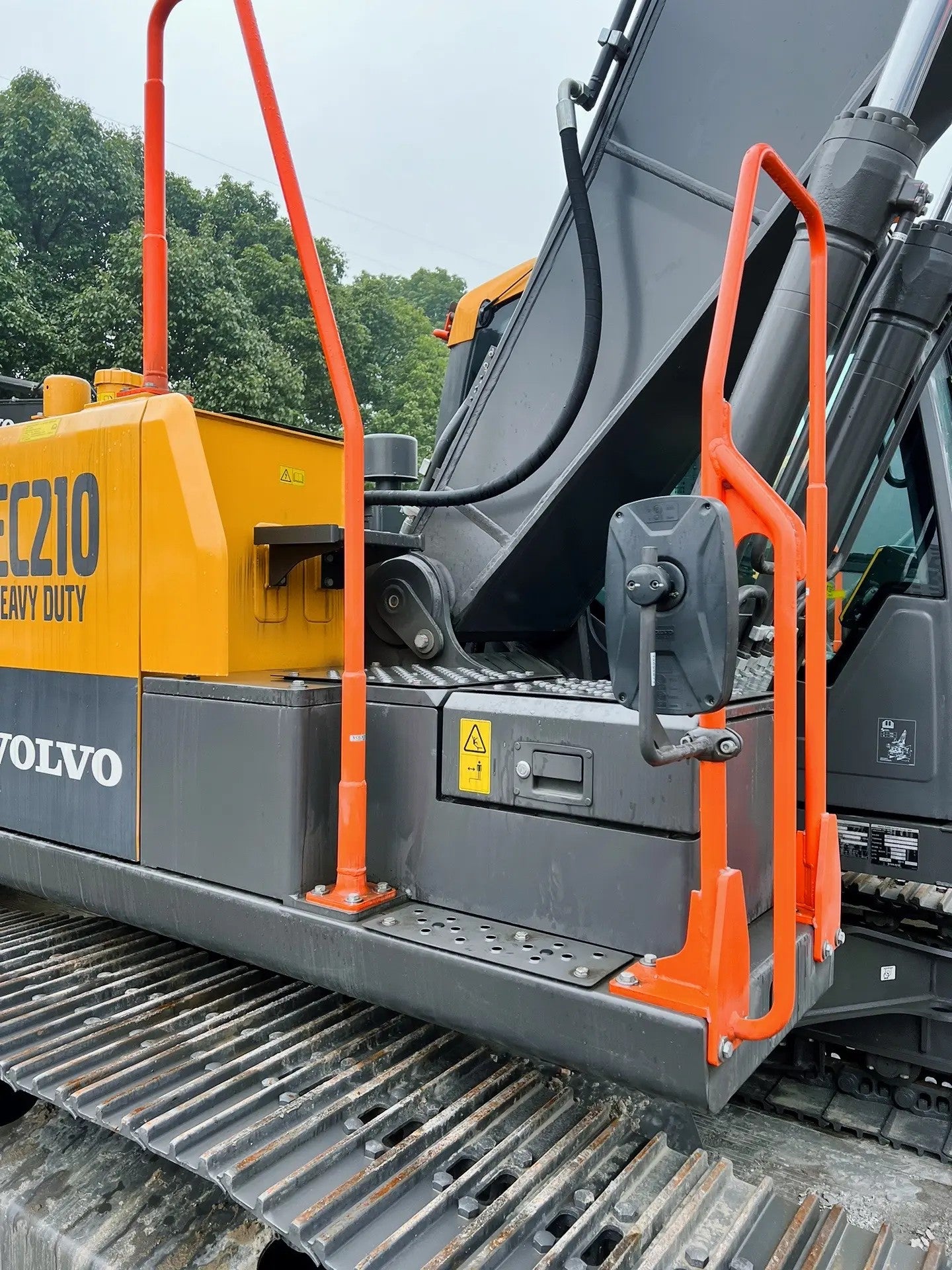

NEW VOLVO EC210
NEW VOLVO EC210
Regular price
$30,000.00 USD
Regular price
Sale price
$30,000.00 USD
Quantity
Couldn't load pickup availability
| Item | Specification |
|---|---|
| Model | VOLVO EC210 |
| Operating Weight | 20,600-24,000 kgVolvo Construction Equipment |
| Bucket Capacity (SAE Heaped) | 0.50-1.25 m³Volvo Construction Equipment |
| Engine Model | Cummins B5.9‑C (6‑cylinder, turbocharged diesel) |
| Rated Power (Net, ISO 9249/SAE J1349) | 107 kW (143 hp) @ 1,900 rpm |
| Rated Power (Gross, ISO 14396/SAE J1995) | 119 kW (160 hp) @ 1,900 rpmVolvo Construction Equipment |
| Displacement | 5.9 L |
| Max. Torque | 618 N·m @ 1,500 rpm |
| Travel Speed (Low/High) | 3.3/5.5 km/h |
| Slewing Speed | 11 rpm |
| Max. Traction Force | 170 kN |
| Max. Bucket Breakout Force (Normal/Boost, SAE J1179) | 126/133 kNVolvo Construction Equipment |
| Max. Arm Crowd Force (Normal/Boost, SAE J1179) | 102/107 kNVolvo Construction Equipment |
| Main Hydraulic Pump Max. Flow | 2×200 L/minVolvo Construction Equipment |
| Working Hydraulic System Pressure | 34.3 MPaVolvo Construction Equipment |
| Travel Hydraulic System Pressure | 34.3 MPa |
| Slewing Hydraulic System Pressure | 24.5 MPa |
| Track Gauge | 2,590 mm |
| Track Length | 4,460 mmVolvo Construction Equipment |
| Track Shoe Width | 600 mm |
| Ground Clearance | 470 mm |
| Tail Swing Radius | 2,870 mmVolvo Construction Equipment |
| Max. Digging Depth | 6,825 mmVolvo Construction Equipment |
| Max. Digging Height | 9,770 mm |
| Max. Dumping Height | 6,750 mm |
| Max. Horizontal Reach | 9,995 mmVolvo Construction Equipment |
| Fuel Tank Capacity | 320 L |
| Hydraulic Oil Tank Capacity | 140 L |
