| Basic Information |
|
| Model |

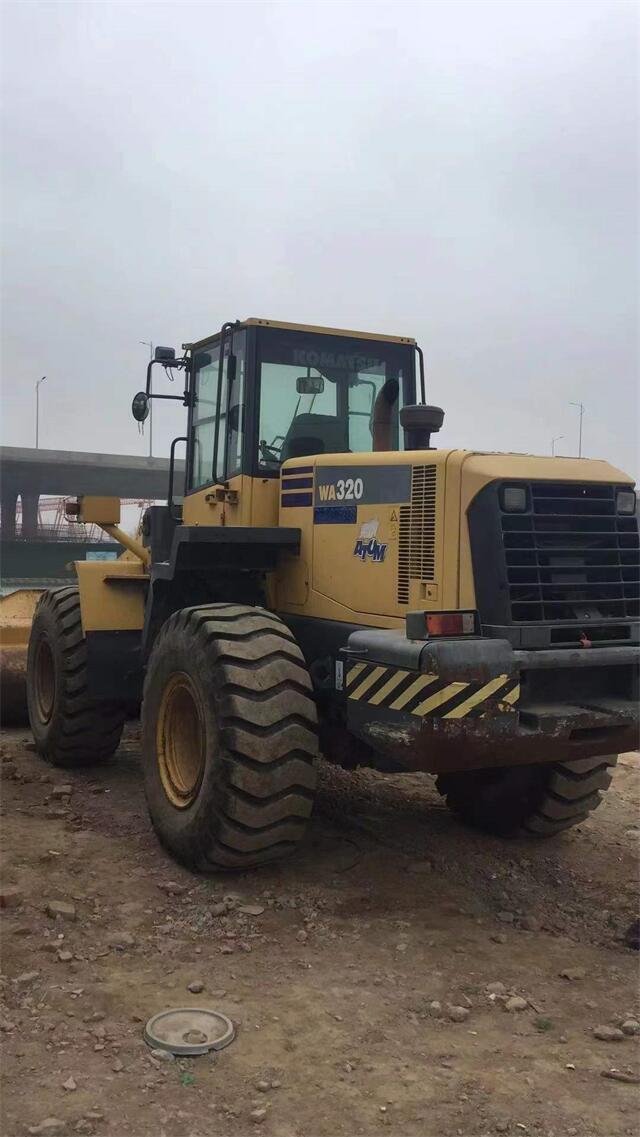

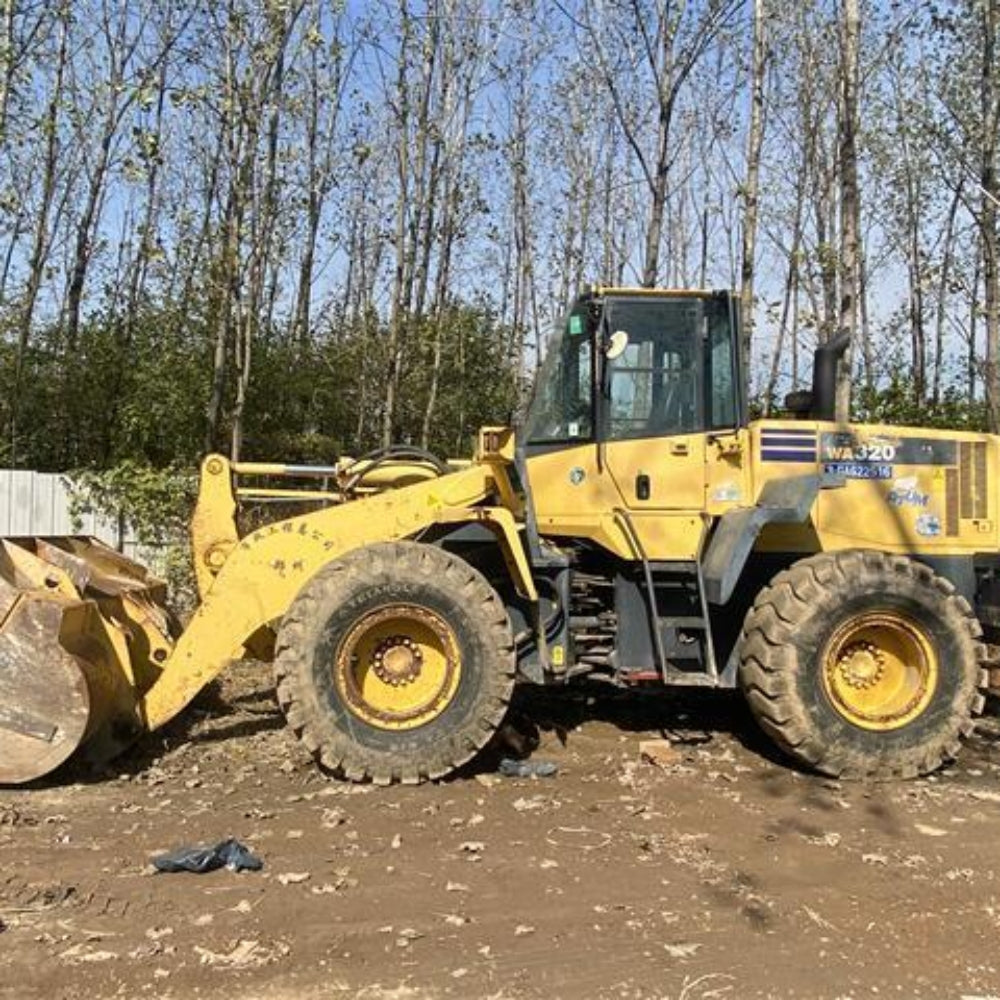

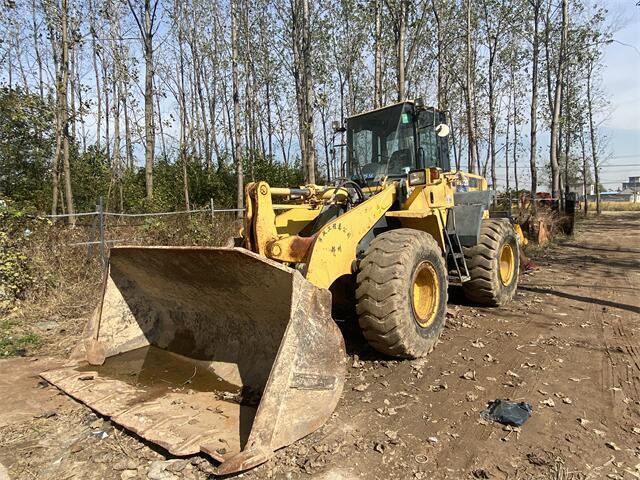

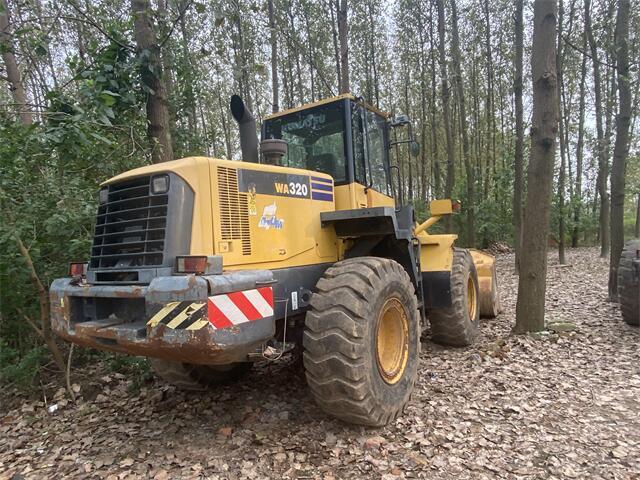

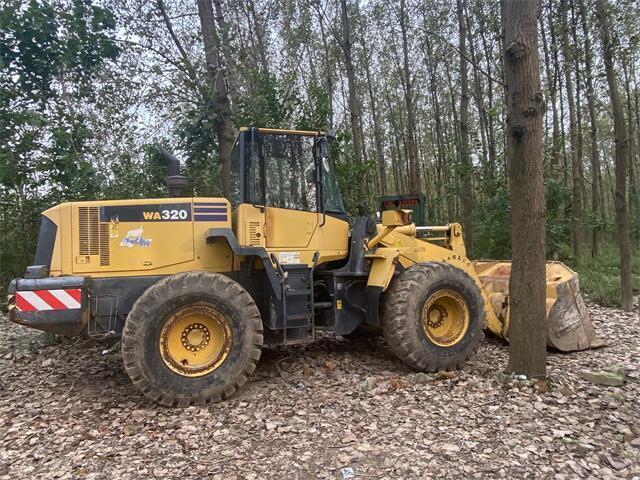

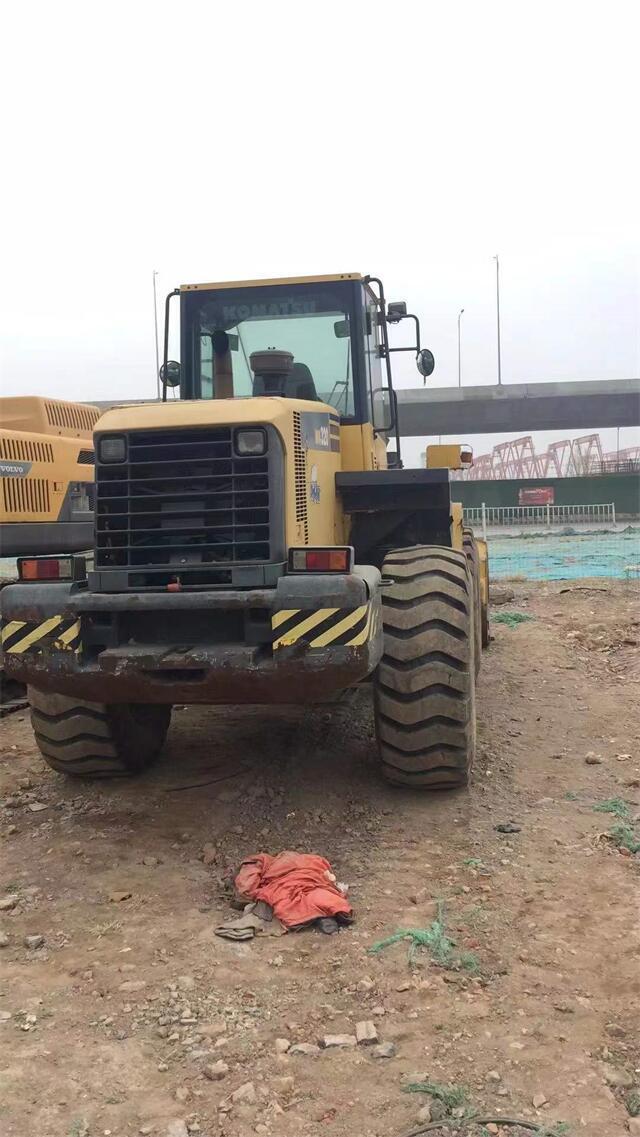

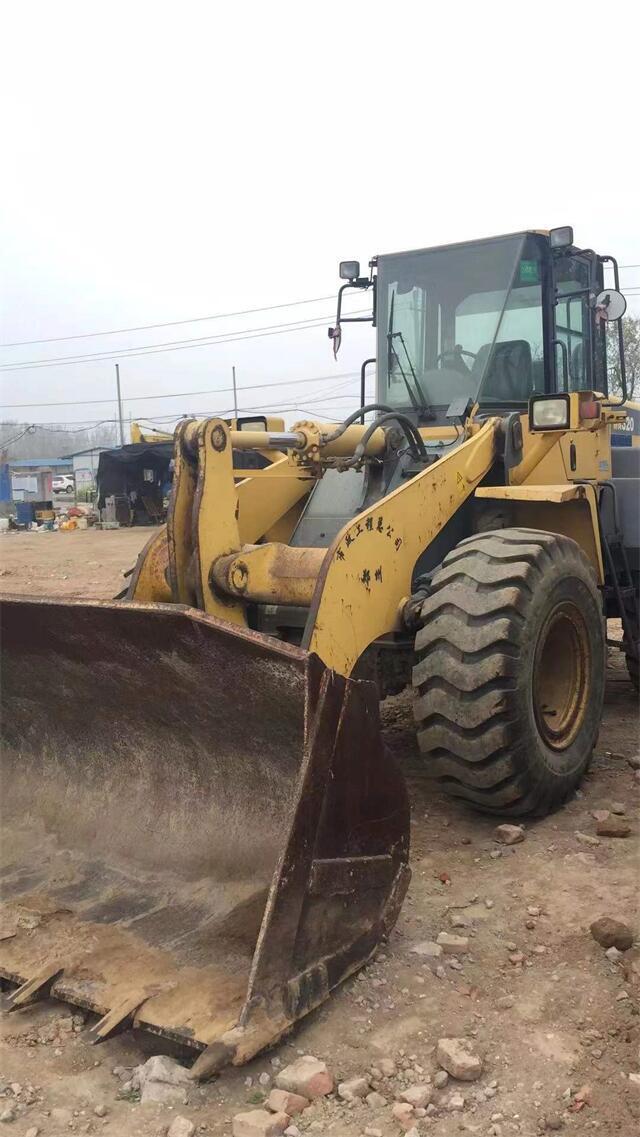

Komatsu WA320-5 |
| Engine Model |
Komatsu SAA6D102E-2-A (6-cylinder, water-cooled, turbocharged diesel with aftercooler) |
| Displacement |
5.9 L (360 cu in) |
| Net Power |
124 kW (166.3 HP) @ 2000 rpm (ISO 9249/SAE J1349) |
| Gross Power |
127 kW (170 HP) @ 2000 rpmコマツ
|
| Operating Weight |
13,600-13,800 kg (29,983-30,424 lbs) |
| Standard Bucket Capacity |
2.7 m³ (3.53 cu yd) (heaped) |
| Performance |
|
| Max Travel Speed |
38 km/h (23.6 mph) (4th gear, forward/reverse) |
| Breakout Force |
155 kN (15,806 kgf) |
| Static Tipping Load |
11,050 kg (24,361 lbs) |
| Turning Radius (outside bucket) |
6,085 mm (19.96 ft) |
| Dimensions |
|
| Overall Length (bucket on ground) |
7,645 mm (25.09 ft) |
| Overall Width |
2,585 mm (8.48 ft)コマツ
|
| Overall Height (top of cab) |
3,200 mm (10.5 ft) |
| Wheelbase |
3,030 mm (9.95 ft) |
| Ground Clearance |
425 mm (16.7 in)コマツ
|
| Dump Clearance (45°) |
3,100 mm (10.17 ft) |
| Dump Reach (45°) |
1,100 mm (3.61 ft) |
| Capacities |
|
| Fuel Tank |
228 L (60.3 gal) |
| Engine Oil Capacity |
20 L (5.28 gal) |
| Hydraulic System Fluid Capacity |
Approx. 172 L (45.4 gal) |
| Transmission Fluid Capacity |
Approx. 45 L (11.9 gal) |
| Hydraulic System |
|
| Main Relief Pressure |
20.6 MPa (2,988 psi) |
| Main Pump Flow |
Loader + steering pump: 61+172 L/min (16.1+45.4 gpm) |
