| Basic Information |
|
| Model |

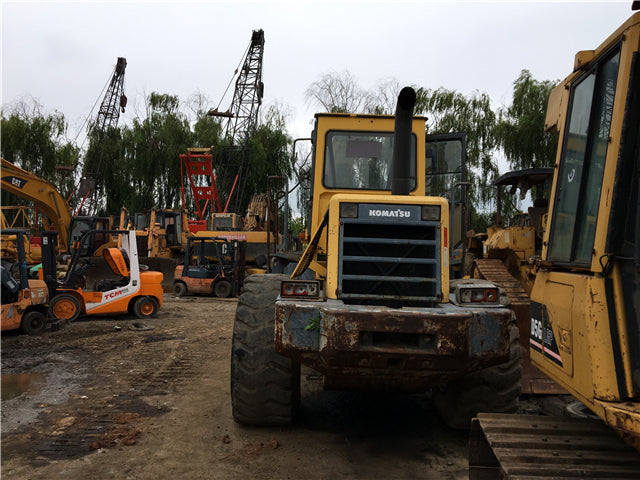

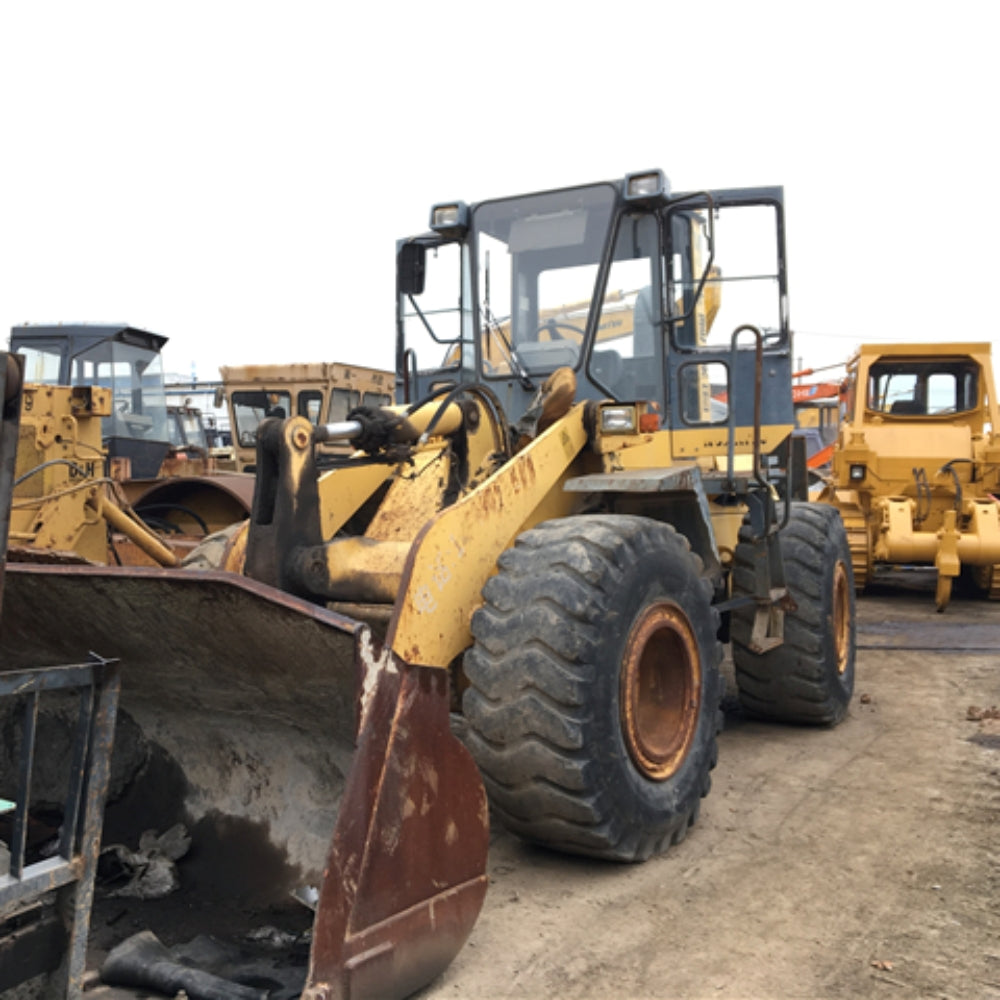

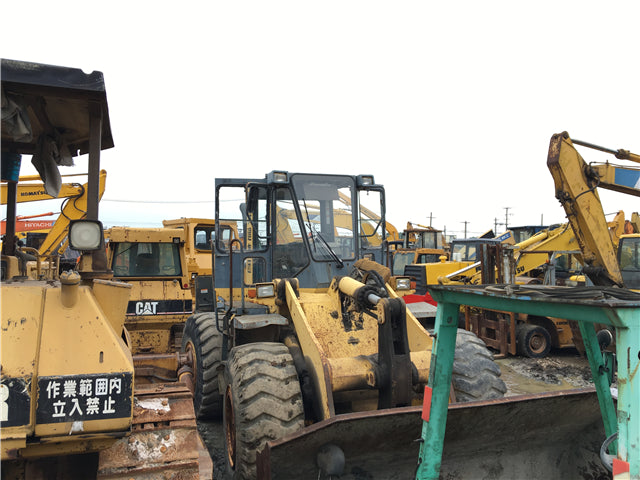

Komatsu WA360 |
| Engine Model |
Komatsu SAA6D107E-3 (6-cylinder, water-cooled, turbocharged diesel with aftercooler) |
| Displacement |
6.69 L (408 cu in) |
| Net Power |
142 kW (191 HP) @ 2200 rpm (ISO 9249/SAE J1349) |
| Gross Power |
147 kW (197 HP) @ 2200 rpm |
| Operating Weight |
17,590-17,810 kg (38,760-39,260 lbs) |
| Standard Bucket Capacity |
3.2 m³ (heaped: 4.16 m³) |
| Performance |
|
| Max Travel Speed |
38 km/h (23.6 mph) (4th gear, forward/reverse) |
| Breakout Force |
178 kN (18,157 kgf) |
| Static Tipping Load |
14,500 kg (31,967 lbs) |
| Turning Radius (outside bucket) |
6,680 mm (21.9 ft) |
| Dimensions |
|
| Overall Length (bucket on ground) |
7,985 mm (26.2 ft) |
| Overall Width |
2,990 mm (9.8 ft) |
| Overall Height (top of cab) |
3,390 mm (11.1 ft) |
| Wheelbase |
3,350 mm (11.0 ft) |
| Ground Clearance |
450 mm (17.7 in) |
| Dump Clearance (45°) |
3,150 mm (10.3 ft) |
| Dump Reach (45°) |
1,250 mm (4.1 ft) |
| Capacities |
|
| Fuel Tank |
287 L (75.8 gal) |
| Engine Oil Capacity |
25 L (6.6 gal) |
| Hydraulic System Fluid Capacity |
Approx. 190 L (50.2 gal) |
| Transmission Fluid Capacity |
Approx. 50 L (13.2 gal) |
| Hydraulic System |
|
| Main Relief Pressure |
29.4 MPa (4,264 psi) |
| Main Pump Flow |
Loader + steering pump: 170+180 L/min (44.9+47.6 gpm) |
