| Basic Information |
|
| Model |

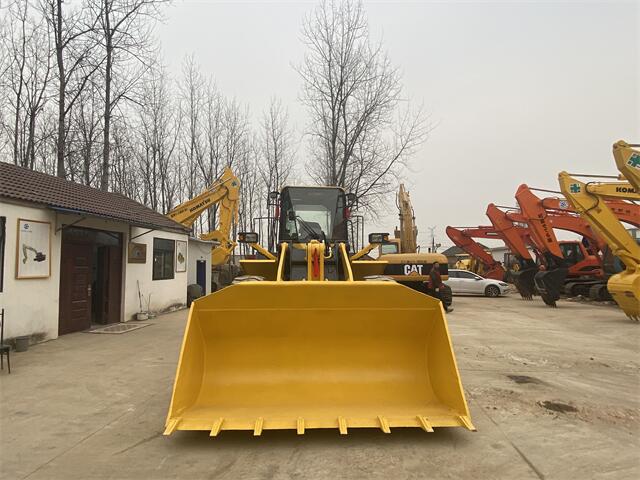

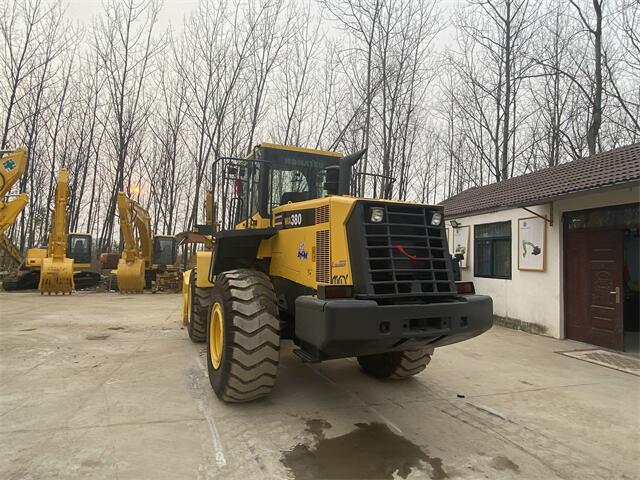

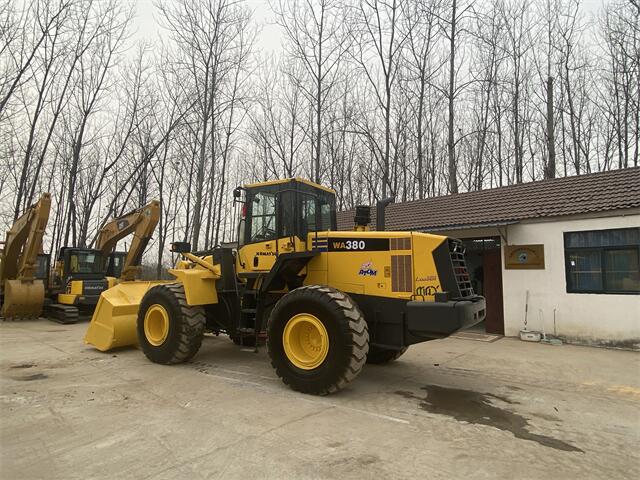

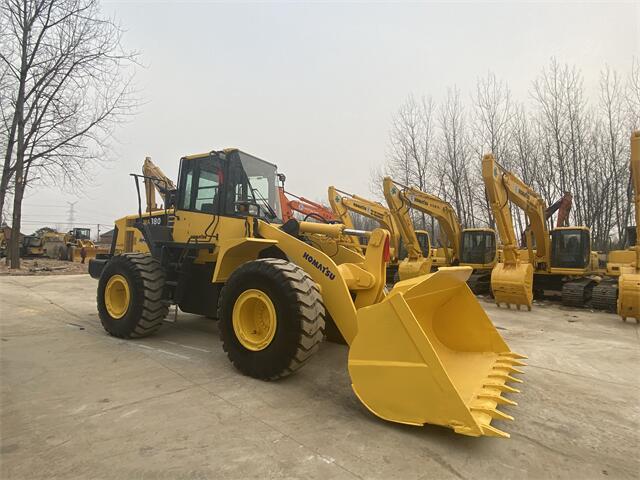

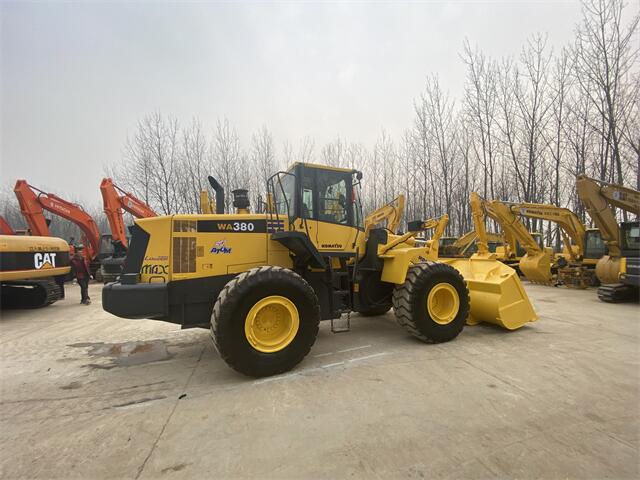

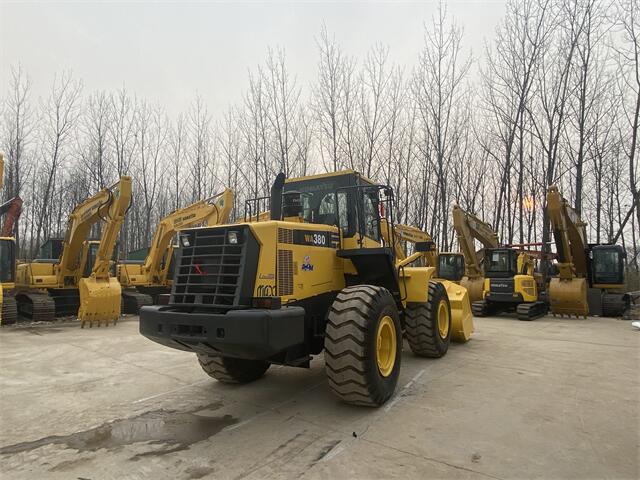

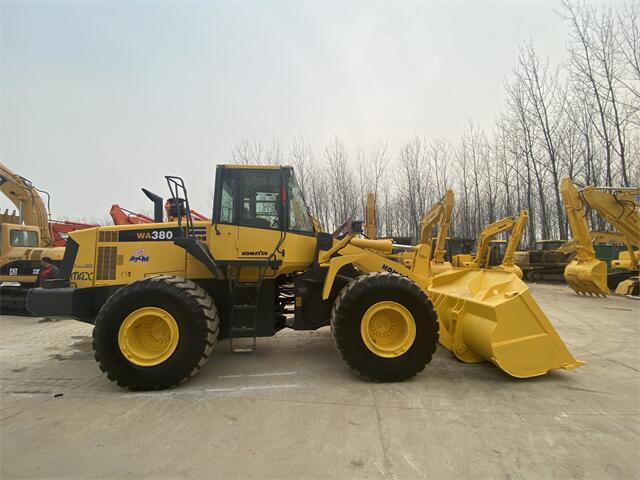

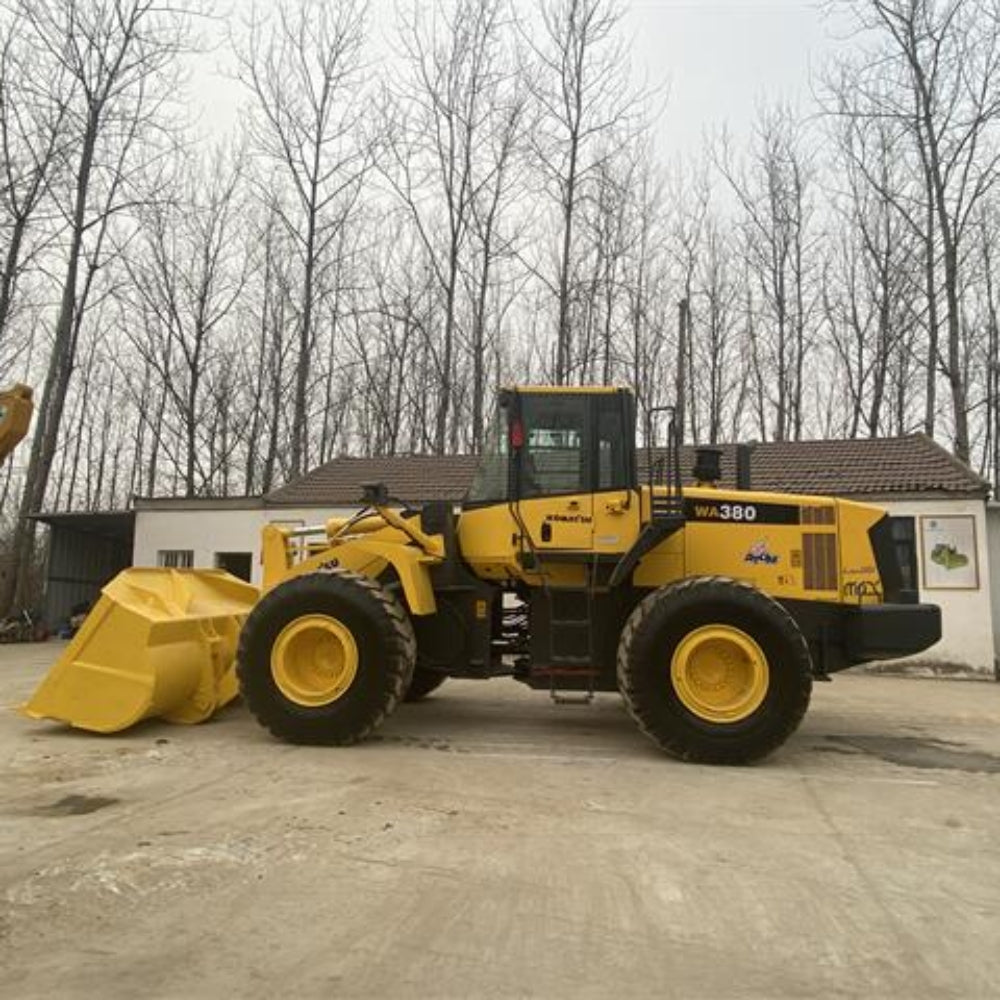

Komatsu WA380-6 |
| Engine Model |
Komatsu SAA6D107E-1 (6-cylinder, water-cooled, turbocharged diesel with aftercooler) |
| Displacement |
6.69 L (408 cu in) |
| Net Power |
142 kW (191 HP) @ 2100 rpm (ISO 9249/SAE J1349) |
| Gross Power |
143 kW (192 HP) @ 2100 rpm (SAE J1995) |
| Operating Weight |
17,510-18,570 kg (38,603-40,940 lbs) |
| Standard Bucket Capacity |
3.3 m³ (heaped: 4.31 m³); optional: 2.7-4.0 m³ |
| Performance |
|
| Max Travel Speed |
38 km/h (23.6 mph) (4th gear, forward/reverse) |
| Breakout Force |
178 kN (18,157 kgf) |
| Static Tipping Load (straight) |
14,700 kg (32,408 lbs); full turn: 14,435 kg (31,824 lbs) |
| Turning Radius (outside bucket) |
7,220 mm (23.7 ft) |
| Dimensions |
|
| Overall Length (bucket on ground) |
8,195 mm (26.9 ft) |
| Overall Width (over tires) |
2,775 mm (9.1 ft) |
| Overall Height (top of cab) |
3,345 mm (10.97 ft) |
| Wheelbase |
3,300 mm (10.8 ft) |
| Ground Clearance |
455 mm (17.9 in) |
| Dump Clearance (45°) |
4,095 mm (13.4 ft) |
| Dump Reach (45°) |
1,170 mm (3.84 ft) |
| Capacities |
|
| Fuel Tank |
300 L (79.3 gal) |
| Engine Oil Capacity |
23 L (6.1 gal) |
| Hydraulic System Fluid Capacity |
Approx. 190 L (50.2 gal) |
| Transmission Fluid Capacity |
Approx. 45 L (11.9 gal) |
| Hydraulic System |
|
| Main Relief Pressure |
31.4 MPa (4,554 psi) |
| Main Pump Flow |
Loader pump: 205.5 L/min (54.3 gpm); steering pump: 180 L/min (47.6 gpm) |
