| Official Model |

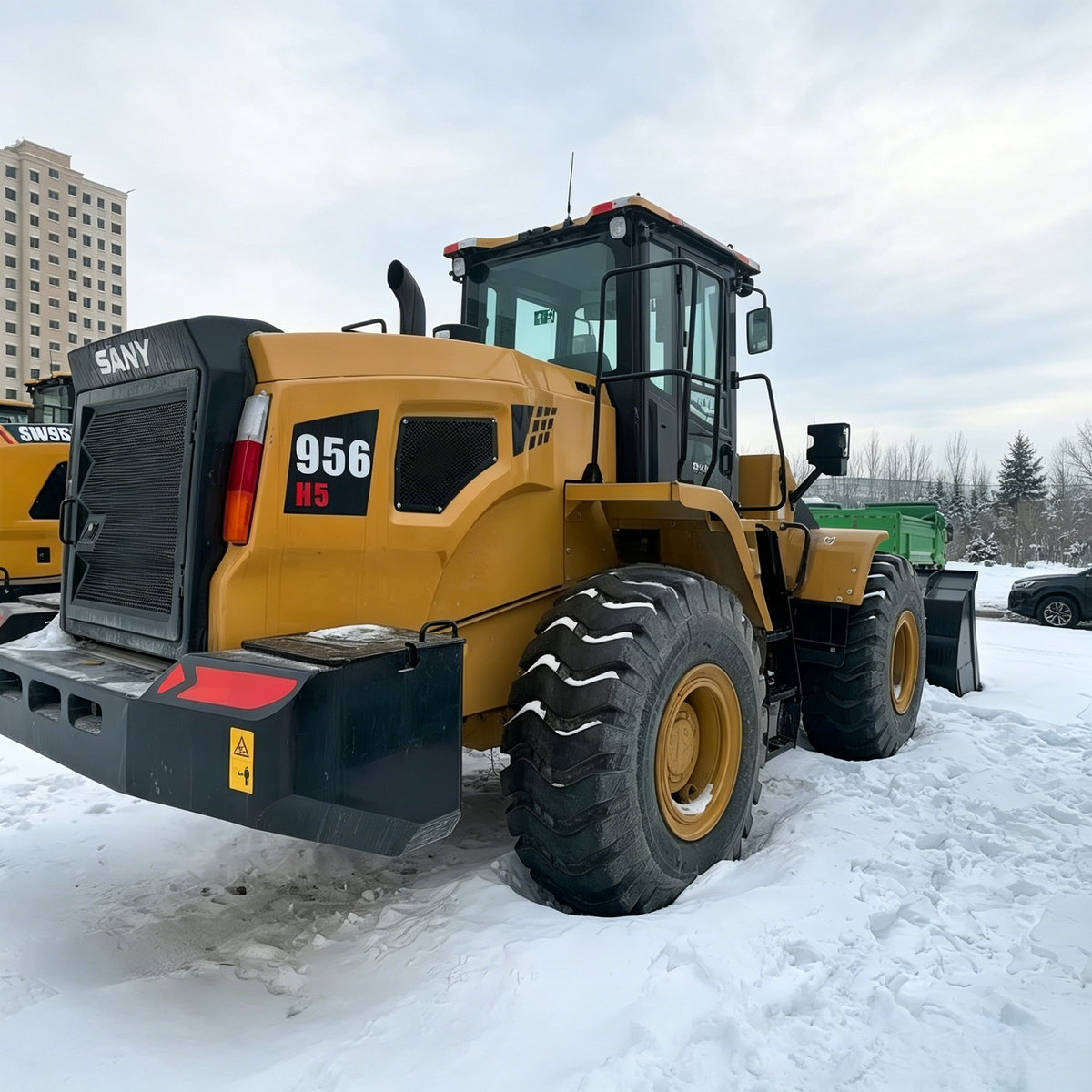

SANY SYL956H5 |
| Machine Type |
5‑Ton Heavy‑Duty Wheel Loader |
| Rated Load Capacity |
5000 kg (5 t) |
| Operating Weight |
17100–17200 kg |
| Standard Bucket Capacity |
2.7–4.0 m³ (Standard: 3.0 m³) |
| Straight‑Line Tipping Load |
12600 kg |
| Full‑Turn Tipping Load |
10700 kg |
| Engine Model |
Cummins QSL8.9‑C220‑III (Tier 3 / China Stage III) |
| Rated Power |
164 kW (220 HP) @ 2200 rpm |
| Displacement |
8.9 L |
| Fuel Type |
Diesel |
| Fuel Tank Capacity |
240 L |
| Three‑Cycle Time (Lift+Dump+Lower) |
≤10.5 s |
| Max Breakout Force |
185 kN |
| Max Traction Force |
160 kN |
| Max Dumping Height |
3118 mm |
| Max Dumping Reach |
1140 mm |
| Overall Dimensions (L×W×H) |
8016 × 2825 × 3501 mm |
| Wheelbase |
3200 mm |
| Ground Clearance |
432 mm |
| Tire Specification |
23.5‑25 Heavy‑Duty Off‑road Tire |
| Max Travel Speed |
40 km/h |
| Minimum Outside Turning Radius |
5850 mm |
| Transmission System |
Electric‑controlled Fixed‑shaft Powershift Transmission |
| Hydraulic System |
Variable‑displacement Load‑sensing Hydraulic System |
| Steering System |
Full‑hydraulic Articulated Steering |
| Braking System |
Air‑assisted Caliper‑type Service Brake + Pneumatic‑controlled Parking Brake |
| Cab Configuration |
ROPS‑FOPS Enclosed Cab, Air‑Conditioning Optional, Pilot Control, Shock‑Absorbing Seat |
| Main Applications |
Quarrying, mining, highway construction, port bulk material handling, stockyard loading‑unloading, heavy‑duty earthmoving projects |
