| Model |

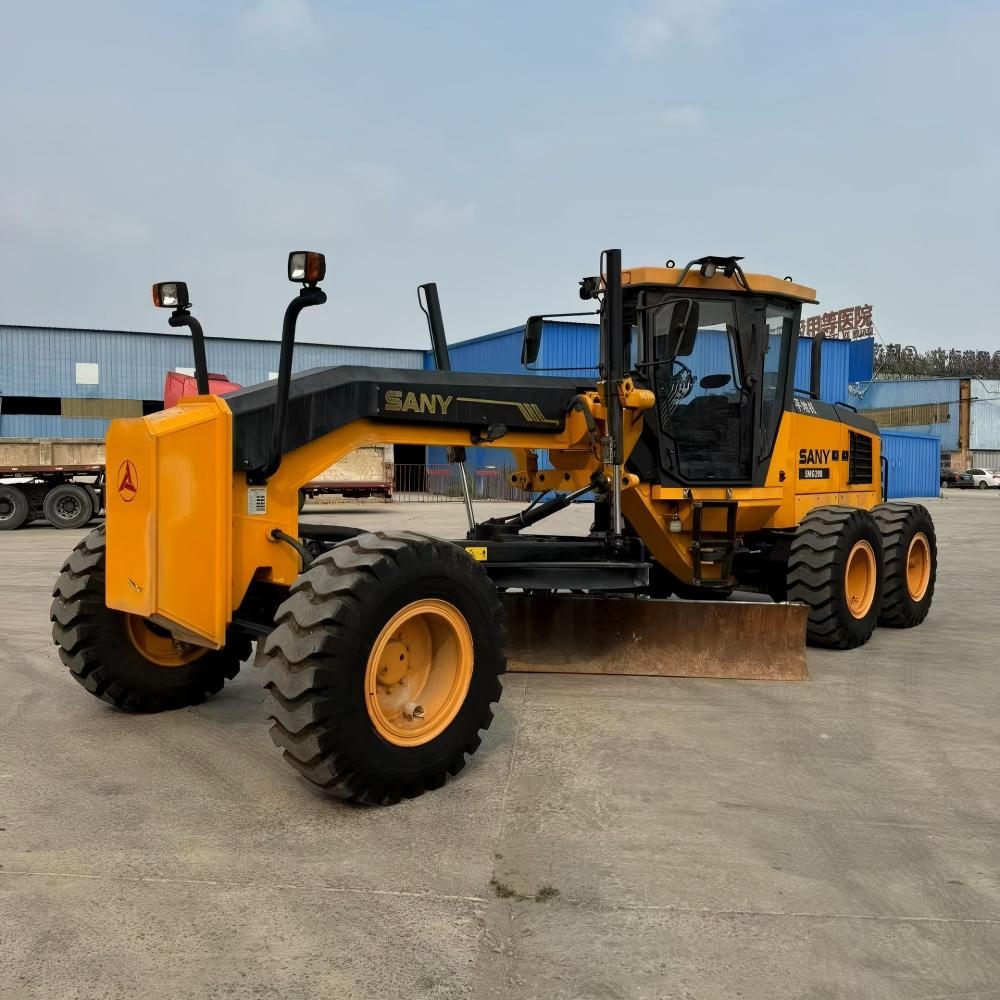

SANY SMG200 |
| Machine Type |
Motor Grader |
| Operating Weight |
17960 kg |
| Standard Blade Length |
4270 mm (14 ft) |
| Blade Height |
620 mm |
| Blade Tilt Angle |
±90° |
| Blade Turning Angle |
360° |
| Max Lift Above Ground |
480 mm |
| Max Depth of Cut |
715 mm |
| Blade Tip Range |
Front 40°, Rear 5° |
| Engine Model |
Cummins QSL9 |
| Rated Power |
186 kW @ 1500 rpm |
| Engine Displacement |
8.9 L |
| Peak Torque |
1085 Nm |
| Transmission |
Direct-Drive, Power Shift |
| Gears |
8 Forward / 6 Reverse |
| Forward Speed |
4.0/5.4/8.0/10.9/19.1/23.4/32.3/46.8 km/h |
| Reverse Speed |
3.2/5.9/8.7/13.5/25.3/37.0 km/h |
| Front Wheel Steering Angle |
±50° |
| Front Wheel Tilt Angle |
±17° |
| Articulated Steering Angle |
±22° |
| Front Axle Oscillation Angle |
±16° |
| Min Turning Radius |
7.5 m |
| Tire Size |
17.5R25 |
| Overall Dimensions (L×W×H) |
9187×2725×3498 mm |
| Fuel Tank Capacity |
340 L |
| Hydraulic Oil Tank Capacity |
115 L |
| Hydraulic System Pressure |
21 MPa |
| Electrical System Voltage |
24 V |
