| Model |

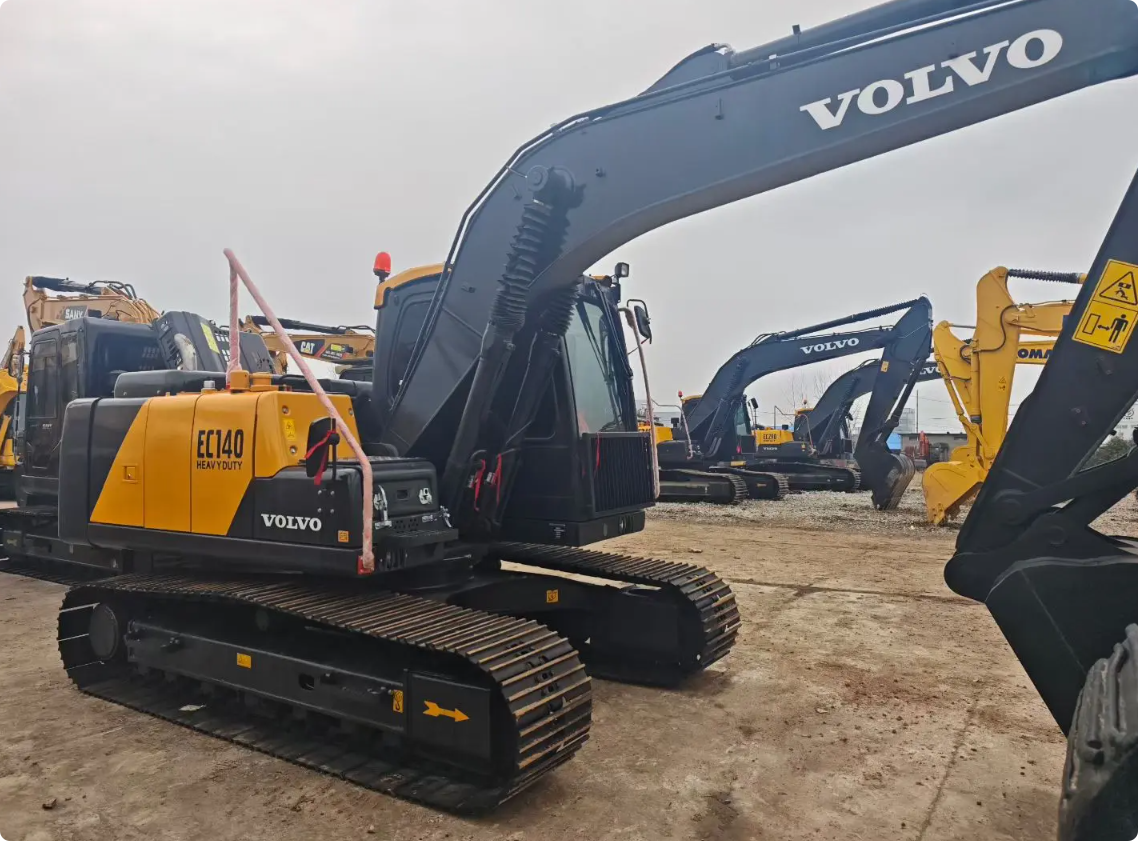

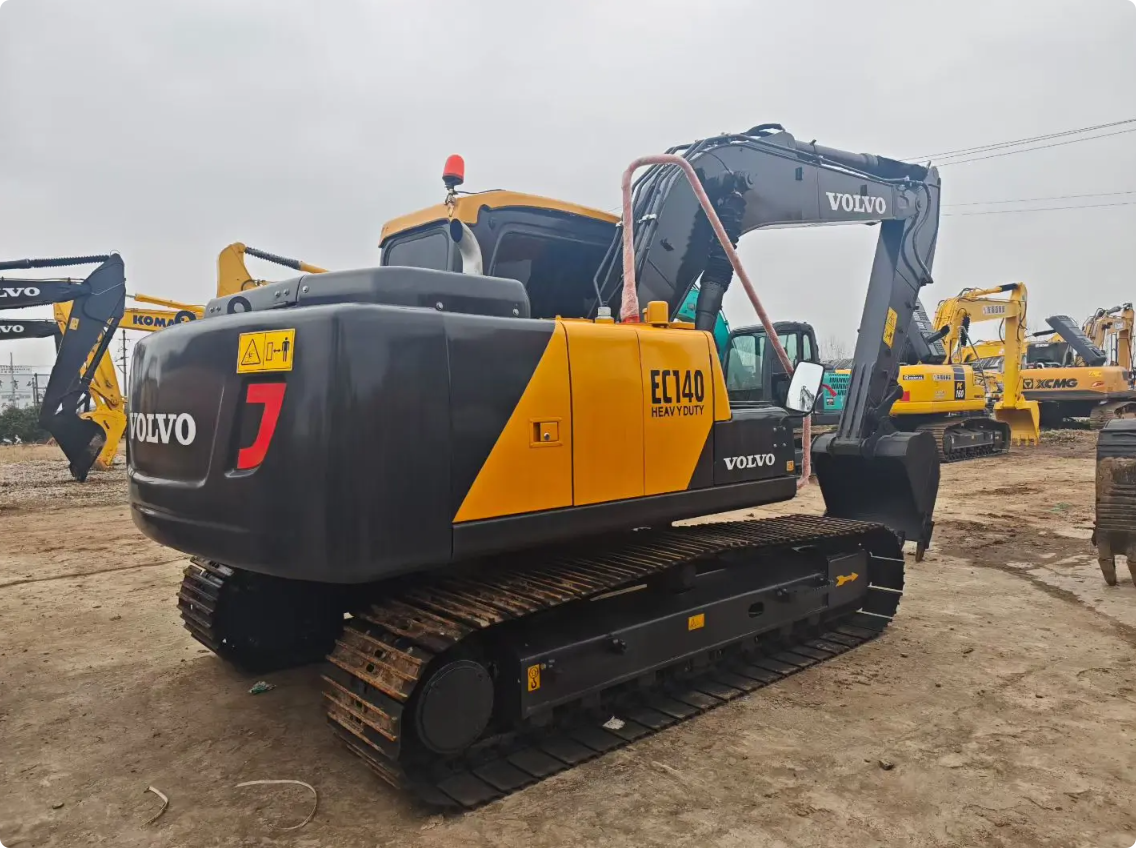

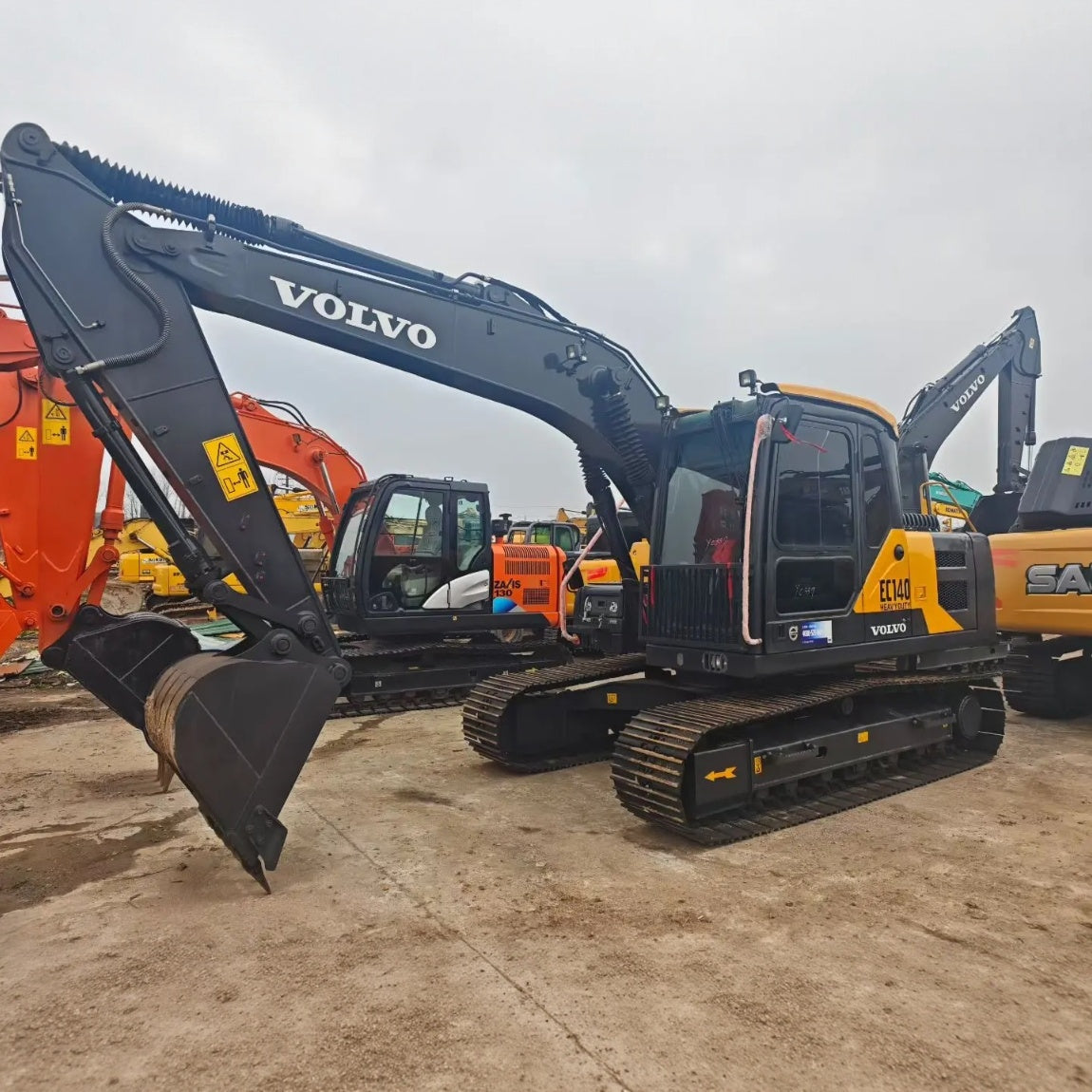

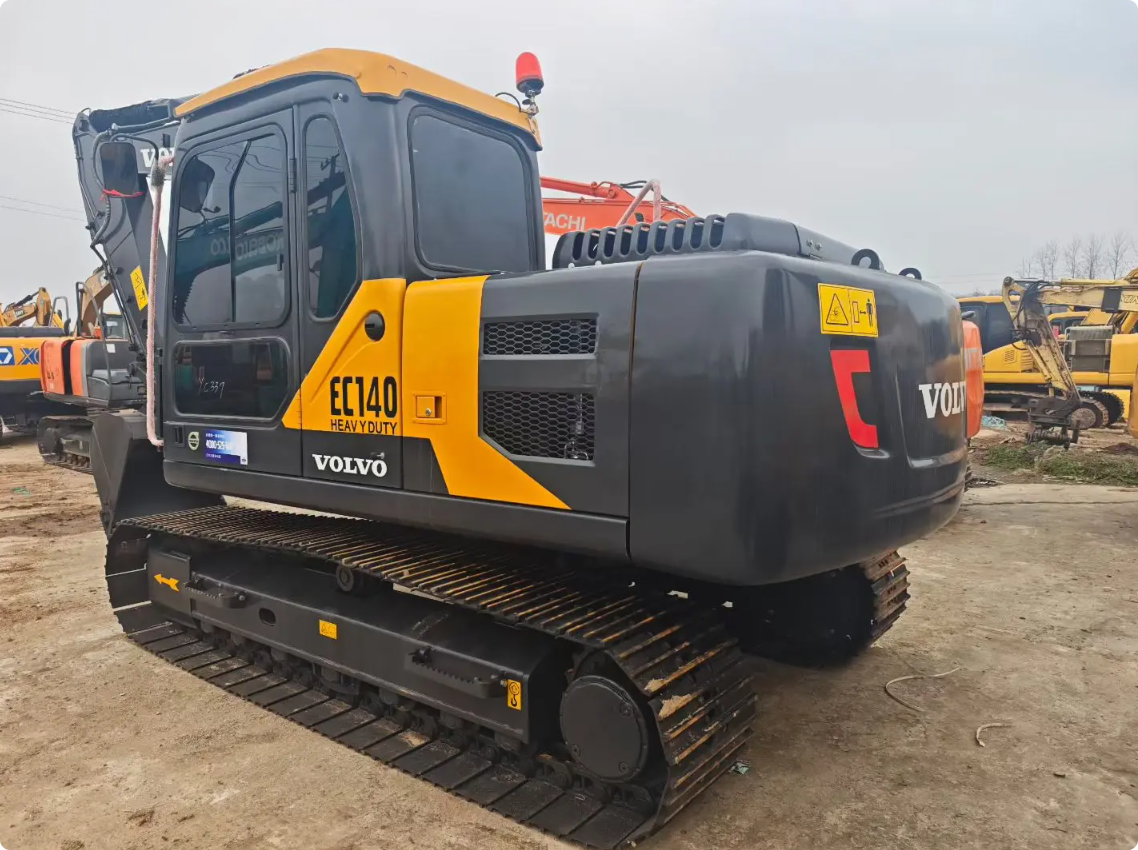

VOLVO EC140 Medium Hydraulic Crawler Excavator |
| Operating Weight (Standard Cab + 500mm Steel Track) |
14200 kg |
| Standard Heaped Bucket Capacity (ISO) |
0.62 m³ (Optional:0.45~0.76 m³) |
| Overall Transport Length |
7780 mm |
| Overall Transport Width |
2490 mm |
| Overall Transport Height (Cab Top) |
2770 mm |
| Full Transport Height (With Boom Assembly) |
3020 mm |

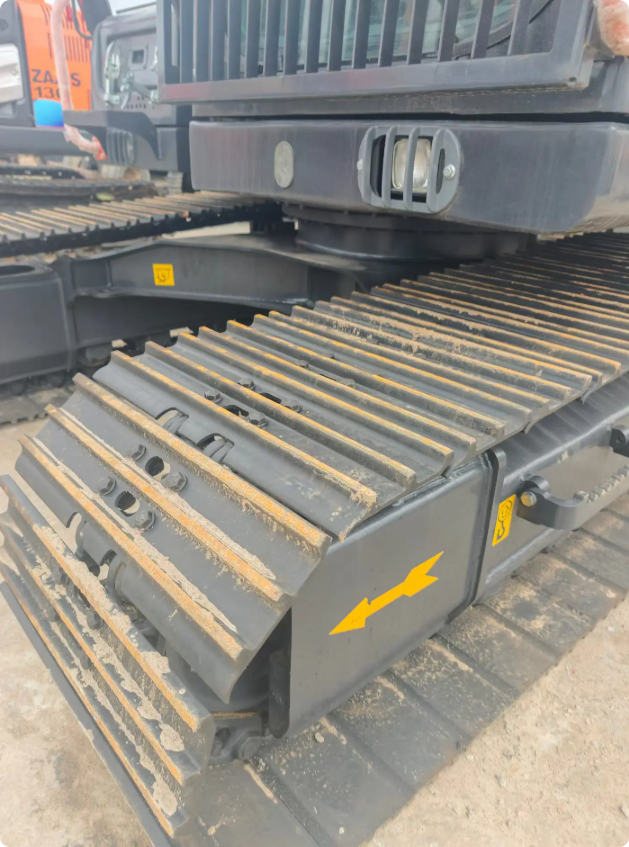

| Standard Track Shoe Width |
500 mm |
| Track Gauge |
1990 mm |
| Track Length on Ground |
2960 mm |
| Minimum Ground Clearance |
420 mm |
| Rear Swing Radius |
2200 mm |

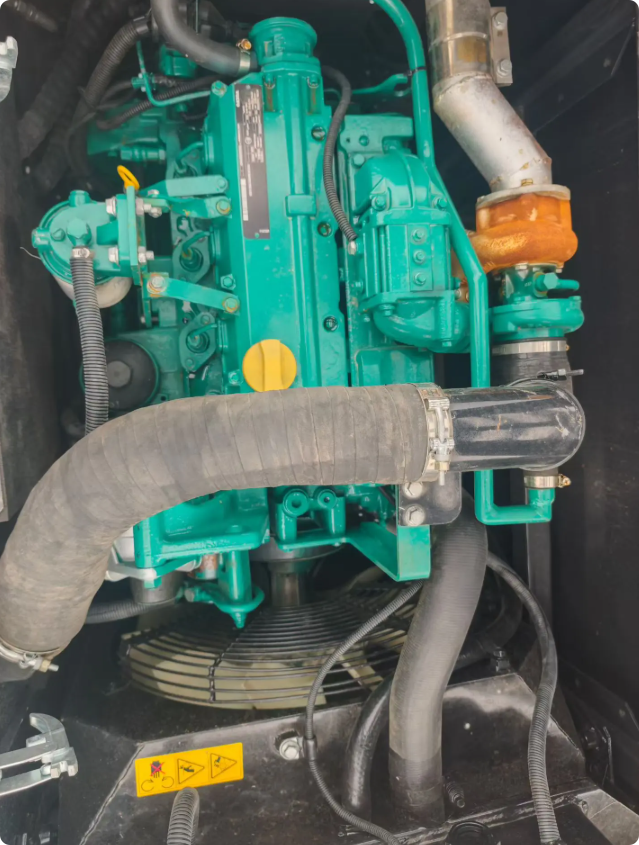

| Engine Model |
VOLVO D5E EAE3 4-Cylinder Turbocharged Intercooled Diesel Engine |
| Engine Type |
Water-cooled, 4-stroke, in-line, turbocharged common rail direct injection diesel |
| Rated Net Power (ISO 9249) |
75 kW @ 2000 rpm |
| Engine Displacement |
4.8 L |
| Max Engine Torque |
410 N·m @1500 rpm |
| Fuel Tank Capacity |
260 L |
| Hydraulic Tank Capacity |
130 L |
| Main Hydraulic Relief Pressure (Standard / Boom Swing Priority) |
32.4 MPa / 34.3 MPa |
| Total Main Pump Flow |
2×126 L/min |
| Max Digging Reach (Ground Level) |
8340 mm |
| Max Total Digging Reach |
8470 mm |
| Max Digging Depth |
5530 mm |
| Max Vertical Wall Digging Depth |
4860 mm |
| Max Digging Height |
8590 mm |
| Max Dumping Height |
6060 mm |
| Bucket Digging Force (ISO Standard) |
102 kN |
| Arm Digging Force (ISO Standard) |
73 kN |
| Max Drawbar Pull Force |
136 kN |
| Swing Rotation Speed |
12.8 rpm |
| Travel Speed (Low / High Gear) |
3.4 km/h / 5.5 km/h |
| Gradeability |
35° (70%) |
| Ground Contact Pressure |
41.0 kPa |
| Standard Boom Length |
4650 mm |
| Standard Stick Length |
2500 mm |
