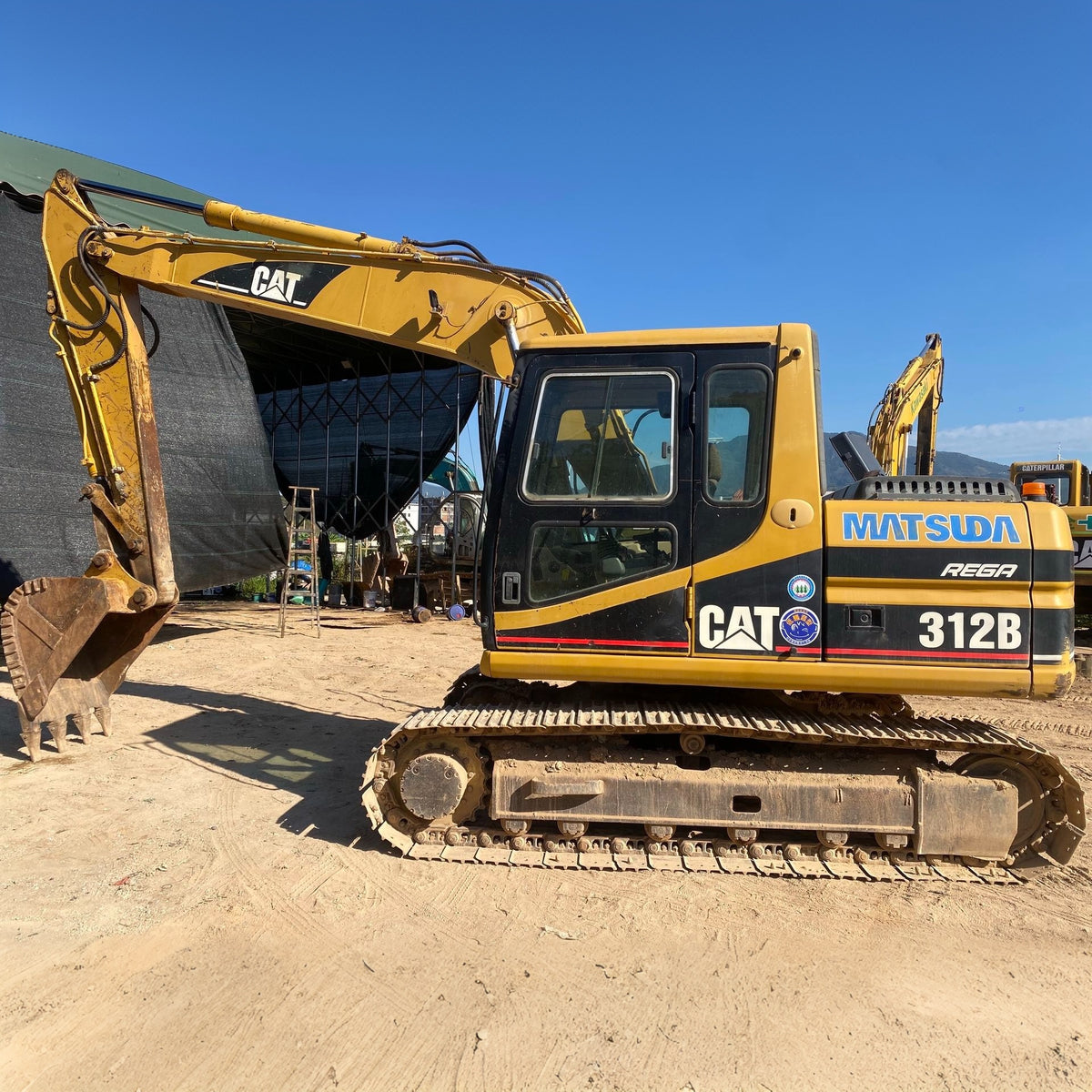

Used CAT 312B
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CAT312B01M3436098
MACHINE REFERENCE PRICE
USD 18,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2021
- Meter hours
- 2514 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) 312B crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
CONFIGURATION
CAT 312B specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CAT312B01M3436098
- Listed Price
- USD $18,000
- Full Model Name
- CAT 312B Hydraulic Excavator
- Engine Model
- Cat 3064T 4-Cylinder Turbo Diesel
- Net Flywheel Power (ISO 9249)
- 63 kW / 84 hp @ 1900 rpm
Full listing reference specifications
- Gross Engine Power
- 68 kW / 91 hp
- Displacement
- 4.24 L (259 cu in)
- Bore × Stroke
- 102 mm × 130 mm
- Emission Standard
- EU Stage II
- Standard Operating Weight (500mm steel track)
- 13010 kg
- Standard Bucket Capacity
- 0.46 m³
- Dual Main Pump Total Flow
- 240 L/min (120 L/min × 2 pumps)
- Implement Relief Pressure
- 299 bar (29900 kPa)
- Travel System Pressure
- 343 bar (34300 kPa)
- Swing Circuit Pressure
- 230.5 bar (23050 kPa)
- Pilot Pump Flow / Pressure
- 18 L/min / 39 bar
- Bucket Digging Force
- 92 kN
- Standard Stick Digging Force
- 60 kN
- Max Digging Depth (4.3m standard boom)
- 5850 mm
- Max Vertical Wall Dig Depth
- 4430 mm
- Max Ground Reach
- 8400 mm
- Max Dump Height
- 5860 mm
- Swing Speed
- 12.3 rpm
- Swing Torque
- 30.4 kN·m
- Max Travel Speed
- 5.5 km/h
- Max Low-Speed Drawbar Pull
- 104 kN
- Fuel Tank Capacity
- 250 L
- Total Hydraulic System Volume
- 162 L
- Standard Track Shoe Width
- 500 mm Steel Triple Grouser
- Track Gauge
- 1990 mm
- Rear Swing Radius
- 2130 mm
- Min Ground Clearance
- 440 mm
- Max Gradeability
- 30°
- Operator Station
- ROPS Sound Insulated Enclosed Cab
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
