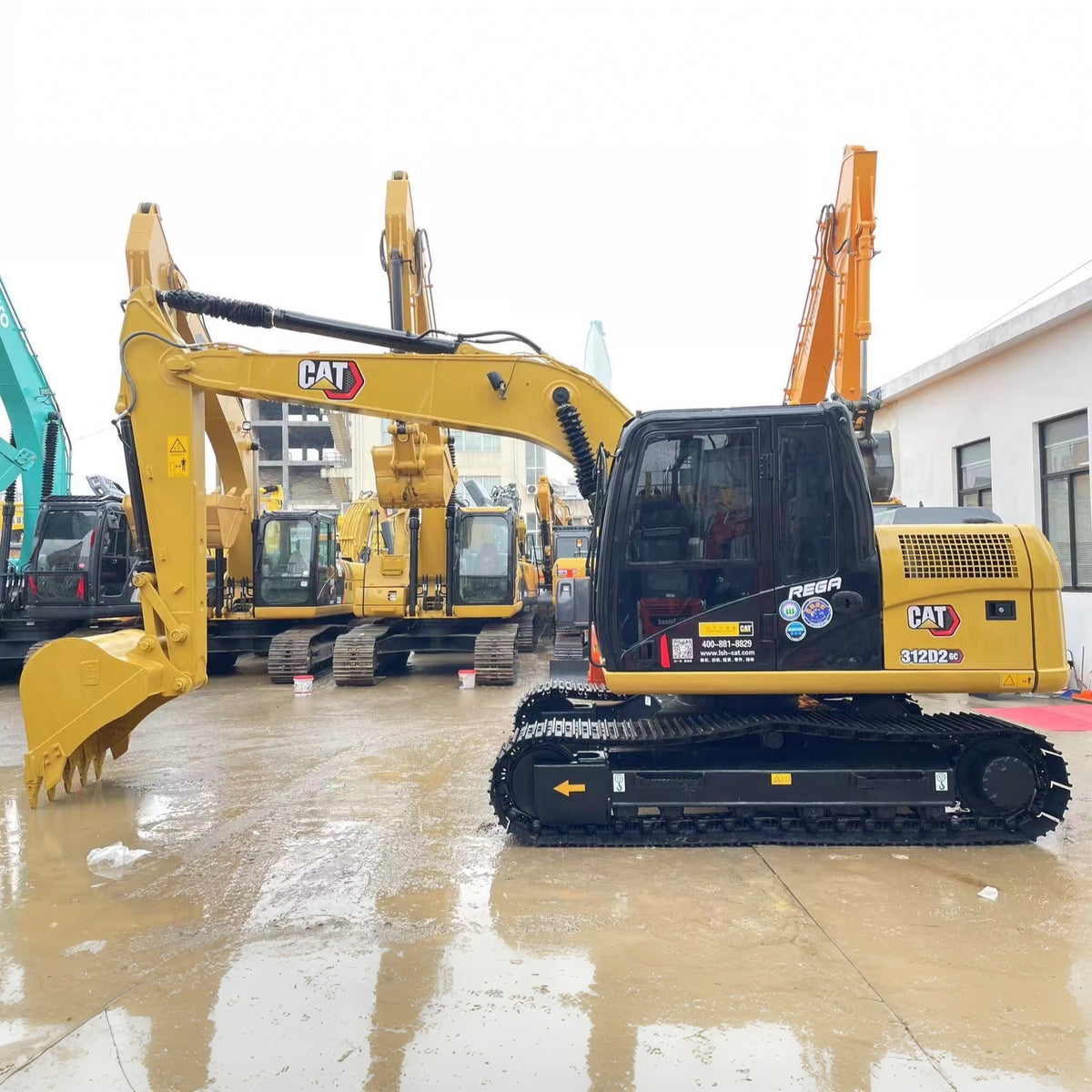

Used CAT 312D2GC
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CAT312D26RZ181138
MACHINE REFERENCE PRICE
USD 18,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2024
- Meter hours
- 560 h
- Condition
- Used
- Engine · listing
- Cat 3054C 4-Cylinder Diesel
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) 312D2GC crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
CONFIGURATION
CAT 312D2GC specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CAT312D26RZ181138
- Listed Price
- USD $18,000
- Full Model Name
- CAT 312D2 GC Hydraulic Excavator
- Engine Model
- Cat 3054C 4-Cylinder Diesel
- Net Flywheel Power (ISO 9249)
- 56 kW / 75 hp @ 2200 rpm
Full listing reference specifications
- Gross Engine Power (ISO 14396)
- 59 kW / 79 hp @ 2200 rpm
- Displacement
- 4.41 L
- Bore × Stroke
- 105 mm × 127 mm
- Emission Standard
- EPA Tier 2 / EU Stage II Equivalent
- Standard Operating Weight (500mm track, 4.65m boom, 2.5m stick)
- 12500 kg
- Standard Bucket Capacity
- 0.53 m³
- Dual Main Pump Total Flow
- 232 L/min
- Implement Relief Pressure
- 305 bar (30500 kPa)
- Travel Circuit Pressure
- 350 bar (35000 kPa)
- Swing Circuit Pressure
- 230 bar (23000 kPa)
- Pilot Pump Flow / Pressure
- 21.9 L/min / 41.2 bar
- Bucket Digging Force
- 95 kN
- Standard Stick Digging Force
- 65 kN
- Max Digging Depth (Standard Stick)
- 5540 mm
- Max Vertical Wall Dig Depth
- 4910 mm
- Max Ground Reach
- 8150 mm
- Max Dump Height
- 5480 mm
- Swing Speed
- 11.2 rpm
- Swing Torque
- 30.9 kN·m
- Max Travel Speed
- 5.1 km/h
- Max Low-Speed Drawbar Pull
- 114 kN
- Fuel Tank Capacity
- 250 L
- Hydraulic Tank Volume
- 110 L
- Standard Track Shoe Width
- 500 mm Steel Triple Grouser
- Track Gauge
- 1990 mm
- Overall Transport Width
- 2490 mm
- Min Ground Clearance
- 440 mm
- Max Gradeability
- 70% (35°)
- Operator Station
- ROPS Enclosed Cab with Air Conditioning
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
