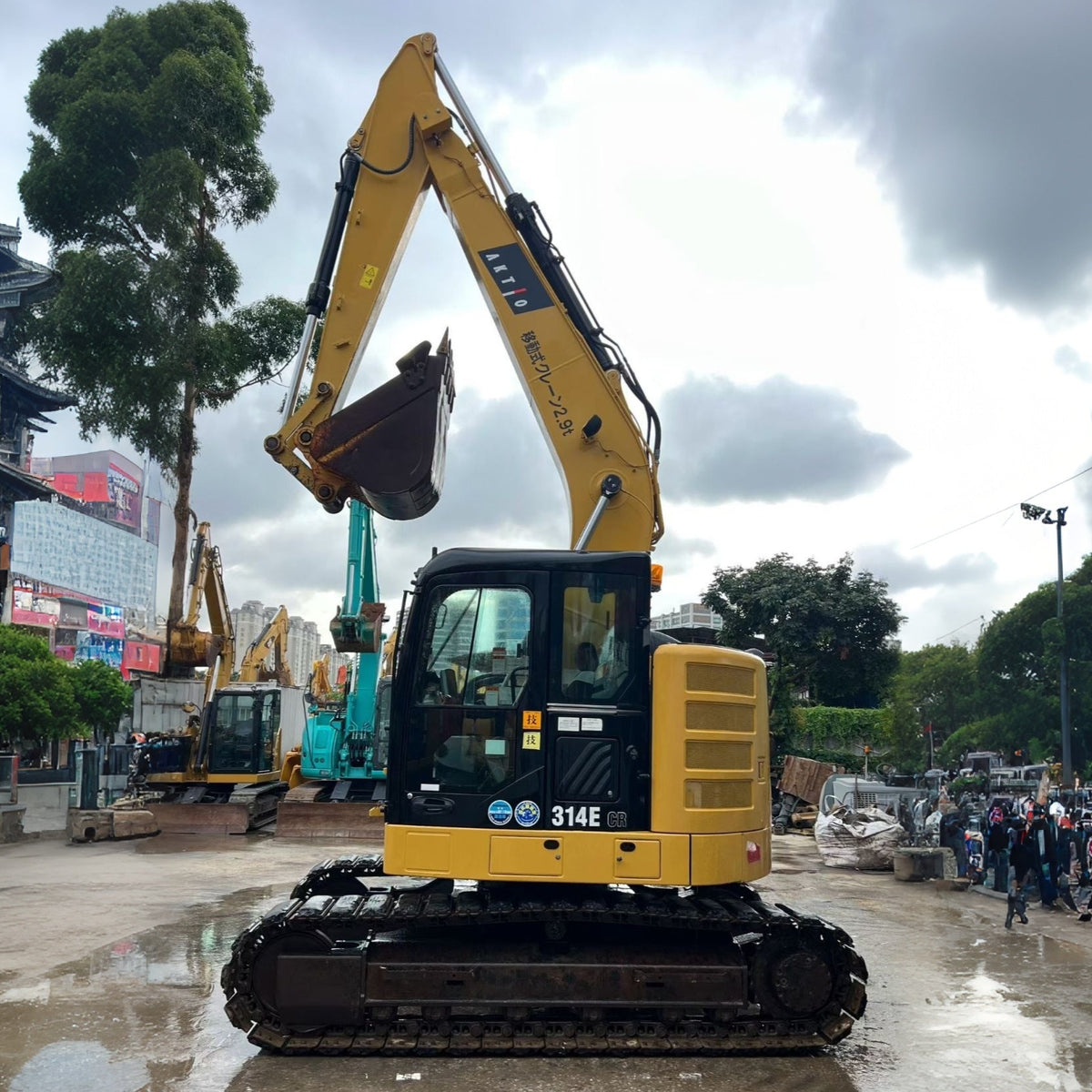

Used CAT 314E CR
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CAT314ECXNR197288
MACHINE REFERENCE PRICE
USD 18,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2022
- Meter hours
- 2354 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) 314E CR crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
CONFIGURATION
CAT 314E CR specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CAT314ECXNR197288
- Listed Price
- USD $18,000
- Full Model Name
- CAT 314E CR Compact Radius Crawler Excavator
- Engine Model
- Cat C4.4 ACERT 4-Cylinder Turbo Diesel
- Net Flywheel Power (SAE J1349)
- 67 kW / 89 hp @ 2200 rpm H-CPC
Full listing reference specifications
- Gross Engine Power (SAE J1995)
- 71 kW / 95 hp @ 2200 rpm H-CPC
- Displacement
- 4.4 L, Bore 105 mm, Stroke 127 mm H-CPC
- Emission Standard
- EPA Tier 4 Interim / EU Stage IIIB
- Standard Operating Weight (4.65m boom, 2.8m stick, 500mm steel track)
- 14800 kg H-CPC
- Max Full Config Weight (L long undercarriage)
- 15000 kg H-CPC
- Standard Bucket Capacity
- 0.45 m³ General Duty Bucket
- Dual Main Pump Total Hydraulic Flow
- 242 L/min
- Implement Relief Pressure
- 305 bar (30500 kPa)
- Travel Circuit Pressure
- 350 bar (35000 kPa)
- Swing Circuit Pressure
- 230 bar (23000 kPa)
- Pilot Pump Flow / Pressure
- 21.9 L/min / 41.2 bar
- Bucket Digging Force (ISO)
- 94 kN
- Standard Stick Digging Force (ISO)
- 66 kN
- Max Digging Depth (2.8m Standard Stick)
- 5800 mm
- Max Vertical Wall Dig Depth
- 5100 mm
- Max Ground Reach
- 8520 mm
- Max Dump Height
- 6260 mm
- Tail Swing Radius (Compact Radius)
- 1520 mm
- Swing Speed
- 11.5 rpm H-CPC
- Max Swing Torque
- 34 kN·m
- Travel Speed (Low / High)
- 3.3 km/h / 5.4 km/h H-CPC
- Max Low-Speed Drawbar Pull
- 113 kN H-CPC
- Fuel Tank Capacity
- 240 L
- Hydraulic Tank Volume
- 84 L
- Full Hydraulic System Volume
- 160 L
- Standard Track Shoe Width
- 500 mm Steel Triple Grouser
- Track Gauge
- 1990 mm
- Overall Transport Width
- 2490 mm
- Transport Length (Long Undercarriage)
- 7440 mm
- Min Ground Clearance
- 430 mm
- Max Gradeability
- 70% (35°)
- Operator Station
- ROPS Sound-Dampened Enclosed Cab, Air Conditioning, Color LCD Monitor
- Operator Noise (Closed Cab)
- 69 dB(A)
- Spectator Noise
- 100 dB(A)
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this CAT 314E CR
Destination port · Application · Preferred condition
