CATERPILLAR

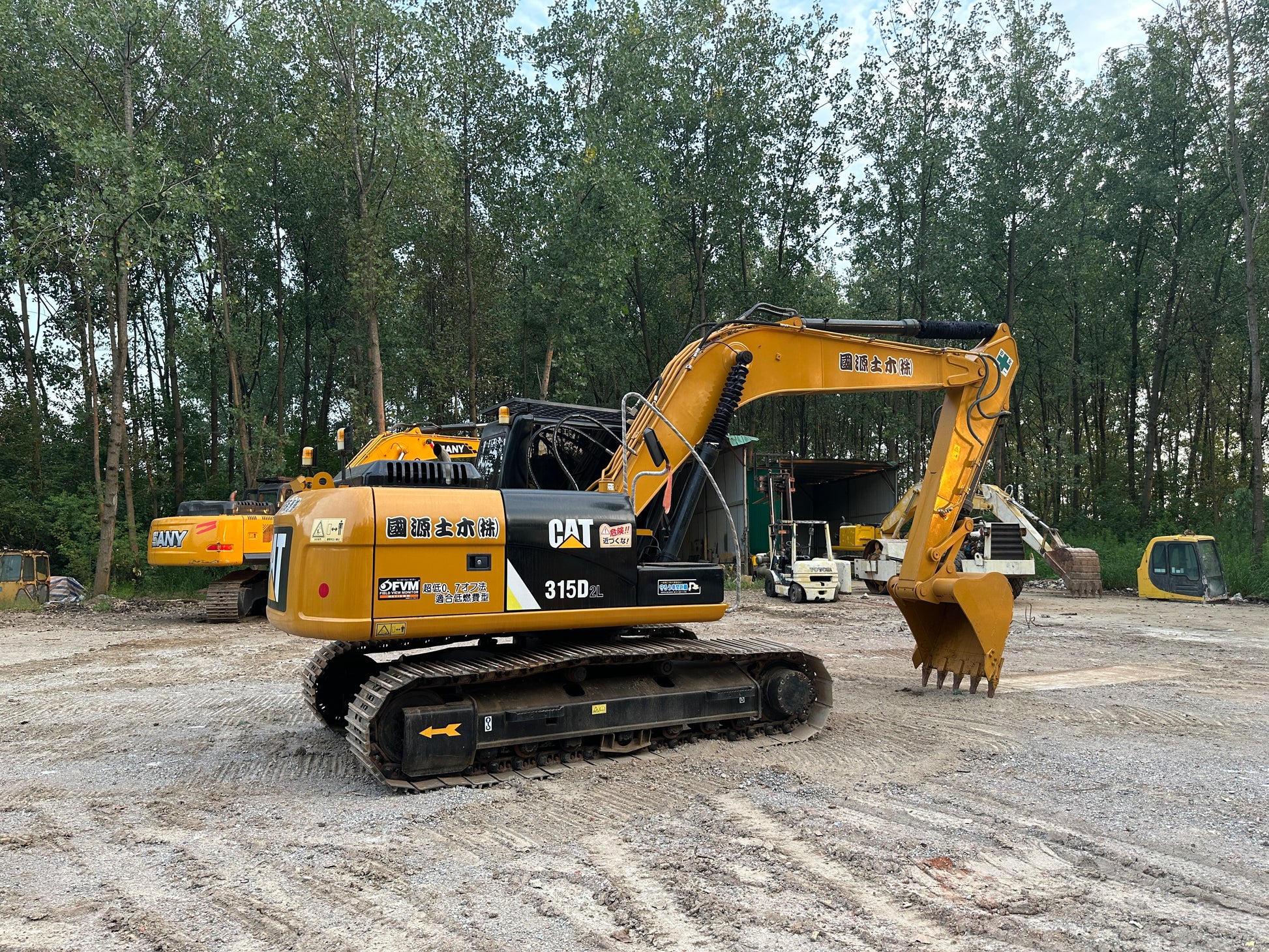

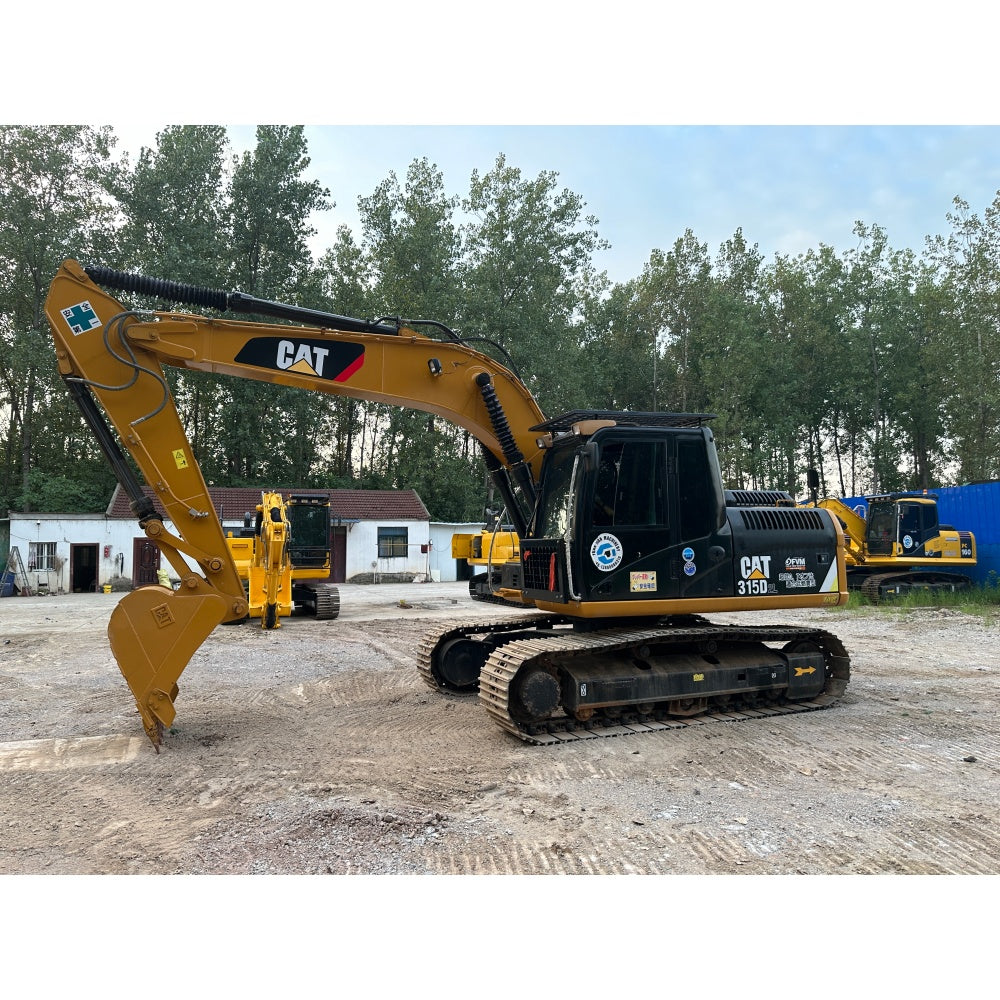

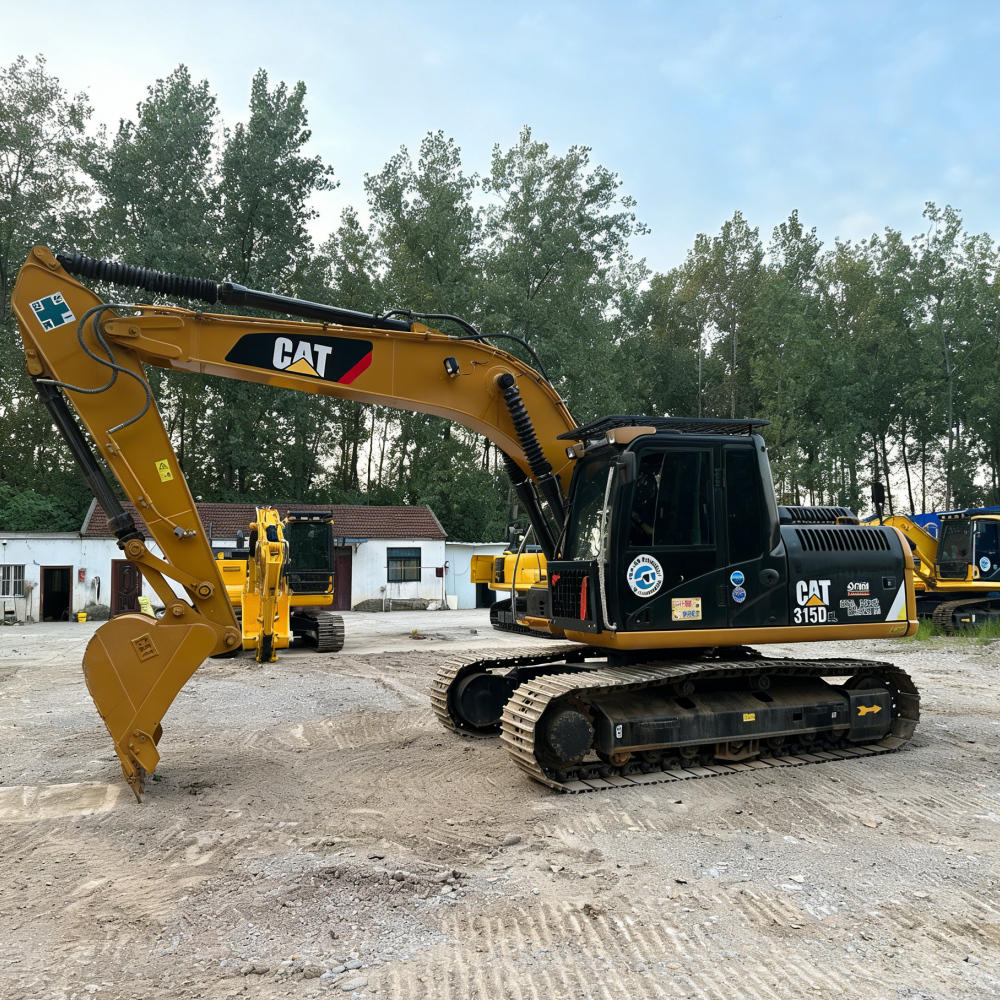

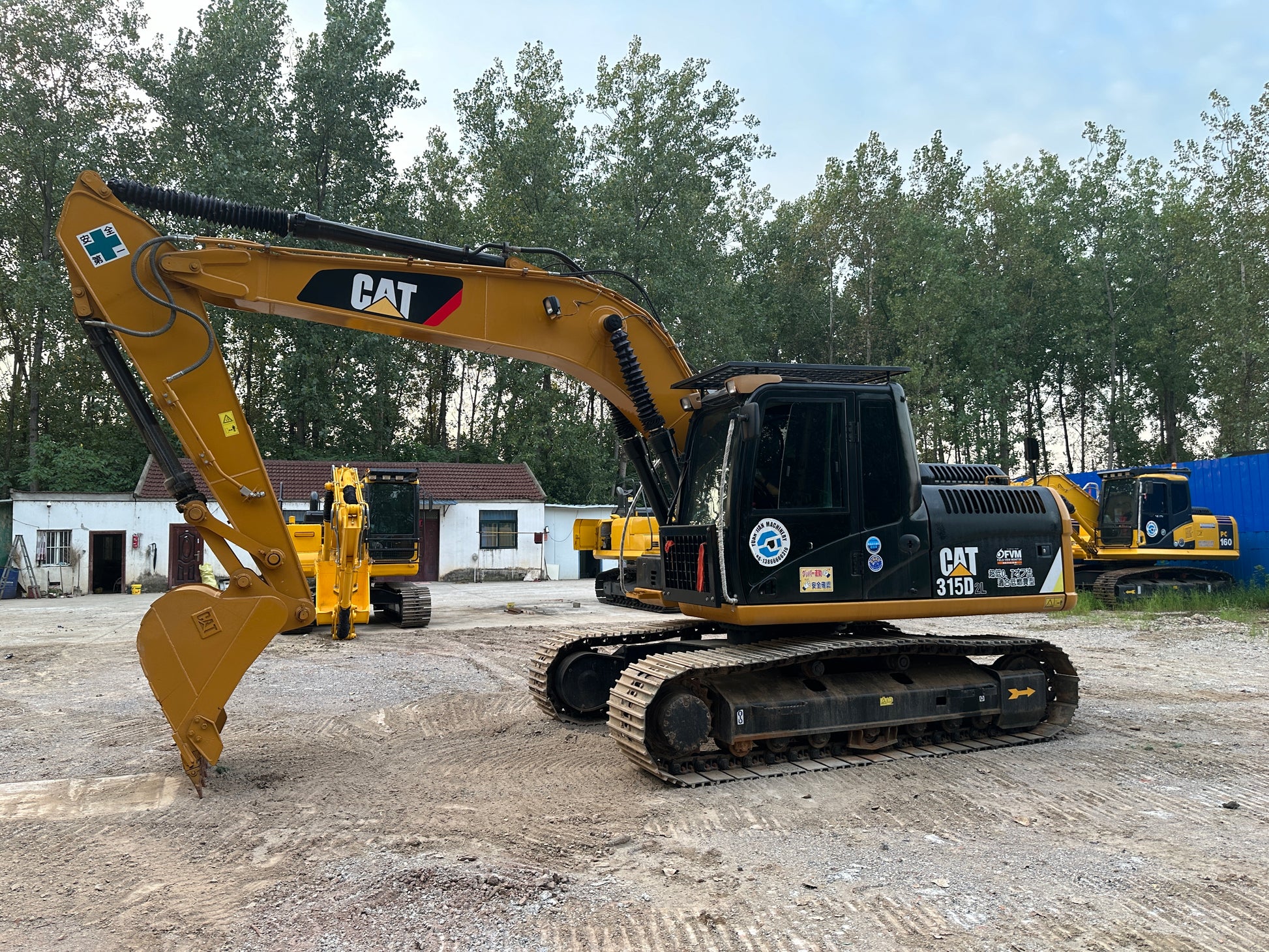

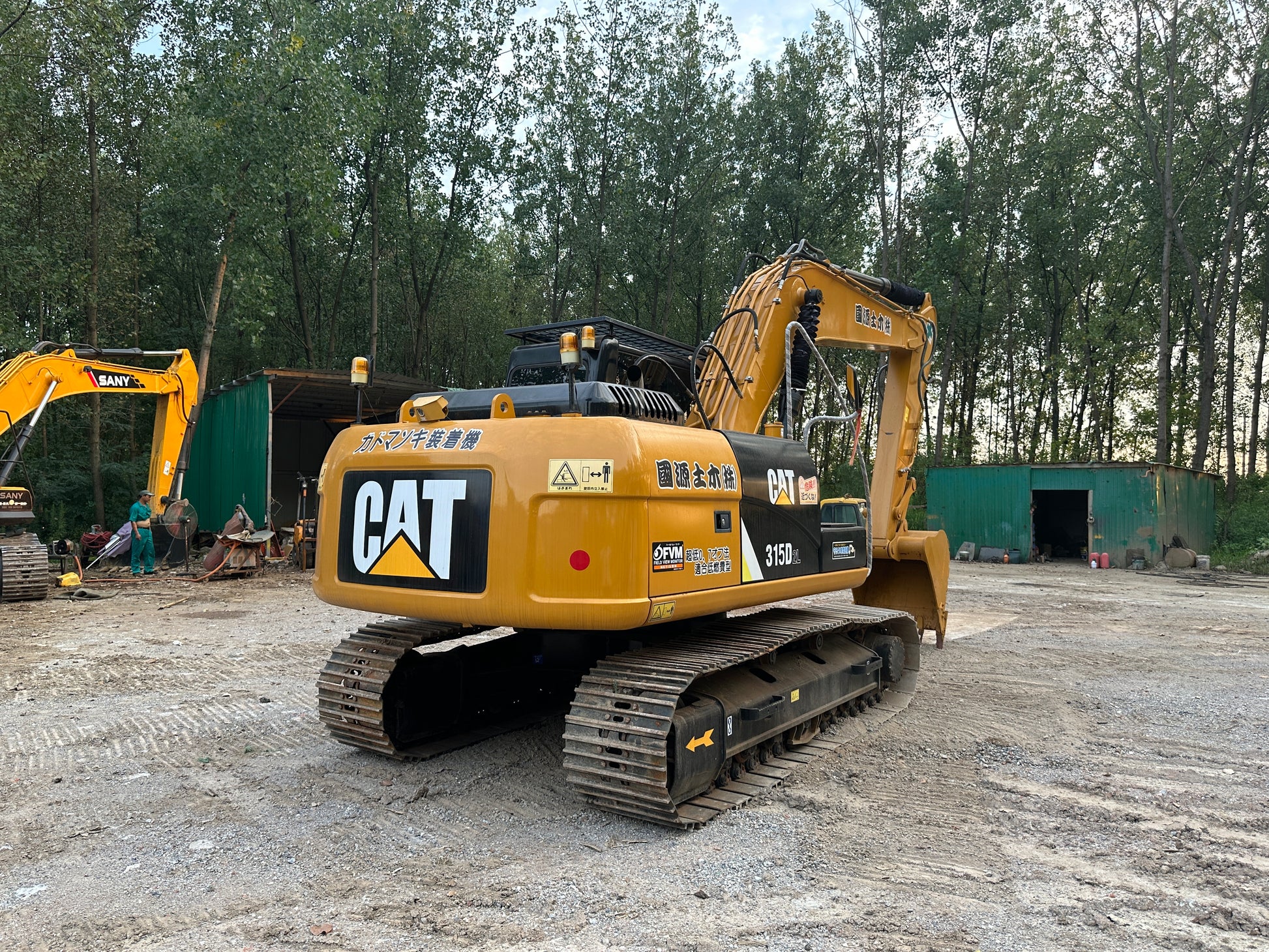

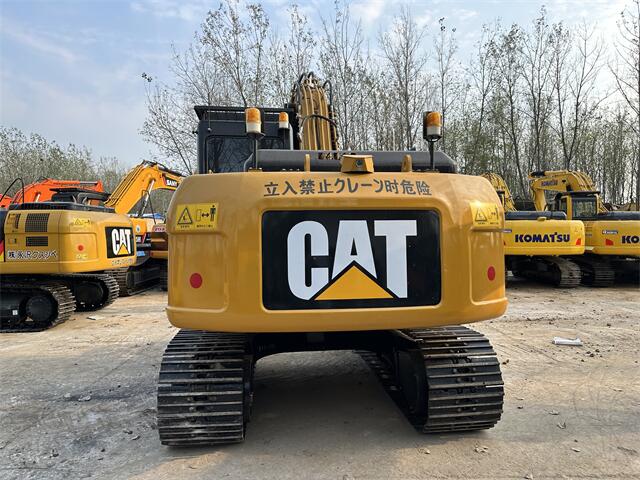

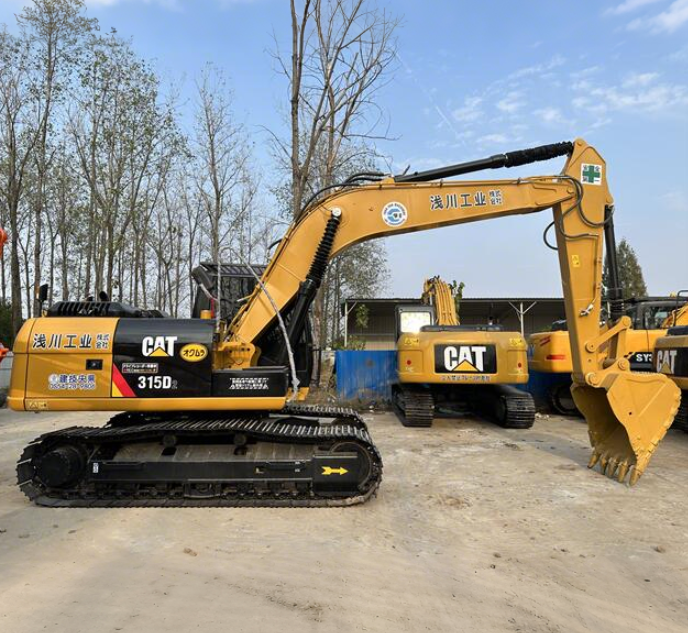

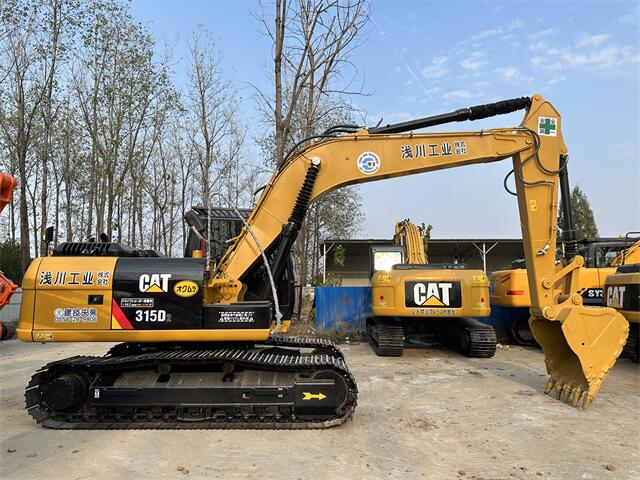

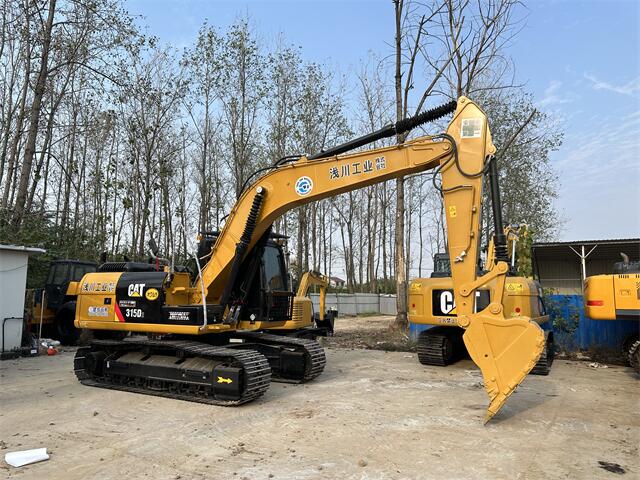

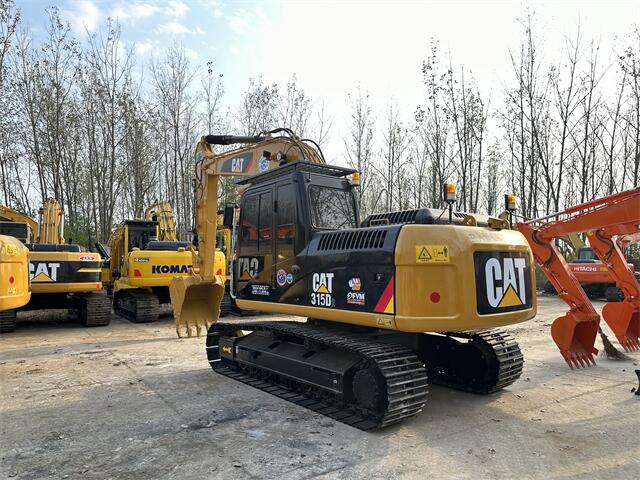

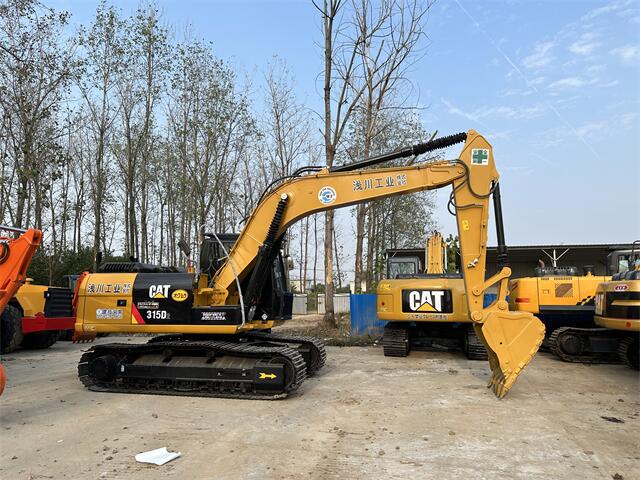

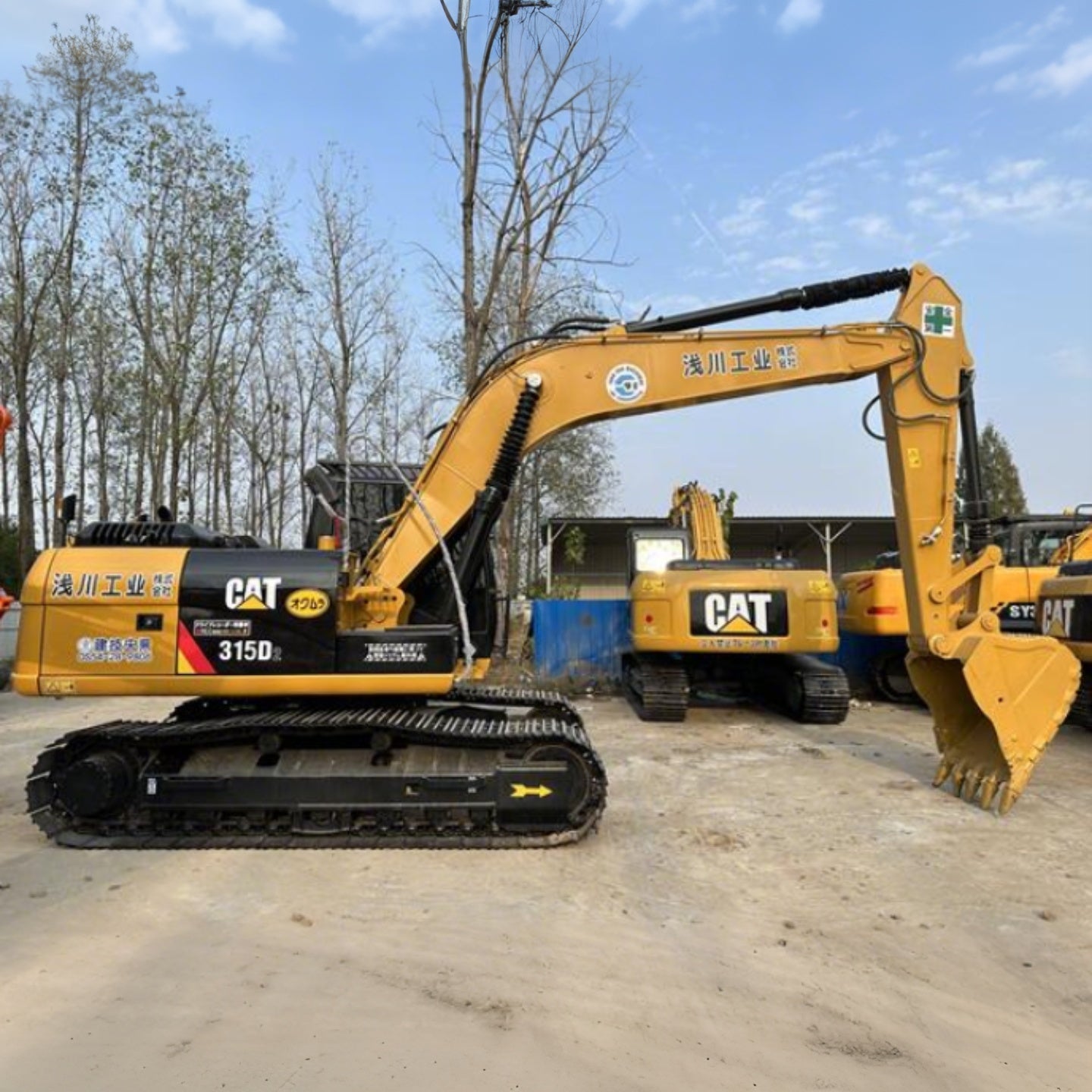

USED CAT 315D2

USED CAT 315D2

$18,000.00 USD
$18,000.00 USD
Sale Sold out

CAT 315D2 Core Specifications

Category Parameter Value
Basic Information Model CAT 315D2 (Crawler Excavator)
Operating Weight 17,280 kg (38,090 lbs)
Standard Bucket Capacity 0.61 m³
Engine System Engine Model Cat C4.4 ACERT
Net Power (ISO 9249/SAE J1349) 91 kW (122 hp) @ 2000 rpm
Gross Power 96 kW (129 hp) @ 2000 rpm
Displacement 4.4 L
Bore × Stroke 105 mm × 127 mm
Cooling Method Water - cooled
Fuel Tank Capacity 250 L (66 gal)
Performance Swing Speed 12 rpm
Travel Speed 3.4/5.5 km/h (2.1/3.4 mph)
Gradeability 70% (35°)
Bucket Digging Force 118 kN
Stick Digging Force 78 kN
Max. Digging Depth 5.72 m
Max. Digging Reach 8.43 m
Hydraulic System Main Pump Max. Flow 150 L/min (39.6 gpm)
Implement Hydraulic Pressure 35 MPa (5075 psi)
Travel Hydraulic Pressure 35 MPa (5075 psi)
Swing Hydraulic Pressure 26 MPa (3770 psi)
Hydraulic System Fluid Capacity 162 L (43 gal)
Dimensions Transport Length 8.52 m
Transport Width 2.59 m
Transport Height 2.93 m
Track Shoe Width 500 mm
