| Model |

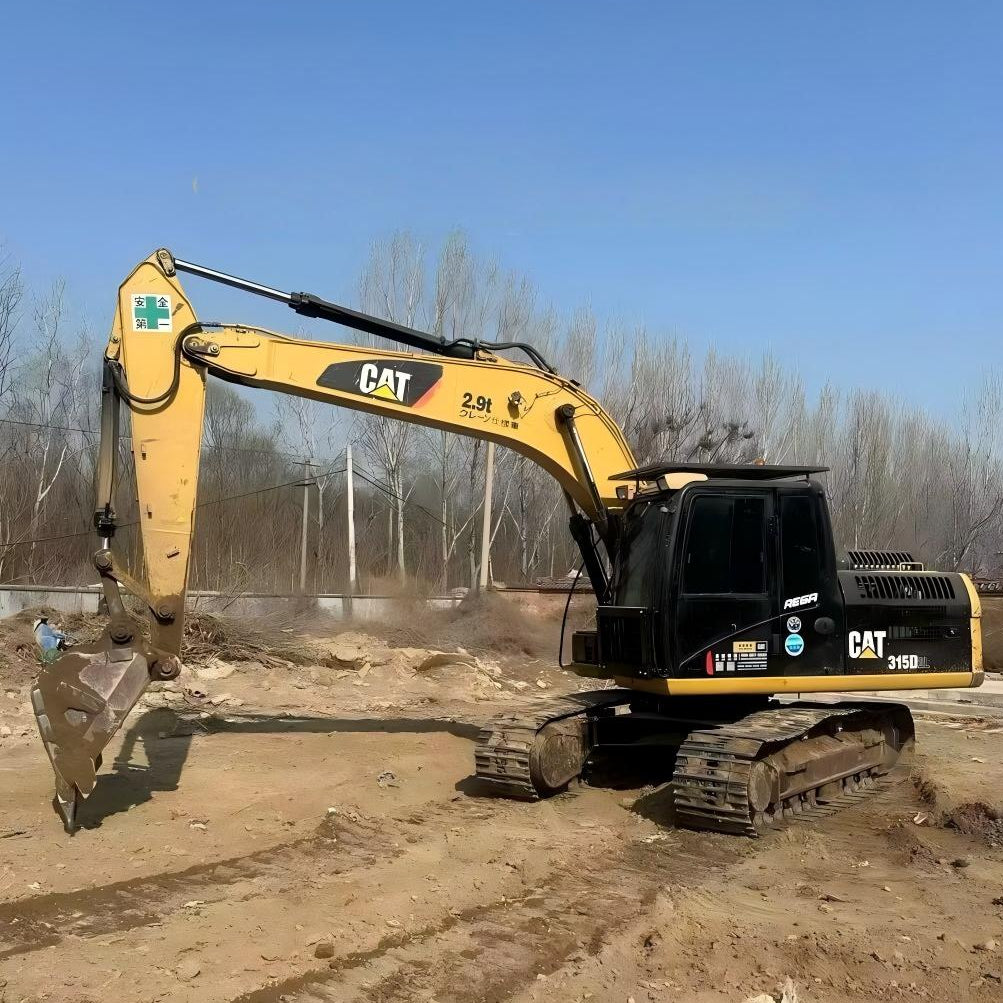

CAT 315D2 L Long Undercarriage Crawler Hydraulic Excavator |
| Engine Model |
Cat C4.4 ACERT 4-Cylinder Inline Turbo Diesel |
| Net Flywheel Power (ISO 9249, 2200 rpm) |
91 kW / 122 hp |
| Gross Engine Power (ISO 14396, 2200 rpm) |
98 kW / 131 hp |
| Displacement |
4.4 L; Bore 105 mm × Stroke 127 mm |
| Max Engine Torque |
460 N·m @ 1400 rpm |
| Emission Standard |
EPA Tier 3 / EU Stage IIIA / China Nonroad Stage III |
| Standard Operating Weight (4.7m boom, 2.6m stick, 600mm steel triple grouser track) |
16700 kg |
| Standard General Duty Bucket Capacity |
0.46 m³ |
| Optional Bucket Range |
0.34 ~ 0.61 m³ |
| Dual Main Pump Total Hydraulic Flow |
264 L/min |
| Implement Relief Pressure |
305 bar (30500 kPa) |
| Travel Circuit Pressure |
350 bar (35000 kPa) |
| Swing Circuit Pressure |
230 bar (23000 kPa) |
| Pilot Pump Flow & Pressure |
22 L/min / 41 bar |
| Bucket Digging Force (ISO Standard) |
103 kN |
| Stick Digging Force (ISO Standard) |
76 kN |
| Max Digging Depth (2.6m standard stick) |
6070 mmCat
|
| Max Vertical Wall Digging Depth |
5320 mm |
| Max Ground Line Reach |
8850 mm |
| Max Loading Dump Height |
6560 mm |
| Max Cutting Height |
9020 mm |
| Swing Speed |
10.2 rpm |
| Max Swing Torque |
43.4 kN·m |
| Travel Speed (Low / High Gear) |
3.4 km/h / 5.6 km/h |
| Max Low-Speed Drawbar Pull |
157 kN |
| Max Gradeability |
70% (35°) |
| Fuel Tank Capacity |
270 L |
| Hydraulic Tank Volume |
115 L |
| Full Hydraulic System Volume |
182 L |
| Standard Track Shoe Width |
600 mm Steel Triple Grouser |
| Track Gauge |
2290 mm |
| Overall Transport Width |
2590 mm |
| Overall Transport Length |
8520 mm |
| Overall Transport Height |
2930 mm |
| Min Ground Clearance |
450 mm |
| Tail Swing Radius |
2210 mm |
| Operator Station |
ROPS & FOPS Certified Sound-Dampened Enclosed Cab, Auto Air Conditioning, Color LCD Monitor, Rearview Camera |
