COMPANY RECORD
Workshop preparation example
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →YUANJIAN MACHINERY · HEFEI, CHINA

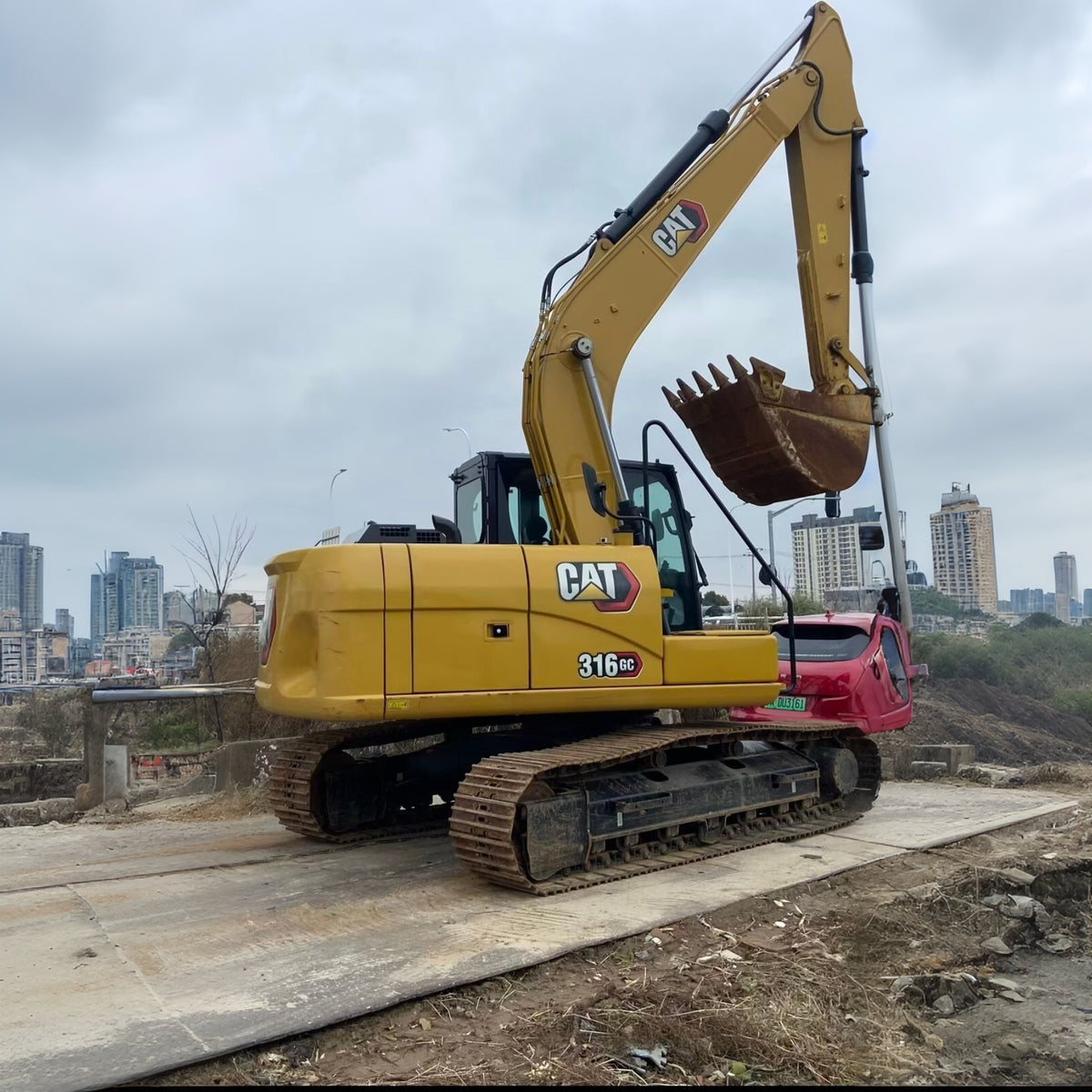

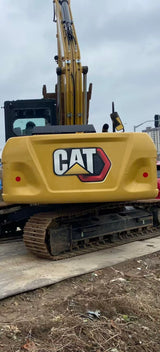

Used CAT 316GC
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CAT316GCCRE247417
MACHINE REFERENCE PRICE
USD 19,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2024
- Meter hours
- 541 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) 316GC crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
CONFIGURATION
CAT 316GC specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CAT316GCCRE247417
- Listed Price
- USD $19,000
- Full Model Name
- CAT 316 GC General Construction Crawler Hydraulic Excavator
- Engine Model
- Cat C3.6 4-Cylinder Turbocharged Diesel
- Net Flywheel Power (ISO 9249, 2200 rpm)
- 77.3 kW / 104 hp
Full listing reference specifications
- Gross Engine Power (ISO 14396, 2200 rpm)
- 82 kW / 110 hp
- Displacement
- 3.6 L; Bore 98 mm × Stroke 120 mm
- Emission Standard
- China Nonroad Stage IV / EU Stage V / EPA Tier 4 Final
- Standard Operating Weight (4.65m HD Boom, 2.5m HD Stick, 500mm Steel Triple Grouser Track)
- 14,300 kg
- Max Full Configuration Weight
- 14,600 kg
- Standard General Duty Bucket Capacity
- 0.65 m³
- Optional Bucket Range
- 0.55 ~ 0.75 m³
- Dual Main Pump Total Hydraulic Flow
- 268 L/min
- Implement & Travel Relief Pressure
- 305 bar (30,500 kPa)
- Swing Circuit Relief Pressure
- 260 bar (26,000 kPa)
- Pilot System Pressure
- 41 bar
- Bucket Digging Force (ISO Standard)
- 109 kN
- Stick Digging Force (ISO Standard)
- 79 kN
- Max Digging Depth (2.5m Standard Stick)
- 5,530 mm
- Max Vertical Wall Digging Depth
- 4,860 mm
- Max Ground Line Reach
- 8,180 mm
- Max Loading Dump Height
- 6,110 mm
- Max Cutting Height
- 8,500 mm
- Swing Speed
- 11.5 rpm
- Max Swing Torque
- 43 kN·m
- Travel Speed (Low / High Gear)
- 3.1 km/h / 5.5 km/h
- Max Low-Speed Drawbar Pull
- 102 kN
- Max Gradeability
- 70% (35°)
- Fuel Tank Capacity
- 237 L
- Engine Crankcase Oil Volume
- 11 L
- Cooling System Capacity
- 11 L
- Hydraulic Tank Volume
- 77 L
- Full Hydraulic System Volume
- 145 L
- Standard Track Shoe Width
- 500 mm Steel Triple Grouser
- Track Gauge
- 1,990 mm
- Overall Transport Width
- 2,490 mm
- Track Length on Ground
- 3,750 mm
- Min Ground Clearance
- 425 mm
- Tail Swing Radius
- 2,050 mm
- Operator Station
- ROPS & FOPS Certified Sound-Dampened Enclosed Cab, 8-inch Touch LCD Monitor, Auto 2-Stage Air Conditioning, Push-Button Start, Rearview Camera
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this CAT 316GC
Destination port · Application · Preferred condition
