| Model |

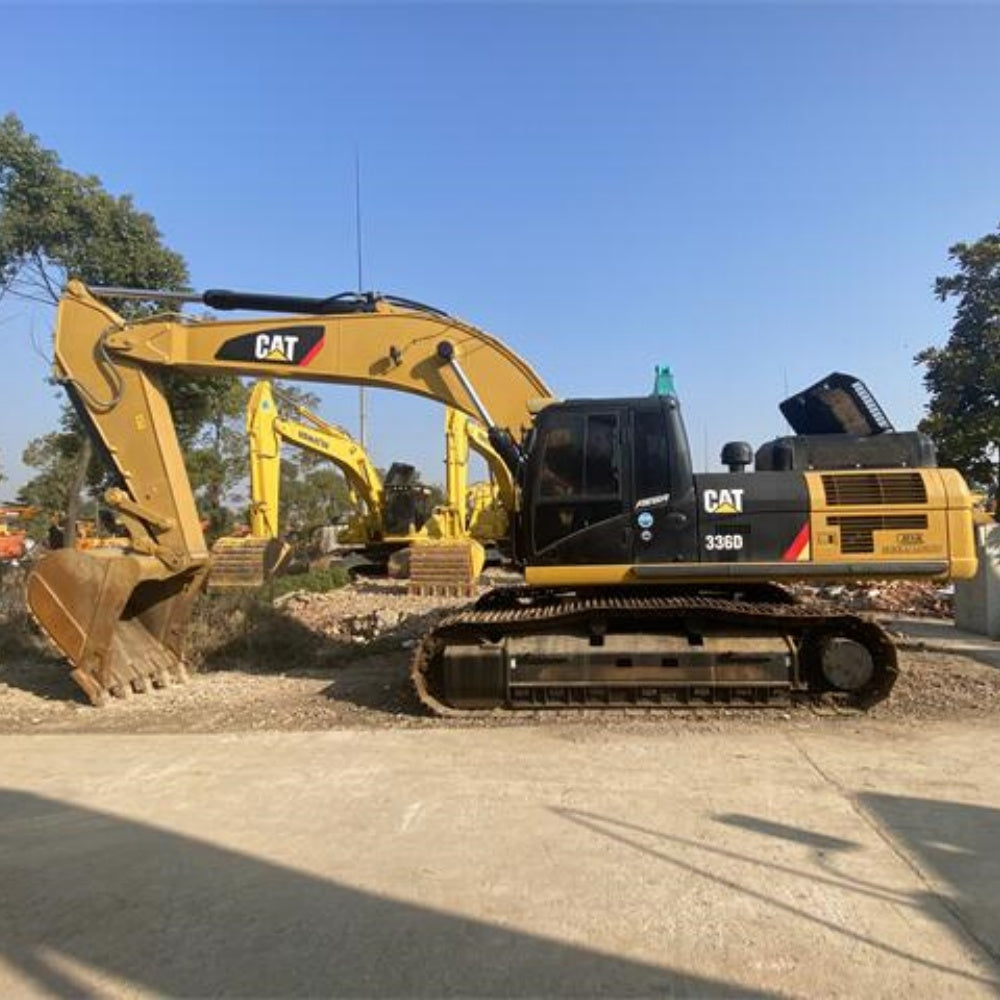

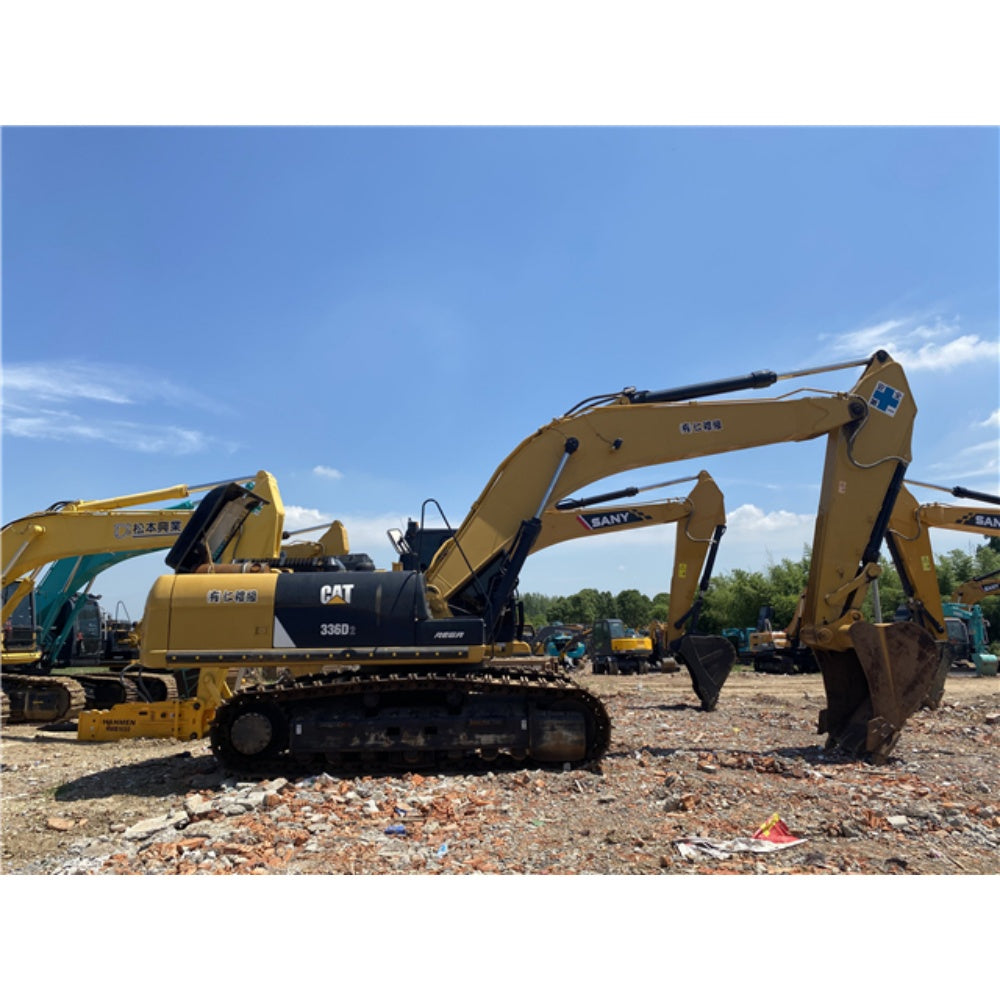

Cat 336D2 |
| Engine |
Cat C9 ACERT (turbocharged, aftercooled diesel; Tier 2/Stage II compliant) |
| Displacement |
8.8 L (537 in³) |
| Rated Power |
201 kW (269 hp) @ 1800 rpm (net, SAE J1349/ISO 9249); 209 kW (280 hp) @ 1800 rpm (ISO 14396) |
| Cylinder Bore × Stroke |
112 mm × 149 mm |
| Operating Weight |
37086 kg (81761 lb) |
| Bucket Capacity |
1.88–2.41 m³ (standard 1.9 m³) |
| Max. Digging Depth |
7740 mm (with 6.5 m boom & 3.9 m stick) |
| Max. Reach Along Ground |
11970 mm |
| Max. Loading Height |
8270 mm |
| Swing Speed |
9 rpm |

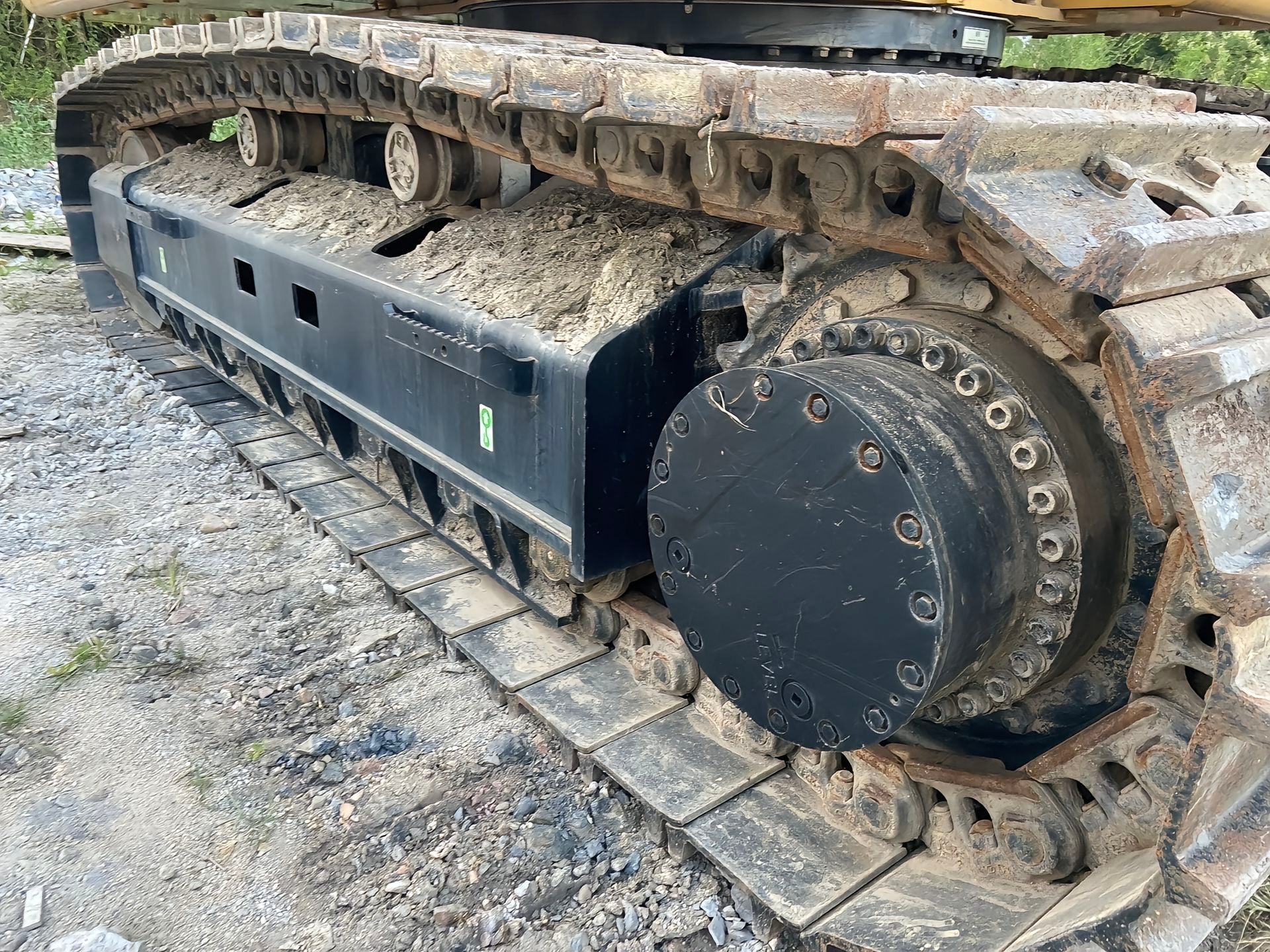

| Travel Speed |
4.85 km/h (3.0 mph) |
| Drawbar Pull |
300.5 kN (67555 lbf) |
| Bucket Digging Force |
240 kN (ISO) |
| Stick Digging Force |
180 kN (ISO) |

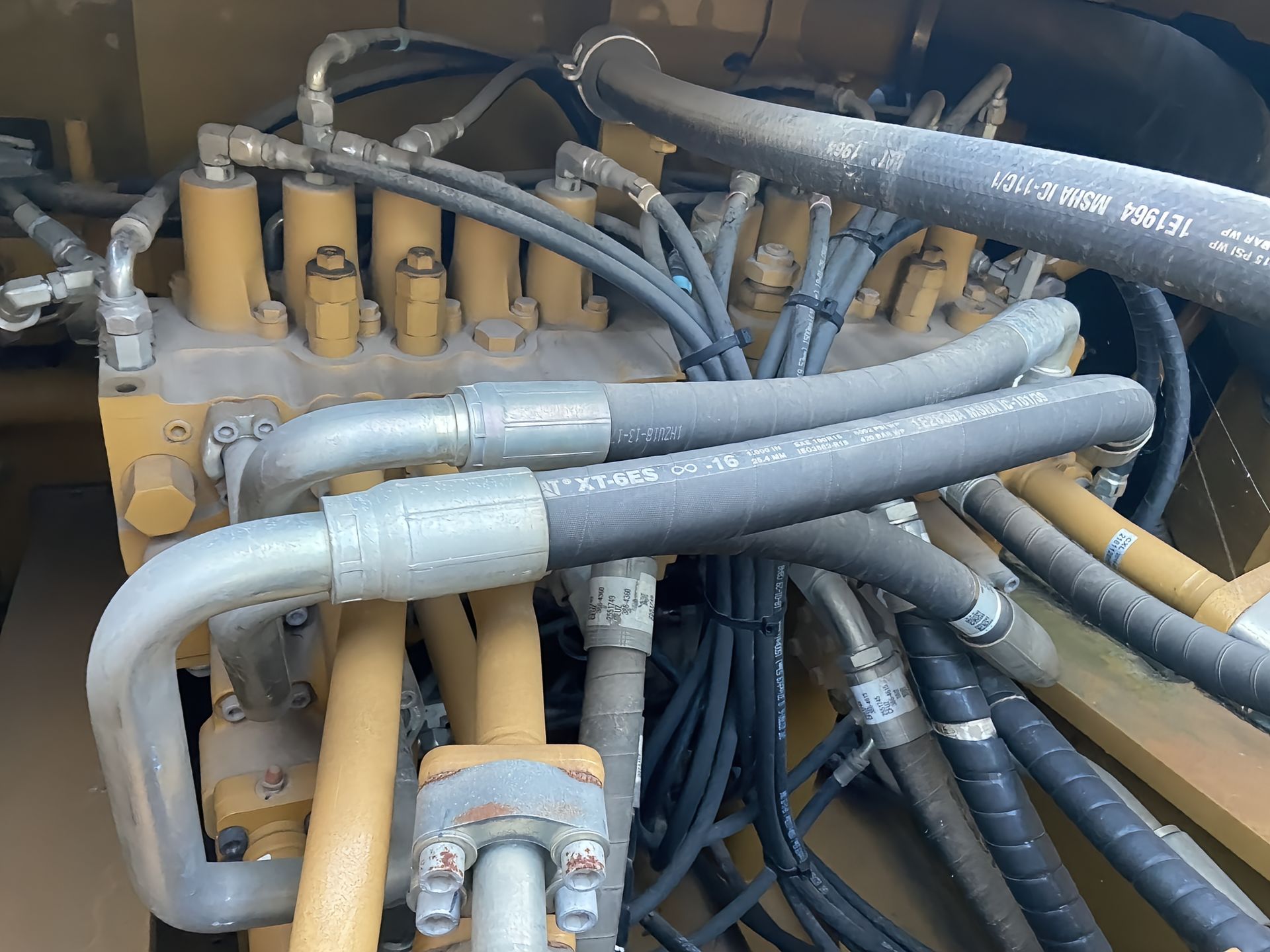

| Hydraulic System Pressure |
Main/Travel: 35000 kPa (5076 psi); Swing: 28000–29000 kPa (4061–4206 psi); Pilot: 4000 kPa (580 psi) |
| Hydraulic Flow (Main Pumps) |
2×265 L/min (total 530 L/min) |
| Fuel Tank Capacity |
620 L (163.8 gal) |
| Hydraulic System Capacity (Including Tank) |
410 L (108.4 gal) |
| Engine Oil Capacity |
40 L (10.6 gal) |
