COMPANY RECORD
Workshop preparation example
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →YUANJIAN MACHINERY · HEFEI, CHINA

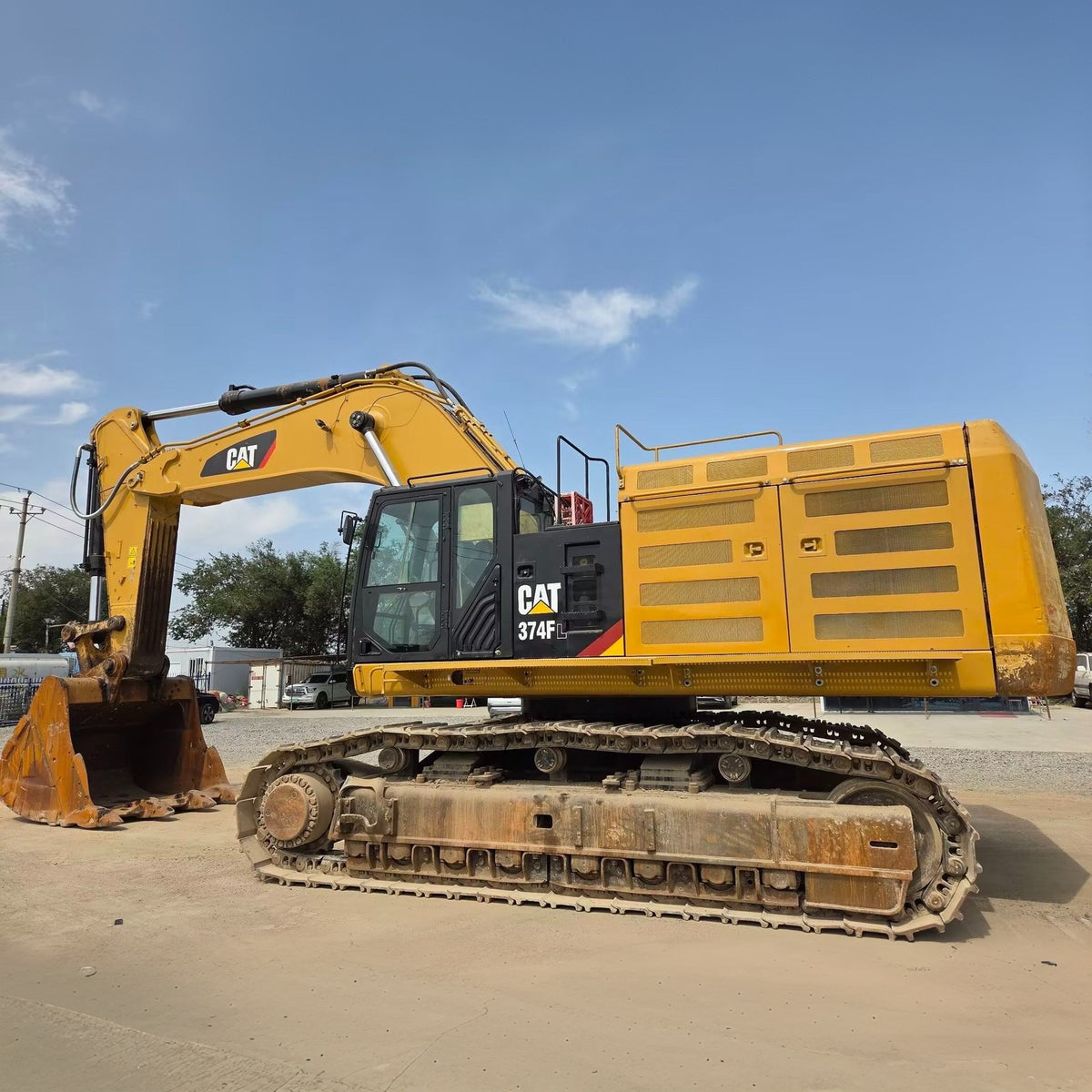

Used CAT 374FL
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CAT374FL5NC466471
MACHINE REFERENCE PRICE
USD 95,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2022
- Meter hours
- 2185 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) 374FL crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
CONFIGURATION
CAT 374FL specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CAT374FL5NC466471
- Listed Price
- USD $95,000
- Full Model Name
- CAT 374FL Large Hydraulic Crawler Excavator (Long Undercarriage)
- Engine Model
- Cat C15 ACERT 6-Cylinder Inline Turbo Diesel
- Net Flywheel Power (ISO 9249 @ 1600 rpm)
- 352 kW / 472 hp
Full listing reference specifications
- Gross Engine Power (ISO 14396 @ 1600 rpm)
- 362 kW / 485 hp
- Displacement
- 15.2 L; Bore 137 mm × Stroke 171 mm
- Emission Standard
- EPA Tier 4 Final / EU Stage IV
- Minimum Operating Weight (Reach config, 650mm track)
- 70,970 kg
- Maximum Operating Weight (Mass config, 900mm track)
- 75,170 kg
- Standard Heavy-Duty Bucket Capacity
- 3.3 m³
- Main Dual Pump Total Hydraulic Flow
- 896 L/min (Implement Mode) / 952 L/min (Travel Mode)
- Implement / Travel Relief Pressure
- 350 bar (35,000 kPa)
- Swing Circuit Relief Pressure
- 350 bar (35,000 kPa)
- Pilot Pump Max Flow / Pressure
- 63 L/min / 41 bar
- Bucket Digging Force (ISO)
- 358 kN
- Stick Digging Force (ISO)
- 295 kN
- Max Digging Depth (3.6m Standard Stick)
- 8,570 mm
- Max Vertical Wall Dig Depth
- 6,910 mm
- Max Ground Line Reach
- 13,160 mm
- Max Loading Dump Height
- 8,430 mm
- Max Cutting Height
- 12,550 mm
- Swing Speed
- 6.5 rpm
- Max Swing Torque
- 215 kN·m
- Max Travel Speed
- 4.1 km/h
- Max Low-Speed Drawbar Pull
- 492 kN
- Max Gradeability
- 70% (35°)
- Fuel Tank Capacity
- 935 L
- DEF Tank Capacity
- 48 L
- Hydraulic Tank Volume
- 612 L
- Full Hydraulic System Volume
- 729 L
- Engine Crankcase Oil Volume
- 60 L
- Cooling System Capacity
- 74 L
- Swing Drive Oil Capacity (Each)
- 12 L
- Final Drive Oil Capacity (Each Side)
- 22 L
- Optional Standard Track Shoe Width
- 650 mm / 750 mm / 900 mm Steel Triple Grouser
- Track Gauge
- 3,410 mm
- Track Length on Ground
- 4,705 mm
- Overall Transport Width (650mm track)
- 3,650 mm
- Overall Transport Length
- 12,660 mm
- Overall Transport Height (Cab Top)
- 4,630 mm
- Min Ground Clearance
- 840 mm
- Tail Swing Radius
- 4,015 mm
- Counterweight Clearance
- 1,540 mm
- Roller Quantity Per Side
- 8 track rollers
- Operator Station
- ROPS & FOPS Certified Sound-Dampened Enclosed Cab, Large LCD Monitor, Auto Air Conditioning, Rearview Camera, Emergency Exit Window
- Engine Features
- 3 Power Modes (Heavy / Smart / Economy), Auto Engine RPM Control, Hydraulic Reversing Fan, Dual-Stage Air Filter
- Hydraulic System Features
- ACS Adaptive Control Valve, Boom & Stick Regeneration Circuits, Closed-Loop Swing System, Auto Hydraulic Oil Warm-Up, Auto Swing Parking Brake
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this CAT 374FL
Destination port · Application · Preferred condition
