| Basic Info |

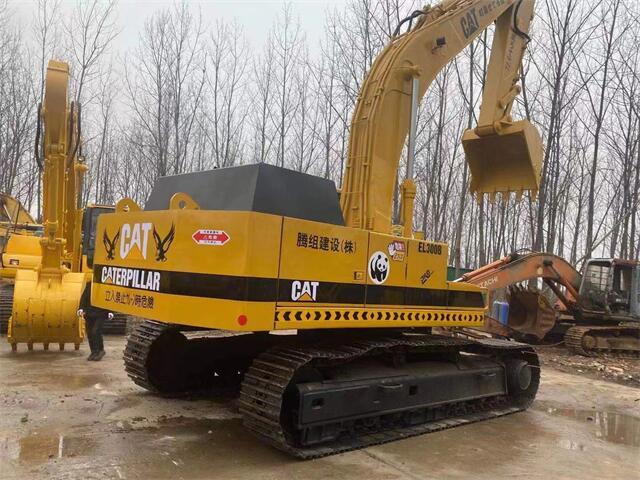

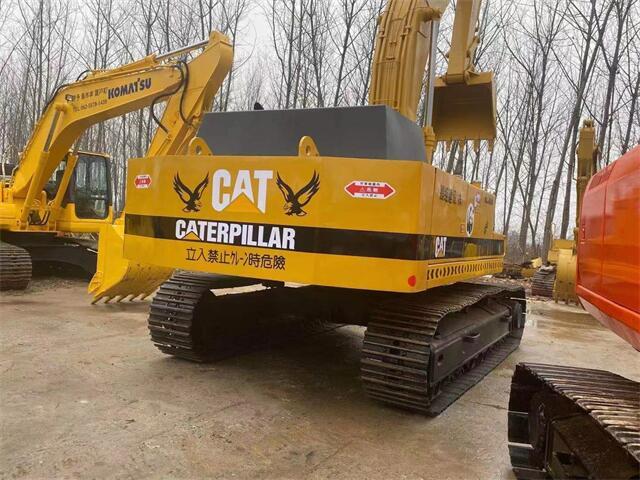

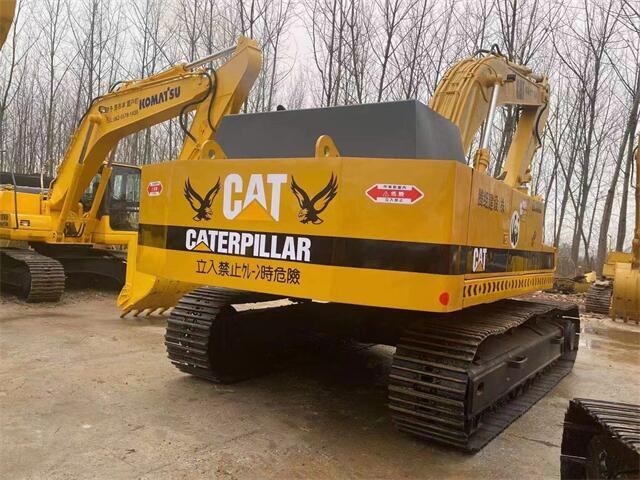

Model: Cat EL300B
Type: Hydraulic Crawler Excavator
Operating Weight: 68,784 lb (31,200 kg)
Standard Bucket Capacity: 1.4 m³ (1.83 yd³) |
| Engine |
Model: Cat 3306
Type: 6-cylinder, 4-cycle diesel
Displacement: 10.5 L (641 cu in)
Net Power: 207 hp (154 kW) @ 2,000 rpm
Max Torque: 678 N•m (500 lbf-ft) @ 1,400 rpm |
| Hydraulics |
System Relief Pressure: 4,550 psi (31.4 MPa)
Pump Flow Capacity: 111 gal/min (420 L/min)
Hydraulic Fluid Capacity: 110.6 gal (419 L) |
| Performance |
Max Travel Speed: 3 mph (5 km/h)
Swing Speed: 9.5 rpm
Drawbar Pull: 231.7 kN (52,090 lbf)
Ground Pressure: 6.6 psi (45.5 kPa)
Max Digging Depth: 21.92 ft (6.68 m)
Max Digging Reach (Ground Level): 33.83 ft (10.31 m)
Max Loading Height: 31.76 ft (9.68 m) |
| Capacities |
Fuel Tank: 137 gal (520 L)
Engine Oil: 12.7 gal (48 L)
Cooling System: 15.9 gal (60 L) |
| Dimensions |
Track Gauge: 8.2 ft (2,500 mm)
Track Shoe Width: 32 in (810 mm)
Tail Swing Radius: 10.5 ft (3,200 mm)
Height to Top of Cab: 10.2 ft (3,122 mm)
Width to Outside of Tracks: 11.2 ft (3,400 mm) |
| Electrical System |
Voltage: 24 V
Alternator Output: 60 A |
