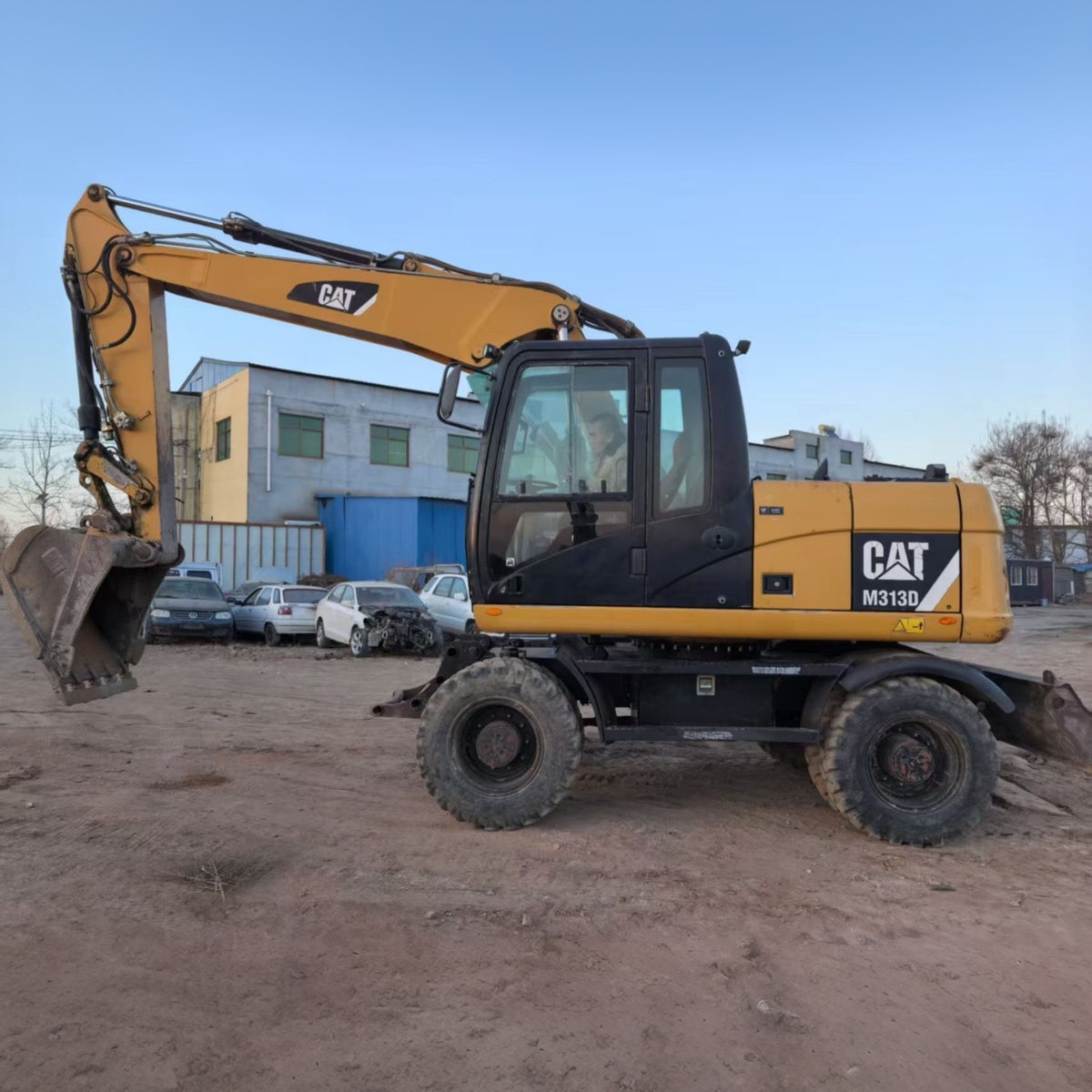

Used CAT M313D
Wheel Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CATM313DLN7752043
MACHINE REFERENCE PRICE
USD 19,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2022
- Meter hours
- 2354 h
- Condition
- Used
- Machine type
- Used Wheel Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) M313D wheel excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: jobs that benefit from road travel between nearby work areas; loading, grading support, and contractor fleet operations; urban trenching, utility work, and municipal road maintenance; pavement, drainage, landscaping, and compact construction sites. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- tires, steering, axles, transmission, service brake, and parking brake
- outriggers, dozer blade, hoses, cylinders, leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic response and boom, arm, bucket, and swing movement
CONFIGURATION
CAT M313D specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CATM313DLN7752043
- Listed Price
- USD $19,000
- Full Model Name
- CAT M313D Wheel Hydraulic Excavator
- Engine Model
- Cat C4.4 ACERT 4-Cylinder Turbo Diesel
- Net Flywheel Power (ISO 9249)
- 95 kW / 127 hp @ 2000 rpm
Full listing reference specifications
- Gross Engine Power (ISO 14396)
- 102 kW / 137 hp @ 2000 rpm
- Displacement
- 4.4 L, Bore 105 mm, Stroke 127 mm
- Max Engine Torque
- 550 N·m @ 1400 rpm
- Emission Standard
- EU Stage IIIA / EPA Tier 3 Equivalent
- Operating Weight Range
- 14000 kg – 16200 kg
- Standard Weight (Rear Dozer + Front Outriggers)
- 14750 kg
- Standard Bucket Capacity
- 0.54 m³ General Duty Bucket
- Optional Bucket Range
- 0.34 m³ ~ 0.88 m³
- Dual Main Pump Total Hydraulic Flow
- 220 L/min
- Implement Relief Pressure
- 350 bar (35000 kPa)
- Swing Circuit Pressure
- 230 bar
- Pilot System Pressure
- 41 bar
- Bucket Digging Force
- 92 kN
- Standard Stick Digging Force
- 64 kN
- Max Digging Depth (Standard Stick)
- 5280 mm
- Max Vertical Wall Dig Depth
- 4630 mm
- Max Ground Reach
- 8340 mm
- Max Dump Height
- 6210 mm
- Swing Speed
- 10.5 rpm
- Max Swing Torque
- 35 kN·m
- Travel Speed (2 Gears)
- Low: 9 km/h; High: 37 km/h
- Creeper Travel Speed
- Low: 3 km/h; High: 13 km/h
- Max Drawbar Pull
- 76 kN
- Max Gradeability
- 58% (30°)
- Standard Tire Spec
- 10.00-20 Dual Pneumatic Tire
- Min Ground Clearance
- 370 mm
- Max Steering Angle
- 35°
- Axle Oscillation Angle
- ±9°
- Min Turning Radius (Tire Outer Edge)
- 6200 mm
- Fuel Tank Capacity
- 235 L
- Hydraulic Tank Volume
- 95 L
- Full Hydraulic System Volume
- 180 L
- Engine Crankcase Oil Volume
- 8 L
- Cooling System Capacity
- 31 L
- Overall Transport Length
- 8310 mm
- Overall Transport Width
- 2550 mm
- Overall Transport Height
- 3120 mm
- Operator Station
- ROPS Sound-Insulated Enclosed Cab with Air Conditioning
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this CAT M313D
Destination port · Application · Preferred condition
