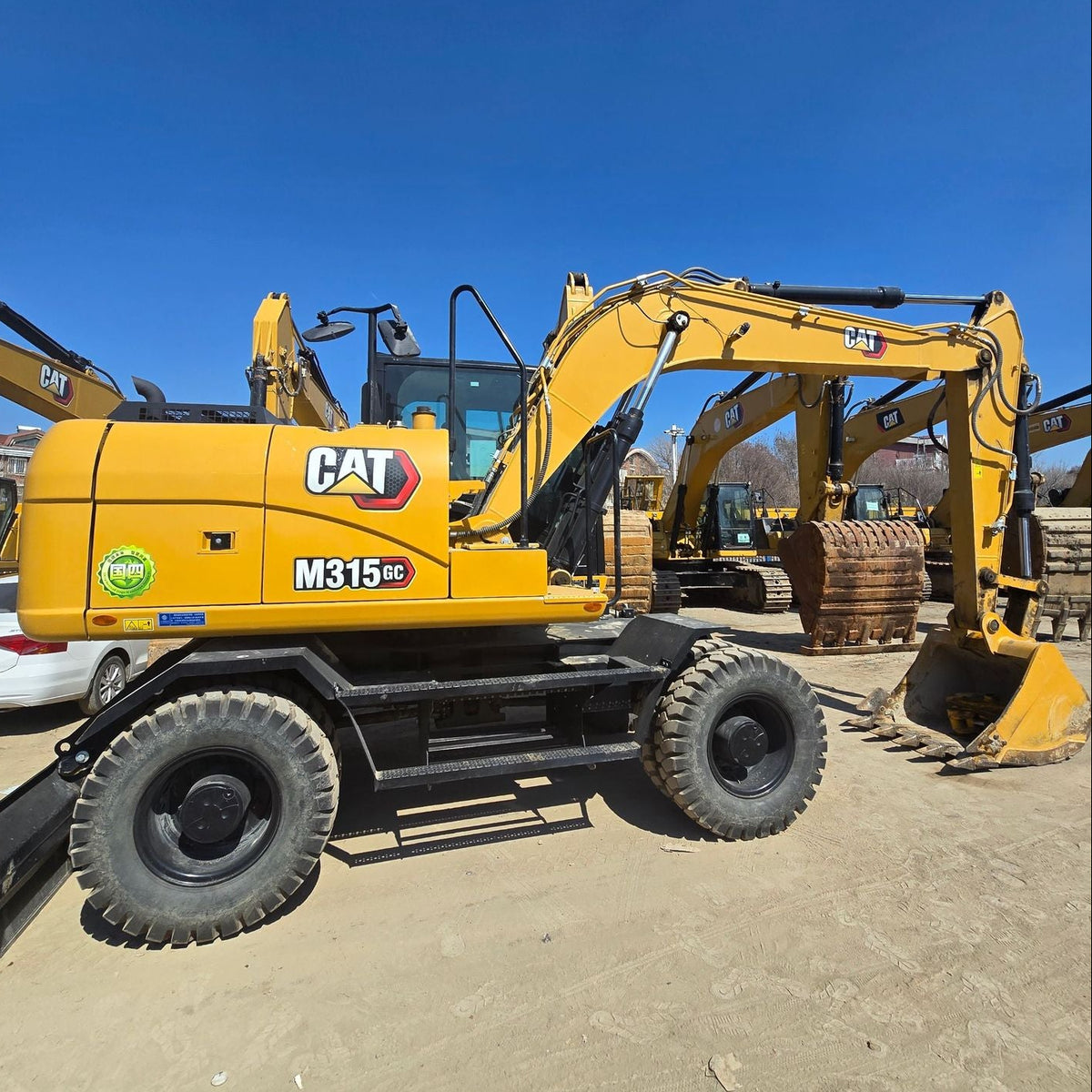

Used CAT M315GC
Wheel Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CATM315GNRZ782554
MACHINE REFERENCE PRICE
USD 19,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2024
- Meter hours
- 500 h
- Condition
- Used
- Machine type
- Used Wheel Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) M315GC wheel excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: jobs that benefit from road travel between nearby work areas; loading, grading support, and contractor fleet operations; urban trenching, utility work, and municipal road maintenance; pavement, drainage, landscaping, and compact construction sites. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- tires, steering, axles, transmission, service brake, and parking brake
- outriggers, dozer blade, hoses, cylinders, leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic response and boom, arm, bucket, and swing movement
CONFIGURATION
CAT M315GC specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CATM315GNRZ782554
- Listed Price
- USD $19,000
- Full Model Name
- CAT M315 GC Wheeled Hydraulic Excavator (General Construction)
- Engine Model
- Cat C4.4 4-Cylinder Turbocharged Diesel
- Gross Power (ISO 14396, 2000 rpm)
- 110 kW / 148 hp
Full listing reference specifications
- Net Flywheel Power (ISO 9249, 2000 rpm)
- 104 kW / 140 hp
- Displacement
- 4.4 L, Bore 105 mm, Stroke 127 mm
- Max Engine Torque
- 520 N·m @ 1400 rpm
- Emission Standard
- China Nonroad Stage IV / EU Stage IIIA / EPA Tier 3 Equivalent Cat
- Standard Operating Weight (Blade + Outriggers)
- 14,150 kg
- Max Full Configuration Weight
- 15,600 kg Cat
- Standard General Duty Bucket Capacity
- 0.65 m³
- Dual Main Pump Total Hydraulic Flow
- 245 L/min
- Implement & Travel Relief Pressure
- 350 bar (35,000 kPa)
- Swing Circuit Pressure
- 259 bar (25,900 kPa) H-CPC
- Pilot System Pressure
- 41 bar
- Bucket Digging Force (ISO)
- 106 kN
- Standard Stick Digging Force (ISO)
- 73 kN
- Max Digging Depth (Standard Stick)
- 5,091 mm
- Max Vertical Wall Dig Depth
- 4,198 mm Cat
- Max Ground Line Reach
- 8,312 mm
- Max Loading Dump Height
- 6,378 mm
- Max Cutting Height
- 8,392 mm Cat
- Swing Speed
- 11.5 rpm
- Max Swing Torque
- 34 kN·m
- Travel Speed (2-speed transmission)
- Low gear: 9 km/h; High gear: 37 km/h
- Max Drawbar Pull
- 82 kN
- Max Gradeability
- 58% (30°)
- Standard Tire Spec
- 10.00-20 Dual Heavy-Duty Pneumatic Tires
- Min Turning Radius (Outer Tire Edge)
- 6,400 mm
- Axle Oscillation Angle
- ±9°
- Fuel Tank Capacity
- 230 L
- Full Hydraulic System Volume
- 230 L
- Engine Crankcase Oil Volume
- 8 L
- Cooling System Capacity
- 32 L
- Overall Transport Length
- 8,450 mm
- Overall Transport Width
- 2,550 mm
- Overall Transport Height
- 3,180 mm
- Min Ground Clearance
- 380 mm
- Operator Station
- ROPS & FOPS Certified Sound-Dampened Enclosed Cab, Touchscreen Monitor, Auto Air Conditioning, Rearview Camera
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this CAT M315GC
Destination port · Application · Preferred condition
