COMPANY RECORD
Workshop preparation example
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →YUANJIAN MACHINERY · HEFEI, CHINA

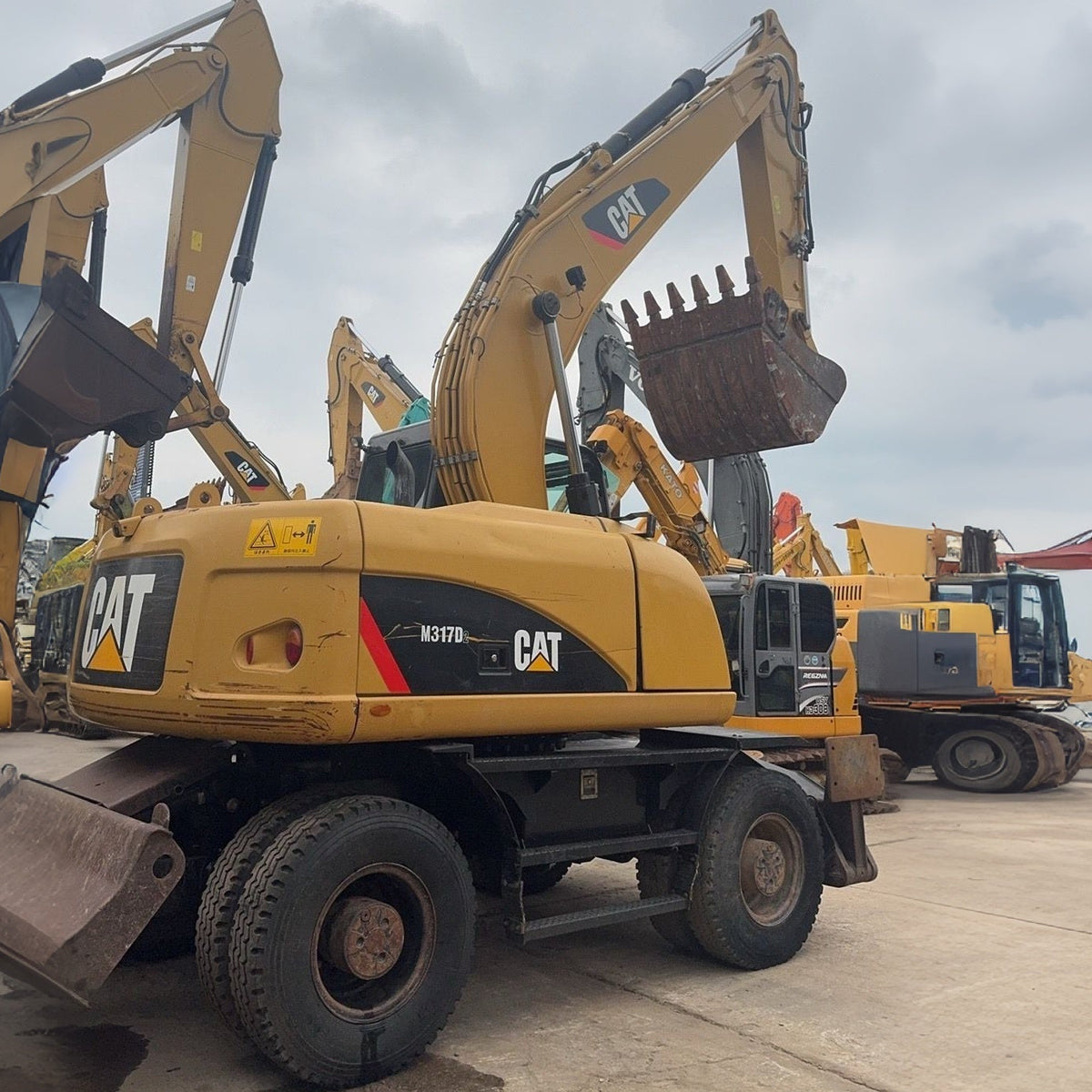

Used CAT M317D2
Wheel Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: CATM317DCP2559978
MACHINE REFERENCE PRICE
USD 20,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2023
- Meter hours
- 1257 h
- Condition
- Used
- Machine type
- Used Wheel Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
CAT Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Caterpillar (CAT) M317D2 wheel excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: urban trenching, utility work, and municipal road maintenance; pavement, drainage, landscaping, and compact construction sites; jobs that benefit from road travel between nearby work areas; loading, grading support, and contractor fleet operations. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic response and boom, arm, bucket, and swing movement
- tires, steering, axles, transmission, service brake, and parking brake
- outriggers, dozer blade, hoses, cylinders, leakage points, and cab condition
CONFIGURATION
CAT M317D2 specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
CATM317DCP2559978
- Listed Price
- USD $20,000
- Full Model Name
- CAT M317D2 Wheeled Hydraulic Excavator
- Engine Model
- Cat C4.4 Inline 4-Cylinder Turbo Diesel
- Net Power (ISO 9249, 2000 rpm)
- 101 kW / 137 hp
Full listing reference specifications
- Gross Power (ISO 14396, 2000 rpm)
- 108 kW / 147 hp
- Displacement
- 4.4 L; Bore 105 mm × Stroke 127 mm
- Max Engine Torque
- 550 N·m @ 1400 rpm
- Emission Standard
- Equivalent to EPA Tier 3 / EU Stage IIIA / China Nonroad Stage III
- Operating Weight Range
- 15,300 – 17,500 kg
- Standard Weight (One-Piece Boom, Front Blade + Rear Outriggers)
- 16,290 kg
- Standard Weight (VA Variable Adjustable Boom, Blade + Outriggers)
- 16,790 kg
- Standard General Duty Bucket Capacity
- 0.80 m³
- Optional Bucket Range
- 0.35 ~ 0.91 m³
- Main Hydraulic Pump Total Flow
- 220 L/min
- Implement & Travel Circuit Pressure
- 350 bar (35,000 kPa)
- Swing Circuit Relief Pressure
- 370 bar (37,000 kPa)
- Pilot System Pressure
- 41 bar
- Bucket Digging Force (ISO)
- 112 kN
- Standard Stick Digging Force (ISO)
- 81 kN
- Max Digging Depth (2.5m Standard Stick)
- 6,070 mm
- Max Vertical Wall Dig Depth
- 5,160 mm
- Max Ground Line Reach
- 9,380 mm
- Max Loading Dump Height
- 6,840 mm
- Max Cutting Height
- 8,960 mm
- Swing Speed
- 9 – 10.5 rpm
- Max Swing Torque
- 42 kN·m
- Travel Speed (2-Speed Powershift)
- Low: 9 km/h; High: 37 km/h
- Max Drawbar Pull
- 88 kN
- Max Gradeability
- 58% (30°)
- Standard Tire Size
- 10.00-20 Heavy-Duty Dual Pneumatic Tires
- Min Ground Clearance
- 370 mm
- Max Steering Angle
- 35°
- Axle Oscillation Angle
- ±9°
- Min Turning Radius (Outer Tire Edge)
- 6,300 mm
- Fuel Tank Capacity
- 240 L
- Hydraulic Tank Volume
- 121 L
- Full Hydraulic System Volume
- 280 L
- Engine Crankcase Oil Volume
- 8 L
- Cooling System Capacity
- 33 L
- Overall Transport Length (VA Boom)
- 8,720 mm
- Overall Transport Width
- 2,550 mm
- Overall Transport Height (Cab Top)
- 3,320 mm
- Operator Station
- ROPS & FOPS Certified Sound-Dampened Enclosed Cab, Air Conditioning, Color LCD Monitor, Rearview Camera
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this CAT M317D2
Destination port · Application · Preferred condition
