DOOSAN

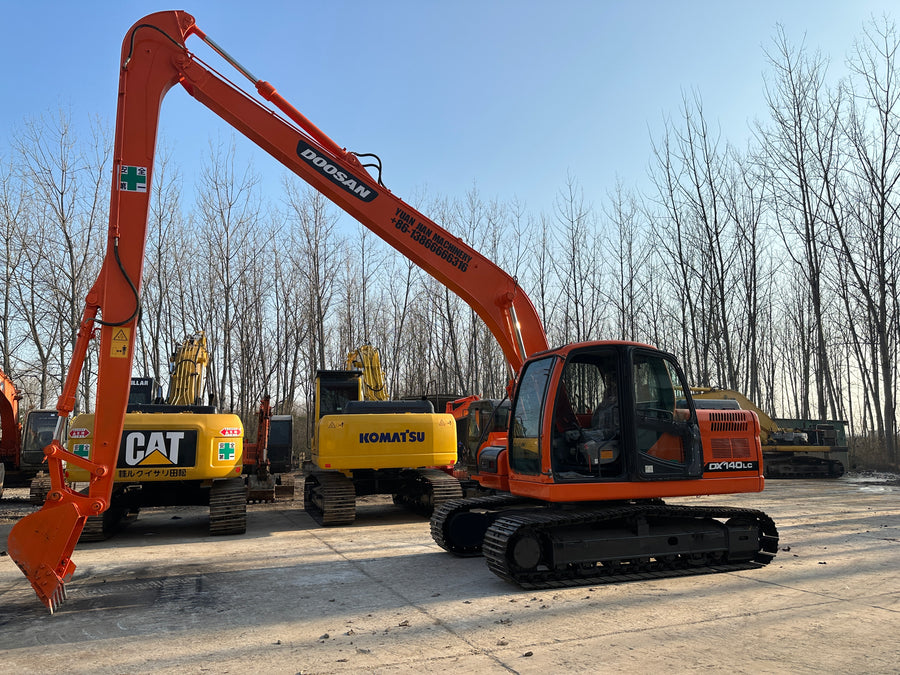

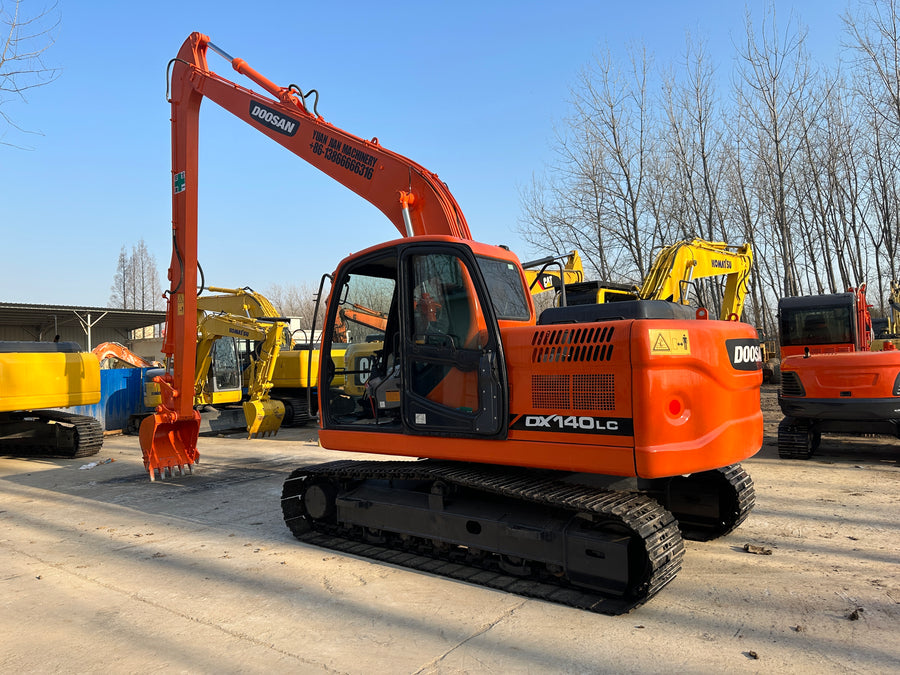

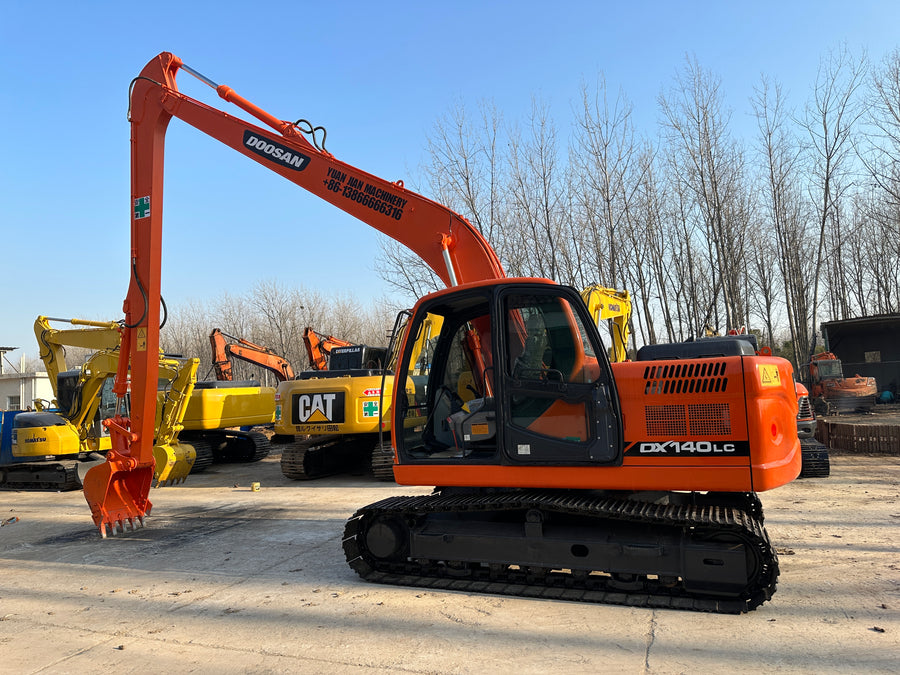

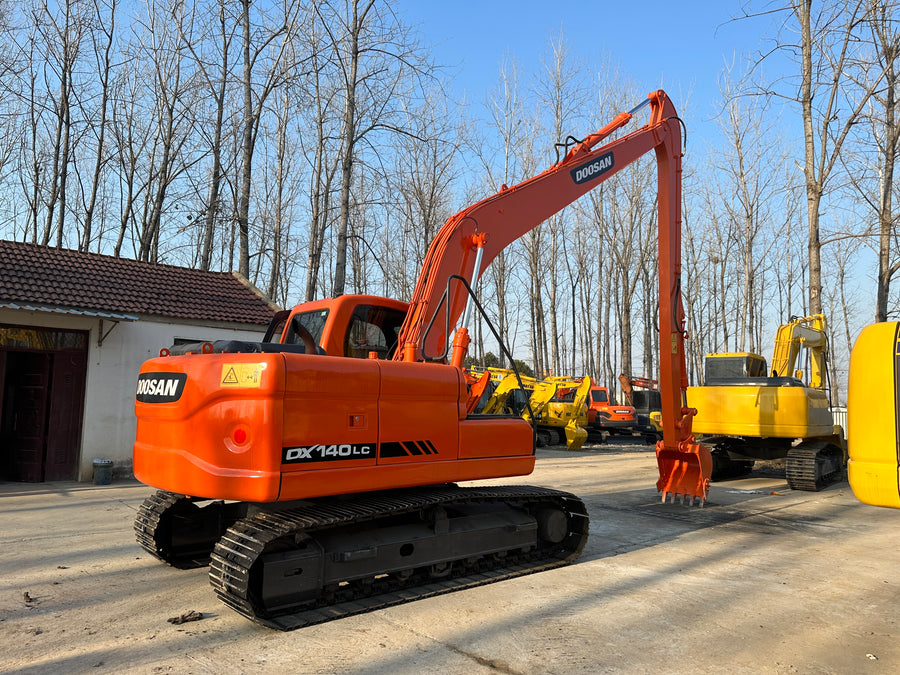

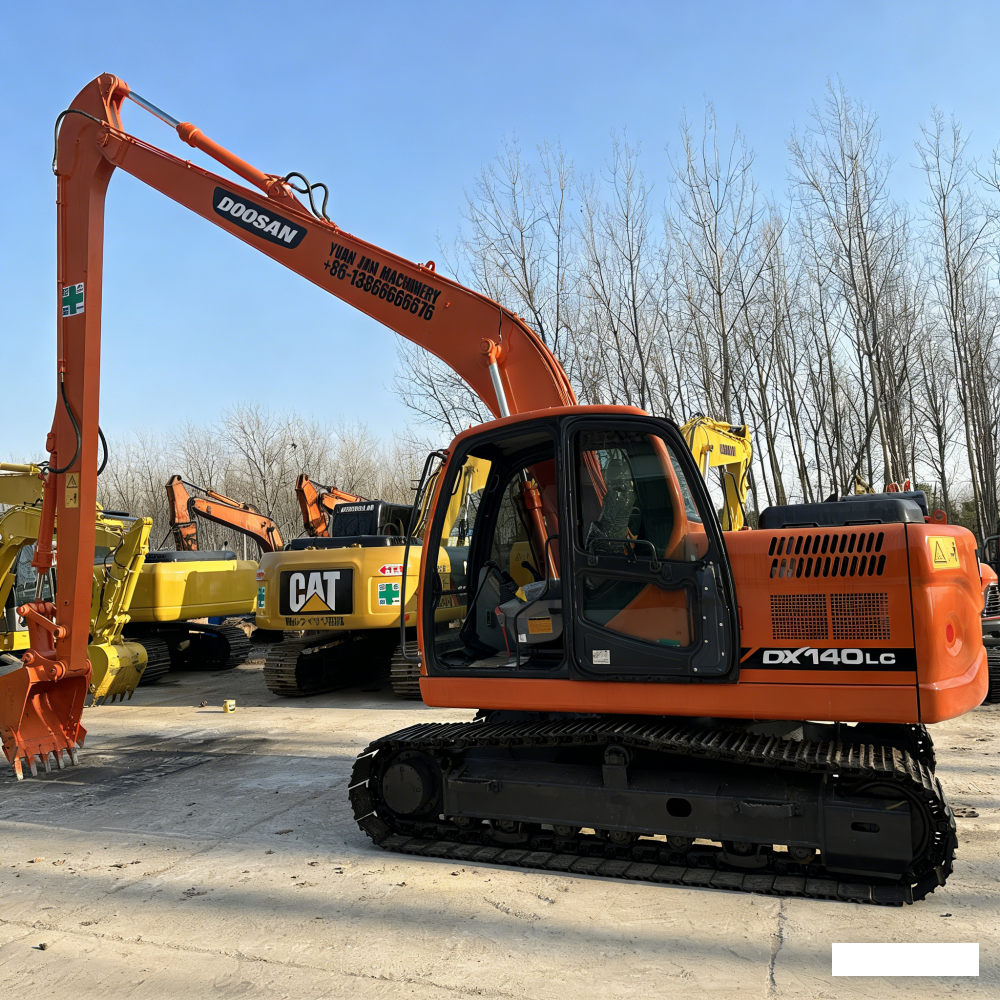

USED DOOSAN DX140LC
USED DOOSAN DX140LC
Regular price
$18,000.00 USD
Regular price
Sale price
$18,000.00 USD
Quantity
Couldn't load pickup availability
| Category | Parameter | Value |
|---|---|---|
| Basic Specifications | Model | Doosan DX140LC |
| Machine Working Weight | 14,000 kg | |
| Bucket Capacity (SAE Heaped) | 0.24-0.76 m³ (standard 0.51 m³) | |
| Boom Length | 4,600 mm | |
| Stick Length | 2,500 mm | |
| Power System | Engine Model | Doosan DL06 (6 - cylinder diesel, common rail) |
| Rated Power | 71 kW (95 HP)/1,850 rpm (SAE J1349, net) | |
| Displacement | 5.89 L | |
| Max Torque | 446 Nm / 1,400 rpm | |
| Cooling Method | Water - cooled | |
| Performance | Bucket Digging Force | 94 kN |
| Stick Digging Force | 68 kN | |
| Max. Digging Radius | 8,300 mm | |
| Max. Digging Depth | 5,645 mm | |
| Max. Digging Height | 8,675 mm | |
| Max. Unloading Height | 6,300 mm | |
| Swing Speed | 12.4 rpm | |
| Travel Speed | 3.0-4.7 km/h | |
| Gradeability | 70% (35°) | |
| Hydraulic System | Main Pump Type | 2 × Variable Displacement Axial Piston Pumps |
| Main Pump Max. Flow | 2 × 114 L/min | |
| Pilot Pump | Gear Pump, max flow 27.75 L/min | |
| Working Hydraulic Circuit Pressure | 32.4 MPa (normal mode), 34.3 MPa (power mode) | |
| Travel Hydraulic Circuit Pressure | 32.4 MPa | |
| Swing Hydraulic Circuit Pressure | 24.0 MPa | |
| Dimensions | Total Transport Length | 7,680 mm |
| Total Transport Width | 2,590 mm | |
| Total Transport Height | 2,710 mm | |
| Track Width | 600 mm | |
| Oil Capacity | Fuel Tank | 280 L |
| Hydraulic Tank | 150 L | |
| Engine Oil Capacity | 25 L |
